Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 150W-175W
Wattage 30W/40W/50W
Lumens 3300L-5750L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish White
Beam Angle 120
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 2x4
Wattage Selectable Yes
Fixture Type Backlit Flat Panel
Length 47.72 IN
Photocell No Photocell
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm to Cool White
Safety Listing cETLus - Listed
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
NSF Yes
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Aluminum / Steel

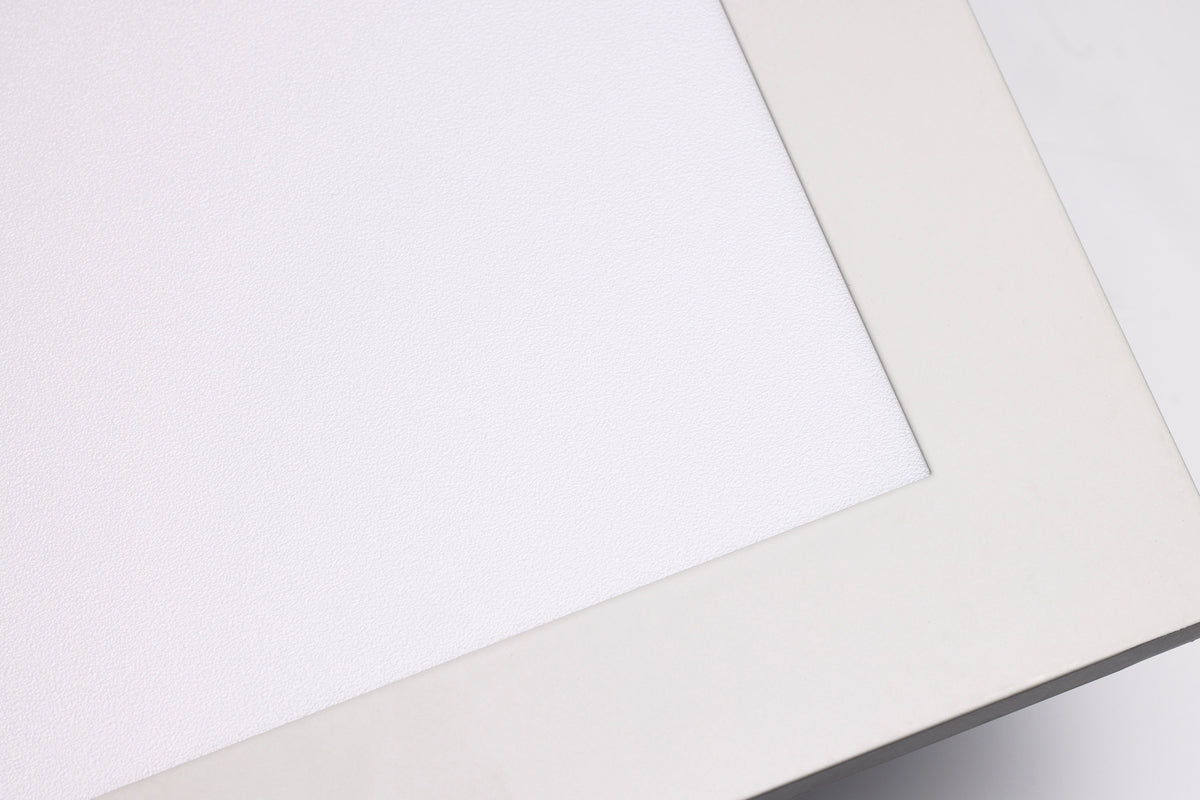

Finish/Lens Frost
Width 23.75 IN
Height 1.5 IN
Weight 9.04 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)

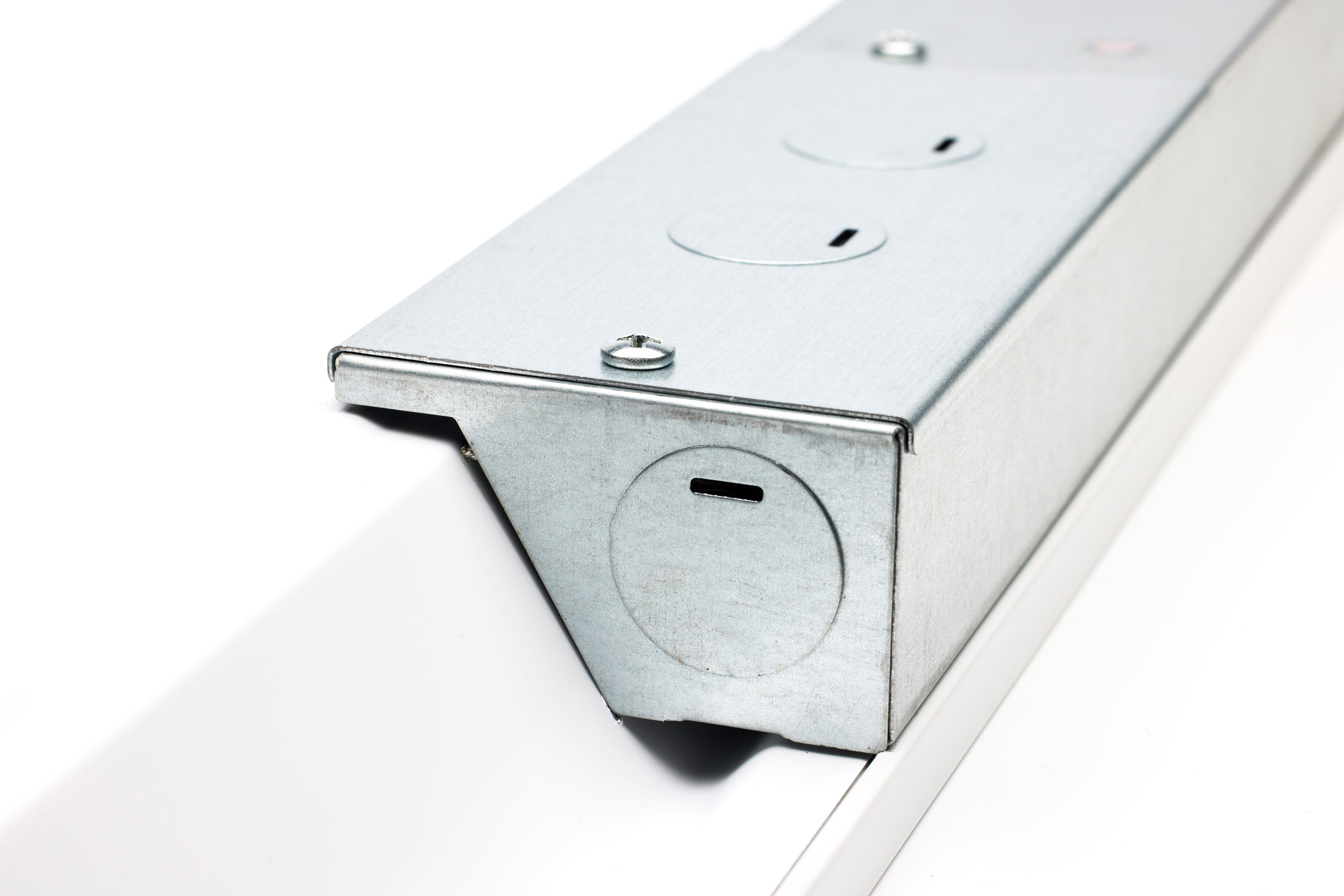

Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature +1.4F to +113F (-17C to +45C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

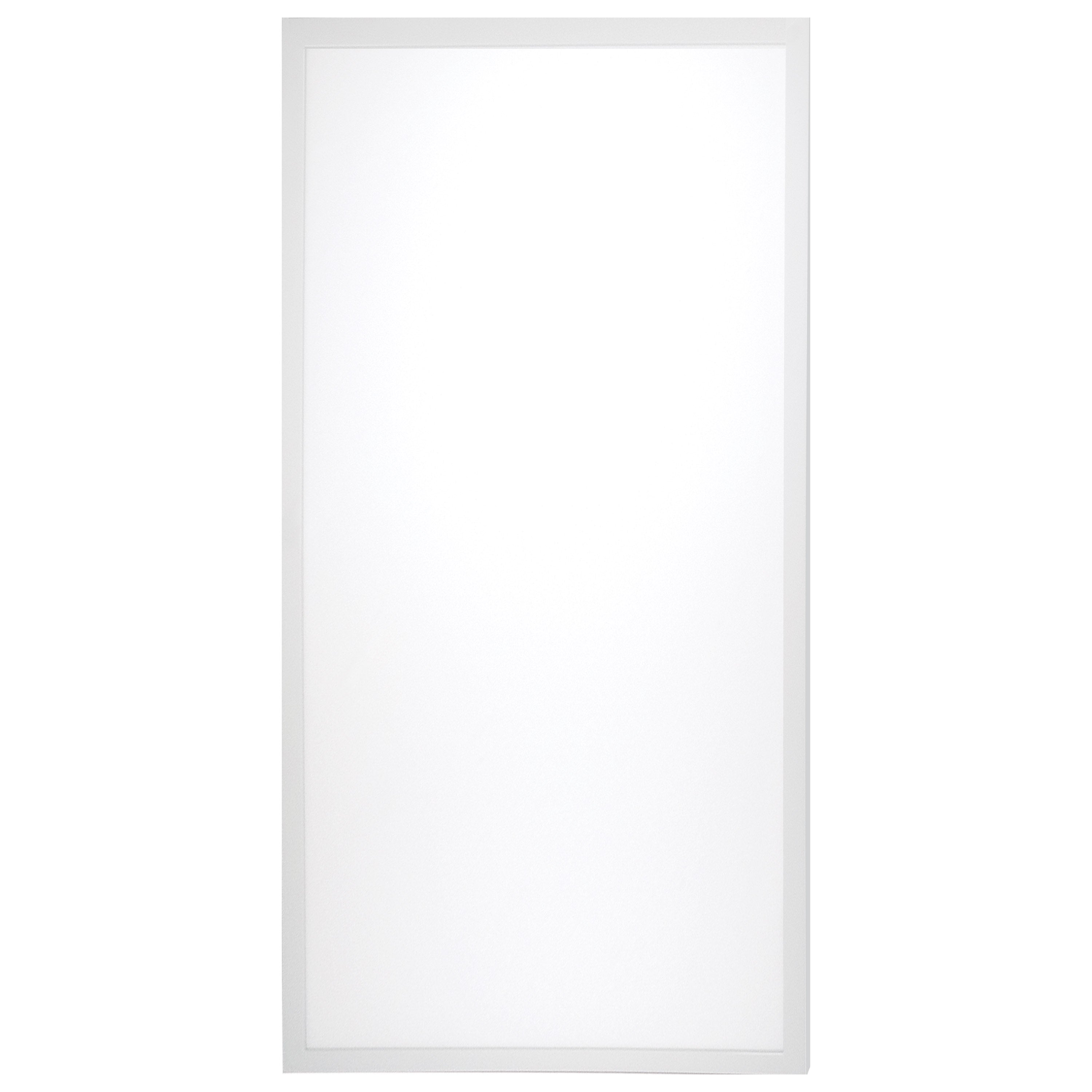

LED Backlit Flat Panel - 2 ft. x 4 ft. - Wattage and CCT Selectable - 120-347 Volt - ColorQuick Technology - PowerQuick Technology - White Finish brings the familiar role of a commercial ceiling light to offices, classrooms, retail spaces, healthcare environments and other commercial interiors. It is a practical choice for customers comparing LED troffer light and drop ceiling lighting for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

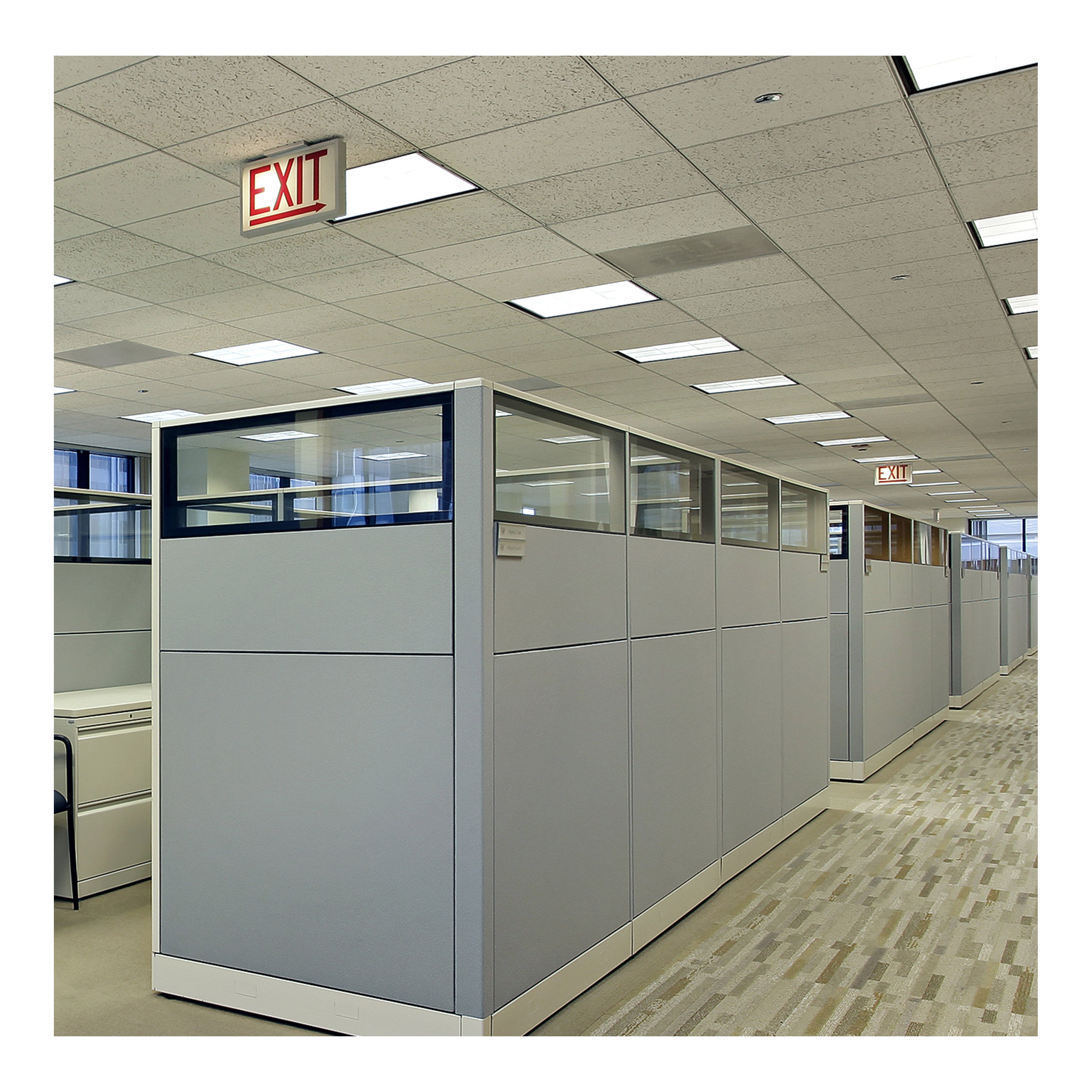

Works well when project teams need repeatable fixtures throughout offices or public spaces. It is well suited to renovations, tenant improvements and facility upgrades that need consistent overhead illumination, where lighting needs to support the space rather than distract from it. This makes the product a practical drop ceiling lighting choice for customers also considering LED panel light as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. This is particularly helpful for grid-ceiling and general commercial lighting projects. Whether the goal is to replace an existing item, complete a larger fixture schedule, or source matching products across multiple rooms, the emphasis stays on application fit and practical purchasing. That makes the product relevant to both one-off replacements and larger residential or commercial lighting orders.

For buyers looking to shop commercial ceiling fixtures, LED Backlit Flat Panel is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

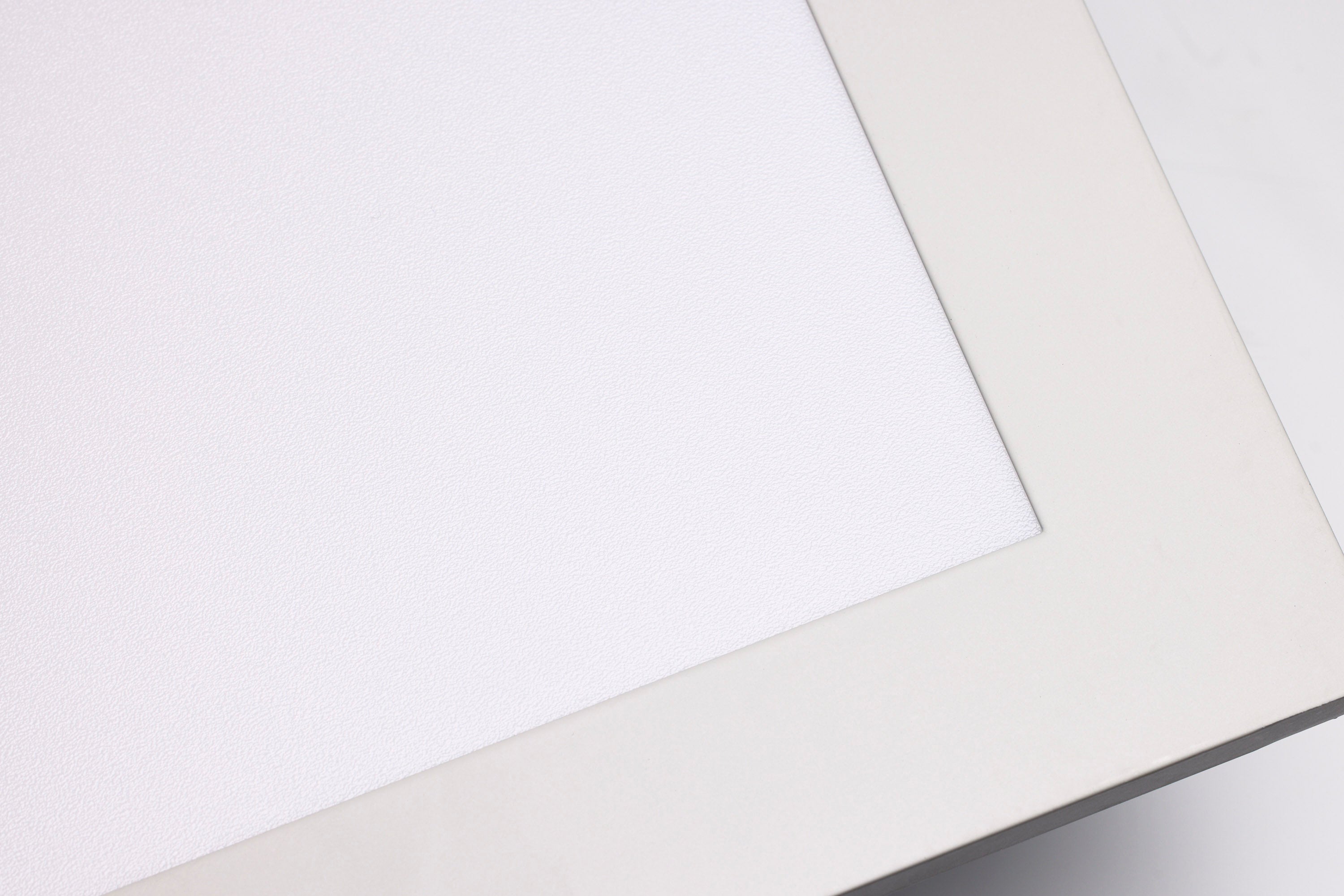

SATCO NUVO's LED Backlit 2x4 Flat Panel 65-582R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at the time of installation, making this fixture extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. The use of a flicker free driver reduces strobing, generating comfortable light that is suitable for long-term task usage. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance free life.

Features :-

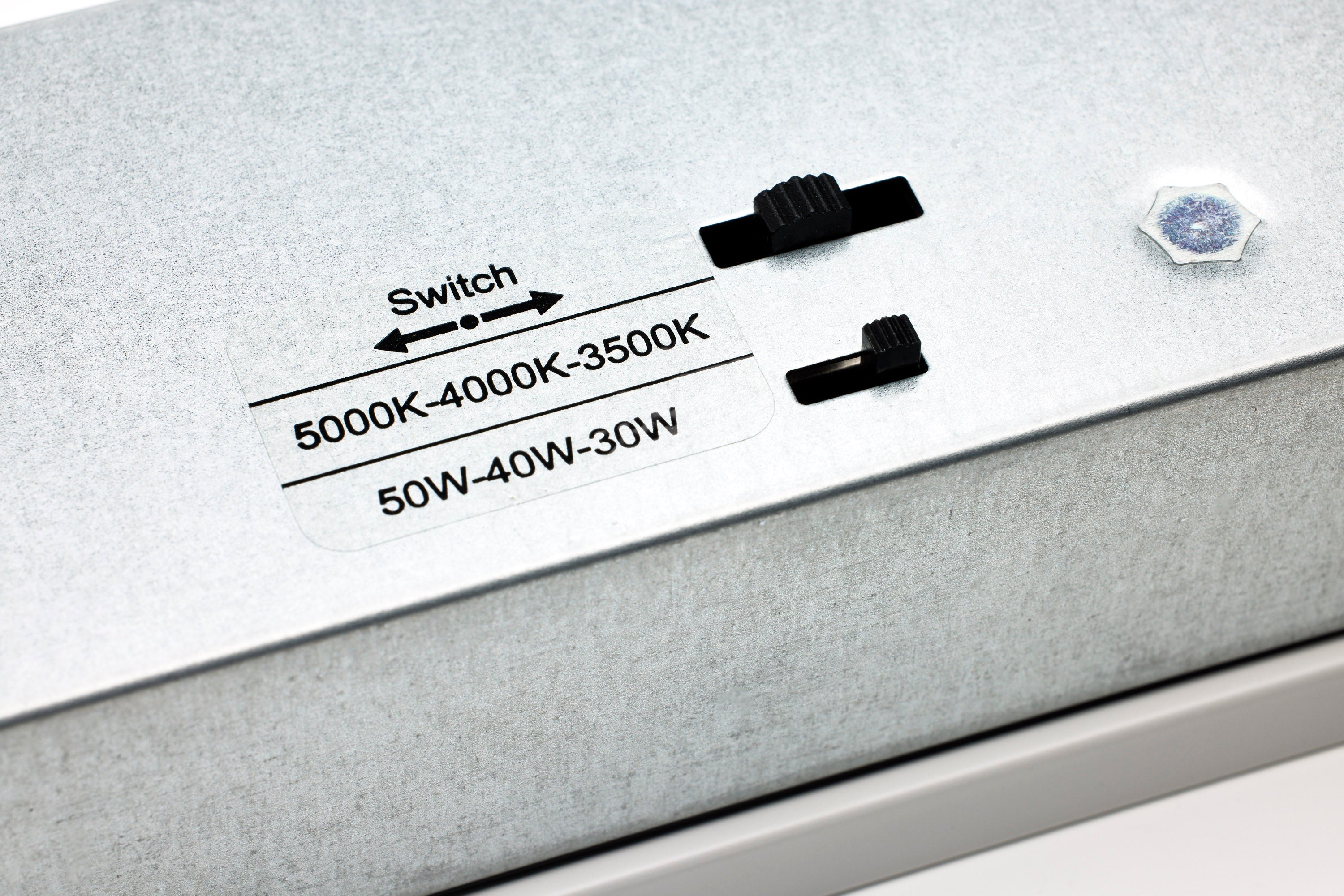

  • 3500K/4000K/5000K CCT Selectable
  • 30W/40W/50W Wattage Selectable
  • Higher 120-347 Voltage Range
  • Flicker Free, Even Light Distribution
  • 0-10V Dimmable
  • 50,000 average rated hours of use
  • DLC Listed

Shipping Policy

We offer fast, reliable shipping with free shipping on eligible orders. Most in-stock orders are processed within 1–2 business days and include tracking information.Delivery times vary by shipping method and destination, with standard shipping typically arriving within 3–10 business days. Some specialty items may require additional processing time.For any shipping questions or order assistance, please contact our support team we're happy to help.

Returns & Refunds

Returns are accepted within 10 days of delivery for unused items in their original packaging. An RMA (Return Authorization) is required before returning any item. Restocking fees may apply.

 Lighting SolutionsYou Can Buy With Confidence

Wide Product Selection

Shop lighting solutions across trusted brands, applications, and project types.

Competitive Pricing

Find value for everyday purchases, replacements, renovations, and larger lighting projects.

Bulk Order Support

Planning a larger order? Request project pricing and help finding suitable products.

Lighting Experts

Need help choosing the right product? Our team can assist with your lighting requirements.

Frequently Asked Questions

Everything you need to know about the LED Backlit Flat Panel - 2 ft. x 4 ft. - Wattage and CCT Selectable - 120-347 Volt - ColorQuick Technology - PowerQuick Technology - White Finish

What installation settings make this flat panel with 3500K/4000K/5000K/120V-347V details practical for replacement or new lighting projects?

How should installers evaluate 30/40/50W power and 120V-347V input requirements for this flat panel before installation?

What performance should buyers expect from this flat panel using 30/40/50W power and 3300/5750 lumens in practice?

Where should customers order this flat panel featuring Integrated/120V-347V specifications for renovation, replacement, or new lighting projects?
