Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 100W-150W
Wattage 20W/30W/40W
Lumens 2200L-4600L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 120
Shape Rectangle
Color Temperature Selectable Yes
Panel Type 1x4
Wattage Selectable Yes
Fixture Type Backlit Flat Panel
Length 47.72 IN
Photocell No Photocell
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm to Cool White
Safety Listing cETLus - Listed
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) 9%
Surge Protection Built-in surge protection - 2KV
Battery Chemistry Lithium-ion (Li-ion)
NSF Yes
Features / Controls
Emergency Backup Yes
0-10V 0-10V Dimming
Construction / Installation
Material Aluminum / Steel
Finish/Lens Frost
Width 11.84 IN
Height 3.09 IN
Weight 4.98 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature +1.4F to +113F (-17C to +45C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Yes
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

LED Emergency Backlit Flat Panel - 1 ft. x 4 ft. - Wattage and CCT Selectable - 120-277 Volt - ColorQuick Technology - PowerQuick Technology - White Finish brings the familiar role of a commercial ceiling light to renovations, tenant improvements and facility upgrades that need consistent overhead illumination. It is a practical choice for customers comparing LED troffer light and office LED light fixture for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. That is especially useful in offices, classrooms, retail spaces, healthcare environments and other commercial interiors. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a commercial ceiling light, this option is well suited to projects involving office LED light fixture, LED panel light and other coordinated lighting upgrades.

Supports a clean, organized ceiling layout across larger commercial interiors. In grid-ceiling and general commercial lighting projects, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

If you are ready to buy LED panel and troffer lights online, LED Emergency Backlit Flat Panel offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

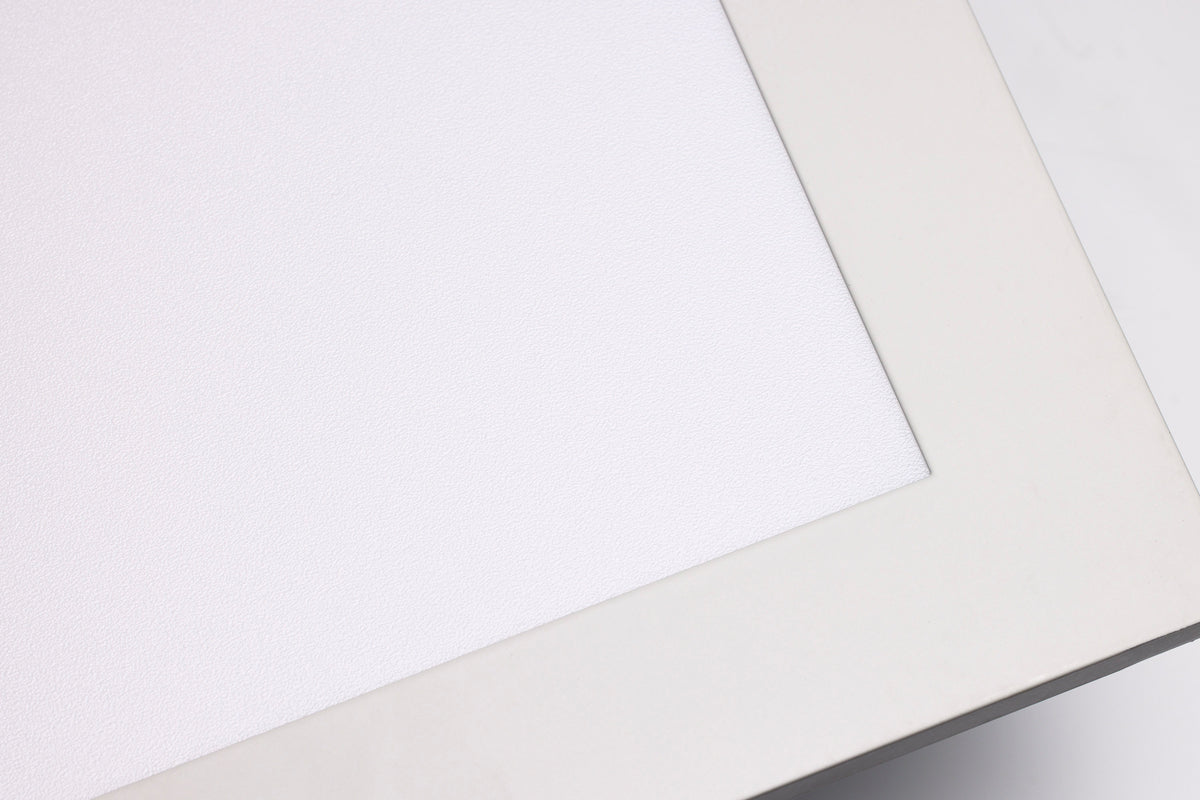

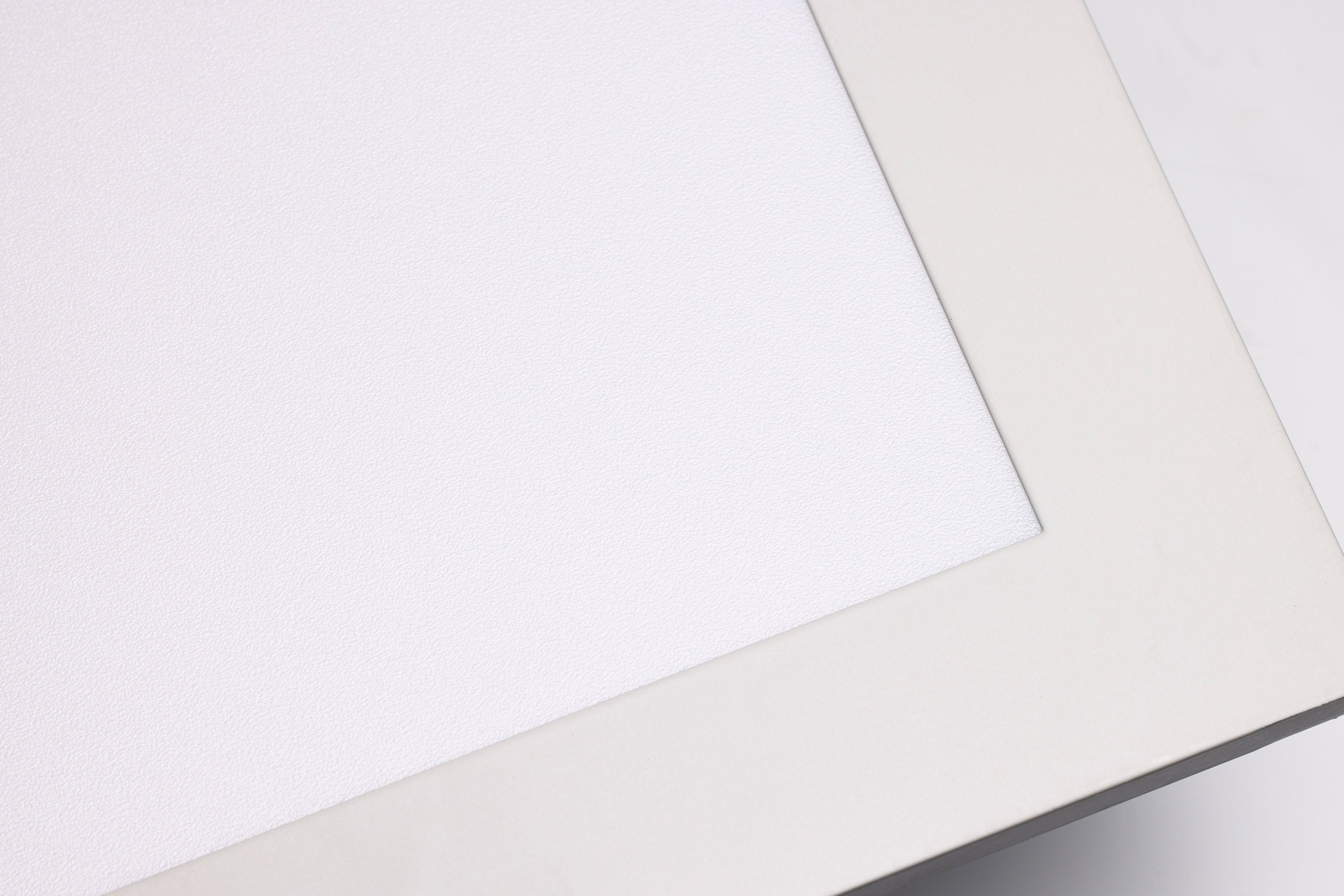

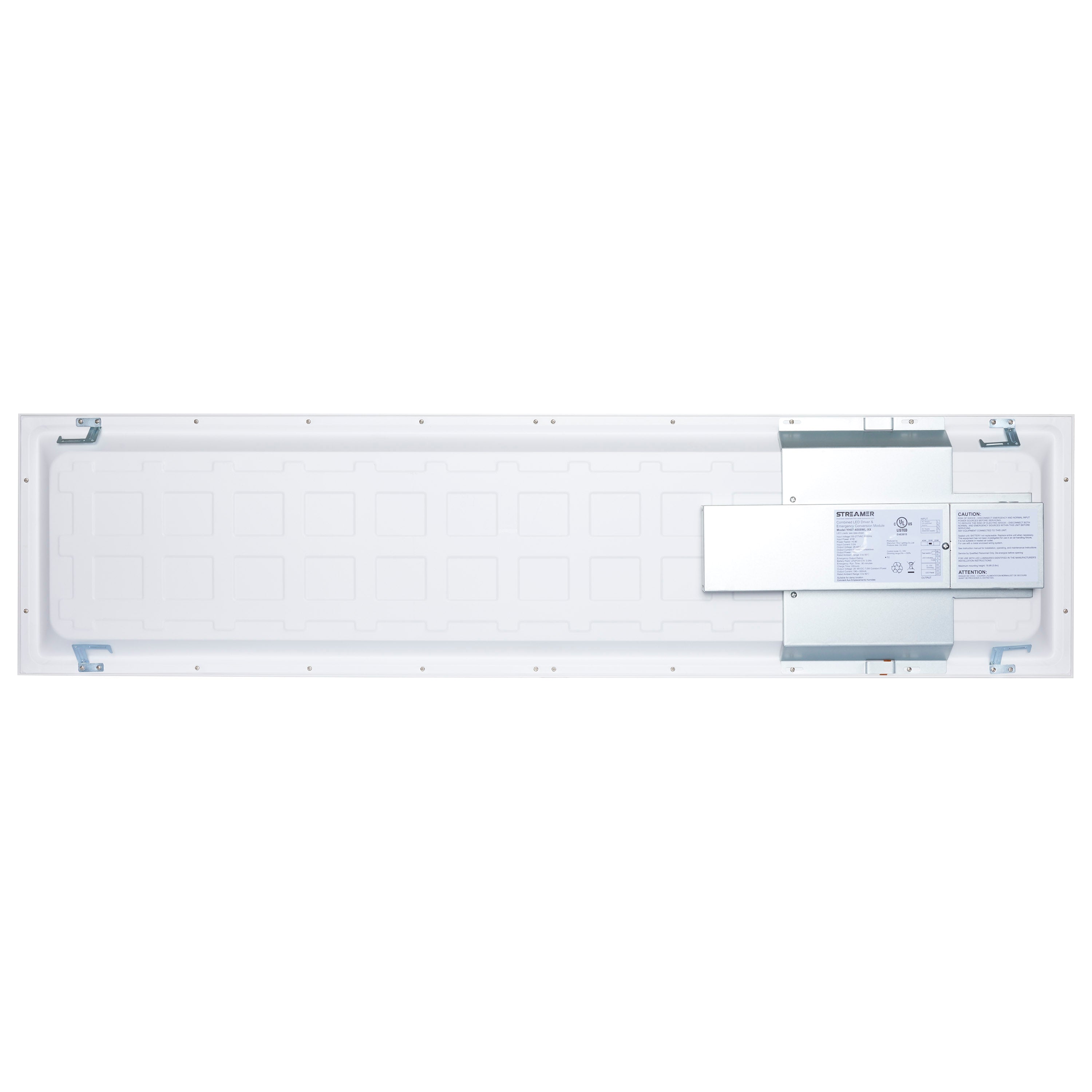

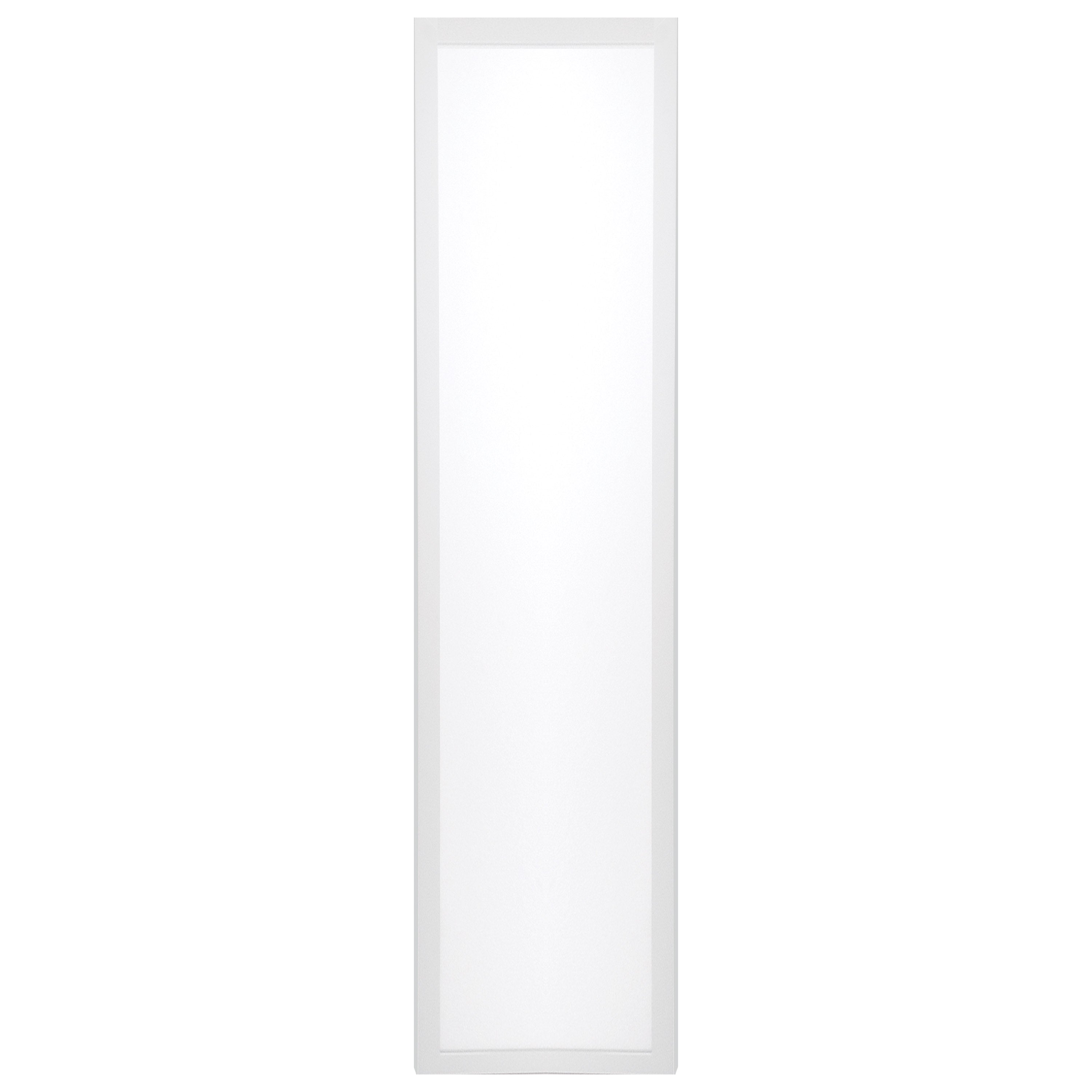

SATCO NUVO's LED Backlit 1x4 Flat Panel 65-577R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at the time of installation, making this fixture extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. The use of a flicker free driver reduces strobing, generating comfortable light that is suitable for long-term task usage. This model features an emergency battery backup driver that provides 90 minutes of light with 8 watts of power and 1000 lumens making you feel safe and sound just when you need it the most. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance free life.

Features :-

  • 3500K/4000K/5000K CCT Selectable
  • 20W/30W/40W Wattage Selectable
  • Integrated emergency battery backup with 90-minute run time
  • Flicker Free, Even Light Distribution
  • 0-10V Dimmable
  • 50,000 average rated hours of use
  • DLC Listed
