Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 100W-150W
Wattage 20W/30W/40W
Lumens 2200L-4600L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish White
Beam Angle 120
Shape Square
Color Temperature Selectable Yes
Panel Type 2x2
Wattage Selectable Yes
Fixture Type Backlit Flat Panel
Length 23.75 IN
Photocell No Photocell
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm to Cool White
Safety Listing cETLus - Listed
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) 17.20%
Surge Protection Built-in surge protection - 2KV
Battery Chemistry Lithium-ion (Li-ion)
NSF Yes
Features / Controls
Emergency Backup Yes
0-10V 0-10V Dimming
Construction / Installation
Material Aluminum / Steel
Finish/Lens Frost
Width 23.75 IN
Height 2.88 IN
Weight 7.28 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature +1.4F to +113F (-17C to +45C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Yes
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose LED Emergency Backlit Flat Panel - 2 ft. x 2 ft. - Wattage and CCT Selectable - 120-347 Volt - ColorQuick Technology - PowerQuick Technology - White Finish when your project calls for a commercial ceiling light suited to renovations, tenant improvements and facility upgrades that need consistent overhead illumination. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for LED troffer light that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Works well when project teams need repeatable fixtures throughout offices or public spaces. In practical terms, that makes this product relevant for offices, classrooms, retail spaces, healthcare environments and other commercial interiors. It also fits naturally into projects considering office LED light fixture and drop ceiling lighting, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

Supports a clean, organized ceiling layout across larger commercial interiors. In grid-ceiling and general commercial lighting projects, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

For buyers looking to order office LED lighting for renovation projects, LED Emergency Backlit Flat Panel is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

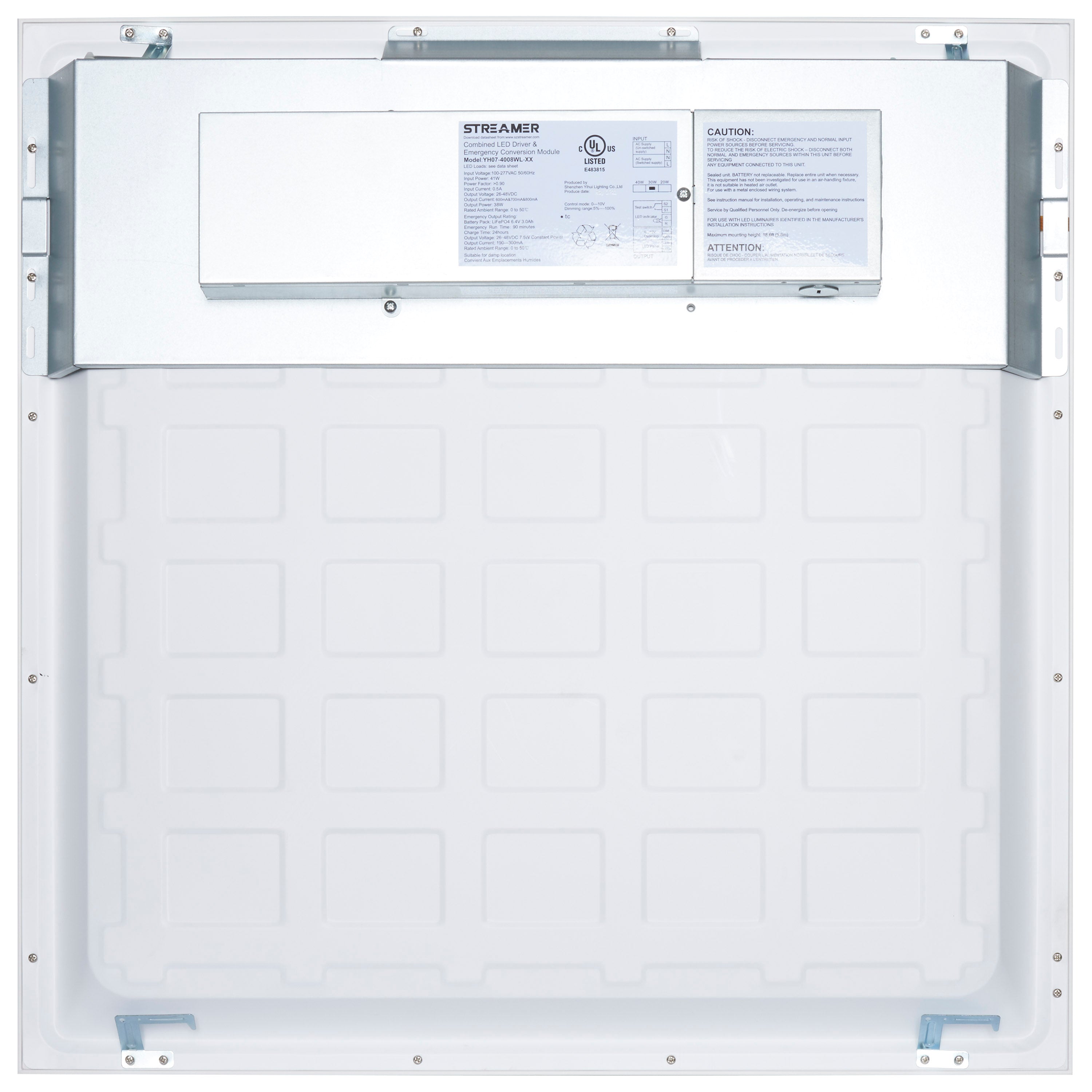

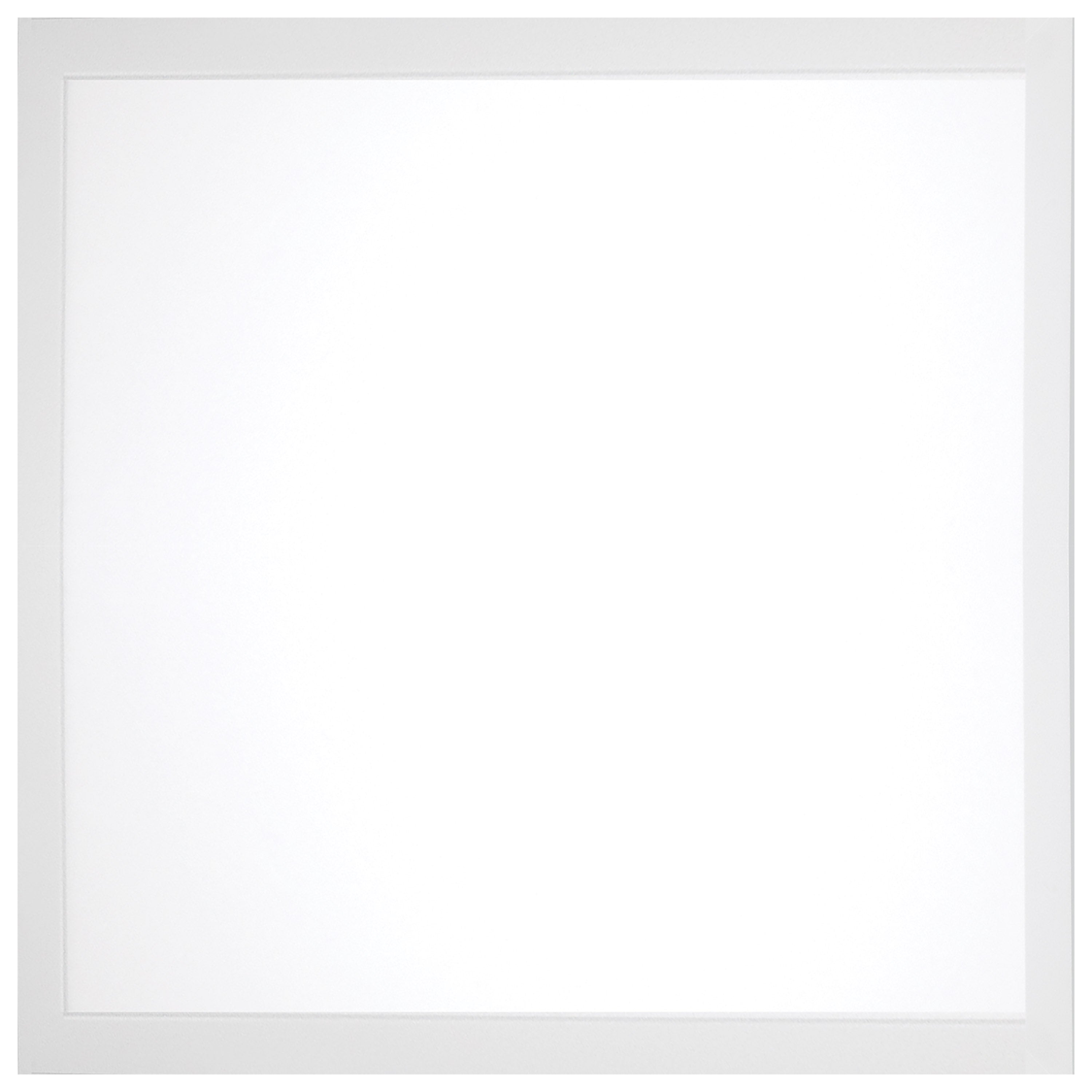

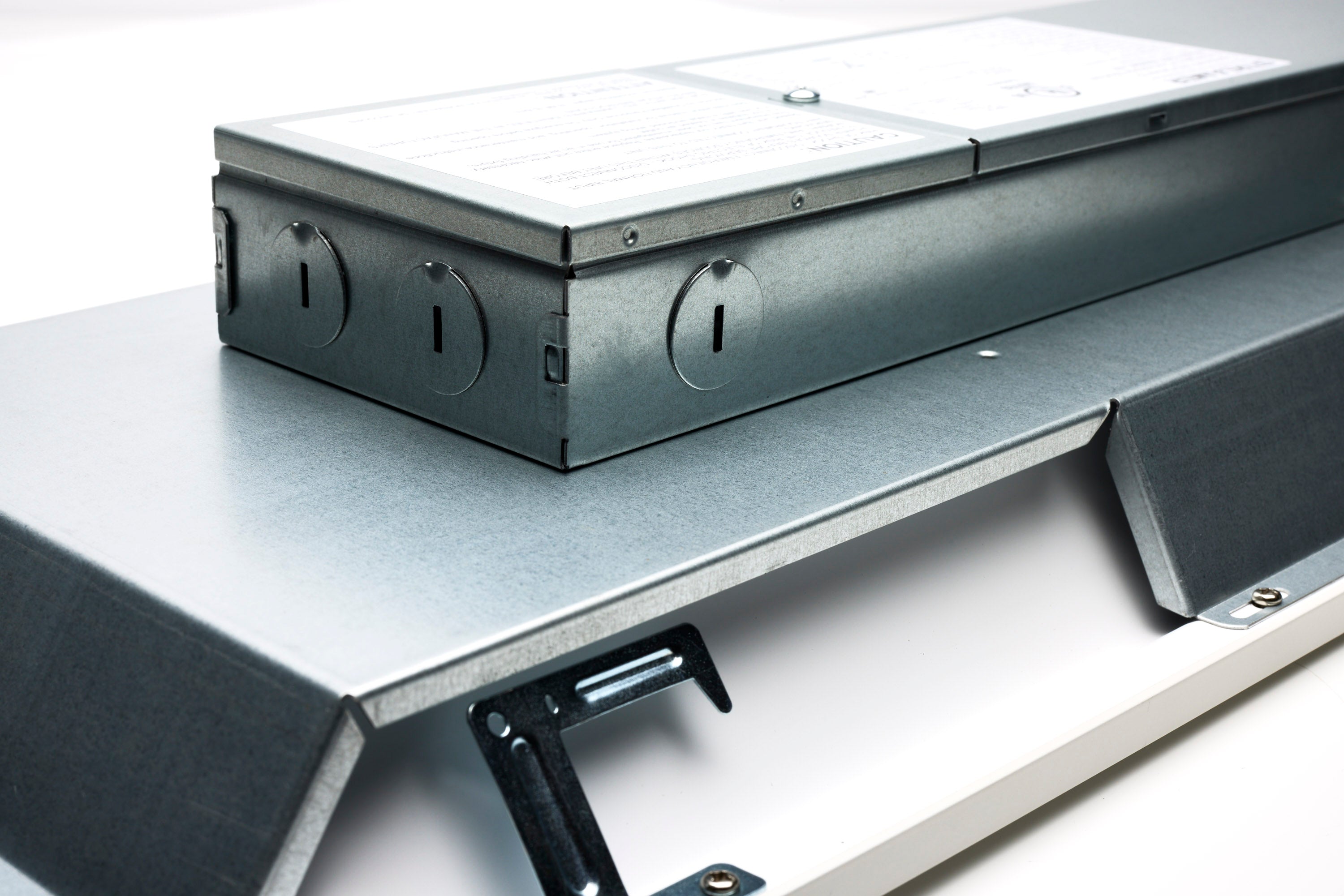

SATCO NUVO's LED Backlit 2X2 Flat Panel 65-585R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at the time of installation, making this fixture extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. The use of a flicker free driver reduces strobing, generating comfortable light that is suitable for long-term task usage. This model features an emergency battery backup driver that provides 90 minutes of light with 8 watts of power and 1000 lumens making you feel safe and sound just when you need it the most. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance free life.

Features :-

  • 3500K/4000K/5000K CCT Selectable
  • 20W/30W/40W Wattage Selectable

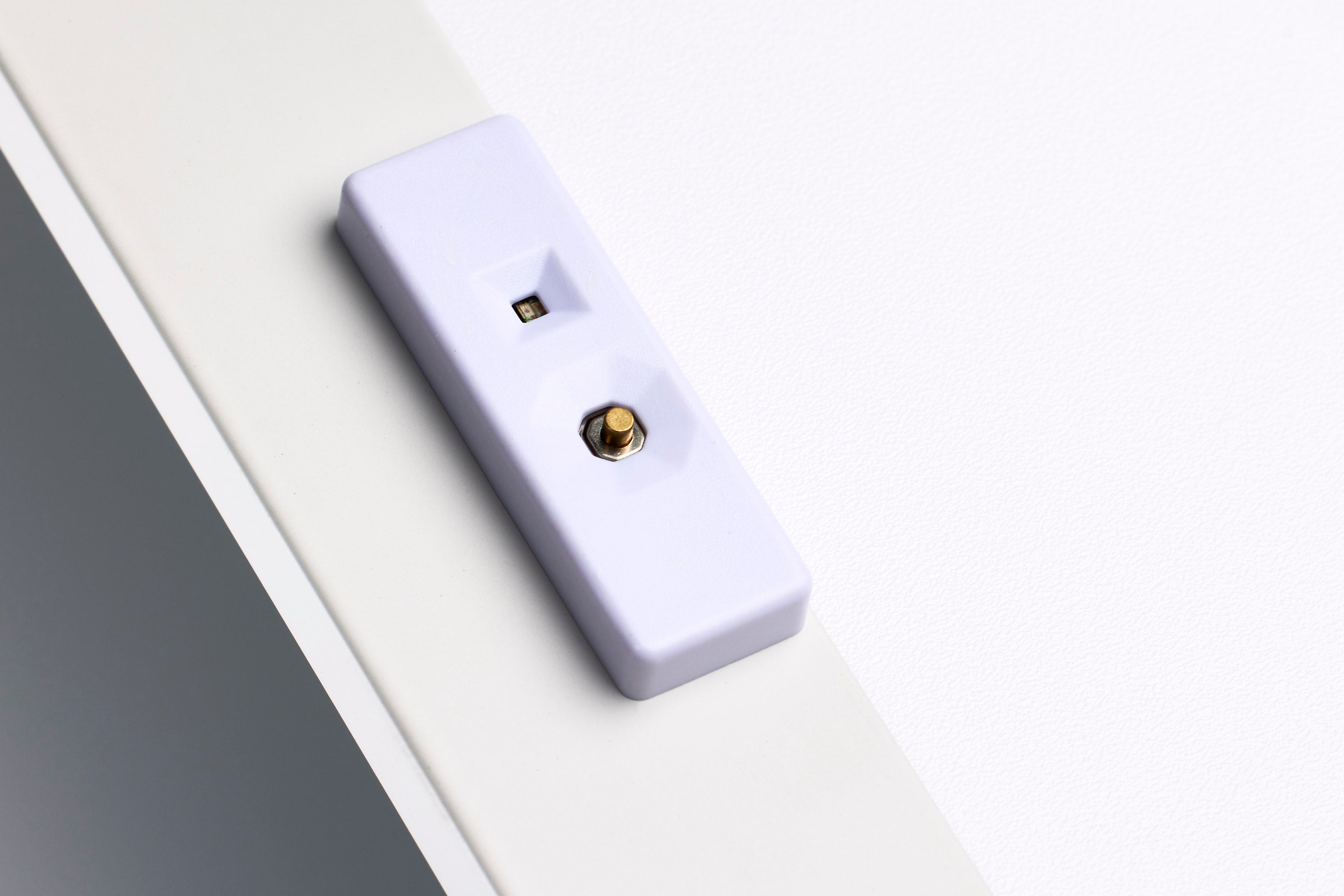

  • Integrated emergency battery backup with 90-minute run time
  • Flicker Free, Even Light Distribution
  • 0-10V Dimmable
  • 50,000 average rated hours of use
  • DLC Listed
  • Higher 120-347 Voltage Range
