Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 150W-175W
Wattage 30W/40W/50W
Lumens 3300L-5750L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish White
Beam Angle 120
Shape Square
Color Temperature Selectable Yes
Panel Type 2x4
Wattage Selectable Yes
Fixture Type Backlit Flat Panel
Length 47.72 IN
Photocell No Photocell

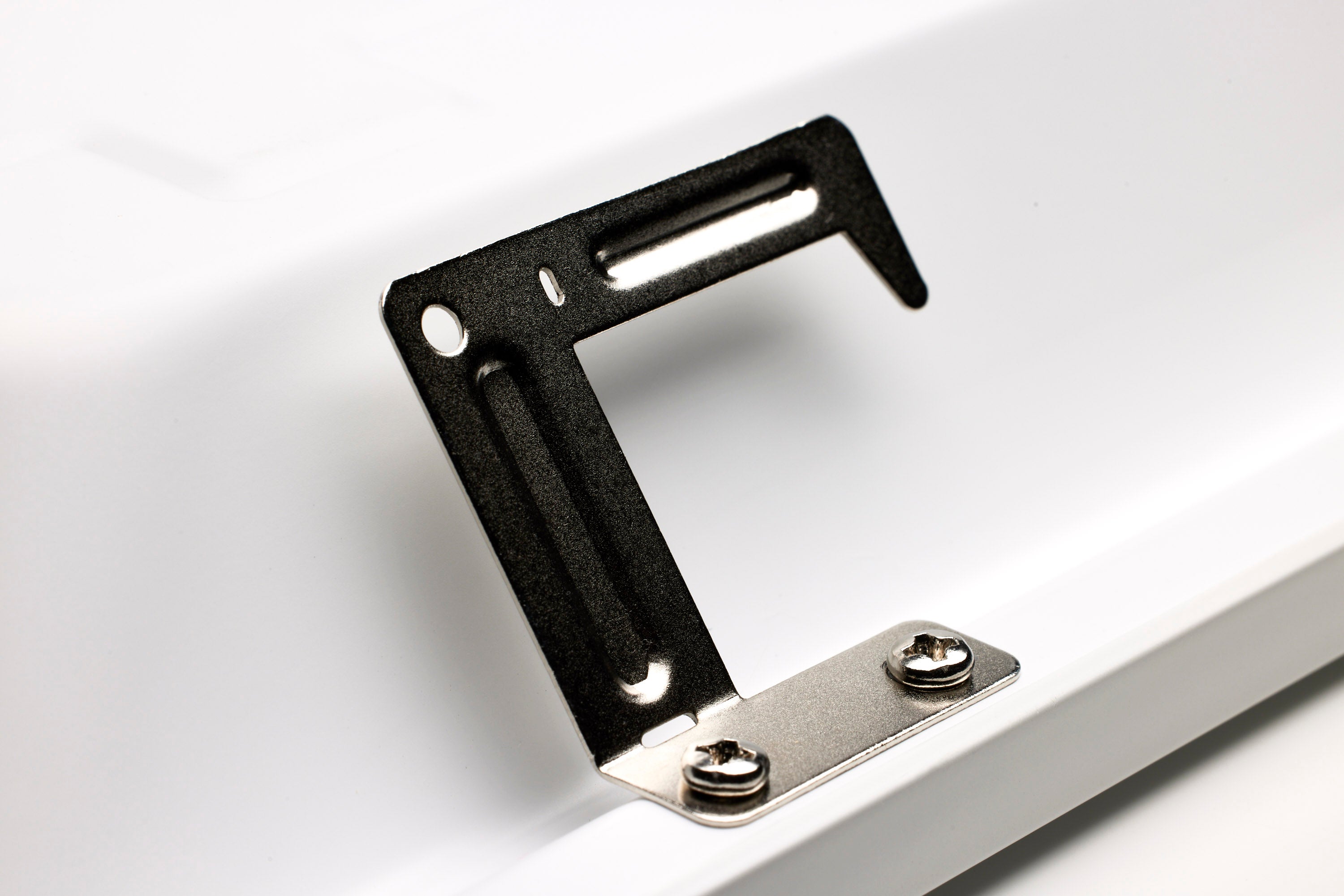

Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm to Cool White
Safety Listing cETLus - Listed
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2KV
Battery Chemistry Lithium-ion (Li-ion)
NSF Yes
Features / Controls
Emergency Backup Yes
0-10V 0-10V Dimming
Construction / Installation
Material Aluminum / Steel
Finish/Lens Frost
Width 23.75 IN
Height 2.88 IN
Weight 11.46 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature +1.4F to +113F (-17C to +45C)
IC Rated Yes
IP Rating IP20
Certifications / Compliance
California Title 20 Yes
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

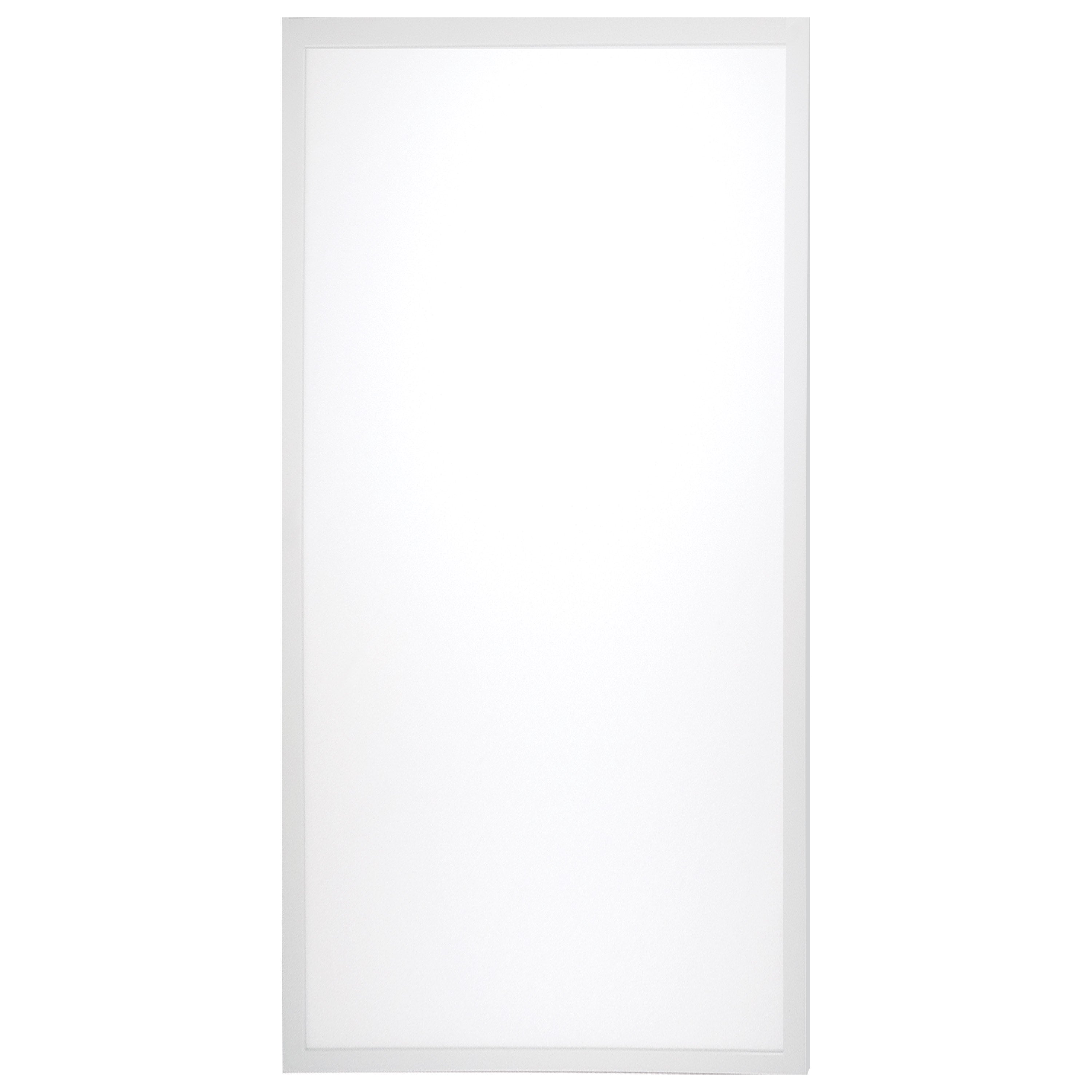

LED Emergency Backlit Flat Panel - 2 ft. x 4 ft. - Wattage and CCT Selectable - 120-347 Volt - ColorQuick Technology - PowerQuick Technology - White Finish brings the familiar role of a commercial ceiling light to offices, classrooms, retail spaces, healthcare environments and other commercial interiors. It is a practical choice for customers comparing commercial ceiling lighting and LED panel light for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

Supports a clean, organized ceiling layout across larger commercial interiors. In practical terms, that makes this product relevant for grid-ceiling and general commercial lighting projects. It also fits naturally into projects considering LED panel light and drop ceiling lighting, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

A practical category for contractors and facility managers coordinating room-by-room lighting upgrades. In renovations, tenant improvements and facility upgrades that need consistent overhead illumination, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

If you are ready to order office LED lighting for renovation projects, LED Emergency Backlit Flat Panel offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

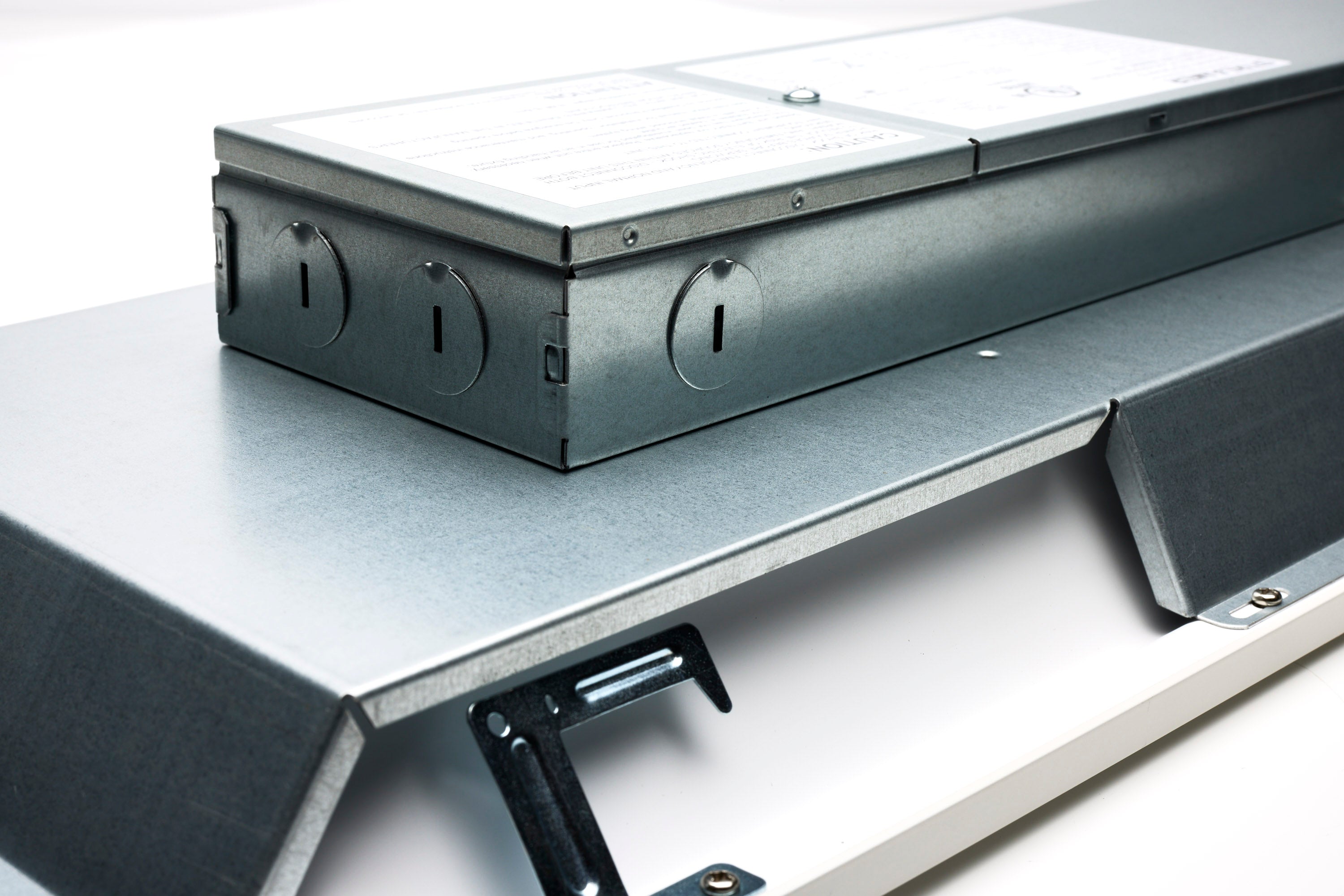

SATCO NUVO's LED Backlit 2X4 Flat Panel 65-586R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at the time of installation, making this fixture extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. The use of a flicker free driver reduces strobing, generating comfortable light that is suitable for long-term task usage. This model features an emergency battery backup driver that provides 90 minutes of light with 8 watts of power and 1000 lumens making you feel safe and sound just when you need it the most. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance free life.

Features :-

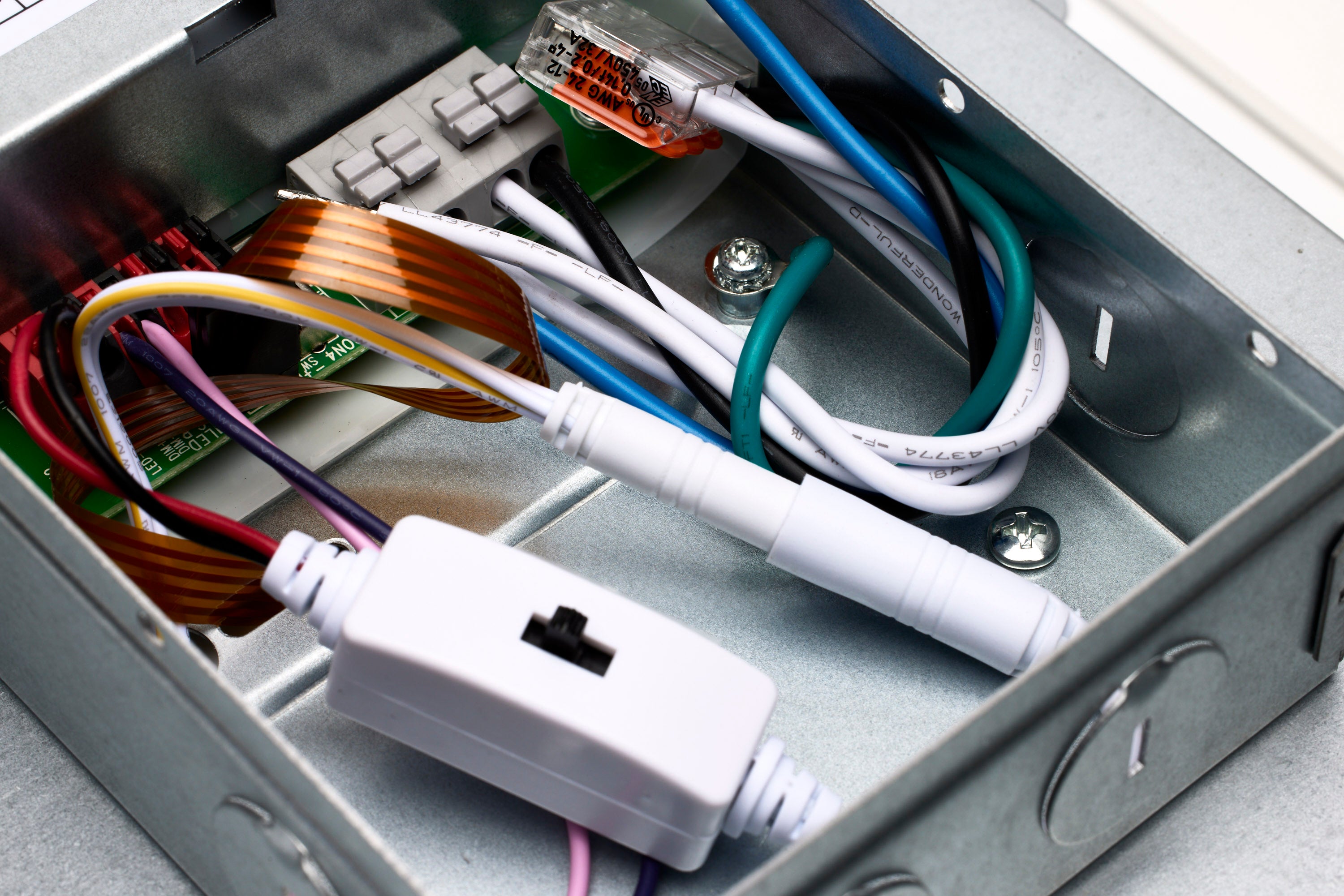

  • 3500K/4000K/5000K CCT Selectable
  • 30W/40W/50W Wattage Selectable

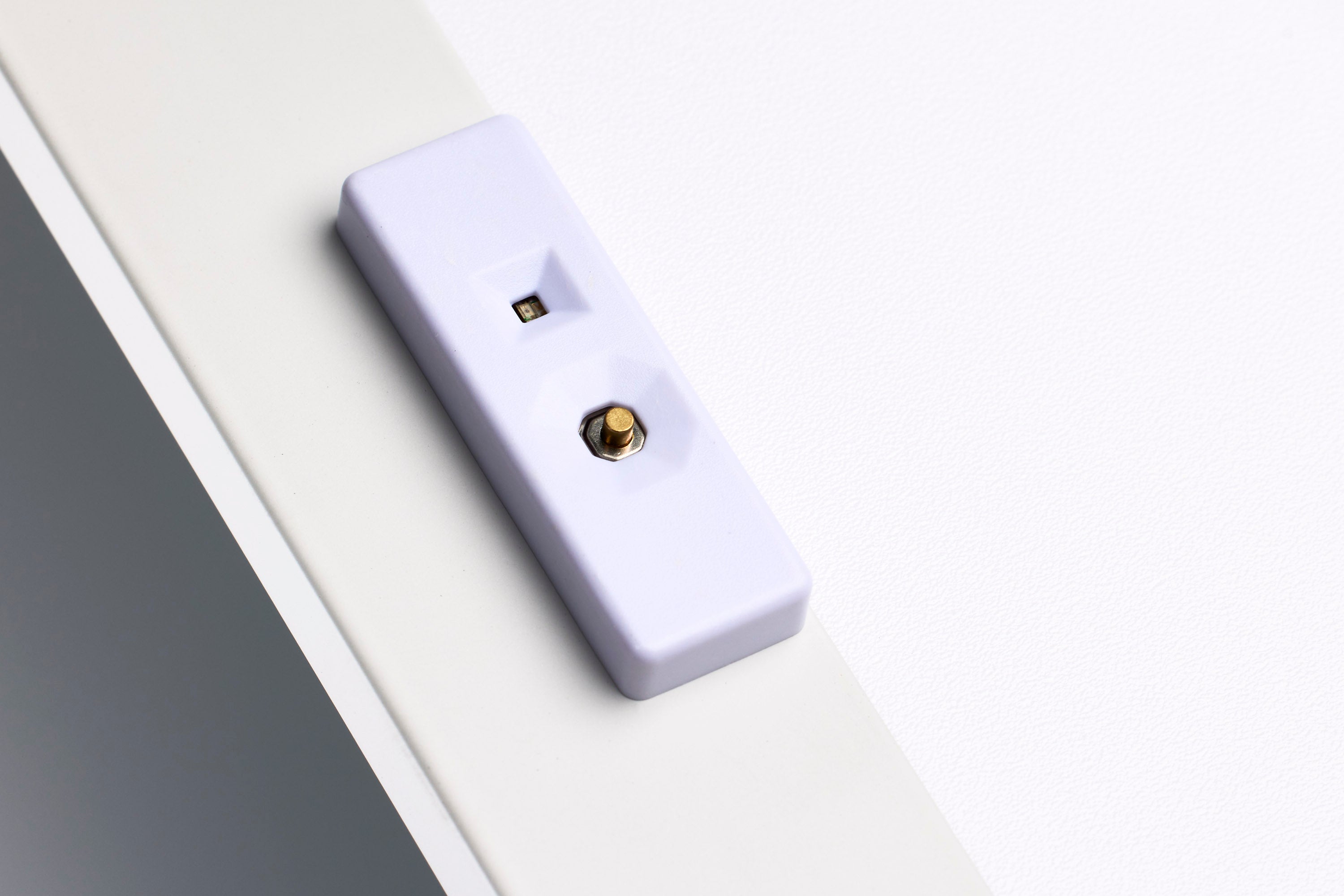

  • Integrated emergency battery backup with 90-minute run time
  • Flicker Free, Even Light Distribution
  • 0-10V Dimmable
  • 50,000 average rated hours of use
  • DLC Listed
  • Higher 120-347 Voltage Range
