Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 150W
Wattage 10W/15W/20W
Lumens 1410L-2839L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish Bronze
Beam Angle 100
HID Equivalent 100W
Color Temperature Selectable Yes
Wattage Selectable Yes
Light Distribution B1-U3-G1
Fixture Type Wall Pack

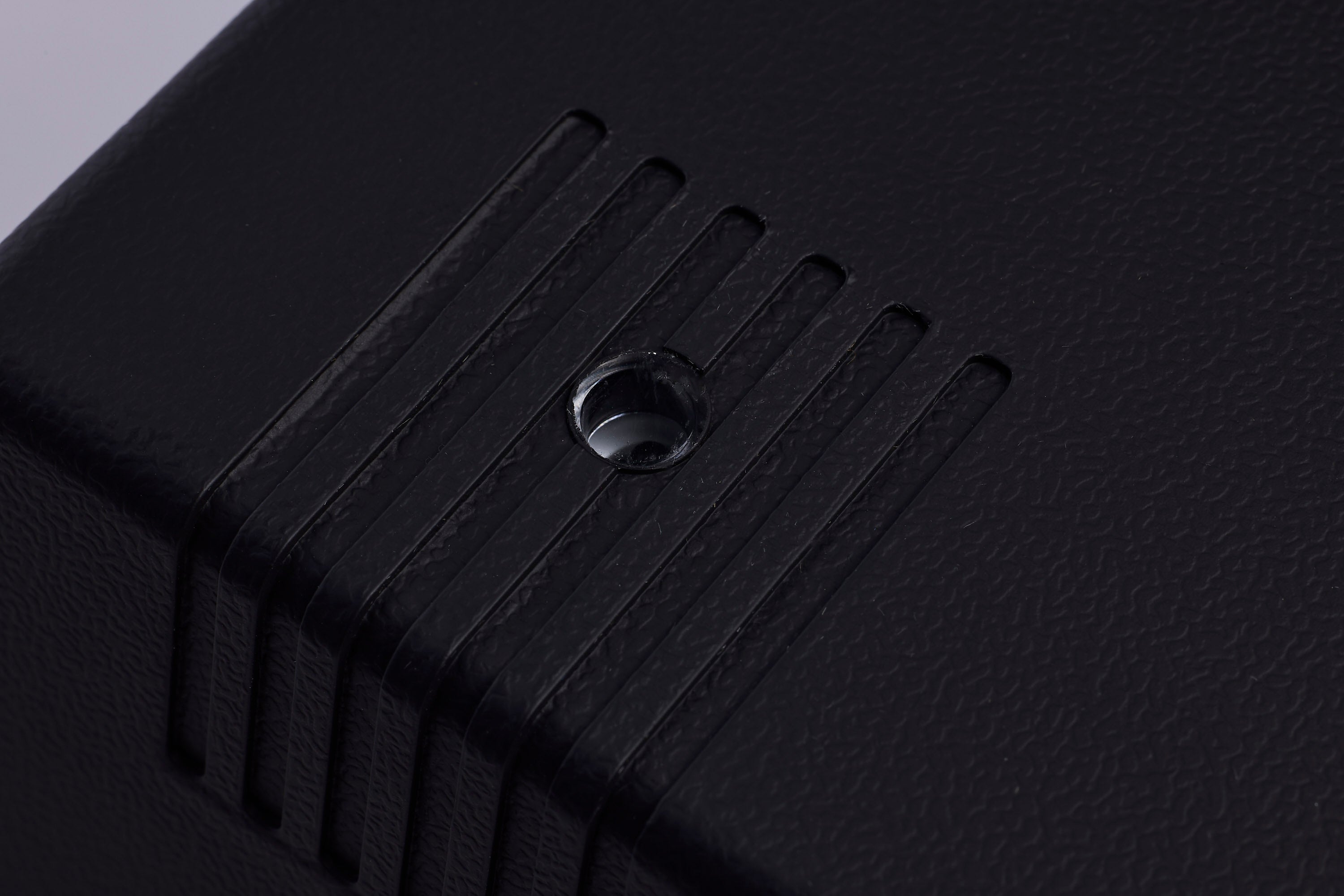

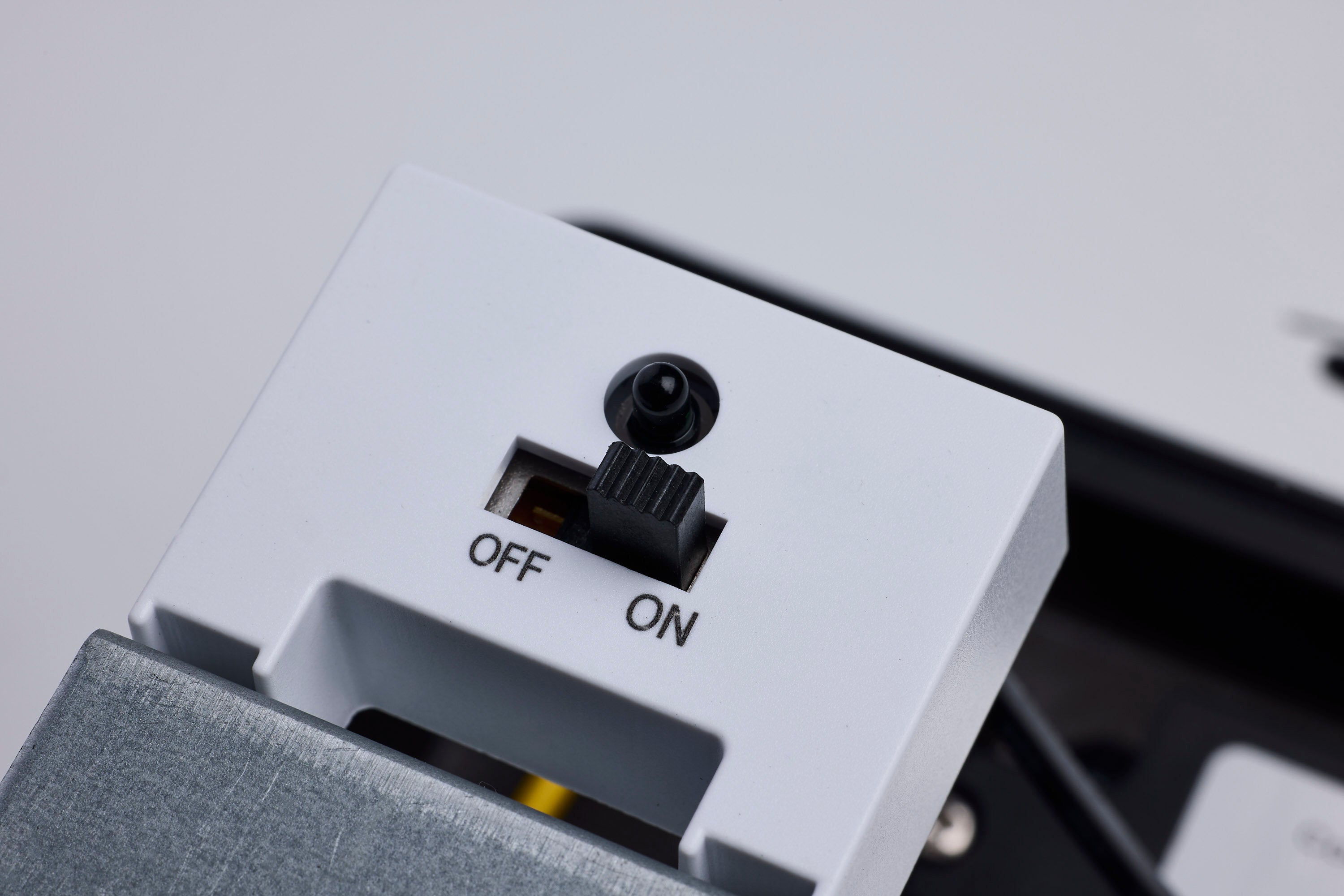

Photocell Has Photocell
Mounting Type Wall
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Natural Light
Safety Listing cULus
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 2.5KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum

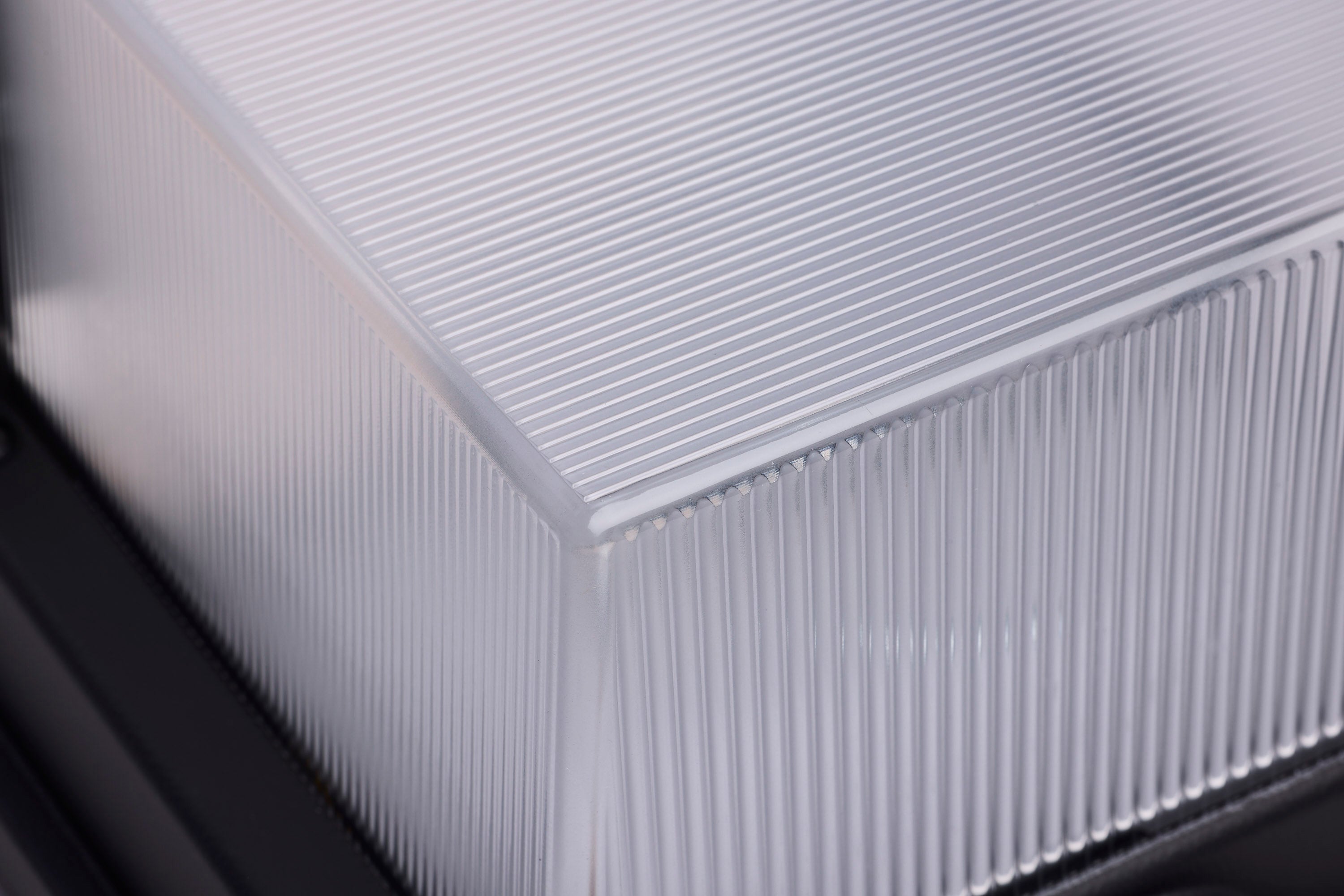

Finish/Lens Prismatic
Width 6.86 IN
Height 10.96 IN
Weight 2.64 lbs
Lens / Diffuser Polycarbonate (PC)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Outdoor
Location Rating Wet
Operating Temperature -40F to +122F (-40C to +50C)
IP Rating IP65
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

LED Entryway Wall Pack - 10/15/20 Wattage Selectable - 30K/40K/50K CCT Selectable - Bronze Finish is a LED wall pack intended for building perimeters, loading areas, walkways, parking areas and commercial entrances. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting commercial wall pack light for a specific room, fixture or property application.

Provides a practical wall-mounted approach to illuminating exterior circulation and perimeter areas. In practical terms, that makes this product relevant for warehouses, retail buildings and other properties needing wall-mounted exterior lighting. It also fits naturally into projects considering perimeter lighting fixture and outdoor wall lighting, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

Works well for facility managers and electrical contractors upgrading commercial building lighting. For replacement and new-installation projects where wall-mounted site lighting is preferred, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

If you are ready to order wall pack lighting for building projects, LED Entryway Wall Pack offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

SATCO NUVO's 65-986 bronze LED entryway wall pack offers a sleek and versatile solution for outdoor lighting. Designed with a durable die-cast aluminum construction and an IK08 polycarbonate lens, this fixture ensures reliable performance in demanding environments. It features field-selectable wattage (10W/15W/20W), selectable CCT (3000K/4000K/5000K), and an integrated bypassable photocell for added convenience. With DLC Premium certification, IP65 wet-location rating, a lifespan of 50,000 hours, and a 5-year warranty, it delivers both quality and longevity.

Features :-

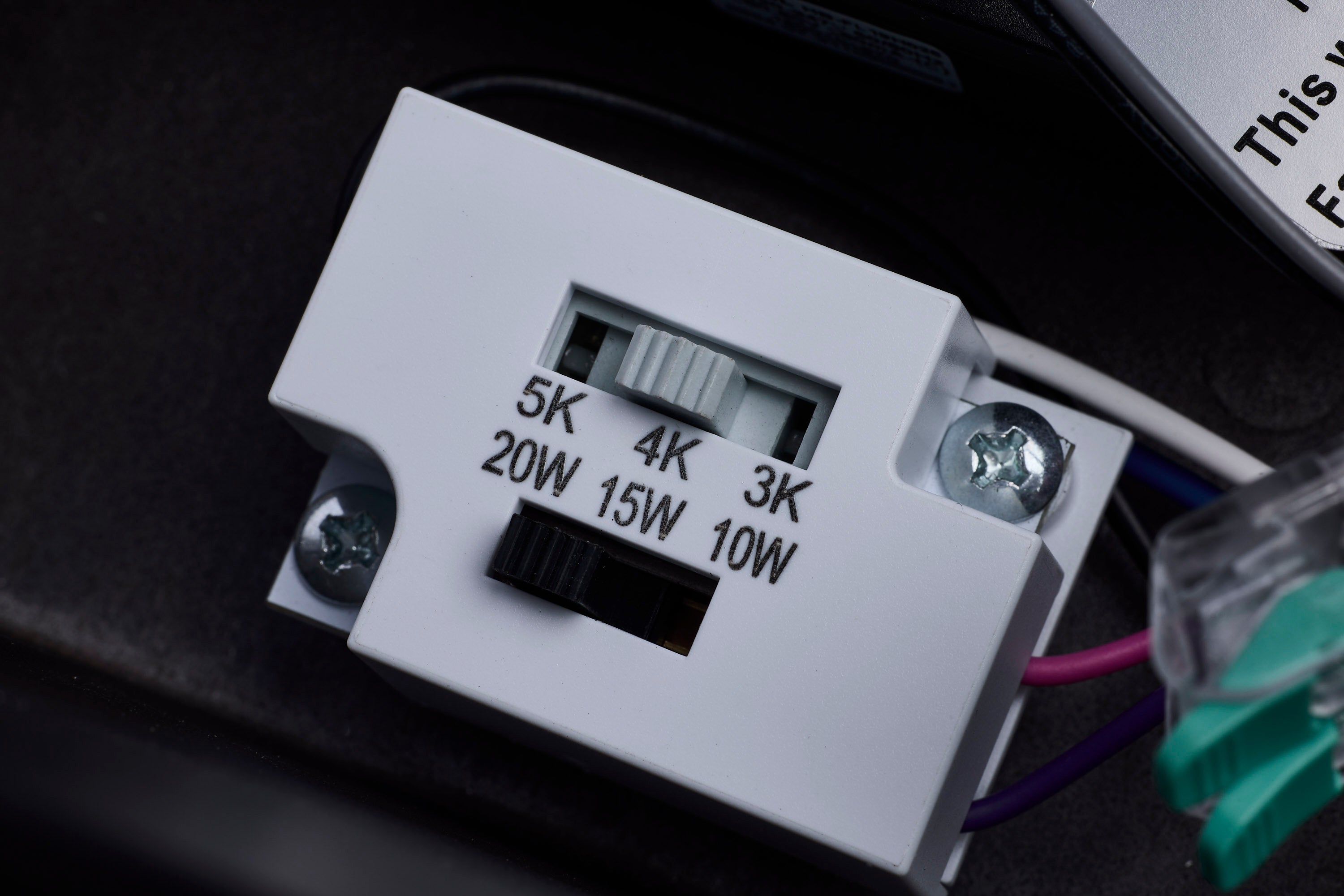

  • CCT and Wattage Selectable
  • Bronze Die-Cast Aluminum
  • 0-10V Dimming
  • IP65 and IK08 Vandal Resistant
  • Wet Location Rated
  • B1-U3-G1 Rating
  • 50,000 Hour Functional Life
  • 5 Year Warranty
