Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 150W/250W
Wattage 25W/30W/40W
Lumens 3125L-5400L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Bronze
Beam Angle 150
HID Equivalent 52W/71W/90W
Shape Square
Color Temperature Selectable Yes
Wattage Selectable Yes
Light Distribution B2-U3-G2
Fixture Type Canopy
Length 8.5 IN
Photocell Has Motion Sensor
Mounting Type Ceiling, Pendant Hanging Surface
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Natural Light
Safety Listing cULus - Listed
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) 10.20%
Surge Protection Built-in surge protection - 4KV
Features / Controls
Sensor Capability Microwave
Motion / Occupancy Sensor Microwave
0-10V 0-10V Dimming, Bi-Level Dimmable
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens Clear
Width 8.5 IN
Height 3.27 IN
Weight 3.35 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Direct Wired
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Outdoor
Location Rating Wet
Operating Temperature -22F to +113F (-30C to +45C)
IP Rating IP65
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

8.5 Inch LED Field Selectable Canopy Fixture With Sensor - 25/30/40 Watts - 3K/4K/5K CCT - 120-277 Range Voltage - Bronze Finish brings the familiar role of a commercial utility light to maintenance areas, back-of-house spaces and locations that call for practical fixture construction. It is a practical choice for customers comparing industrial light fixture and vapor tight light for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

Works well for contractors and facility teams selecting fixtures around practical building needs. It is well suited to commercial projects where dependable general lighting is more important than decorative styling, where lighting needs to support the space rather than distract from it. This makes the product a practical vapor tight light choice for customers also considering commercial utility lighting as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

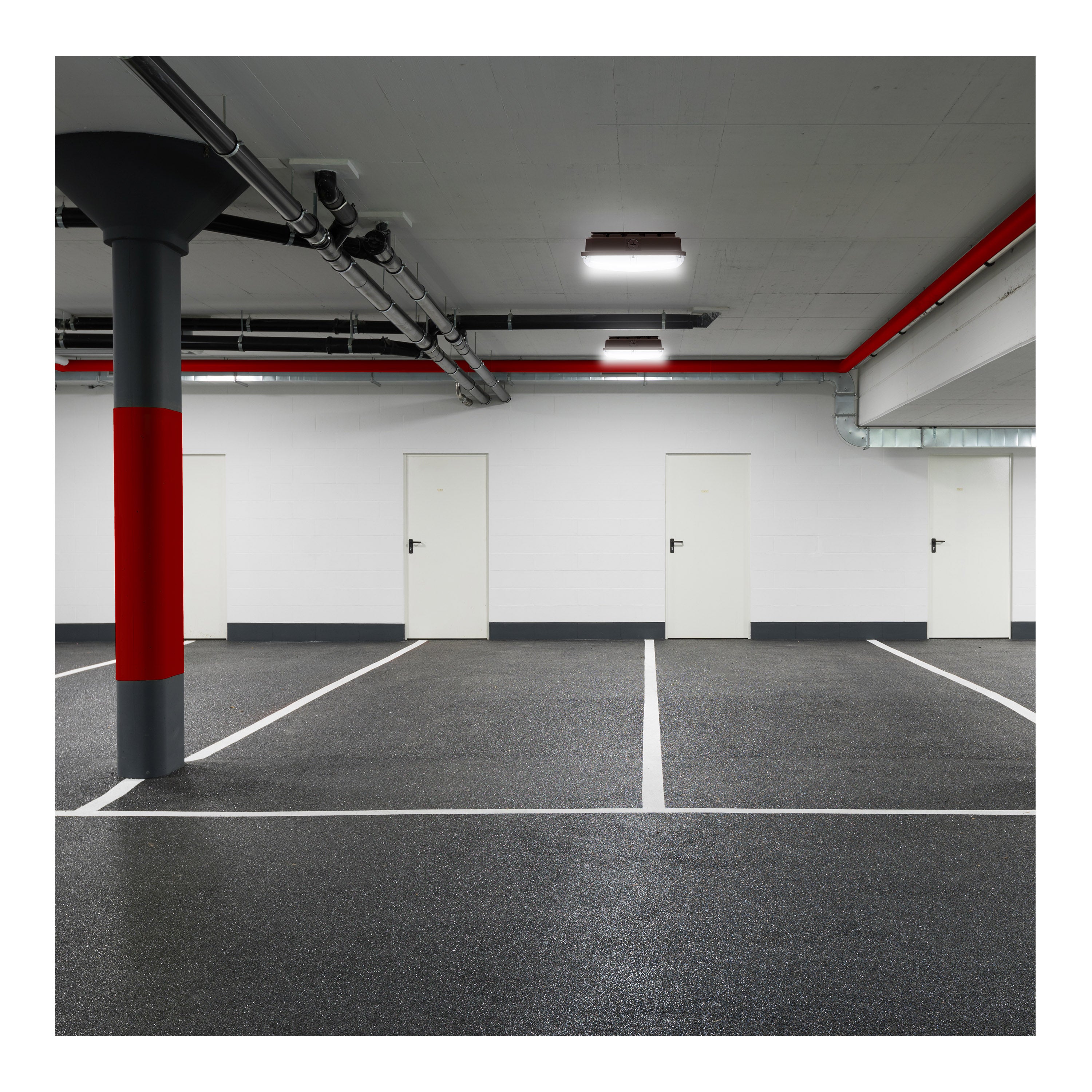

Supports functional lighting plans for spaces that experience regular traffic, maintenance or exposure. For parking structures, covered entries, utility spaces, service areas and demanding commercial environments, it can serve as a replacement item, a project component, or part of a broader lighting refresh. This keeps selection focused on the real application while supporting single-item orders and larger renovation or maintenance purchases.

If you are ready to buy commercial utility lights online, 8.5 Inch LED Field Selectable Canopy Fixture With Sensor offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

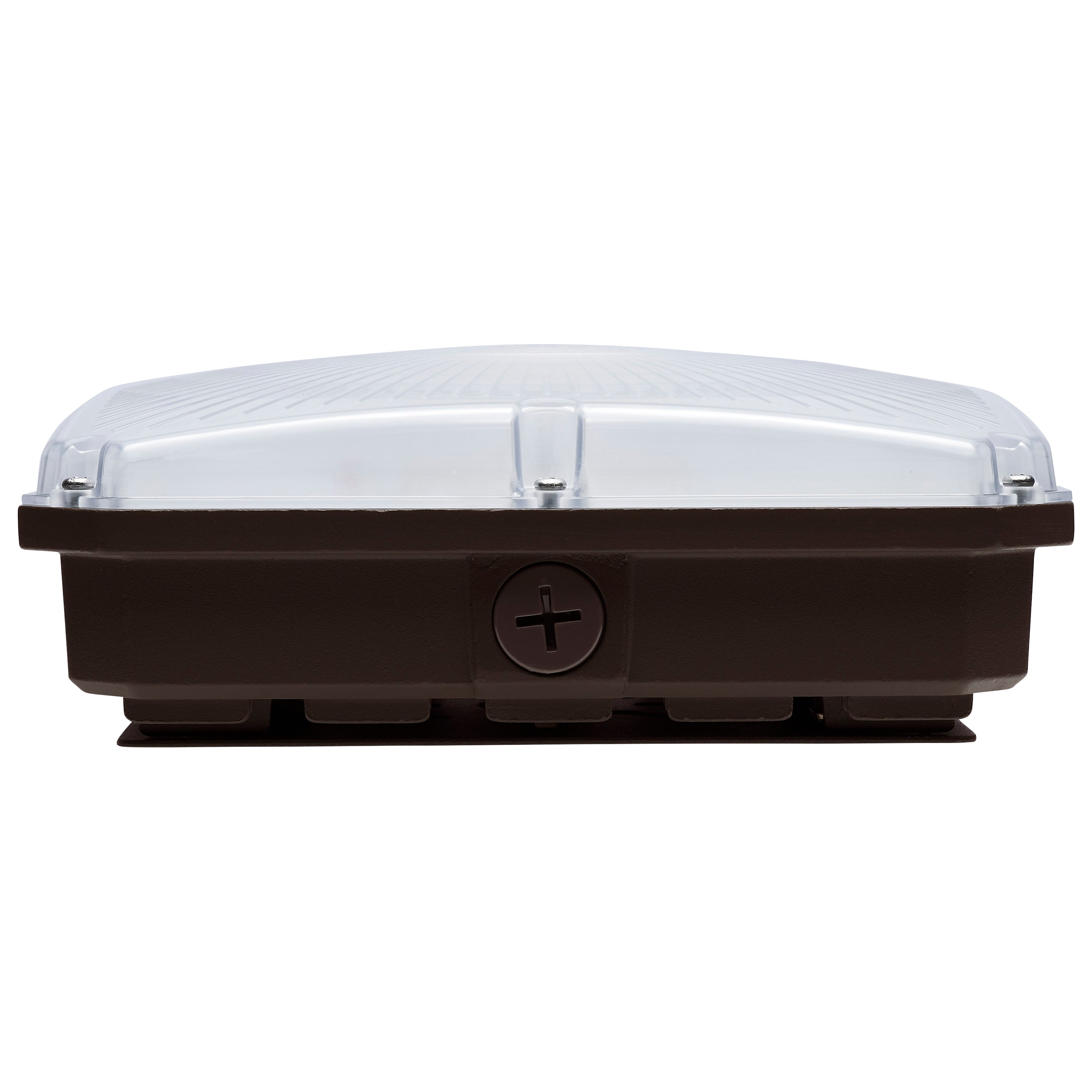

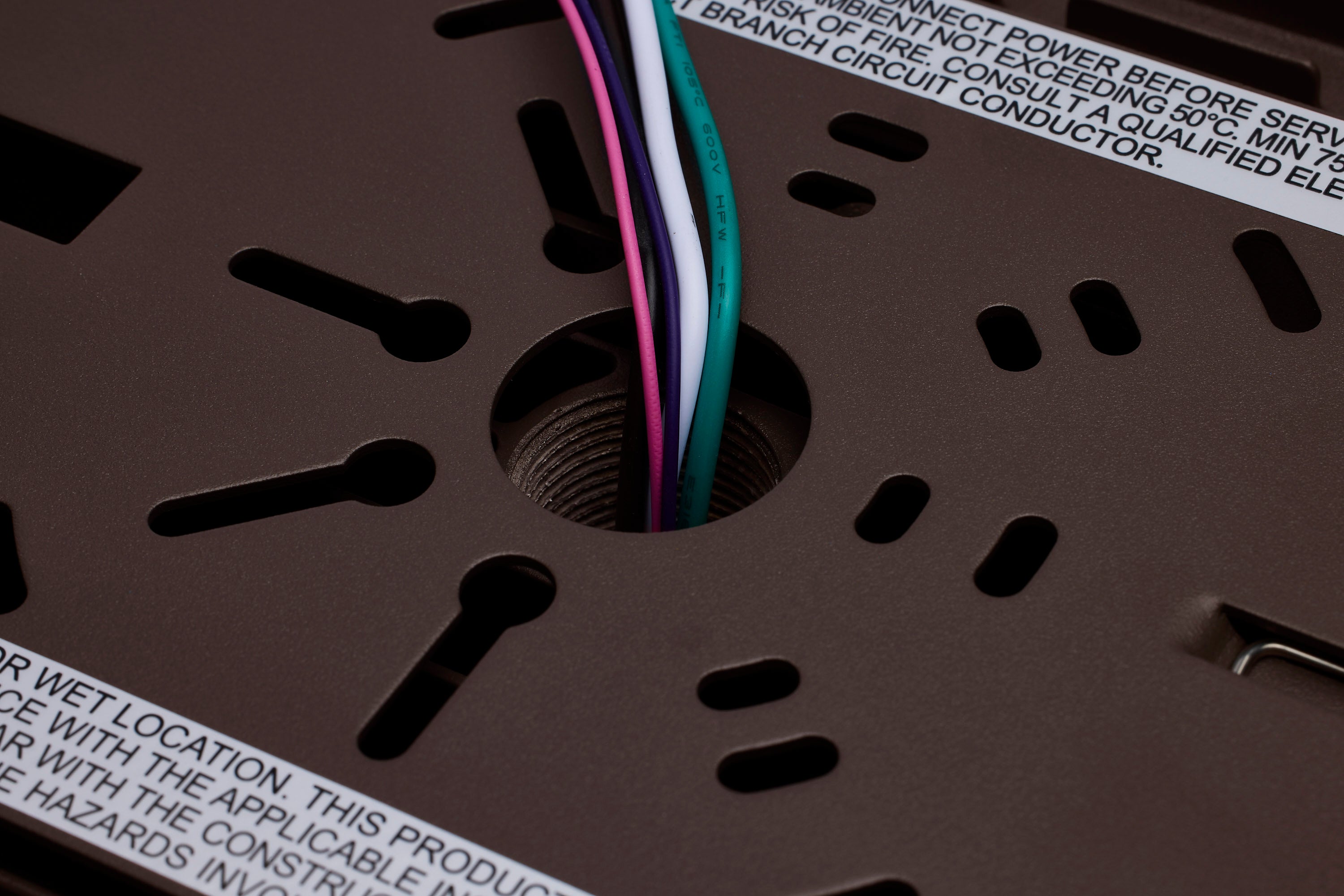

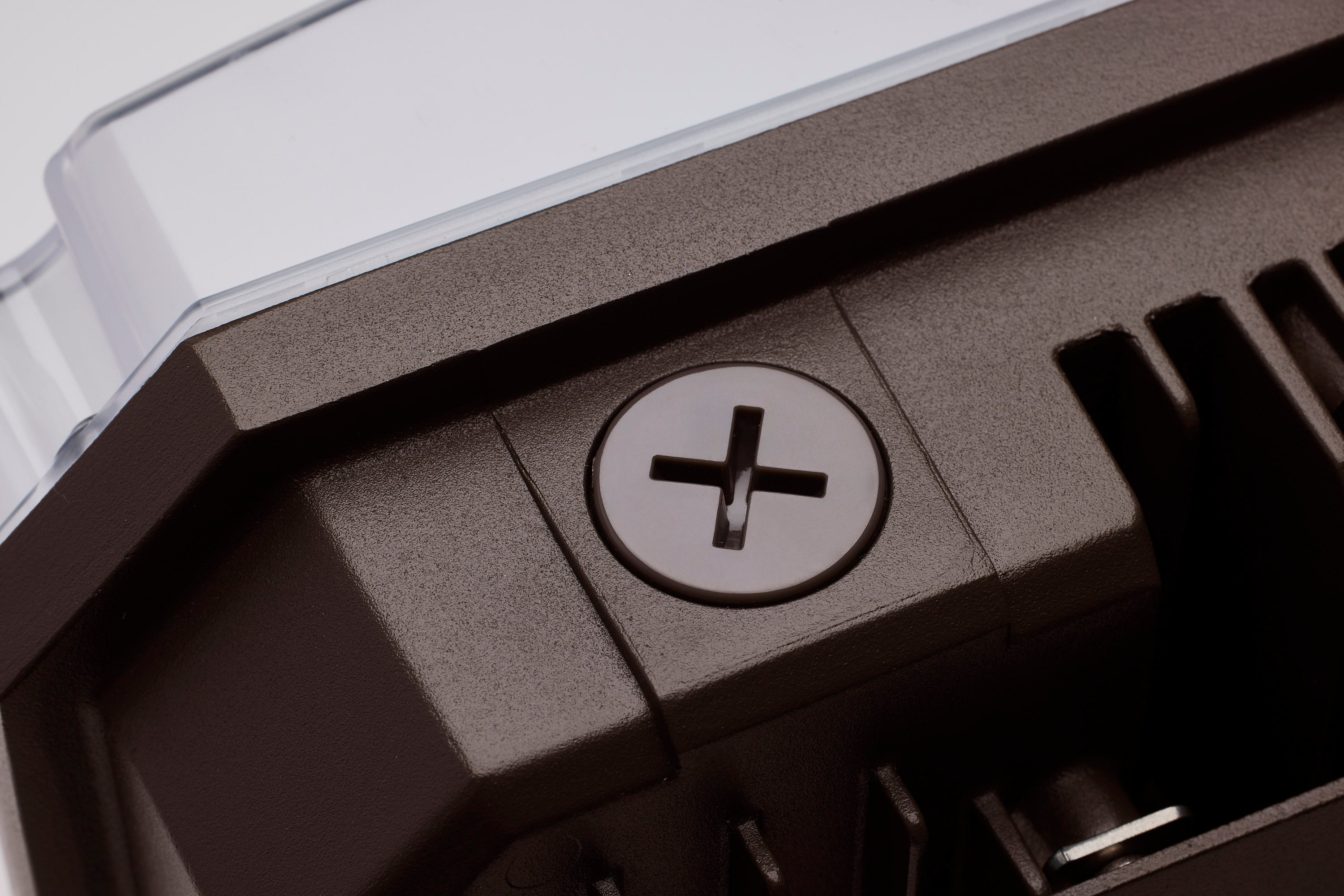

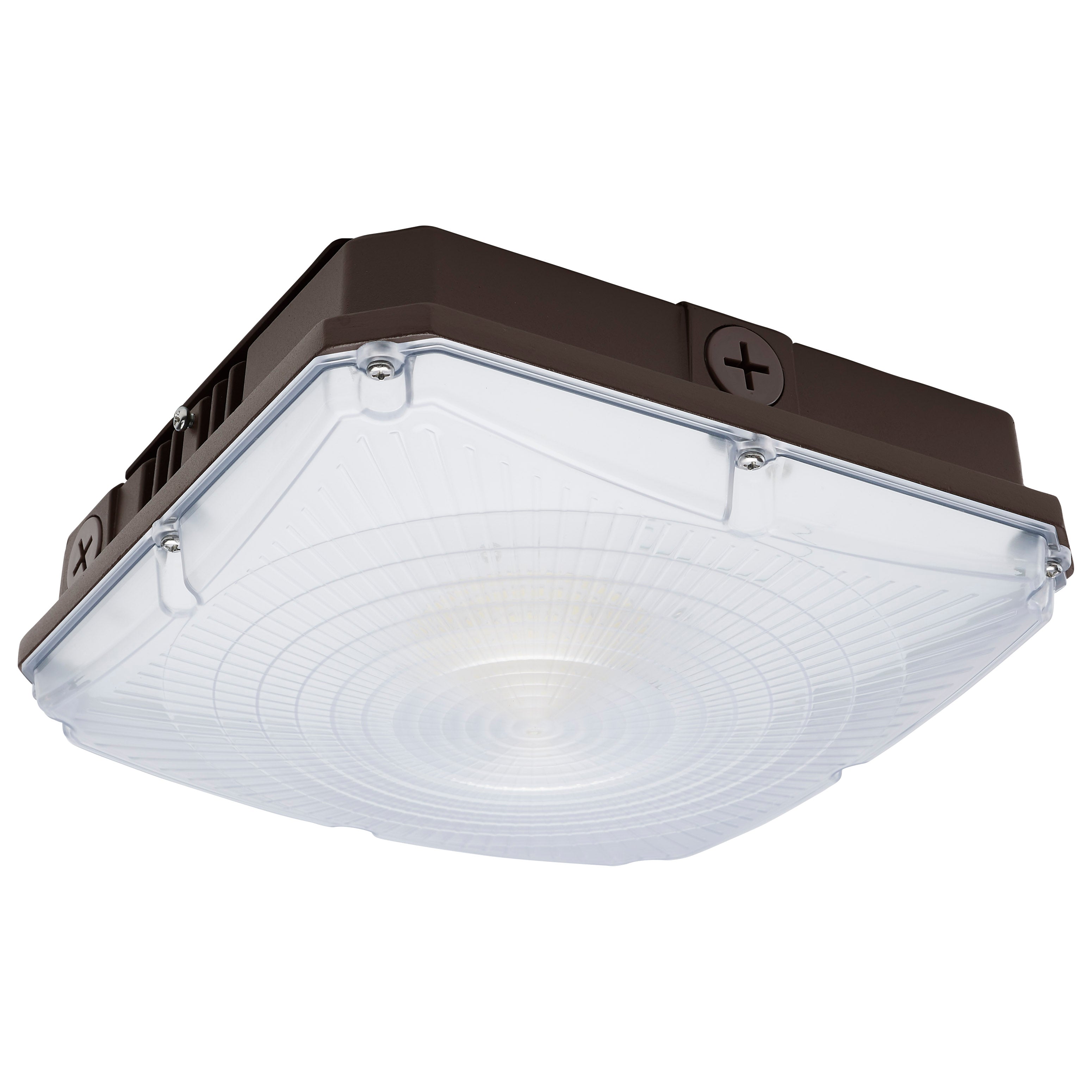

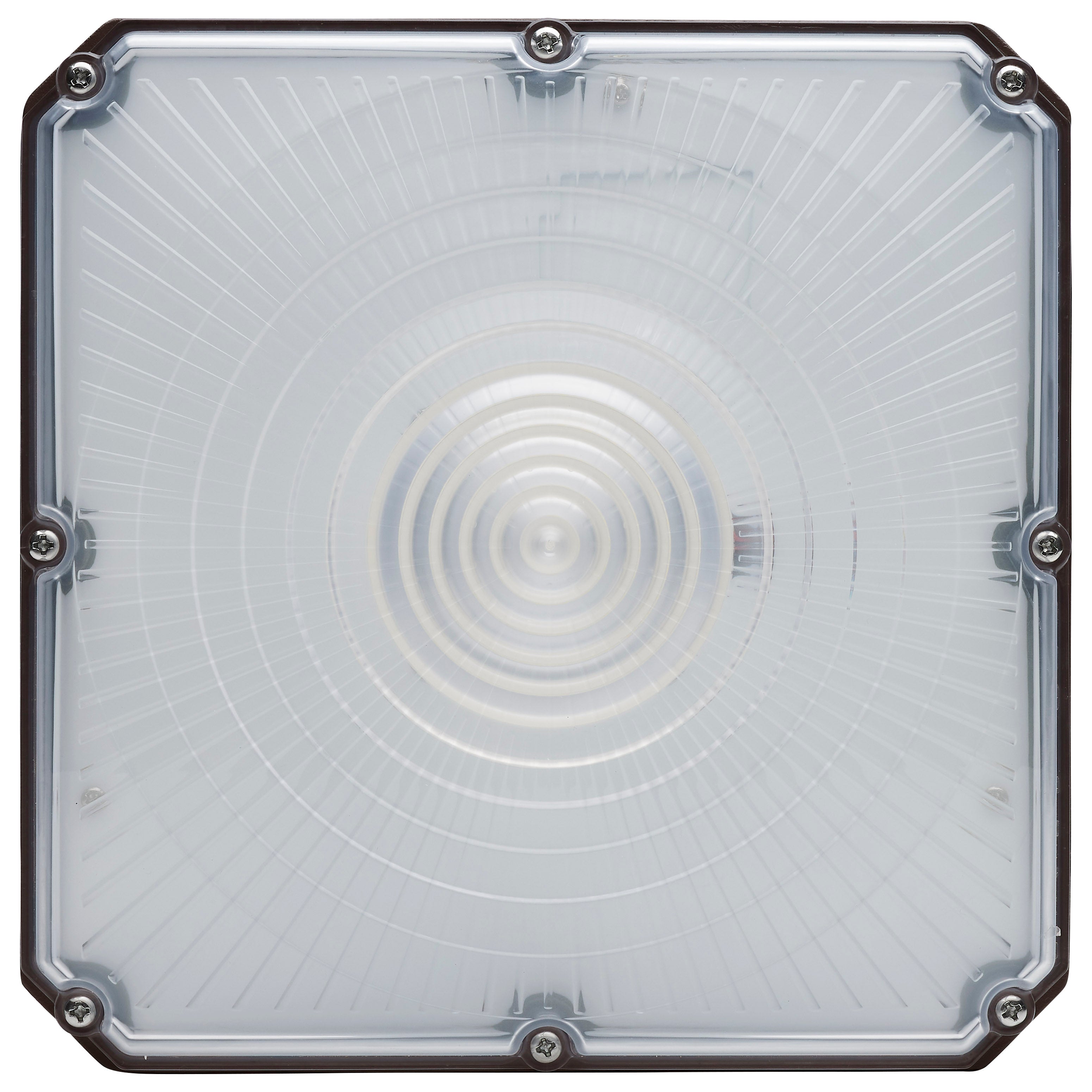

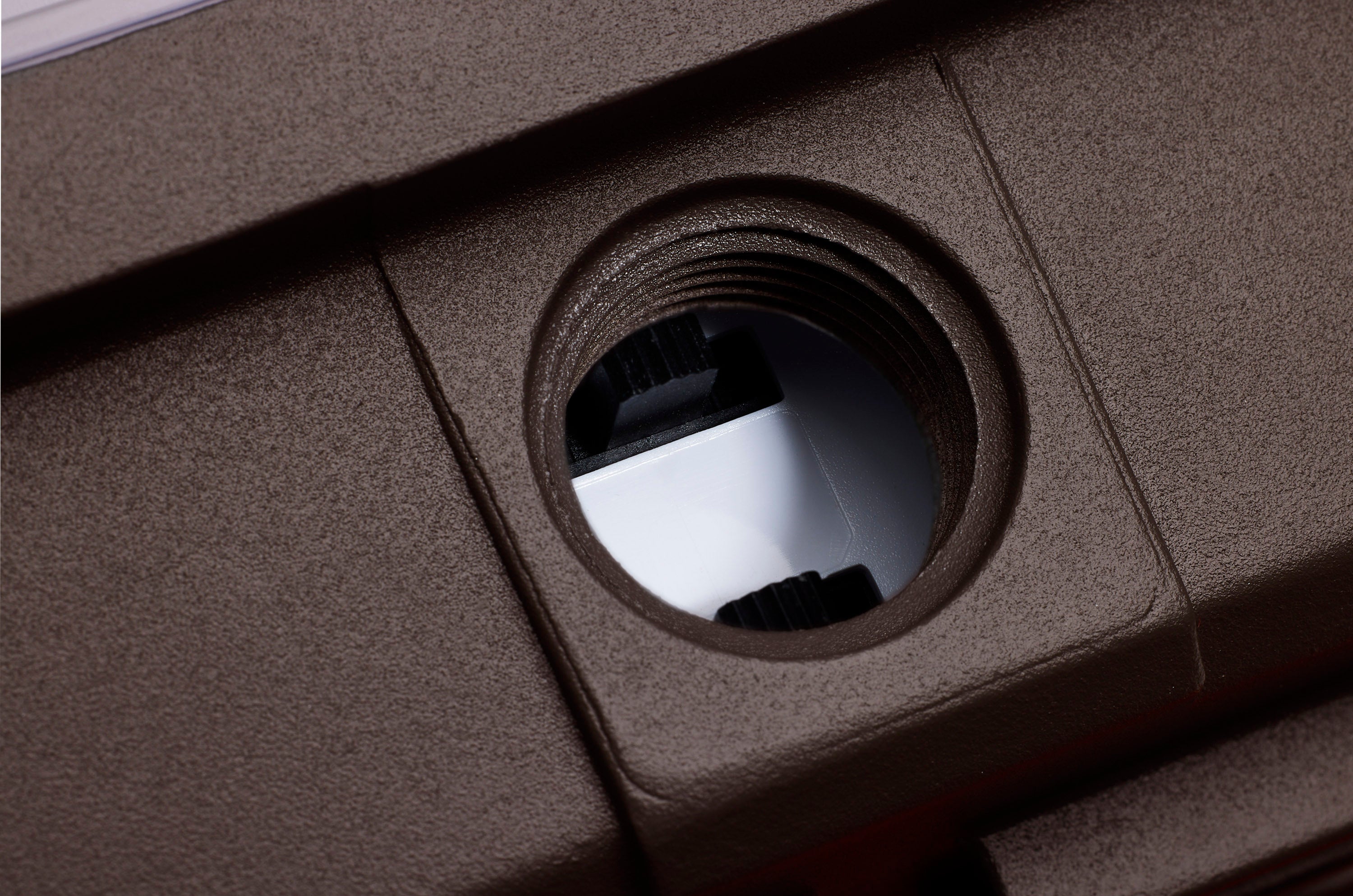

SATCO NUVO's 65-982 Field Selectable 8.5-inch square canopy fixture is an ideal choice for multiple applications. This fixture gives users the flexibility to choose from three wattage and three CCT options during installation. It also features an integrated microwave sensor, enhancing energy efficiency and providing added functionality. With a choice of surface mounting using the hinged universal bracket or 3/4-inch pendant mounting, installation of this luminary is a breeze. The two side knockouts allow for wiring access to be fast and efficient. The sleek bronze die-cast aluminum housing, the IK08 impact-rated vandal-resistant polycarbonate lens, and the IP65 wet location rating ensure reliable illumination even in the most adverse weather conditions.

Features :-

  • CCT and Wattage Selectable
  • Ceiling or Pendant Mounting

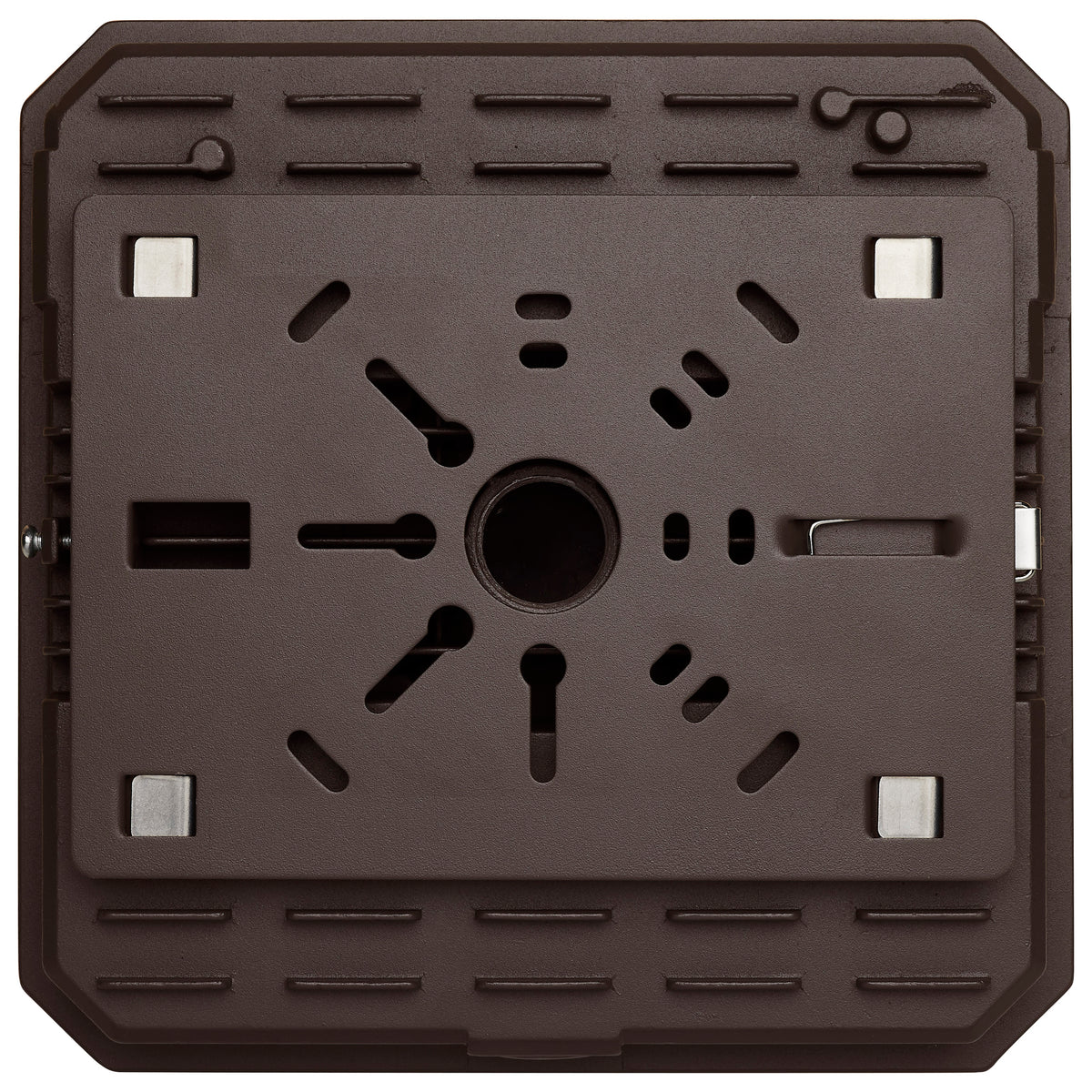

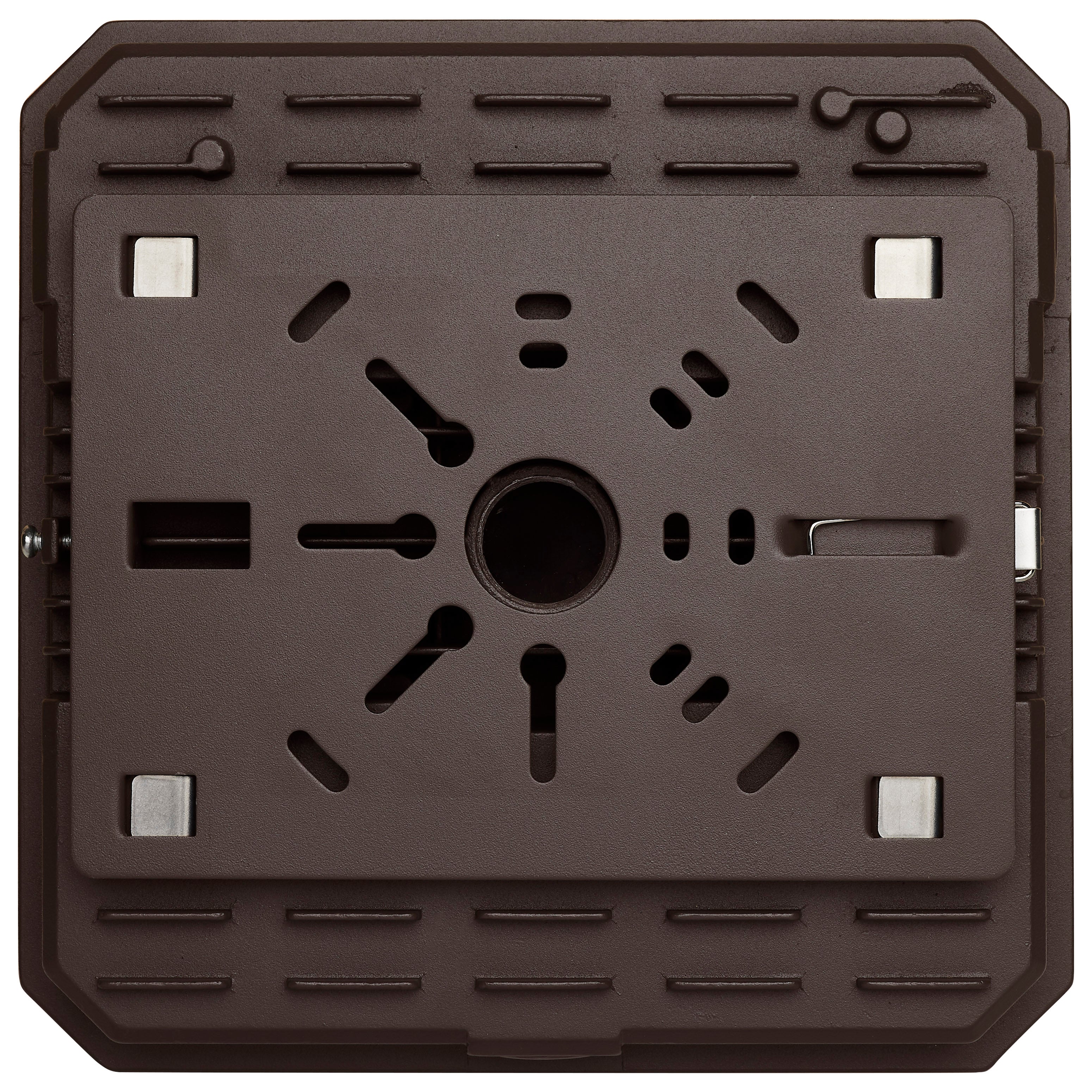

  • Hinged Universal Mounting Bracket
  • 4kV Surge Protection

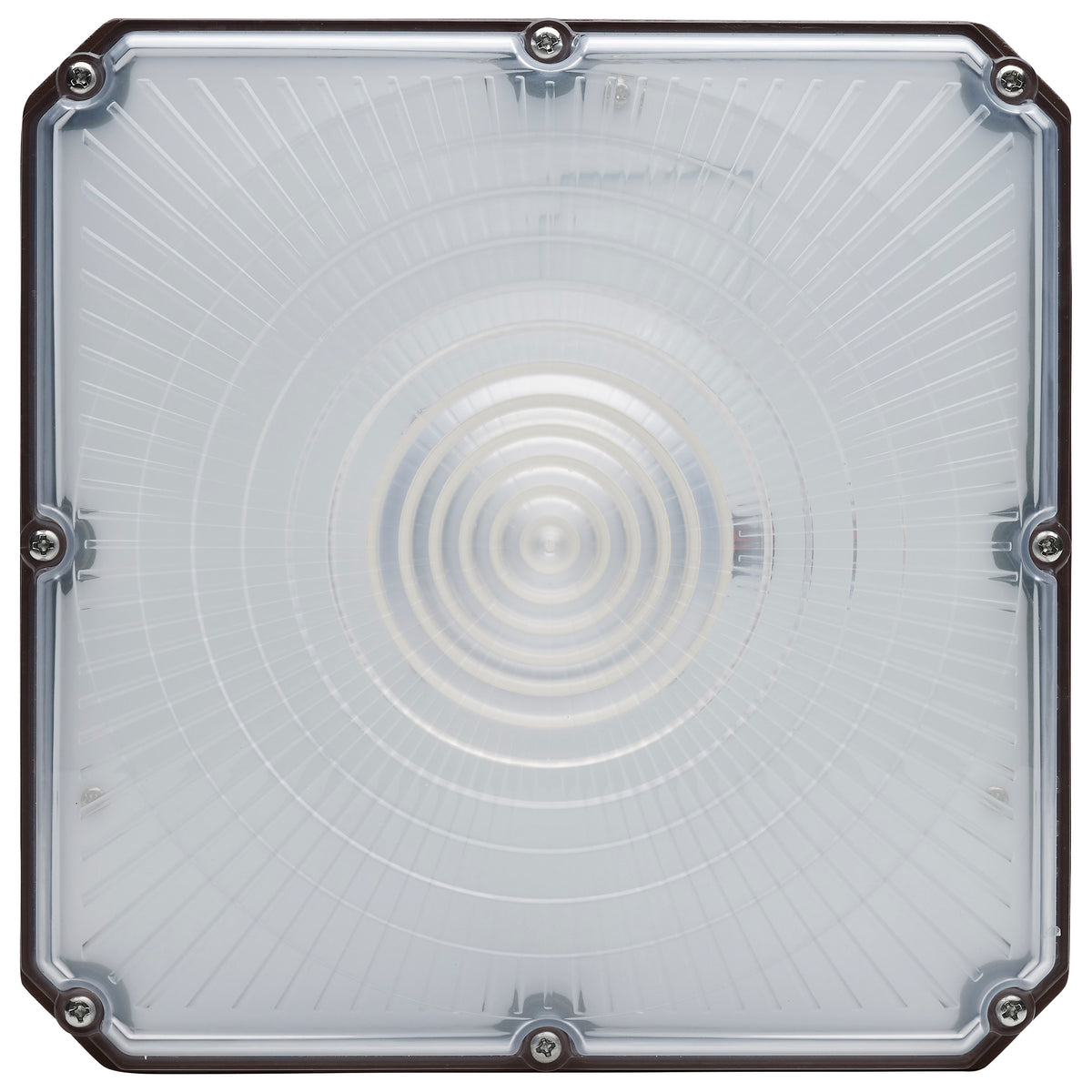

  • IP65 and IK08 Vandal Resistant
  • Wet Location Rated
  • 50,000 Hour Functional Life
  • 8.5 Inch Square with Integrated Microwave Sensor
  • B2-U3-G2 Rating
