Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Wattage 275W/300W/320W
Lumens 38037L-45598L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 90x90
HID Equivalent 550W
Shape Linear
Color Temperature Selectable Yes
Wattage Selectable Yes
Fixture Type Linear Hi-Bay
Length 23.03 IN
Mounting Type Surface/Suspension: Mounting Bracket/Cables/Chain
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 6KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Width 12.6 IN
Height 1.77 IN
Weight 8.38 lbs
Lens / Diffuser Polycarbonate (PC)
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Damp
Operating Temperature -40F to +131F (-40C to +55C)
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose LED Linear High-Bay With Interchangeable Lens - 275W/300W/320W Wattage Selectable - 3K/4K/5K CCT Selectable - White Finish when your project calls for a LED high bay light suited to commercial and industrial facilities that need durable overhead lighting layouts. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for LED high bay light that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Supports consistent overhead illumination across wide workspaces and high-ceiling environments. It is well suited to new installations and lighting upgrades across large open work areas, where lighting needs to support the space rather than distract from it. This makes the product a practical warehouse lighting fixture choice for customers also considering commercial high bay as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Works well in layouts that require repeated fixtures across aisles, production areas or open bays. In warehouses, distribution areas, manufacturing floors, workshops and other high-ceiling interiors, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

If you are ready to buy LED high bay lights online, LED Linear High-Bay With Interchangeable Lens offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

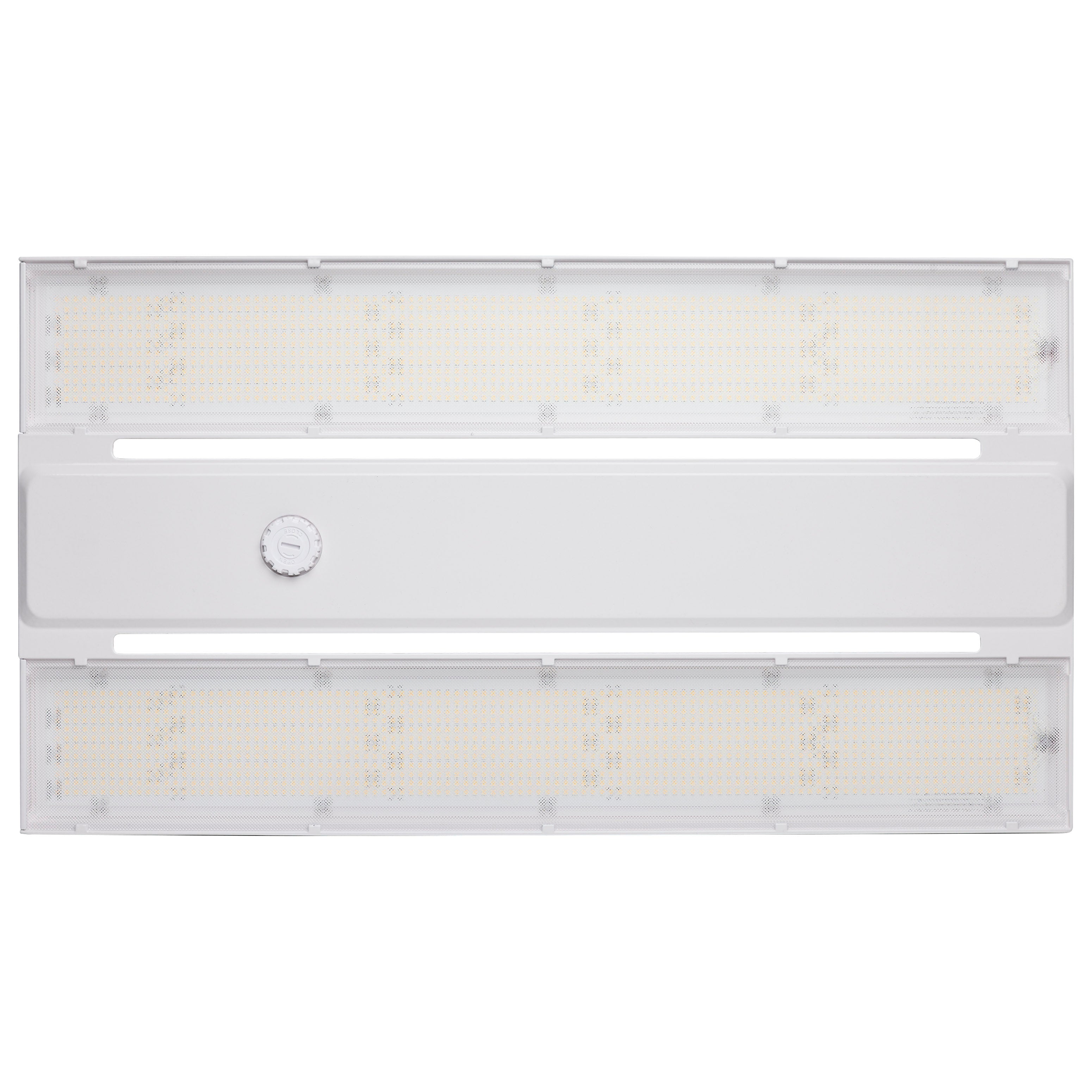

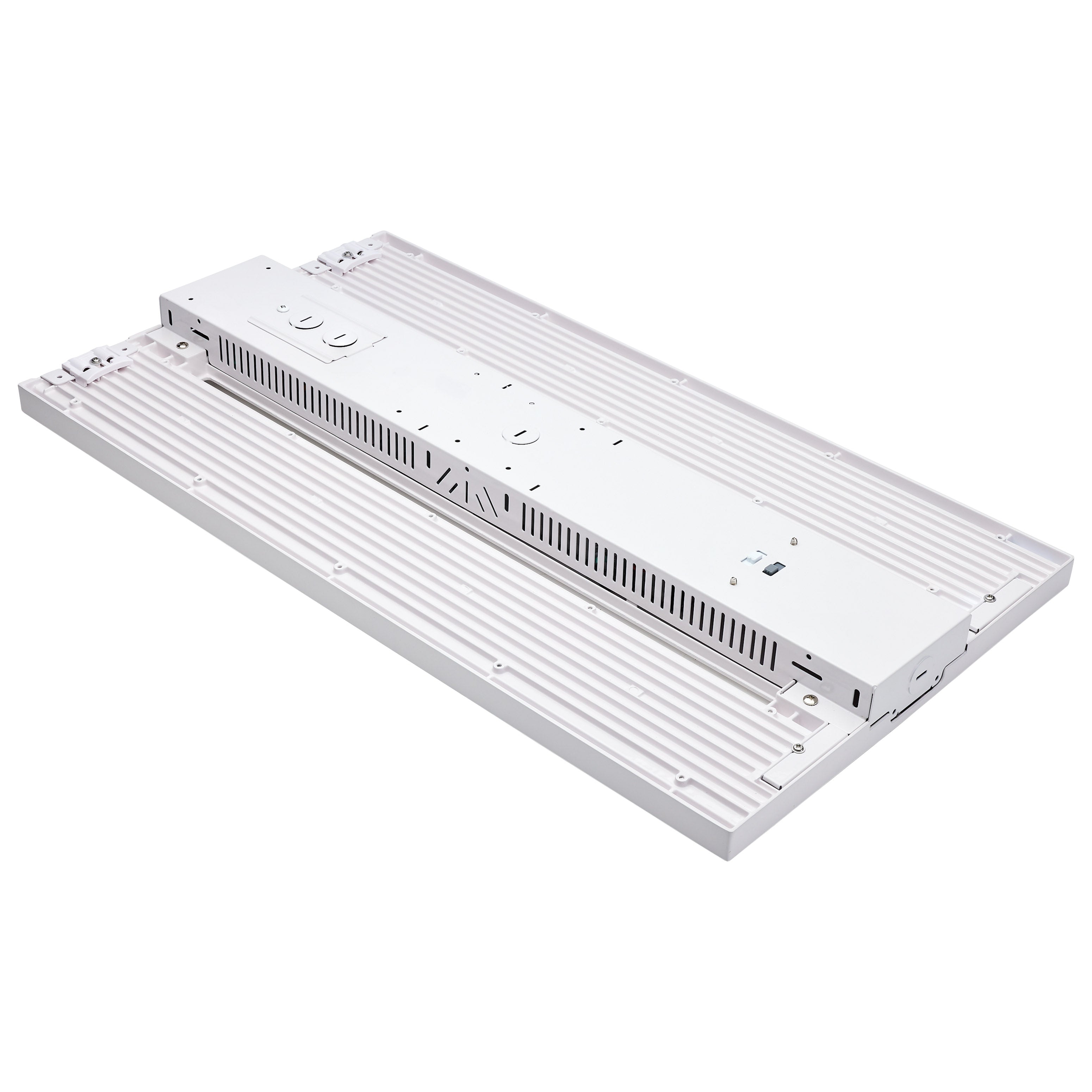

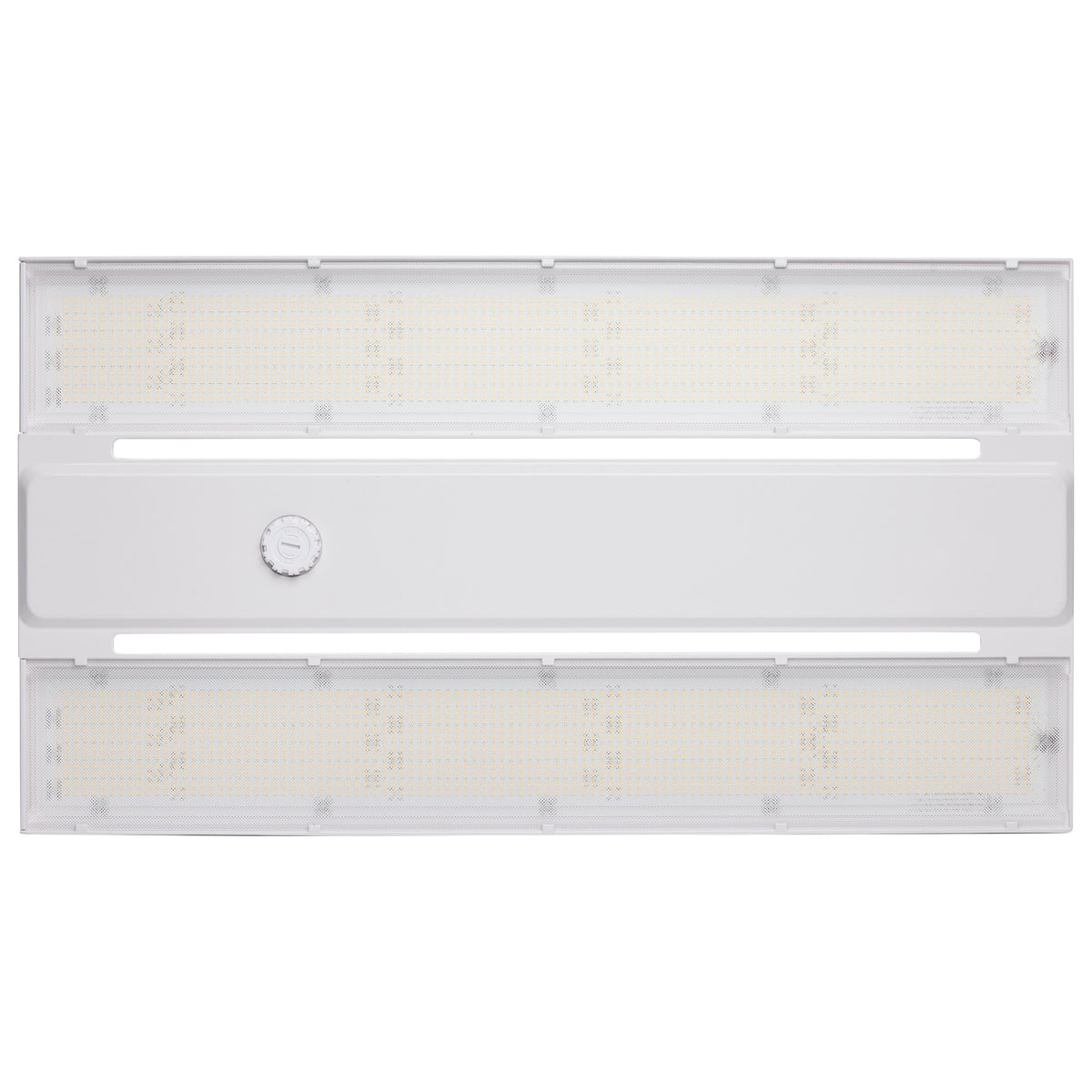

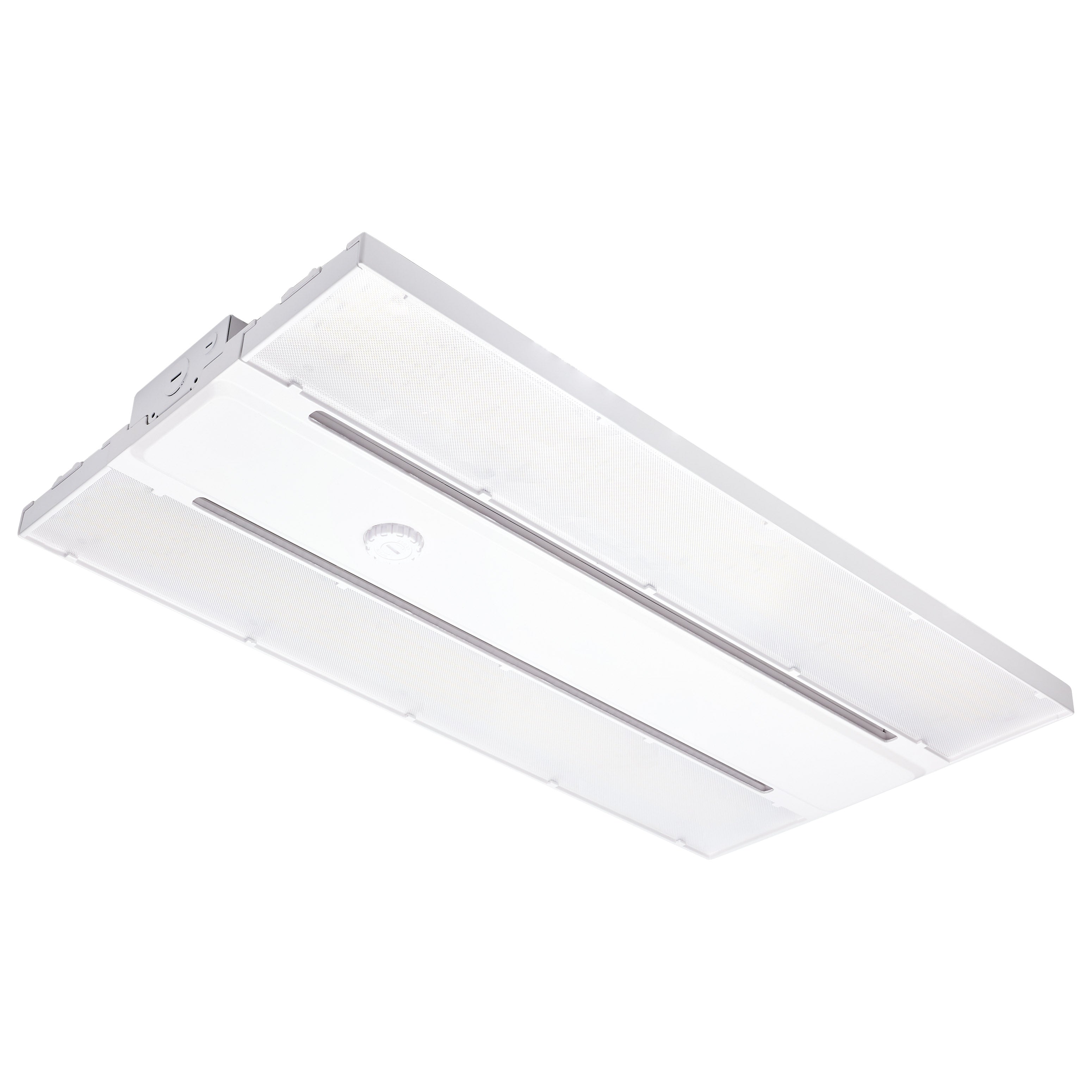

Introducing SATCO NUVO's versatile High Bay Fixture, designed for ultimate lighting adaptability. Our field selectable fixture comes with interchangeable optical lenses, offering unparalleLED flexibility to meet various lighting requirements. The included 90 degrees x 90 degrees optical lens ensures even light distribution for most general applications, while optional lenses are available as accessories for specialized lighting needs. In addition to lens versatility, the 65-1013 fixture offers three wattage options (275W/300W/320W), three color temperature options (3000K/4000K/5000K), a flicker-free driver for seamless illumination, 6kV surge protection for added durability, and 0-10V dimming capability for precise control. For enhanced energy efficiency, an integrated sensor port is readily accessible, allowing seamless installation of optional PIR or microwave motion sensors. These sensors can be conveniently configured using an optional remote control. Designed for surface, suspension, and pendant mounting capabilities, this high bay is the ultimate lighting solution that adapts to all your needs.

Features :-

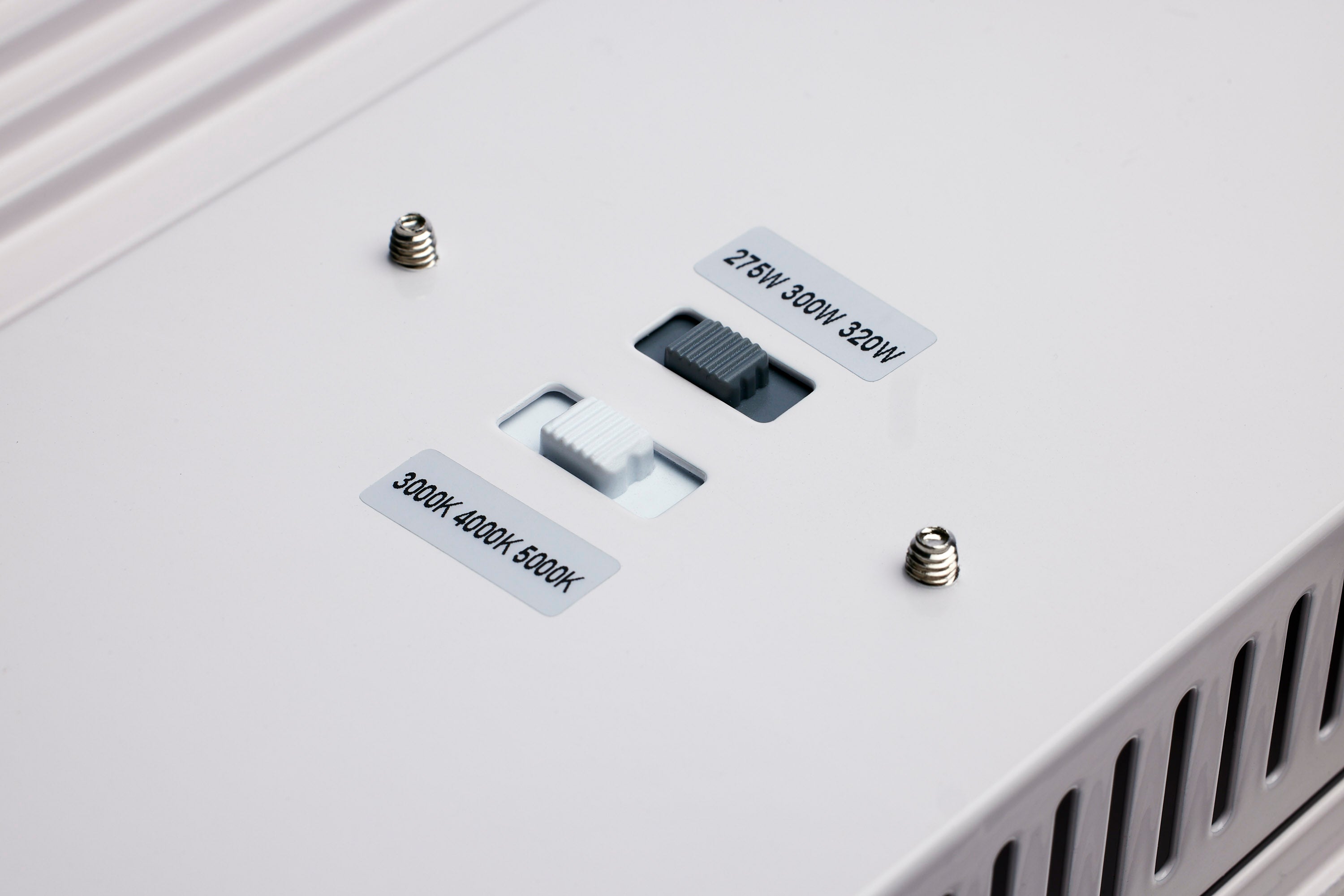

  • CCT and Wattage Selectable
  • Flicker Free Driver

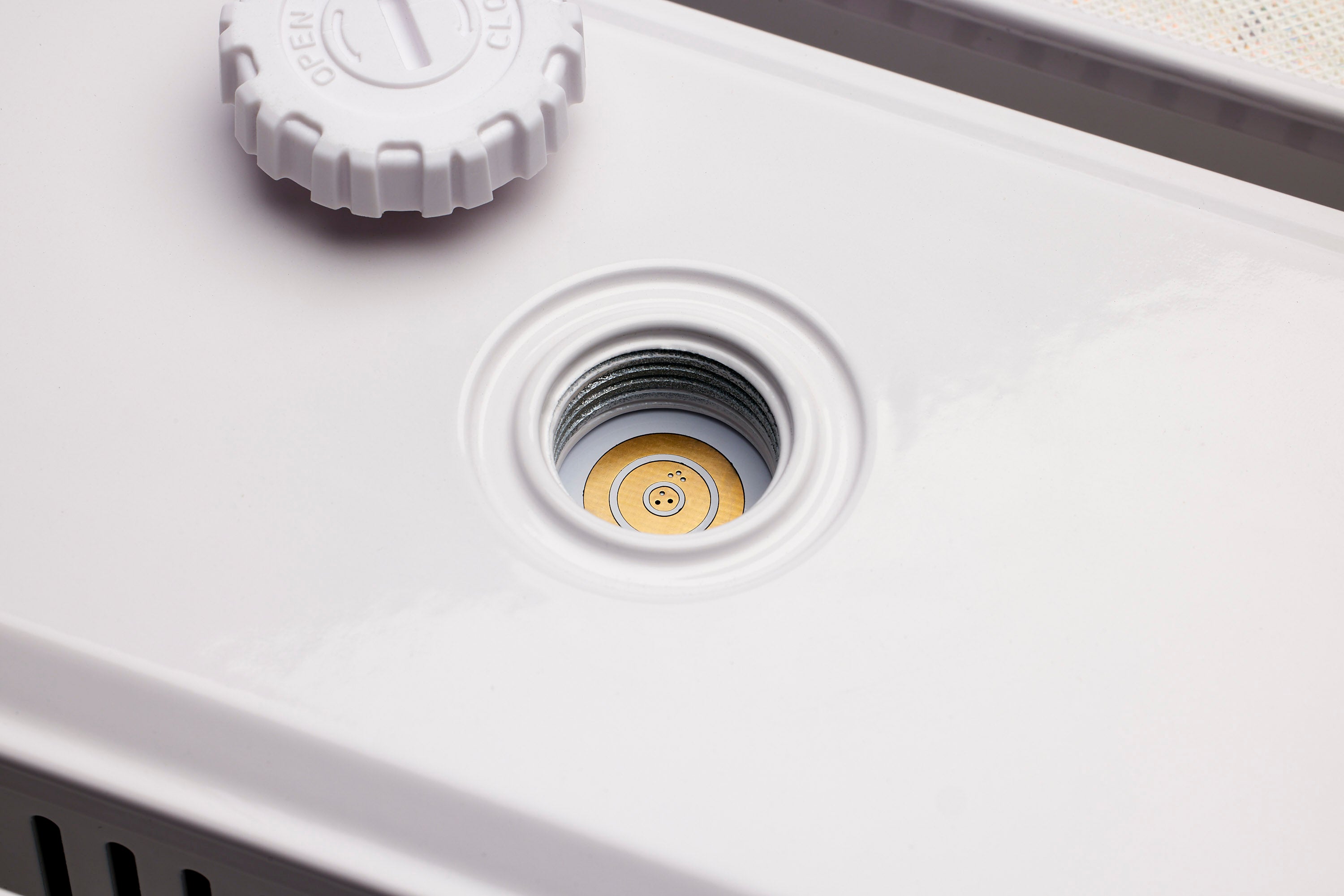

  • Integrated Sensor Port
  • 41-inch Suspension Kit Included
  • 6kV Surge Protection
  • 5 Year Warranty
  • White Finish
