Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 150W
Wattage 20W
Lumens 2600L-2800L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Black
Beam Angle 100
HID Equivalent 100W
Shape Round
Color Temperature Selectable Yes
Light Distribution B1-U3-G2
Fixture Type Area Light
Photocell Yes - Bypassable
Mounting Type Wall
Performance
Rated Life 50000 hrs
Light Color Description Warm to Cool White
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) 15%
Surge Protection Built-in surge protection - 2.5KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum

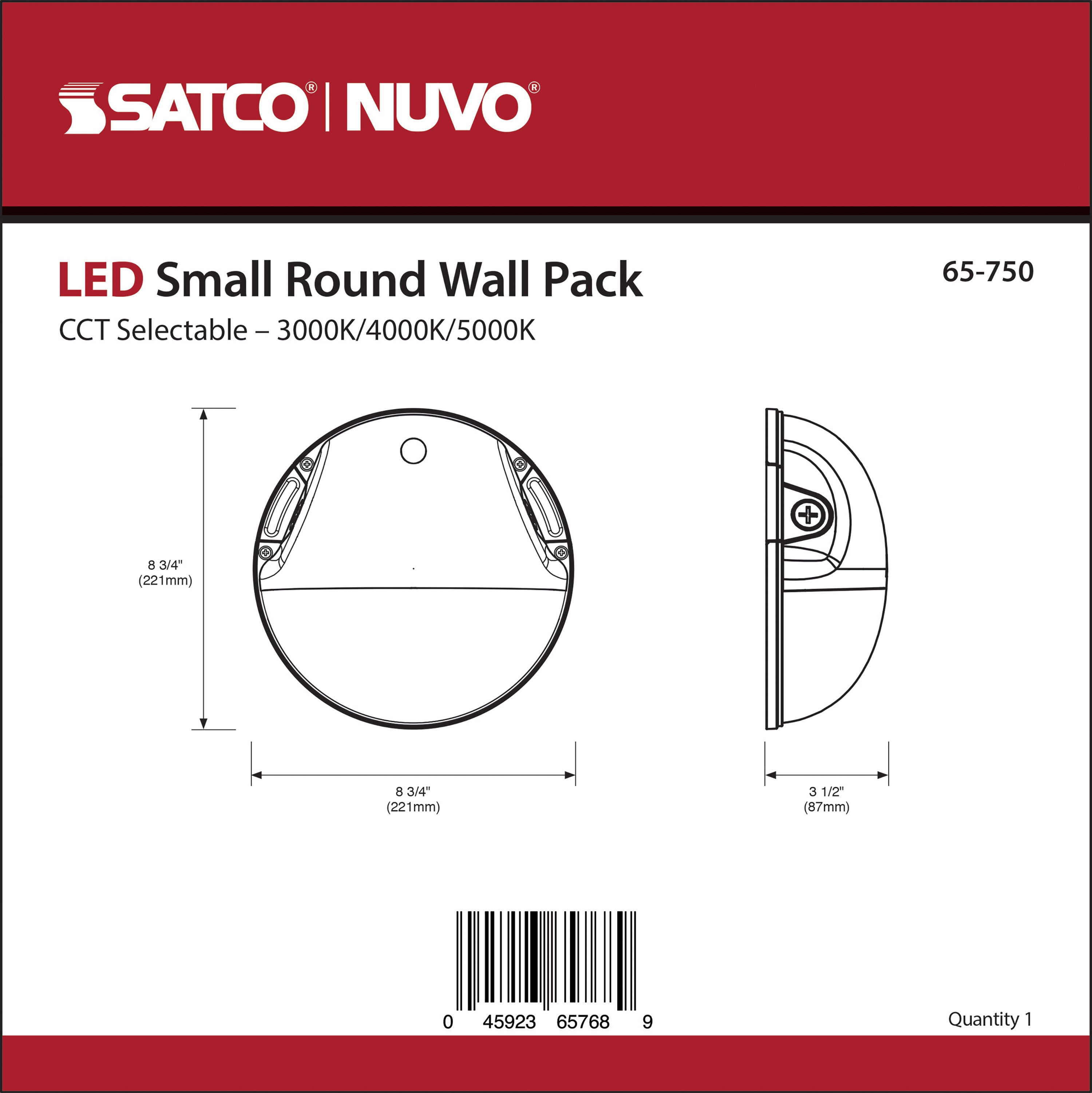

Width 8.7 IN
Height 8.7 IN
Diameter 8.7 IN
Weight 2.42 lbs
Connector / Base Direct Wired
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Outdoor
Location Rating Wet
Operating Temperature -22F to +113F (-30C to +45C)
Air Tight Yes
IP Rating IP65
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

LED Small Round Wall Pack - 20W - CCT Selectable - Bypassable Photocell - 120-277 Volt - Black Finish brings the familiar role of a LED wall pack to replacement and new-installation projects where wall-mounted site lighting is preferred. It is a practical choice for customers comparing building exterior light and perimeter lighting fixture for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

Works well for facility managers and electrical contractors upgrading commercial building lighting. That is especially useful in warehouses, retail buildings and other properties needing wall-mounted exterior lighting. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a LED wall pack, this option is well suited to projects involving perimeter lighting fixture, outdoor wall lighting and other coordinated lighting upgrades.

Helps organize exterior lighting without requiring pole-mounted fixtures in every location. In building perimeters, loading areas, walkways, parking areas and commercial entrances, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

When it is time to buy LED wall packs online, consider LED Small Round Wall Pack for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

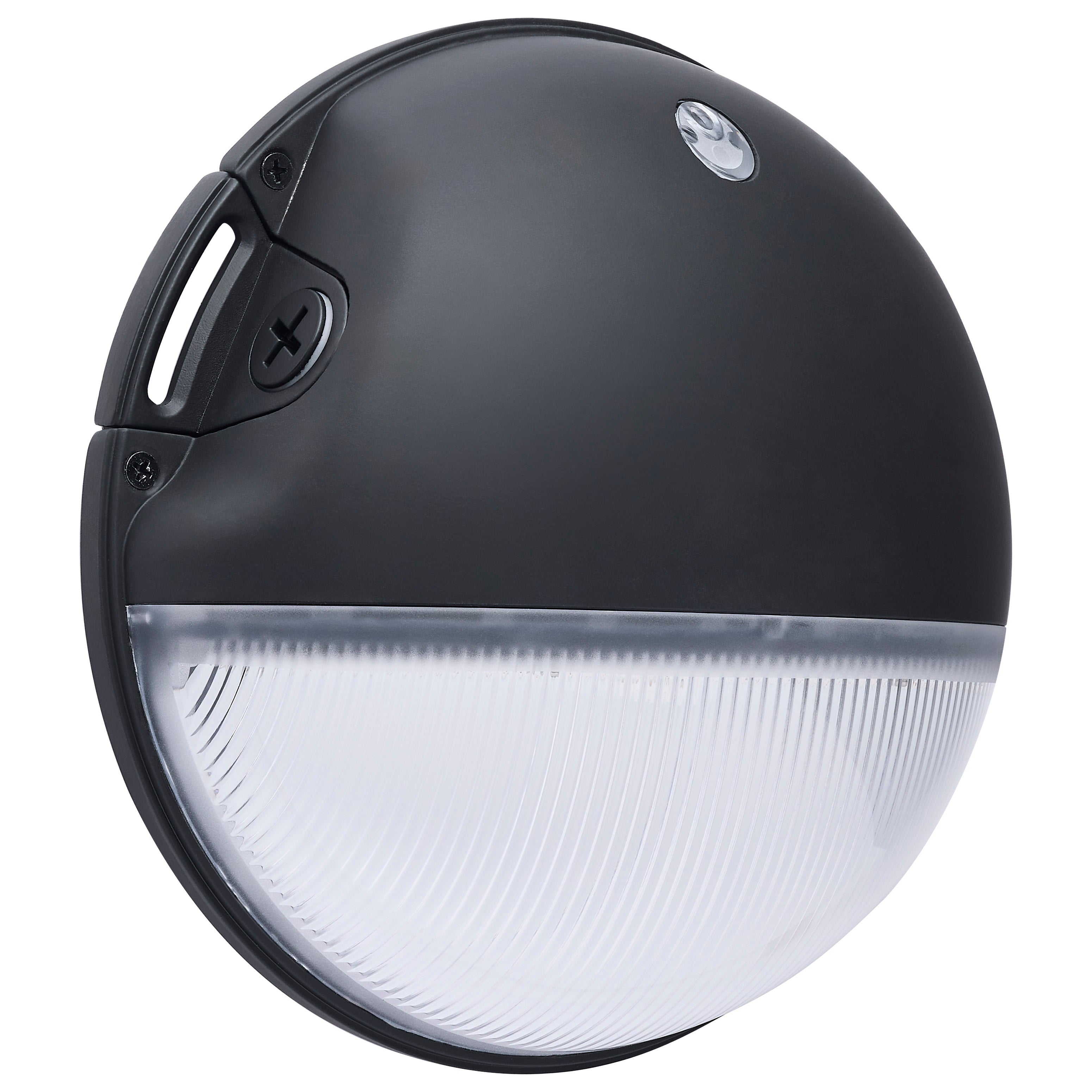

SATCO NUVO's 65-750 CCT-selectable compact wall pack is the latest expansion in the popular line of Satco's commercial luminaires. This 20-watt black wall pack is just under nine inches in diameter, with superior light output and a convenient, easy to use CCT selection switch inside the fixture that allows you to choose between 3000K, 4000K, and 5000K at installation. Additional features include a bypassable photocell for dusk to dawn operation, multiple knockout points for pass-through wiring, and a wet location IP65 rating. These maintenance-free LED fixtures are ready for whatever outdoor conditions come their way. Perfect for multi-unit housing, light commercial use, landscaping, and more.

Features :-

  • DLC Premium
  • Integrated Bypassable Photocell
  • CCT Selectable
  • UV Stabilized Powder Coated Finish
  • IP65 rated
  • 2.5KV Surge Protection
  • 0-10V Dimmable
