Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 100W
Wattage 20W
Lumens 2608.9L/2920.8L/2703.4L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Black
Beam Angle 100
HID Equivalent 100W-150W
Shape Rectangle
Color Temperature Selectable Yes
Light Distribution B1-U3-G2
Fixture Type Wall Pack

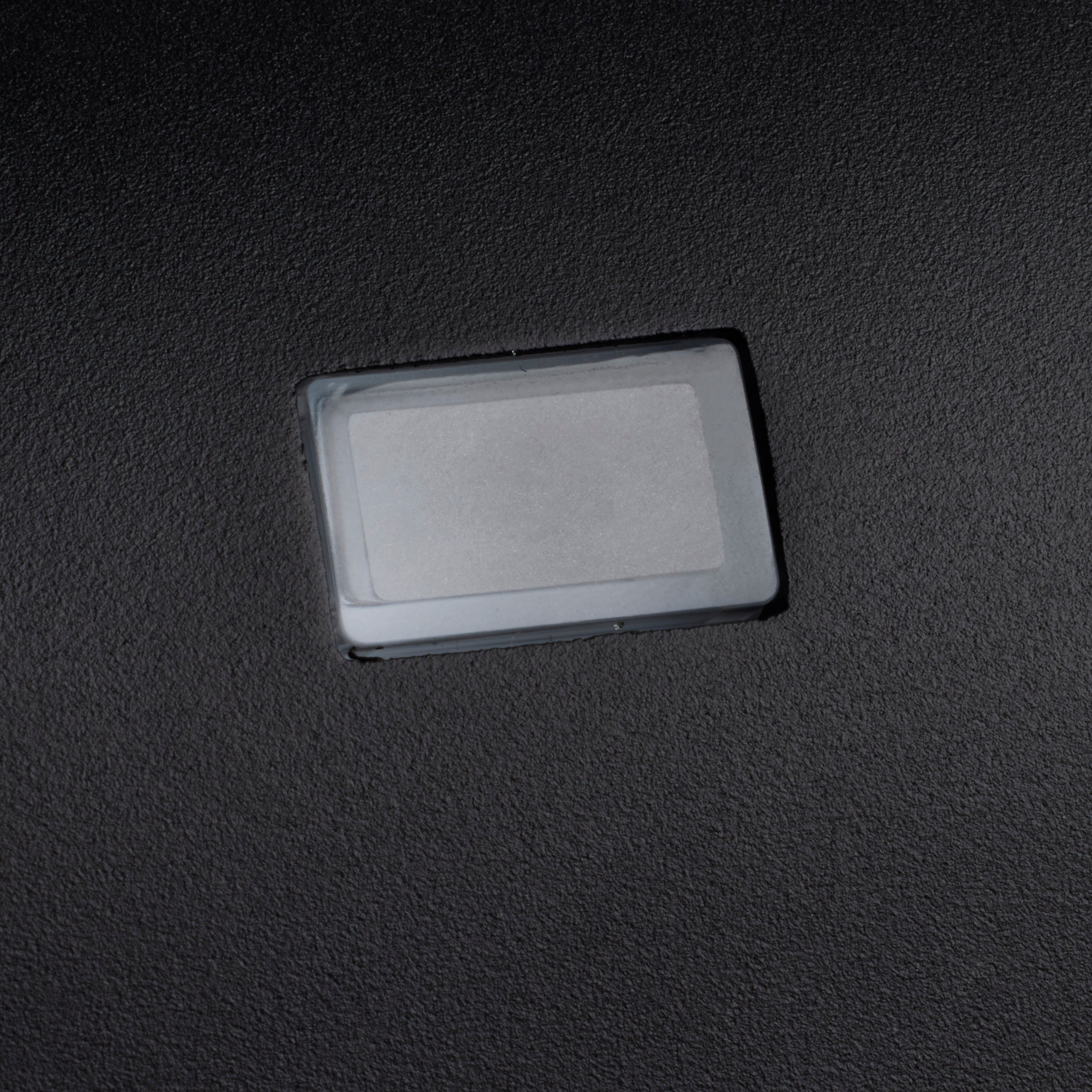

Photocell Has Photocell

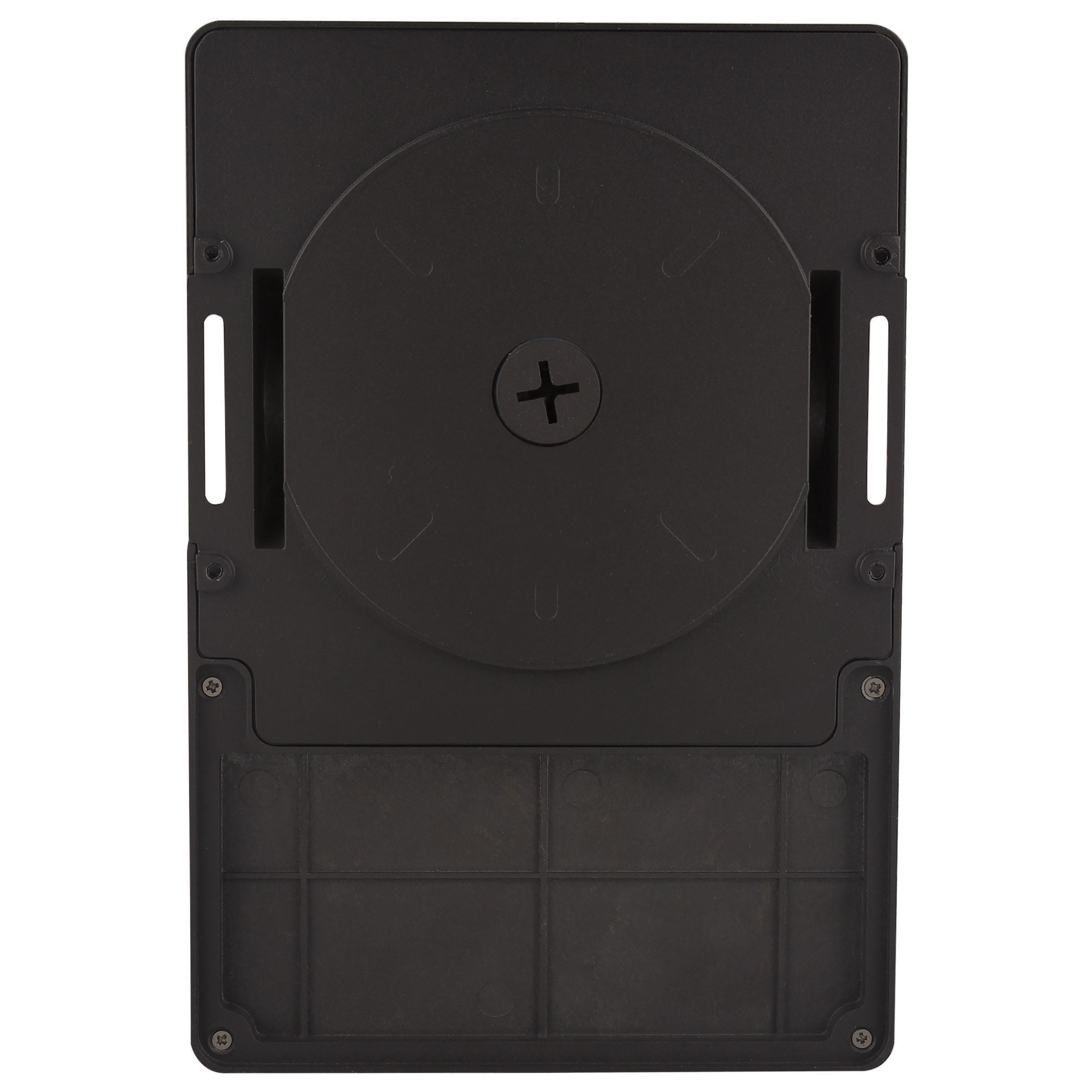

Mounting Type Wall
Performance
Rated Life 50000 hrs
Light Color Description Warm to Cool White
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.99
Total Harmonic Distortion (THD) 20%
Surge Protection Built-in surge protection - 2.5KV
NSF Yes
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Cast Aluminum
Width 5.81 IN
Height 8.59 IN
Weight 1.98 lbs

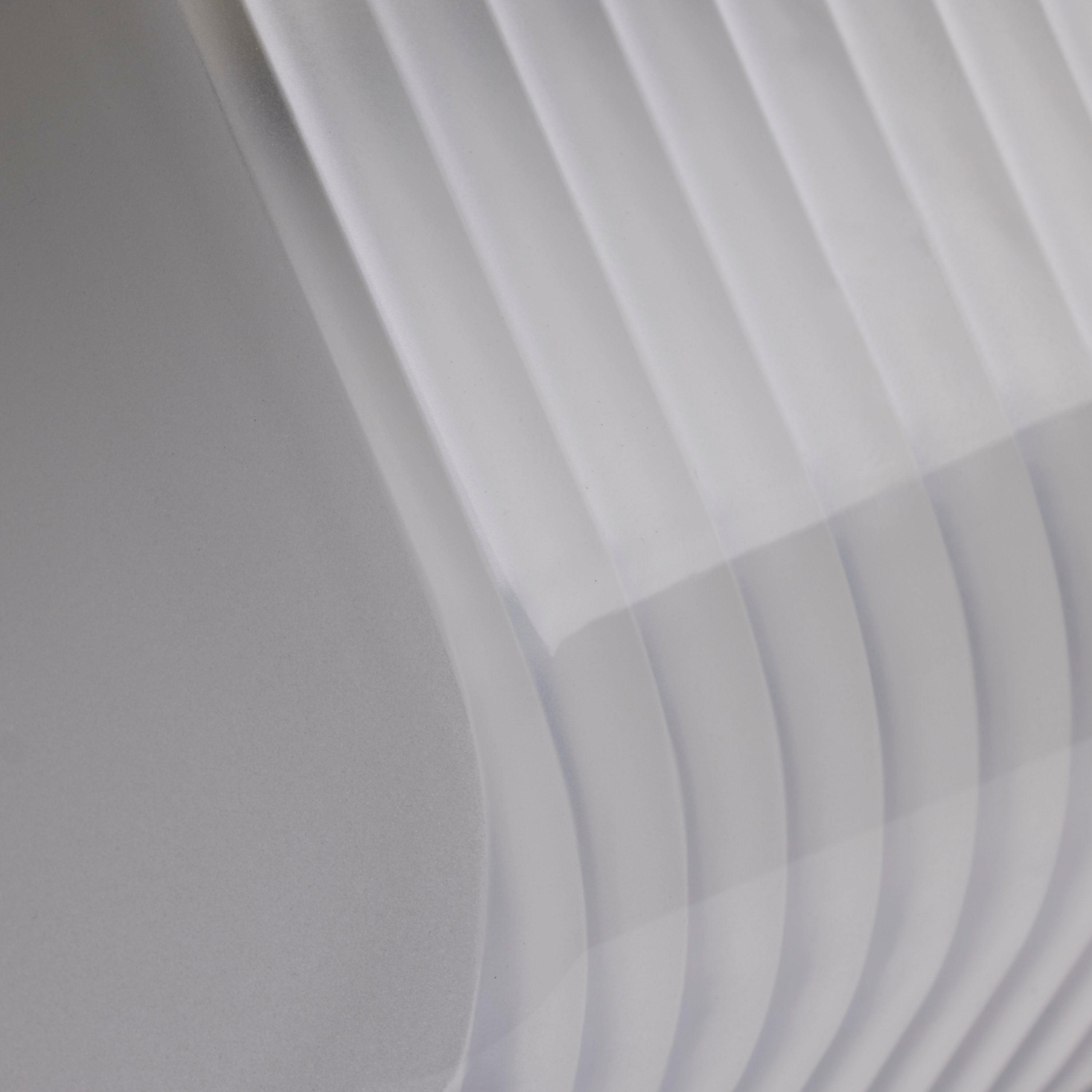

Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Outdoor
Location Rating Wet
Operating Temperature -4F to +113F (-20C to +45C)
IP Rating IP65
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

Choose LED Small Wall Pack - 20W - CCT Selectable 3K/4K/5K - Black Finish - 100-277V when your project calls for a LED wall pack suited to replacement and new-installation projects where wall-mounted site lighting is preferred. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for commercial wall pack light that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Provides a practical wall-mounted approach to illuminating exterior circulation and perimeter areas. In practical terms, that makes this product relevant for warehouses, retail buildings and other properties needing wall-mounted exterior lighting. It also fits naturally into projects considering perimeter lighting fixture and outdoor wall lighting, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

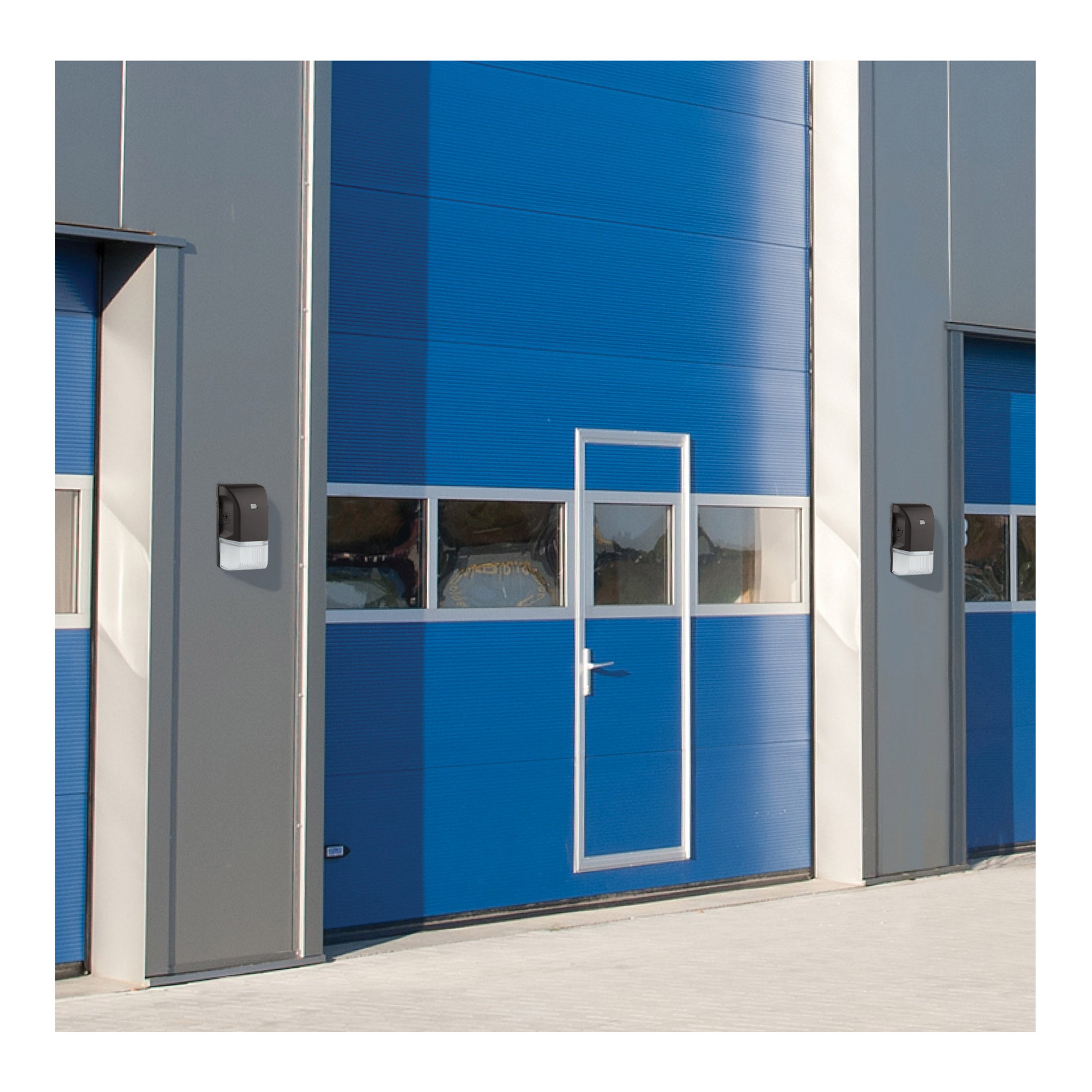

Helps organize exterior lighting without requiring pole-mounted fixtures in every location. In building perimeters, loading areas, walkways, parking areas and commercial entrances, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

For buyers looking to shop commercial exterior wall lights, LED Small Wall Pack is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

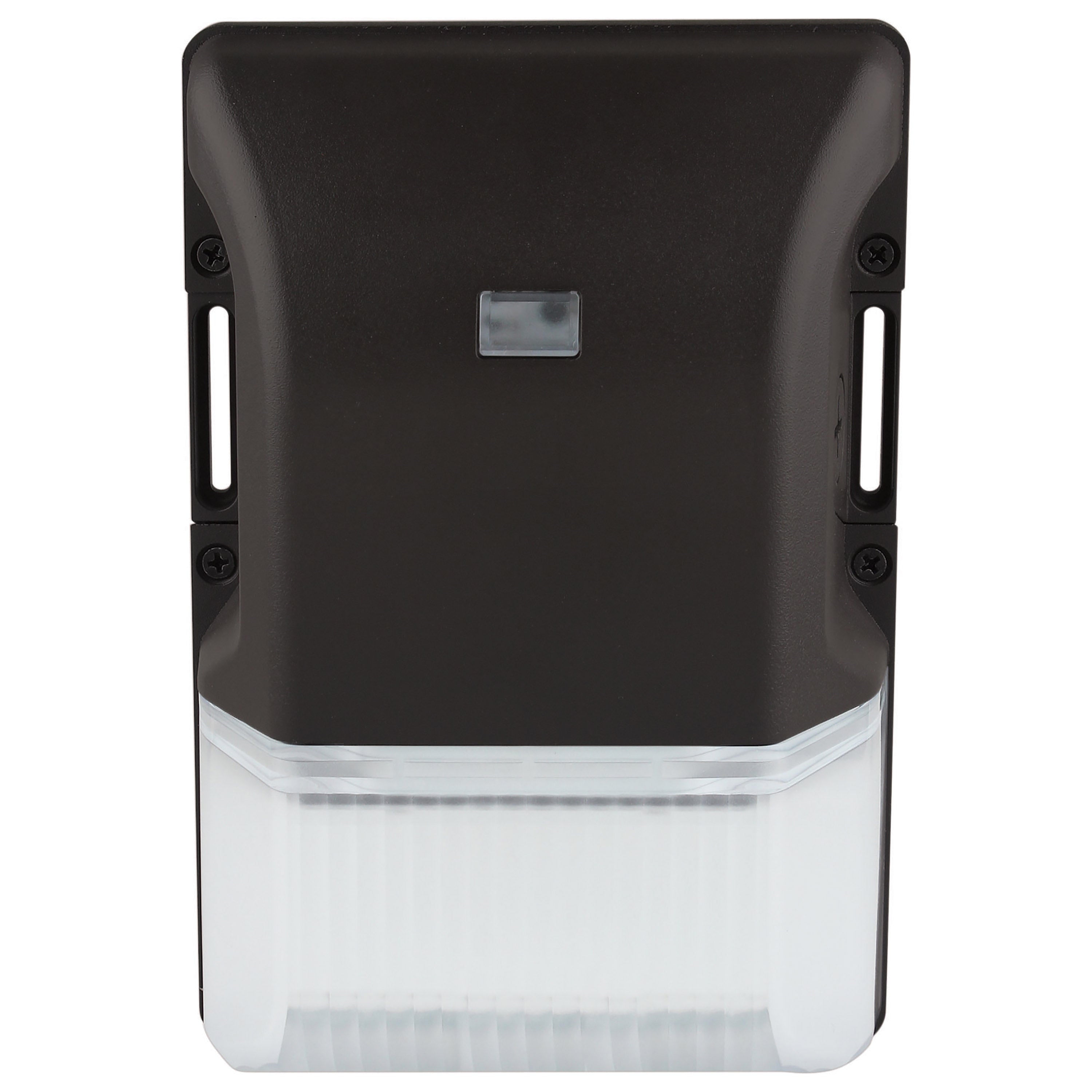

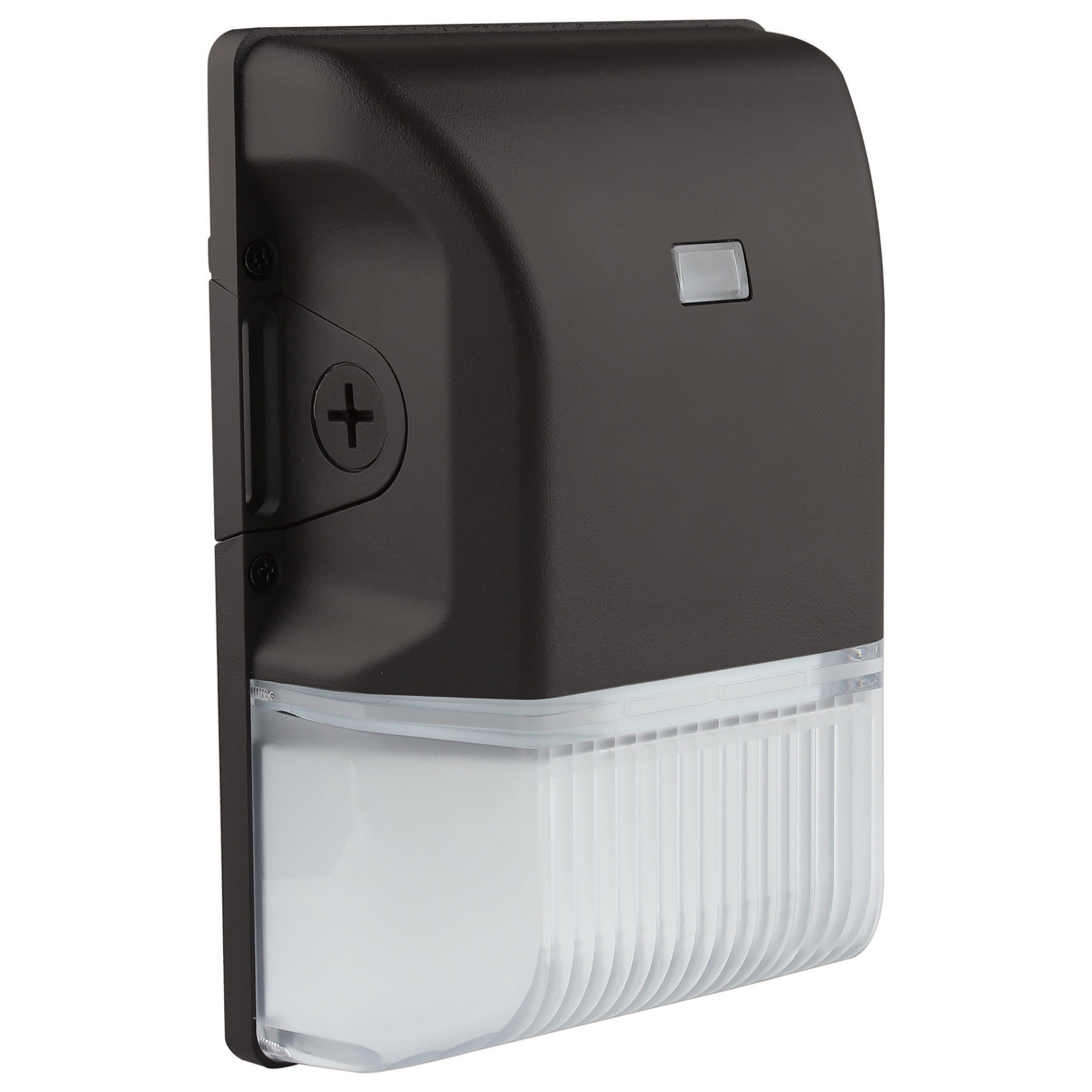

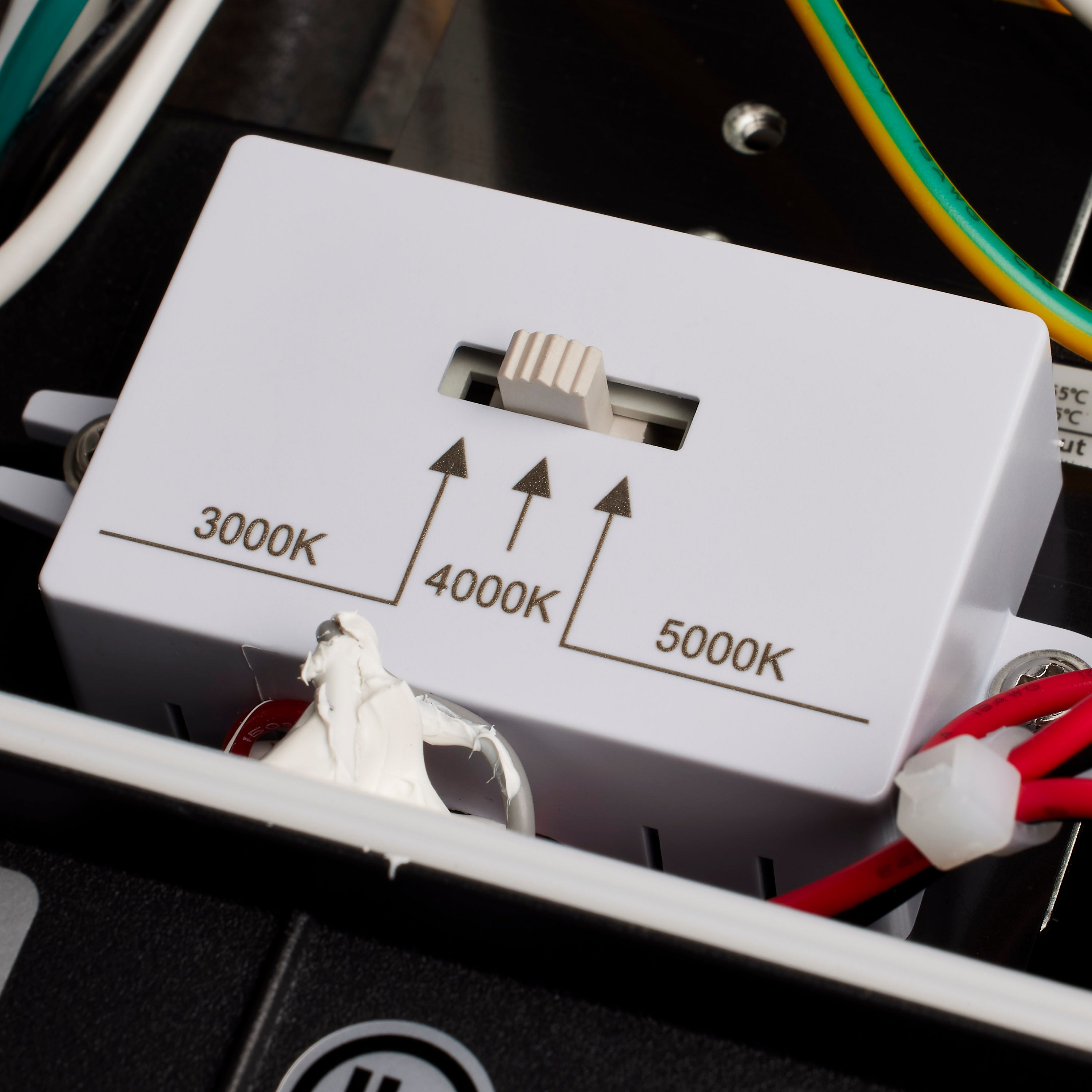

SATCO NUVO's 65-747 20W LED Small Wall Pack is now CCT Selectable. Available in a black finish and featuring lighting choices from warm, cool, and natural light, this fixture is perfect for all of your lighting needs. This premium Wall Pack has a built in photocell sensor, a 100 degree beam spread, and is IP65 wet location rated making it the ideal addition to commercial buildings for exterior illumination.

Features :-

  • CCT Selectable
  • 0-10V Dimmable
  • Maintenance free - no bulb to change
  • Die-cast aluminum body
  • IP65, Wet rated for outdoor use
  • UV Stabilized Powder Coated Finish
