Specifications :-

Key Specifications
Fixture Type Surface Mount Disk CCT Select
Wattage 22W
Lumens 1650 Lms
Color Temperature 2700/3000/3500/4000/5000K
Color Rendering Index (CRI) 90
Dimmable Yes
Voltage 120V
HID Equivalent 165W
Shape Round

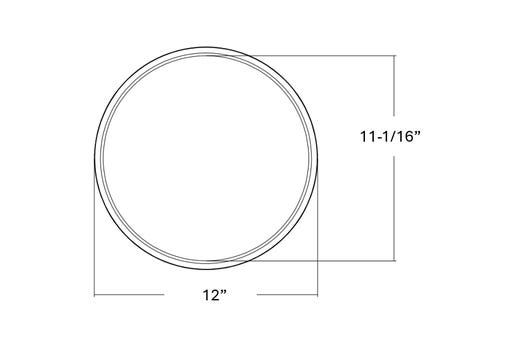

Size 12in
Performance
Rated Life 50,000 Hrs
Electrical
Power Factor 0.9
Dimming Triac
Features / Controls
Color Temperature Selectable Yes
Construction / Installation
Finish White Trim with PMMA Lens

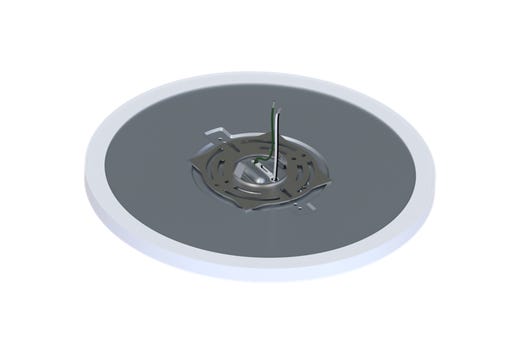

Material Steel backed heatsink with plastic frame
Weight 1.8304 Lbs
Lens / Diffuser PMMA
Mounting Type Ceiling Mount
Environment / Ratings
Application Residential, Office Buildings, Hallways, Self Storage, Schools and Universities
Location Rating Wet
Operating Temperature -20C (-4F) to 40C (104F)
Certifications / Compliance
Safety Listing UL Listed / TAA
Title 24 / JA8 Yes
RoHS Compliant Yes
FCC Compliant Yes
Downloads / Pro Data
Warranty 5 Years

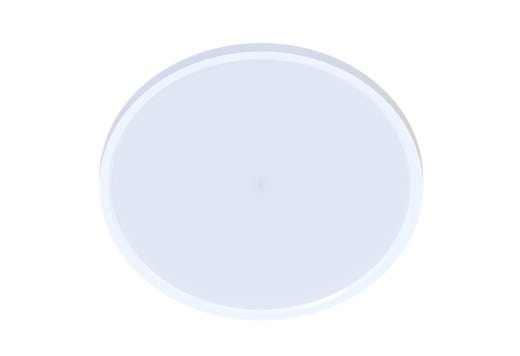

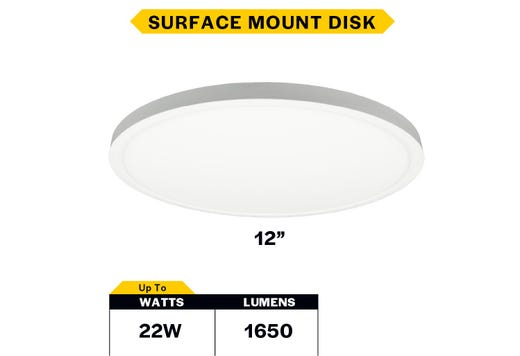

The Surface Mount Disk Series utilizes edge lit lighting technology with plastic housing for a low profile, sharp appearance. Available in four sizes from 5.5in to 12in, the round edge-lit fixtures offer a large, even light emitting surface, avoiding the hot spot of traditional backlit products. Perfect for residential applications that desire a higher end, architectural appearance.

Key Features

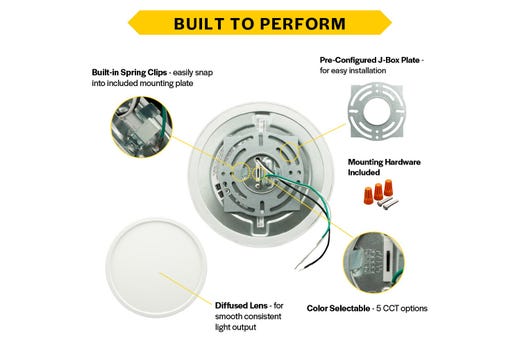

  • Low Profile Surface Mount on Ceiling
  • Low Glare Edgelit Design
  • Color Selectable (27/30/35/40/50)
  • Triac Dimming
  • Plastic Housing, Steel LED Back Plate, PMMA Lens
