Specifications :-

Key Specifications
Fixture Type Surface Mount Disk CCT Select with PIR
Wattage 22W
Lumens 1650 Lms
Color Temperature 2700/3000/3500/4000/5000K
Color Rendering Index (CRI) 90
Voltage 120V
HID Equivalent 165W
Shape Round

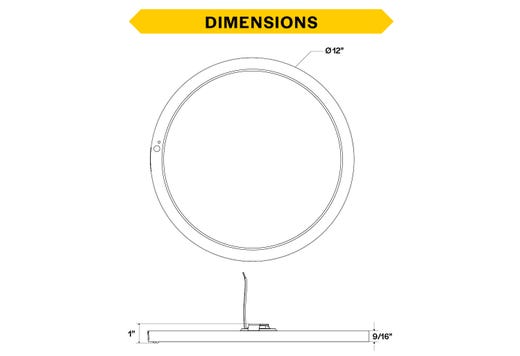

Size 12in
Performance
Rated Life 50000 Hrs
Electrical
Power Factor 0.9
Features / Controls
Color Temperature Selectable Yes
Controls Yes-included PIR
Construction / Installation
Finish White Trim with PMMA Lens
Material Plastic Frame with Steel Bracket
Weight 1.83 Lbs
Lens / Diffuser PMMA

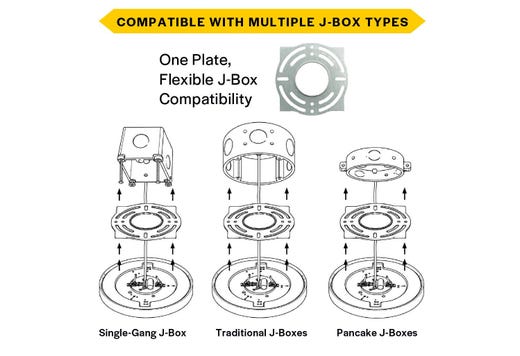

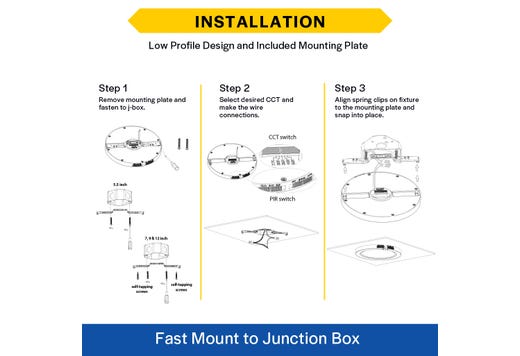

Mounting Type Ceiling Mount
Environment / Ratings
Application Residential, Office Buildings, Hallways, Self Storage, Schools and Universities
Location Rating Damp
Operating Temperature -20C (-4F) to 40C (104F)
Certifications / Compliance
Safety Listing UL Listed / TAA
Title 24 / JA8 Yes
RoHS Compliant Yes
FCC Compliant Yes
Downloads / Pro Data
Warranty 5 Years

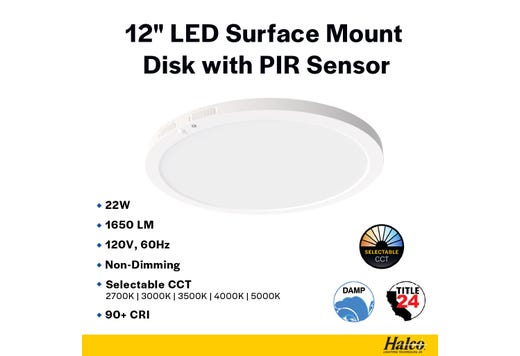

The Surface Mount Disk Series utilizes edge lit lighting technology with plastic housing for a low profile, sharp appearance. Available in four sizes from 5.5in to 12in, the round edge-lit fixtures offer a large, even light emitting surface, avoiding the hot spot of traditional backlit products. Perfect for residential applications that desire a higher end, architectural appearance. This version includes a PIR Sensor and is non-dimming. Color Trim accessories can not be used with this version.

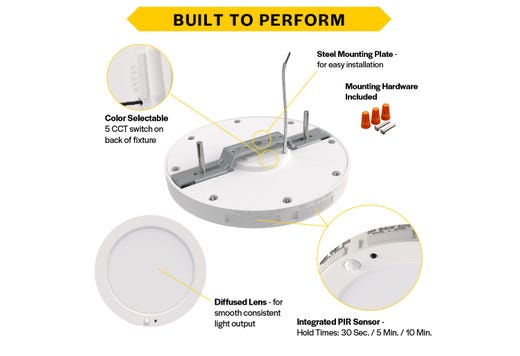

Key Features

  • Low Profile Surface Mount on Ceiling
  • Low Glare Edgelit Design
  • Color Selectable (27/30/35/40/50) - on back of fixture

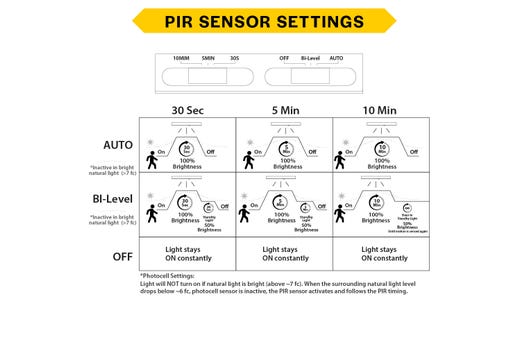

  • PIR Sensor with Daylight Sensor Included
  • Auto - Hold Times: 30 Sec / 5 Min / 10 Min
  • Bi-Level - Reduces to 50% Dim for Auto Hold times before turning off
  • Non-Dimmable
  • Plastic Housing, Steel Mounting Bracket, PMMA Lens
  • Color trims can not be used with the PIR Sensor
