Specifications :-

Key Specifications
Bulb Shape / Type T8
Base Medium Bi-Pin (G13)
Incandescent Equivalent 32W
Wattage 12.5W
Lumens 1600 Lms
Color Temperature 3500/4000/5000K
Color Rendering Index (CRI) 83
Dimmable Yes
Voltage 120-277V
Beam Angle 320
Fixture Type T8 4FT CCT Select. Hybrid A+B Tube
Performance
Rated Life 50,000 Hrs
Electrical
Amperage 0.1 - 0.23 A
Frequency 50/60Hz
Power Factor 0.9
Features / Controls
Color Temperature Selectable Yes
Construction / Installation
Finish Frosted
Length 48 In
Weight 0.44 Lbs
Environment / Ratings
Application Commercial, Healthcare, School, Residential
Location Rating Damp or Dry
Certifications / Compliance
FCC Compliant Yes
DLC DLC 5.1 Standard
Downloads / Pro Data
Warranty 5 Years

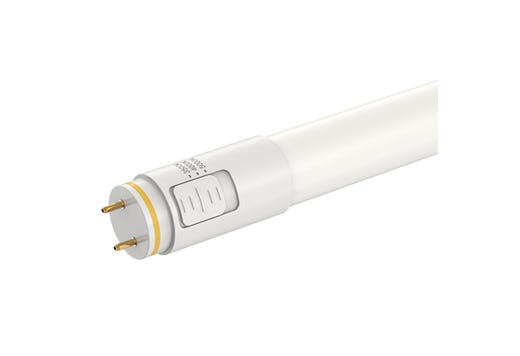

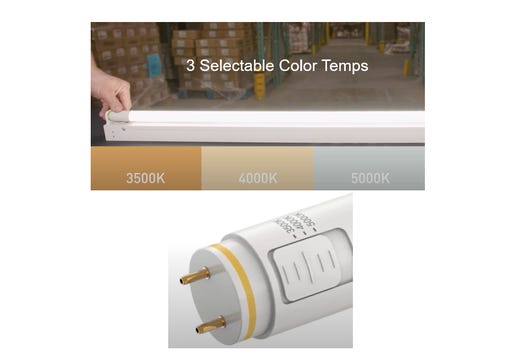

The ProLED Select T8 Linear Hybrid (Type A+B) lamps offers the most versatile installation solution for your linear fluorescent T8 or T12 retrofit needs. Fully certified as a UL 1598C retrofit kit in single end or double end ballast bypass scenarios (ULType B) and UL listed for use with electronic T8 fluorescent ballasts (ULType A), these lamps provide the perfect, hassle free solution for whatever the project requires. When being used with an instant start, programmed start, or emergency backup ballast, Nofixture re-wiring is needed. If the ballast fails in the future, simply re-wire the fixture with 120-277V line voltage using either single end or double end wiring. This CCT selectable hybrid comes in 2-foot, 3-foot, and 4-foot lengths, and offers users the ability to select between 3500K, 4000K, and 5000K kelvin temperatures by simply sliding the selector on the tube to the desired color.

Key Features

  • Operates on electronic fluorescent T8 instant start, programmed start, or emergency ballasts
  • Can be installed as either a Type B or Type A lamp
  • Nomercury or UV emissions
  • Suitable for dry or damp locations
  • High quality frosted PET coated glass construction
