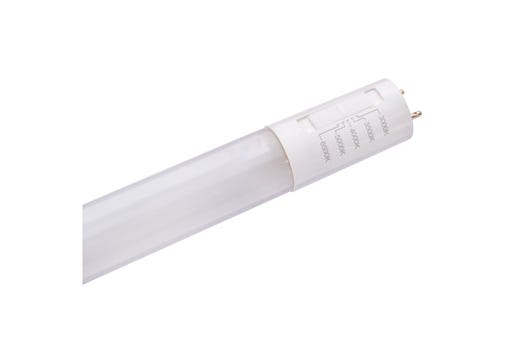

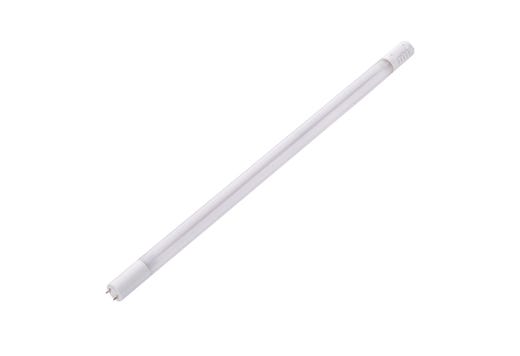

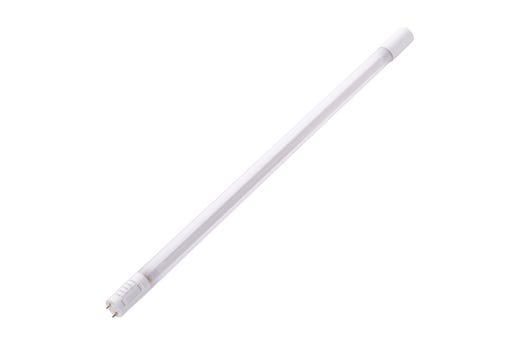

LED T8 24in Linear Tube Type B Bypass Single-Double Ended 9W

Topaz LED T8 24in Linear Tube Type B Bypass Single-Double Ended 9W 5-CCT Selectable 1150lm Medium Bi-Pin G13 PET Coated

Topaz LED T8 24in Linear Tube Type B Bypass Single-Double Ended 9W 5-CCT Selectable 1150lm Medium Bi-Pin G13 PET Coated

Name: Topaz LED T8 24in Linear Tube Type B Bypass Single-Double Ended 9W 5-CCT Selectable 1150lm Medium Bi-Pin G13 PET Coated
Brand: Topaz
SKU: T75782
Price: 7.71 USD
Availability: InStock

SKU : T75782

Vendor : Topaz

Order Code : L2T8B-9-CS-GPSDE

$7.71

Competitive Pricing

High Energy Efficiency

Long-Term Performance

Get additional discounts on orders over $1000

Special Volume Offer Buy 25 for $7.71 each

Checkout safely using your preferred payment method

Free Shipping

On orders over $550

30-Day Returns

Hassle-free returns

Secure Checkout

100% secure payment

Available: In Stock

Delivery from to

Ordered

Shipped

Delivered

Technical Details

Specifications :-

Key Specifications
Bulb Shape / Type	T8
Base	Medium Bi-Pin (G13)
Wattage	9W
Lumens	1150 Lms
Color Temperature	3000/3500/4000/5000/6500K
Color Rendering Index (CRI)	80
Voltage	120-277V
Beam Angle	170deg
Fixture Type	LED Linear Type B-Bypass
Performance
Rated Life	50000 hrs
Electrical
Frequency	50/60Hz
Power Factor	0.9
Features / Controls
Color Temperature Selectable	Yes
Construction / Installation
Length	23.78 In
Width	1.14 In
Height	1.14 In
Weight	0.28 Lbs
Environment / Ratings
Application	Commercial, Hospitality Office Education Retail Warehouse
Location Rating	Damp
Operating Temperature	-20C(-4F) to 45C(113F)
Certifications / Compliance
Safety Listing	UL Listed
FCC Compliant	Yes
RoHS Compliant	Yes
DLC	DLC 5.1 Standard
Downloads / Pro Data
Warranty	5 Years

Key Features

Choose from 5 color temperatures at installation with CCT selectable switch
High efficacy, up to 129 lumens per watt (LPW)
50,000 hours lifetime (L70)
Type B Bypass requires Non-Shunted lamp holders
Ambient operating temperature: -4F to 113F
Suitable for enclosed fixtures
Frosted glass tube construction with PET shatter protection
UL type B, ballast bypass models utilize single & double end wiring connection
