Specifications :-

Key Specifications
Fixture Type Standard Wallpack
Wattage 80/100/120W
Lumens 11200/14000/16800 Lms
Color Temperature 3000/4000/5000K
Color Rendering Index (CRI) 82
Dimmable Yes
Voltage 120-277V
Beam Angle 90 Degrees
Performance
Rated Life 50000 hrs
Electrical
Frequency 50/60hz
Power Factor 0.9
Dimming 0-10V
Features / Controls
Wattage Selectable Yes
Color Temperature Selectable Yes
Controls Photocell Included
Construction / Installation
Finish Bronze
Material Aluminum
Length 10 In
Width 15.5 In
Height 9.5 In
Weight 12.025 Lbs
Lens / Diffuser IK06 Impact Resistant Glass
Environment / Ratings
Application Commercial and residential Security lighting Perimeter lighting Warehouses Condos - Apartments Hotels
Location Rating Wet
Operating Temperature -40C (-40F) to 50C (122F)
IP Rating IP65
IK IK06
Certifications / Compliance
Safety Listing ETL Listed
DLC DLC 5.1 Premium
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5 Years

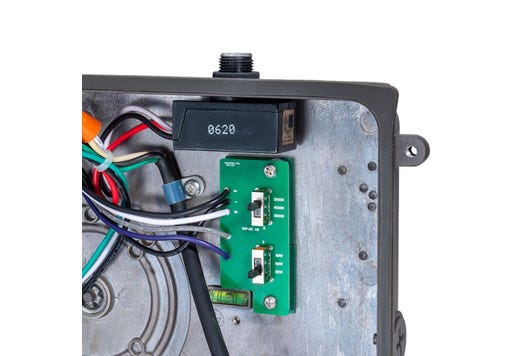

For commercial and multi-family residential settings, this units are the best option. These modern fixtures, made for warehouses and buildings, are a terrific method to ensure safety by illuminating walkways and common areas. The power and color temperature selector switches allow you to alter the light output. There are up to nine different fixture setups.

Key Features

  • Choose from three wattage and three CCT choices 3-4-5K for up to nine possible configurations

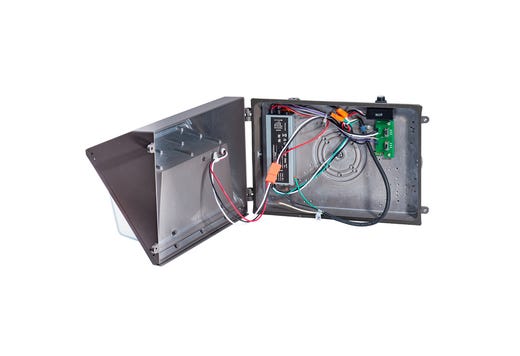

  • Durable aluminum housing with hinged lens frame, captive screws and1/2in knockouts on each side
  • IK06 impact resistant glass lens
  • Semi-cut off light distribution designed to eliminate glare providing smooth, uniform light
  • Integrated dusk-to-dawn photocell
