Specifications :-

Key Specifications
Fixture Type 1x4 Troffer Selectable Controls Ready
Wattage 20/25/30W
Lumens 2500/4000 Lms
Color Temperature 3500/4000/5000K
Color Rendering Index (CRI) 80
Dimmable Yes
Voltage 120-277V

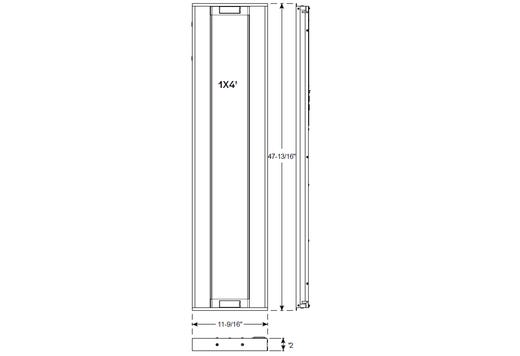

Size 1x4
Performance
Rated Life 50,000 Hrs
Electrical
Power Factor 0.9

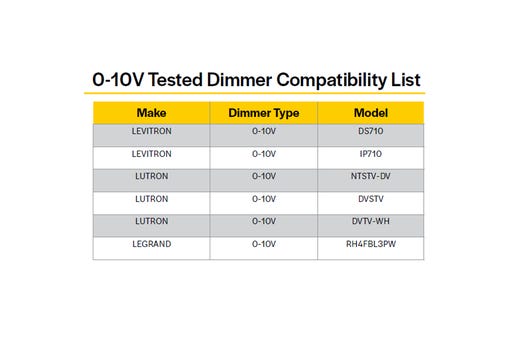

Dimming 0-10V
Features / Controls

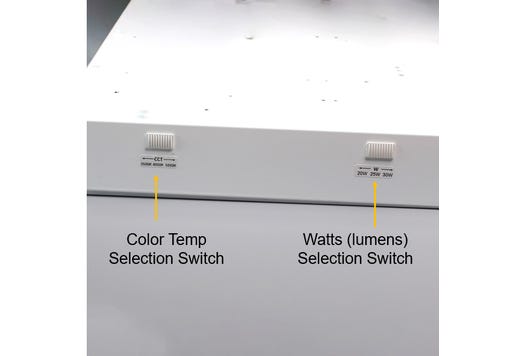

Wattage Selectable Yes
Color Temperature Selectable Yes
Emergency Backup Yes
Construction / Installation
Finish White
Material Powdercoated steel
Weight 8.6 Lbs
Lens / Diffuser Acrylic
Environment / Ratings
Application Commercial, Education, Healthcare , Hospitality, Retail Office, Lobby, Hallway, Conference Room, Classroom
Location Rating Damp or Dry
Operating Temperature -25C (-13F) to 45C (113F)
IC Rated Yes
Certifications / Compliance
Safety Listing UL Listed
DLC DLC 5.1 Premium
FCC Compliant Yes
Downloads / Pro Data
Warranty 5 Years

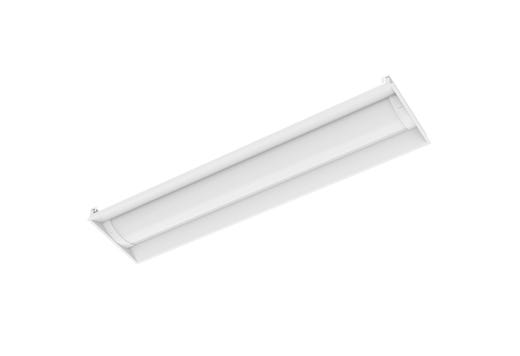

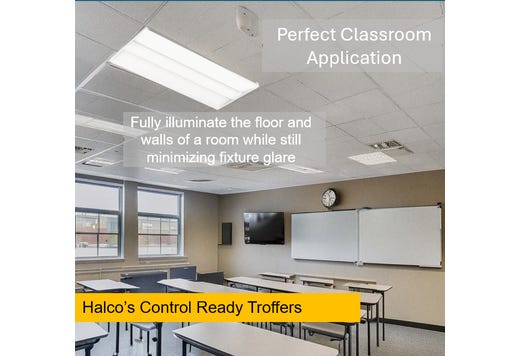

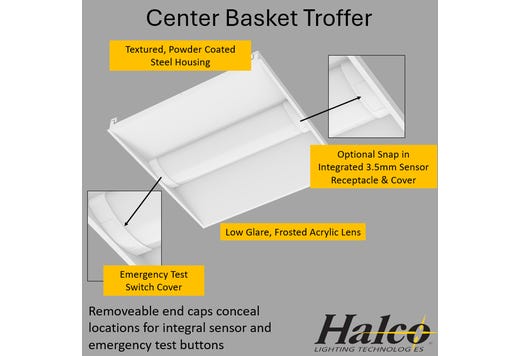

The Center Basket Troffer is a family of sleek, modern LED troffers and retrofit kits designed for new construction, remodel and retrofit recessed ceiling applications. The fully illuminated, frosted acrylic center basket design can fully illuminate the floor and walls of a room while still minimizing fixture glare. Removeable end caps conceal a 3.5mm receptacle for integrated sensor fixture control one end and an optional emergency battery pack test button on the other end. The retrofit kits can be used to easily and quickly convert most standard fluorescent parabolic, troffer and panel fixtures to a energy efficient, controls ready luminaire. Enlist the Center Basket Troffer family for your next lighting project.

Key Features

  • Powdercoated steel fixture body
  • Frosted acrylic center basket design illuminates walls and floors & minimizes glare

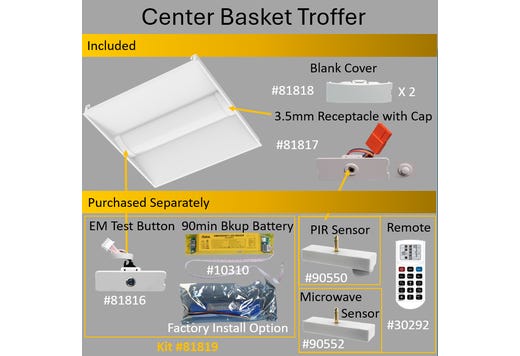

  • 3.5mm receptacle for integrated fixture sensors (in bag attached to fixture)
  • Pre-wired for optional battery backup & test button sold separately
