Specifications :-

Key Specifications
Fixture Type LoPro Watts & Color Selectable LED Wallpack
Wattage 100/120/140W
Lumens 13000/19000 Lms
Color Temperature 3000/4000/5000K
Color Rendering Index (CRI) 90
Dimmable Yes
Voltage 120-277V
Beam Angle 90H x 69V
Performance
Rated Life 50,000 Hrs
Light Distribution 90H x 69V
Electrical
Amperage 1.4A
Frequency 50/60Hz
Power Factor .9
Dimming 0-10V
Features / Controls
Wattage Selectable Yes
Color Temperature Selectable Yes
Emergency Backup Yes
Photocell Yes
Construction / Installation
Finish Textured architectural bronze powder-coat finish
Material Die-cast aluminum hinged door frame and captive screws
Weight 15.7 Lbs
Lens / Diffuser Highly Durable Shatter Resistant Borosilcate Glass Prismatic lens

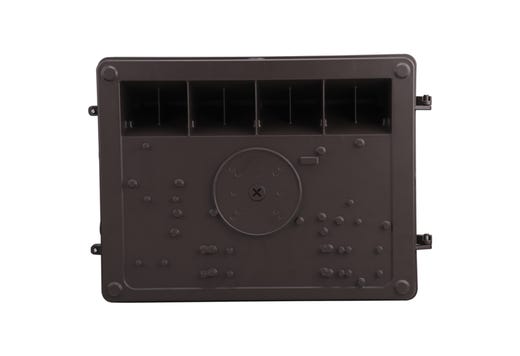

Mounting Type Drill template on backplate Attach with Screws per Installation guide (not included)
Environment / Ratings
Application Exterior lighting or Security Lighting for Office parks, Commerical Buildings, Maintenance Facilities, Schools, Cargo Bay, Retail Stores, Entrance & Alleyway, Retail
Location Rating Wet
Operating Temperature -25C (-13F) to 45C (113F)
IP Rating IP65
Certifications / Compliance
Safety Listing UL Listed
DLC DLC 5.1 Premium
Downloads / Pro Data
Warranty 5 Years

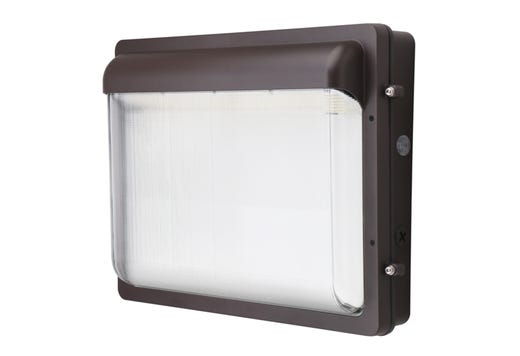

The ProLED Low Profile Slim Wall Pack Series is a modern take on the traditional wall pack. Available in three sizes to easily replace all HID wall packs, fully covering the unsightly stains leftover from older fixtures. Our Low Profile Slim Wall packs are an excellent choice for replacement or new construction applications. Designed with targeted illumination in a low glare directional forward throw and wide distribution for even lighting. The new slim design creates a less obtrusive appearance on the building and has prismatic, heat-resistant borosilicate glass, precision die-cast aluminum housing and are mercury and UV free for an environmentally friendly long life. LPWP comes standard with a flush integrated photocell, field selectable light output, and selectable CCT to maximize flexibility both in the field and on the shelves.

Key Features

  • Low Profile Modern Design
  • Advanced Optical Design
  • Field Adjustable CCT and Lumen Output
  • Integrated Enable/Disable Photocell
  • Die cast Aluminium with Hinged Door Frame and Captive Screws and Shatter Resistant Borosilicate Glass Prismatic Lens
