Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 75W
Wattage 12W
Lumens 1020L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 90
Dimmable Yes-Dimmable
Voltage 120V
Finish White
Beam Angle 24
Shape Round
Color Temperature Selectable Yes
Fixture Type Track Head
Length 5.63 IN
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Natural Light
Safety Listing cETLus
Electrical
Frequency 60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <40%
Surge Protection Built-in surge protection - 2KV
Features / Controls
Triac/Elv/Mlv Forward Phase, Linear Dimming
Construction / Installation
Material Aluminum
Width 1.3 IN
Height 7.13 IN
Diameter 4.7 IN
Weight 0.9 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Connector / Base Connector or Adapter
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Dry
Operating Temperature -4F to +104F (-20C to +40C)
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 3-Years

Orb LED Track Head - 12 Watt - 3000K/4000K/5000K CCT Selectable - 24 Degree Beam Angle - J-Style - White - 120 Volt is a track lighting intended for commercial and residential interiors where adjustable lighting helps direct attention. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting track light fixture for a specific room, fixture or property application.

Supports flexible lighting layouts that can adapt as furniture, merchandise or room use changes. In practical terms, that makes this product relevant for retail displays, restaurants, galleries, hospitality interiors and residential accent lighting. It also fits naturally into projects considering LED track head and track lighting, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

A strong choice for layered lighting plans that need both visual focus and clean ceiling organization. This is particularly helpful for wall washing, artwork lighting, task illumination and focused room lighting. Whether the goal is to replace an existing item, complete a larger fixture schedule, or source matching products across multiple rooms, the emphasis stays on application fit and practical purchasing. That makes the product relevant to both one-off replacements and larger residential or commercial lighting orders.

When it is time to buy track lighting online, consider Orb LED Track Head for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

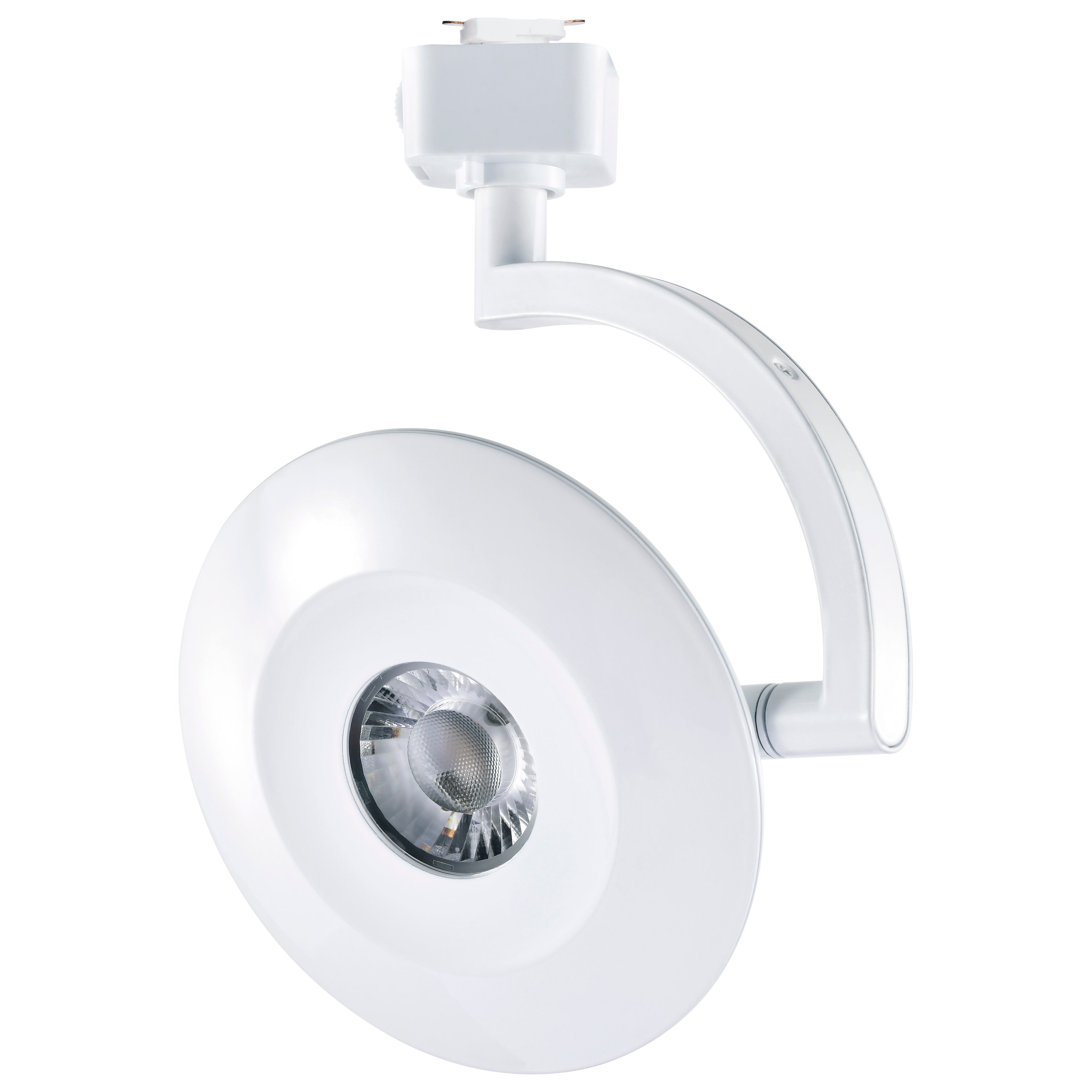

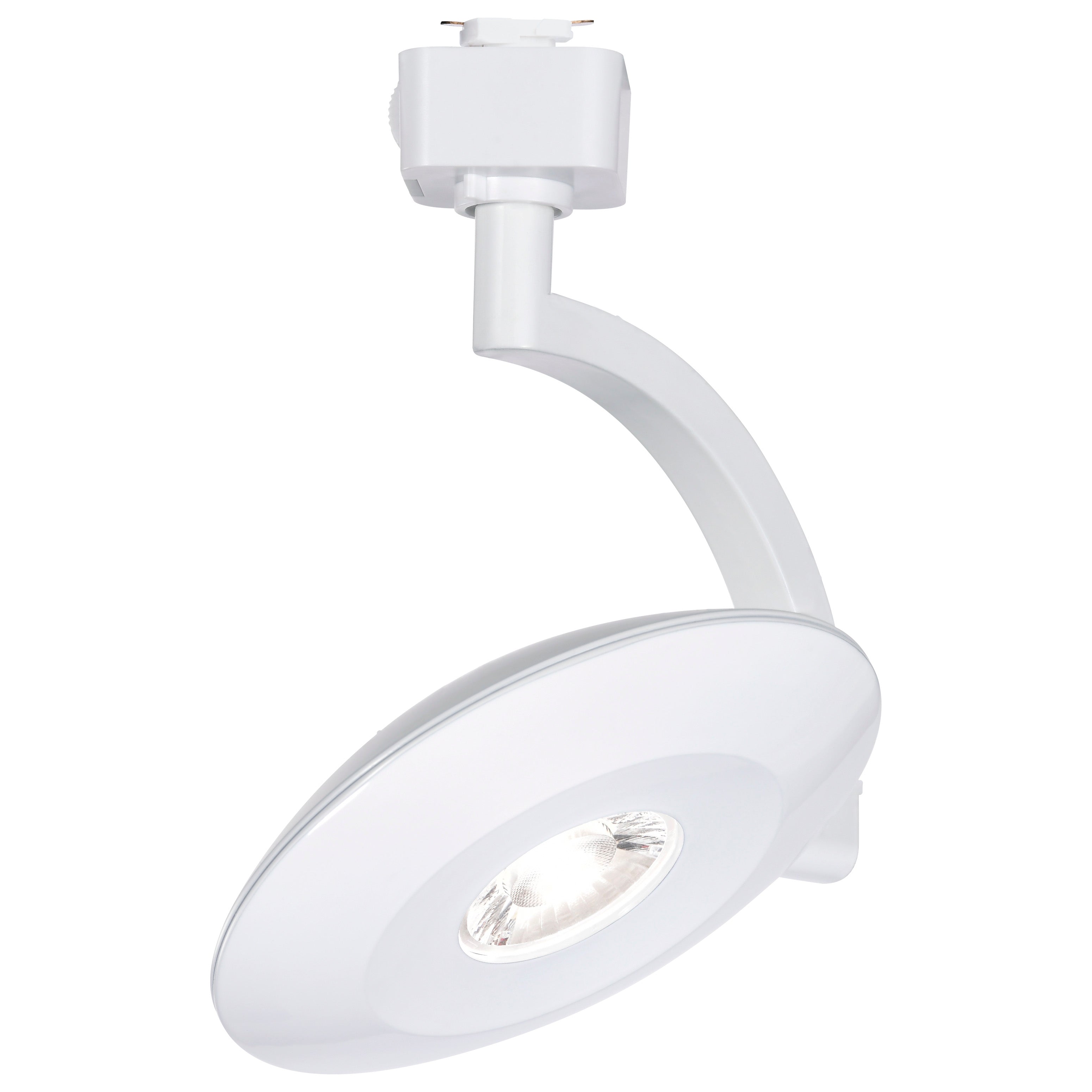

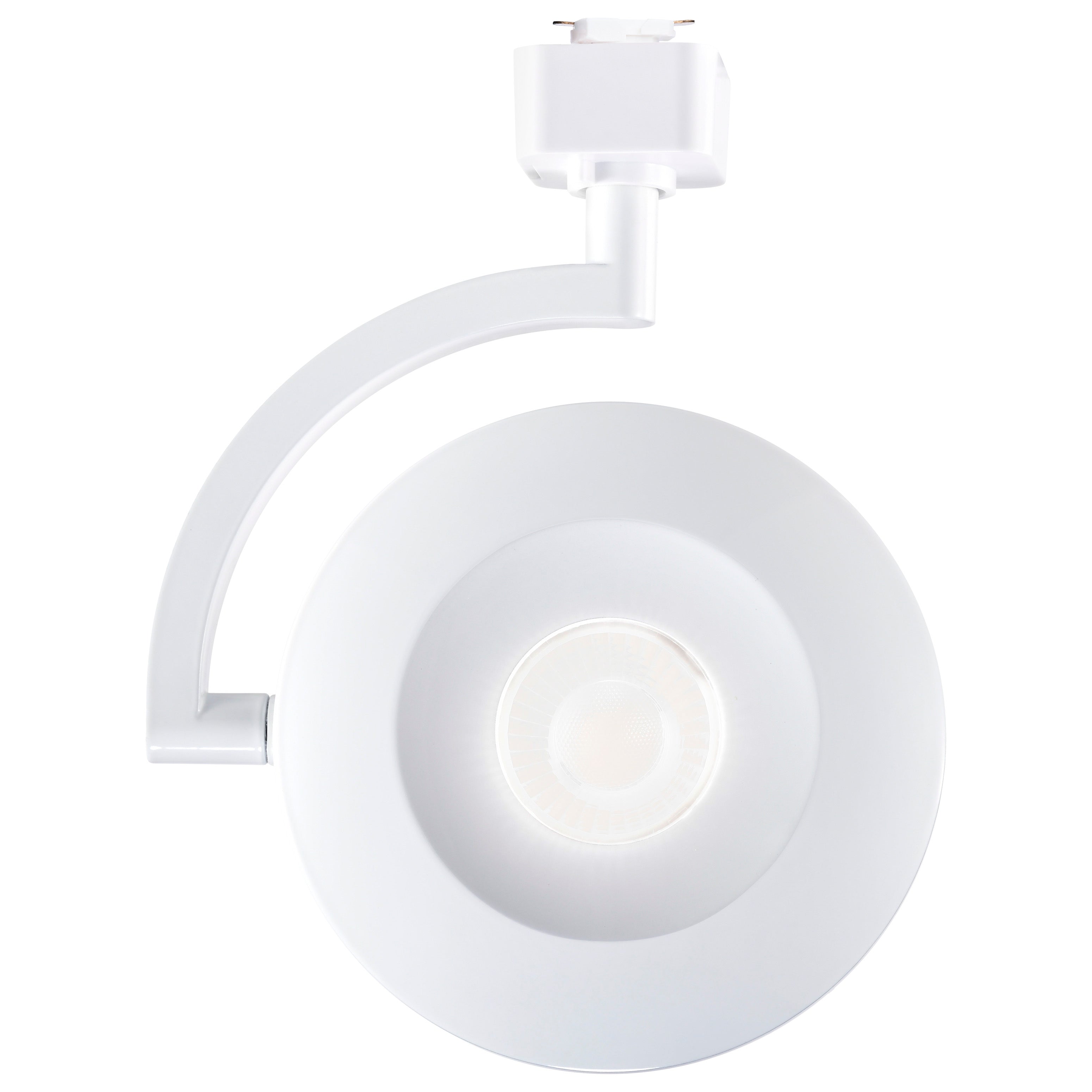

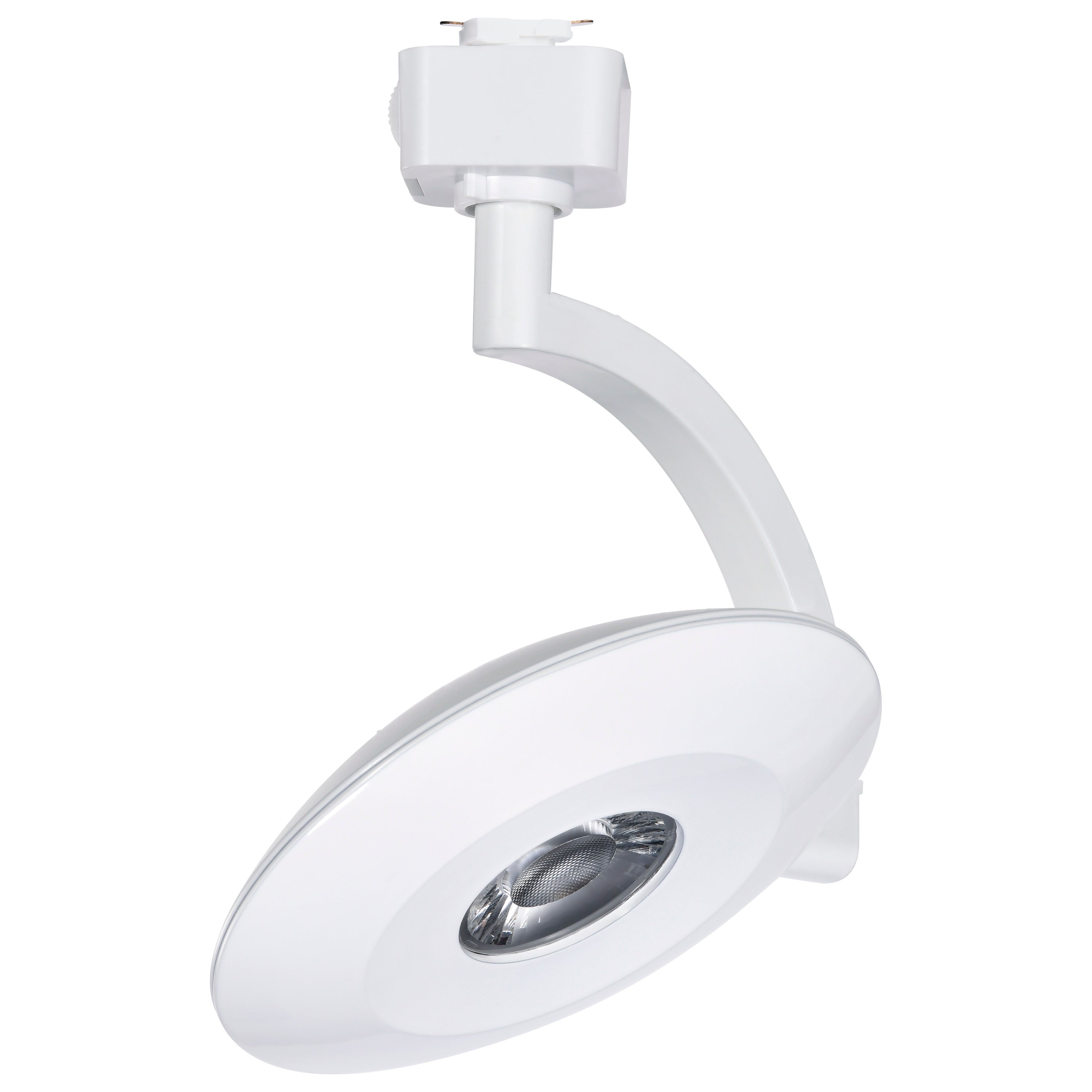

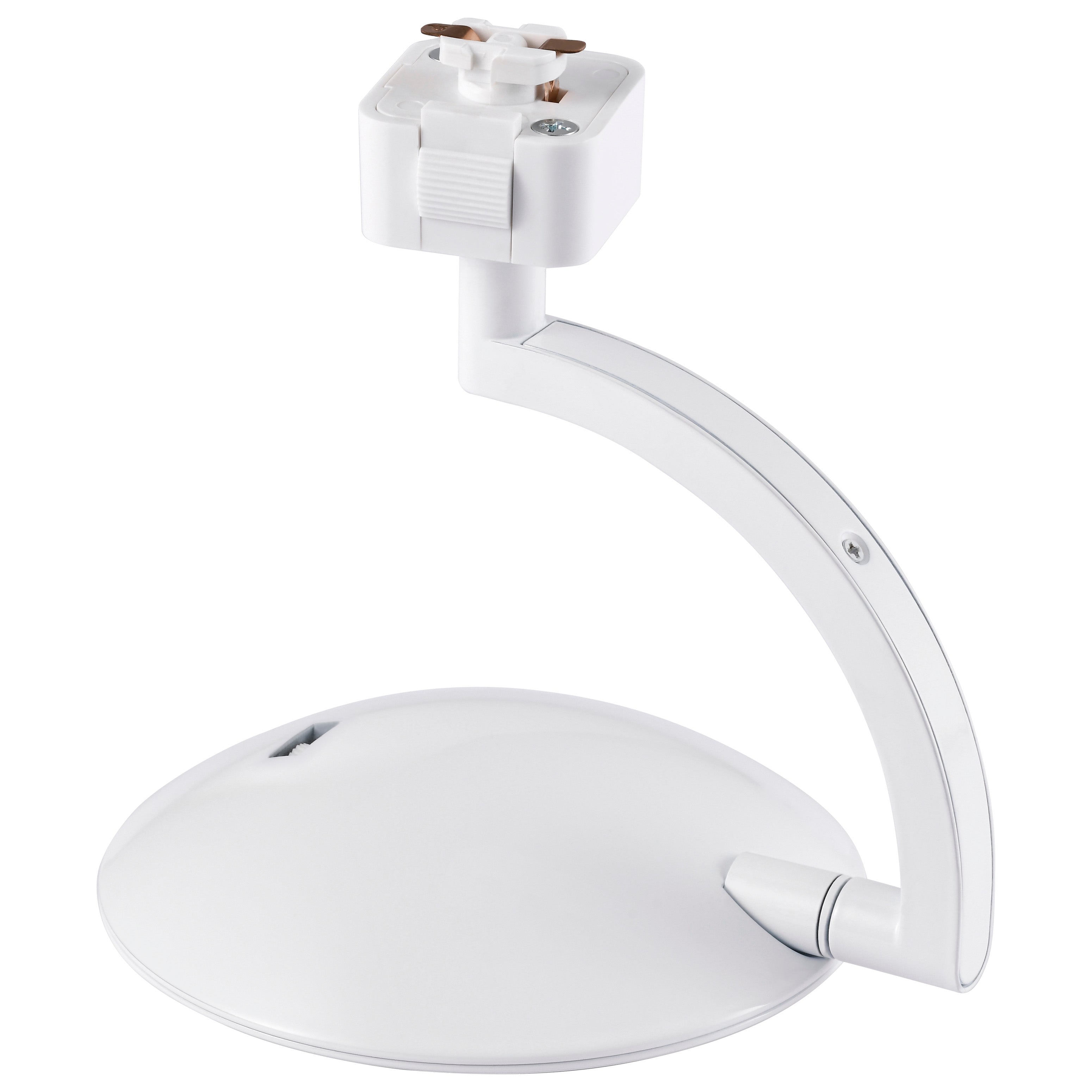

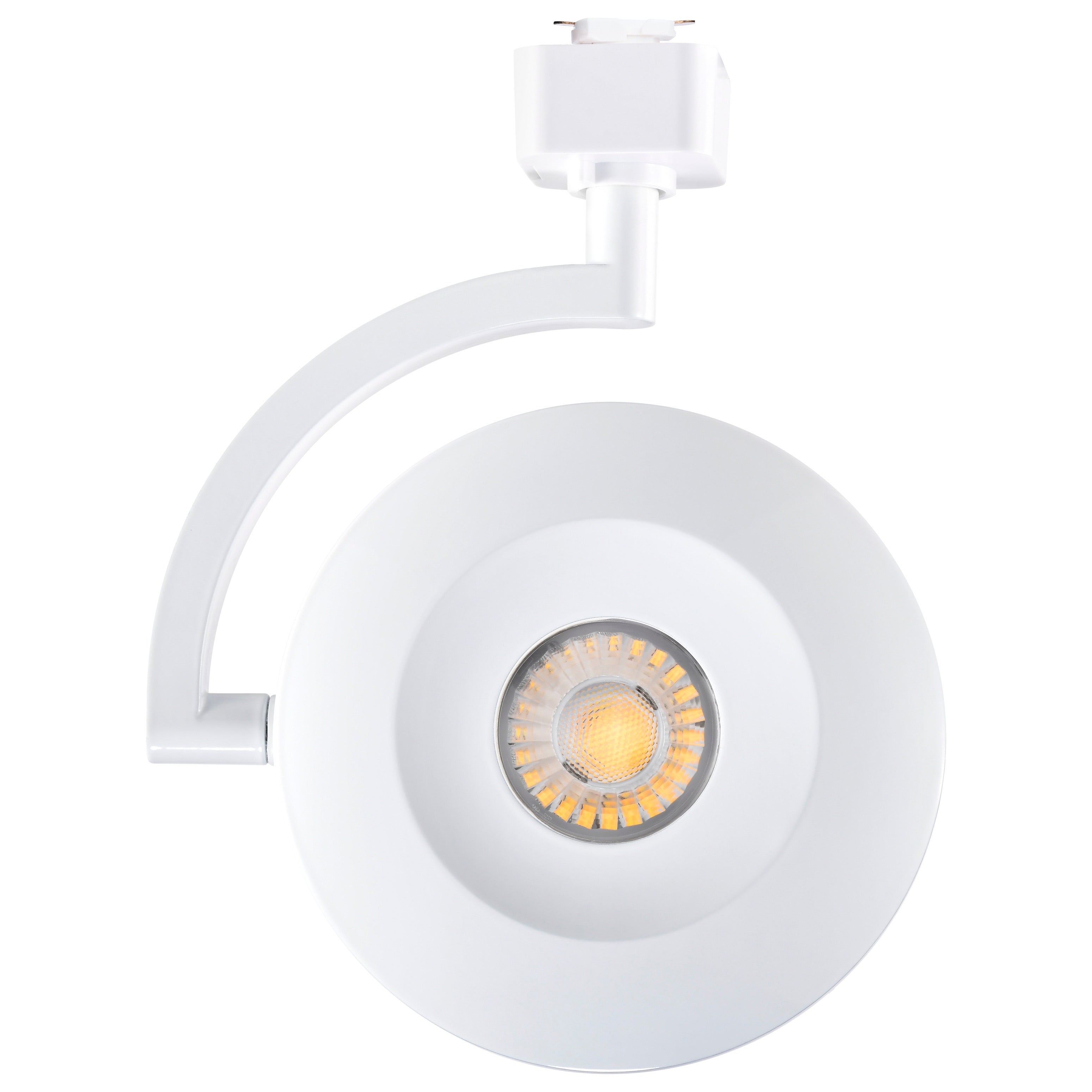

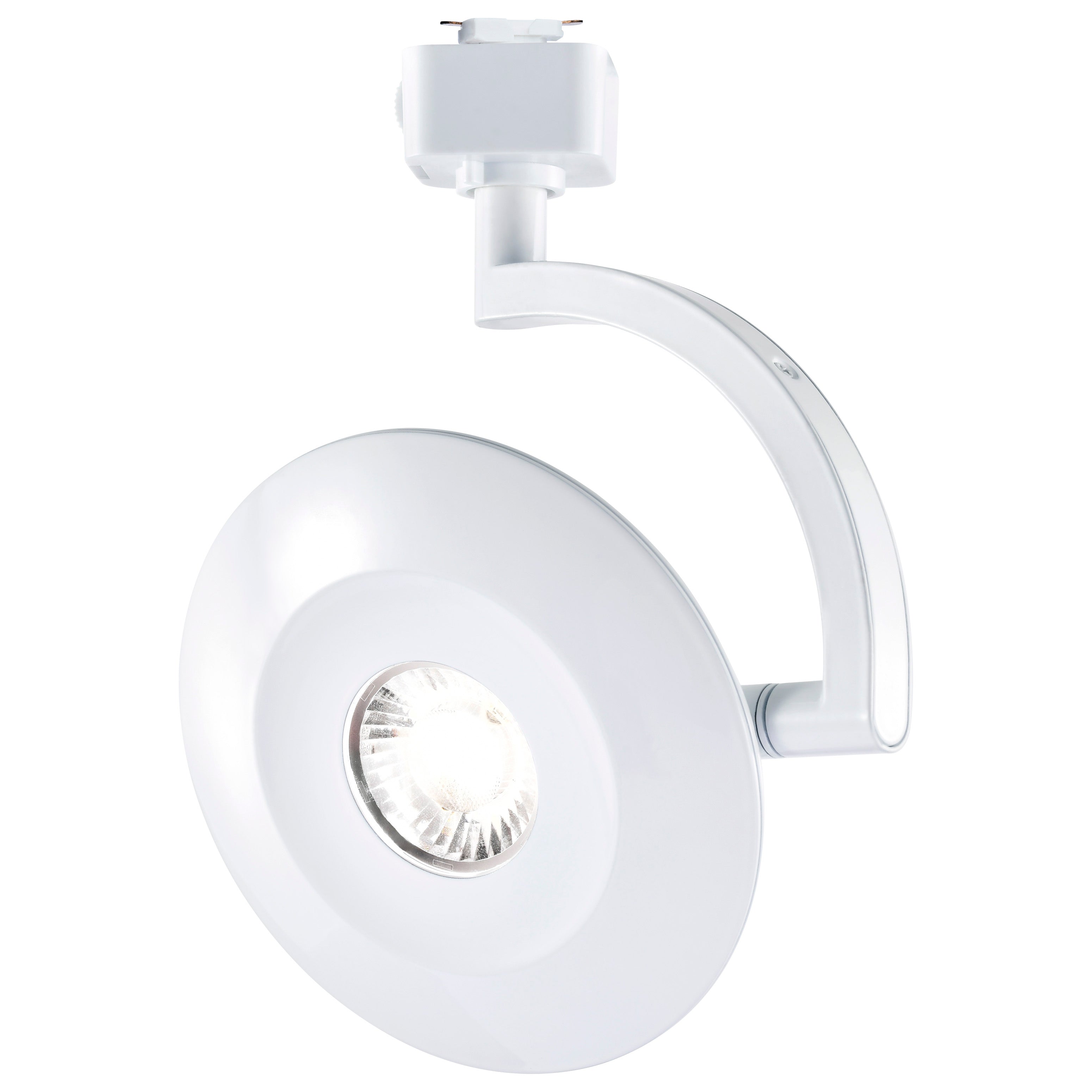

The SATCO NUVO JH5070 LED Orb track head is a sleek, compact fixture designed for J-style track systems. Finished in white, this modern Orb-shaped head features a swivel arm and a 355-degrees rotating head for precise directional control. A recessed CCT switch allows selection between 3000K, 4000K, and 5000K, while the 24-degrees beam angle delivers focused, accent lighting.

Features :-

  • 3 CCT Selectable (3000K/4000K/5000K)
  • 90 CRI High Quality Light
  • 24 Degree Beam Angle
  • J-Style Track Compatible
  • Clean White Finish
  • Phase-Cut dimmable down to 10%
  • T24 Compliant
  • 50,000 Life Hours
  • 3 Year Warranty
