Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 75W
Wattage 12W
Lumens 1020L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 90
Dimmable Yes-Dimmable
Voltage 120V
Finish Brushed Nickel
Beam Angle 24
Shape Round
Color Temperature Selectable Yes
Fixture Type Track Head
Length 5.63 IN
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Natural Light
Safety Listing cETLus
Electrical
Frequency 60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <40%
Surge Protection Built-in surge protection - 2KV
Features / Controls
Triac/Elv/Mlv Forward Phase, Linear Dimming
Construction / Installation
Material Aluminum
Width 1.3 IN
Height 7.13 IN
Diameter 4.7 IN
Weight 0.9 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Connector / Base Connector or Adapter
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Dry
Operating Temperature -4F to +104F (-20C to +40C)
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 3-Years

Orb LED Track Head - 12 Watt - 3000K/4000K/5000K CCT Selectable - 24 Degree Beam Angle - J-Style - Brushed Nickel - 120 Volt is a track lighting intended for commercial and residential interiors where adjustable lighting helps direct attention. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting track lighting for a specific room, fixture or property application.

A strong choice for layered lighting plans that need both visual focus and clean ceiling organization. It is well suited to wall washing, artwork lighting, task illumination and focused room lighting, where lighting needs to support the space rather than distract from it. This makes the product a practical LED track head choice for customers also considering accent lighting fixture as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Makes it easier to aim light toward displays, artwork, counters or architectural features. This is particularly helpful for retail displays, restaurants, galleries, hospitality interiors and residential accent lighting. Whether the goal is to replace an existing item, complete a larger fixture schedule, or source matching products across multiple rooms, the emphasis stays on application fit and practical purchasing. That makes the product relevant to both one-off replacements and larger residential or commercial lighting orders.

When it is time to buy track lighting online, consider Orb LED Track Head for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

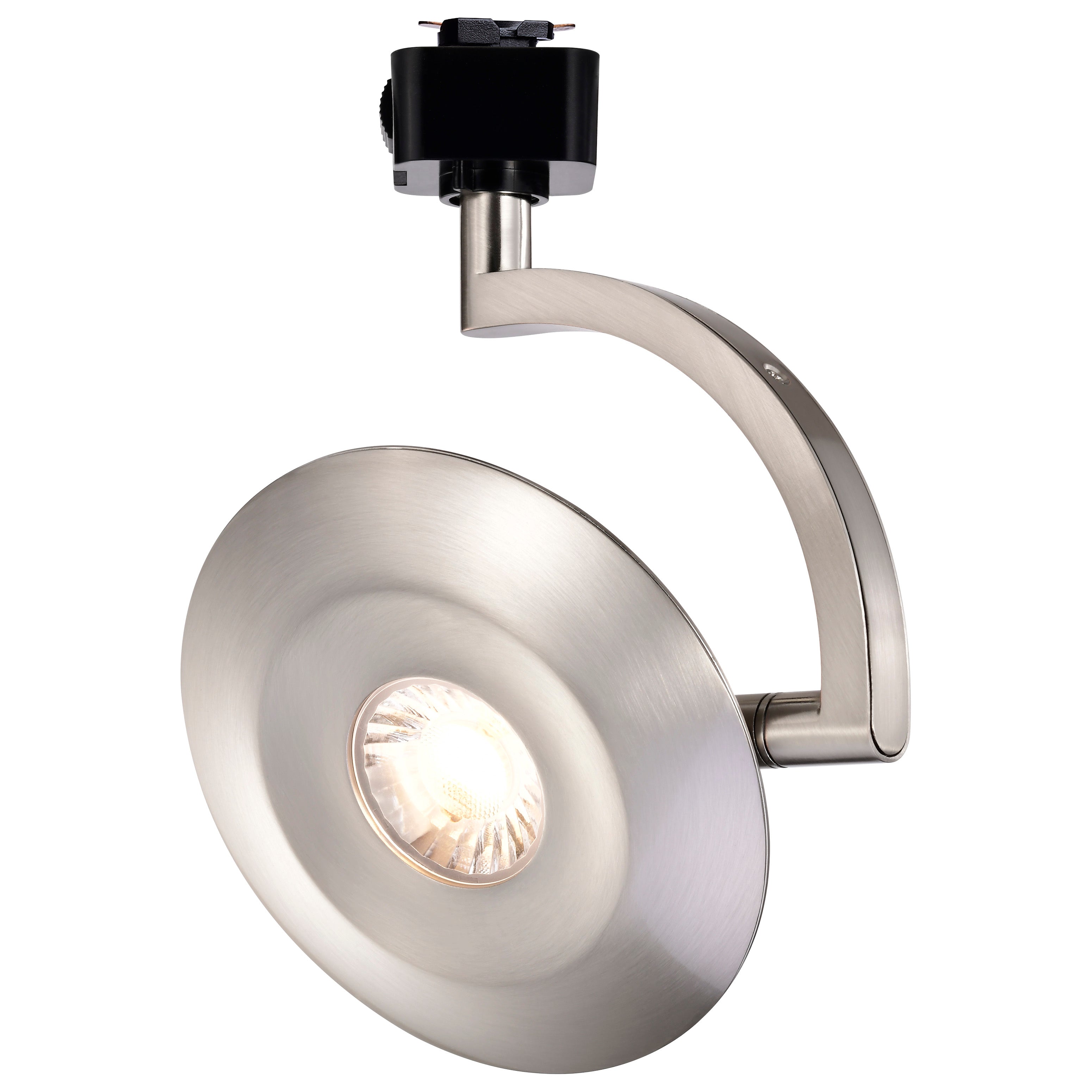

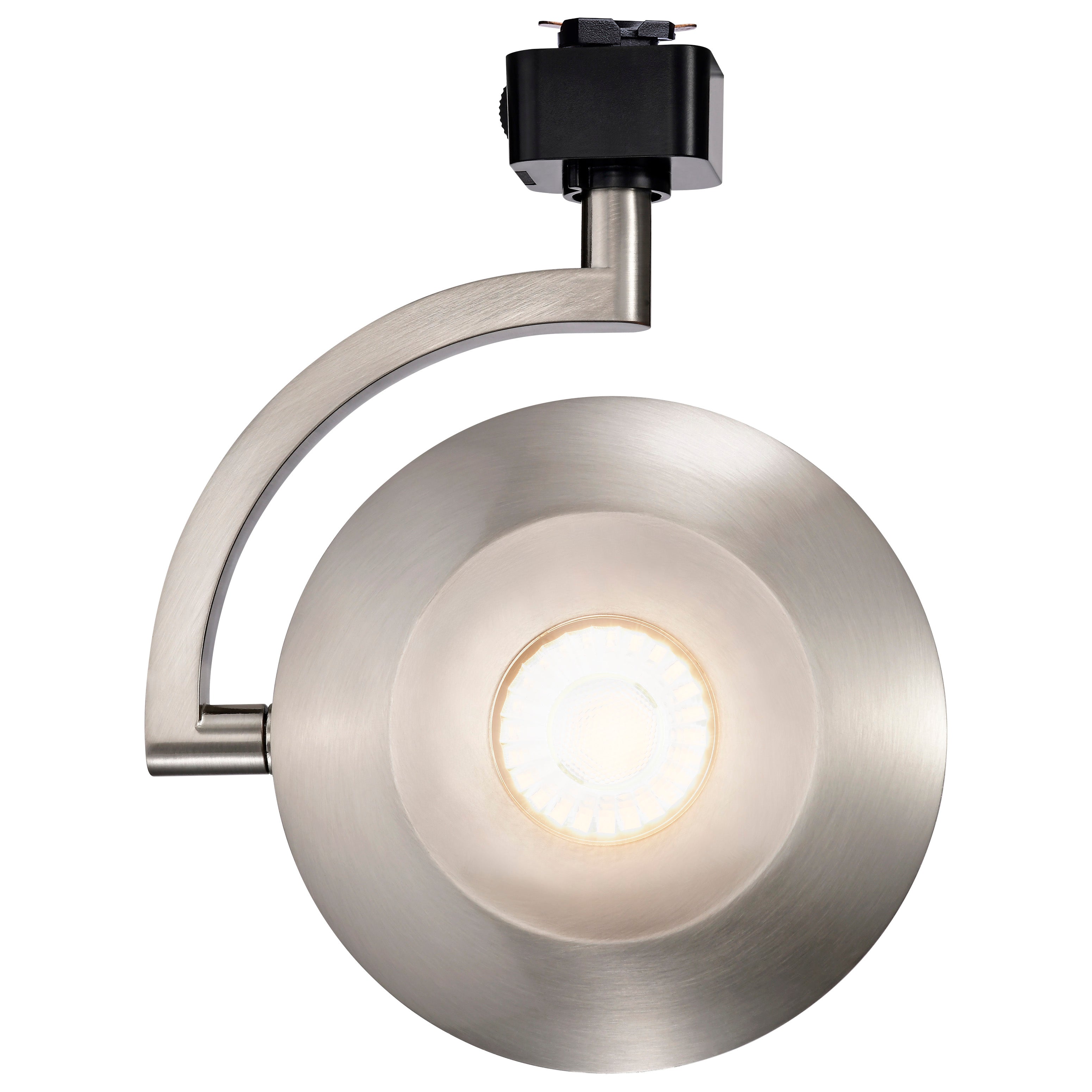

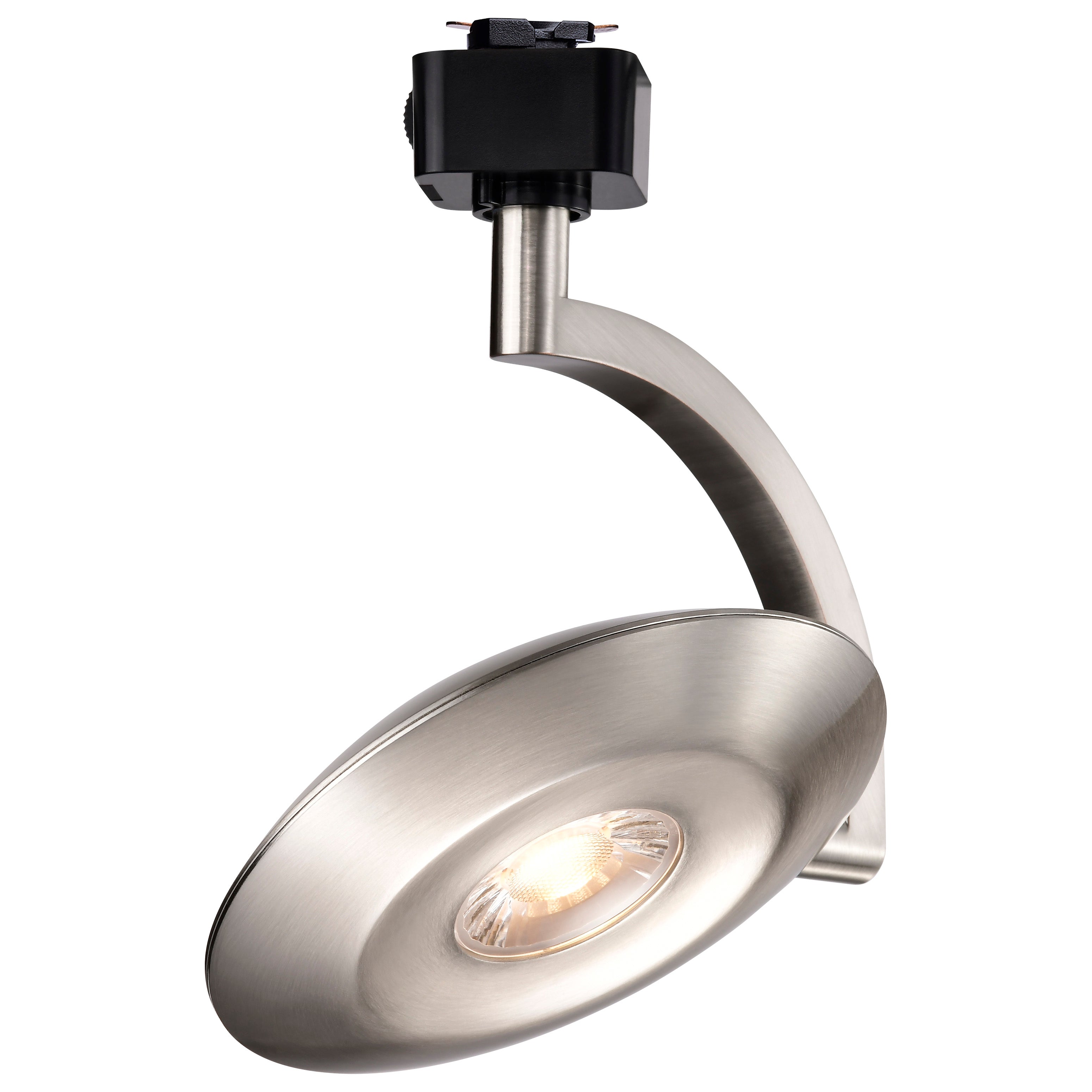

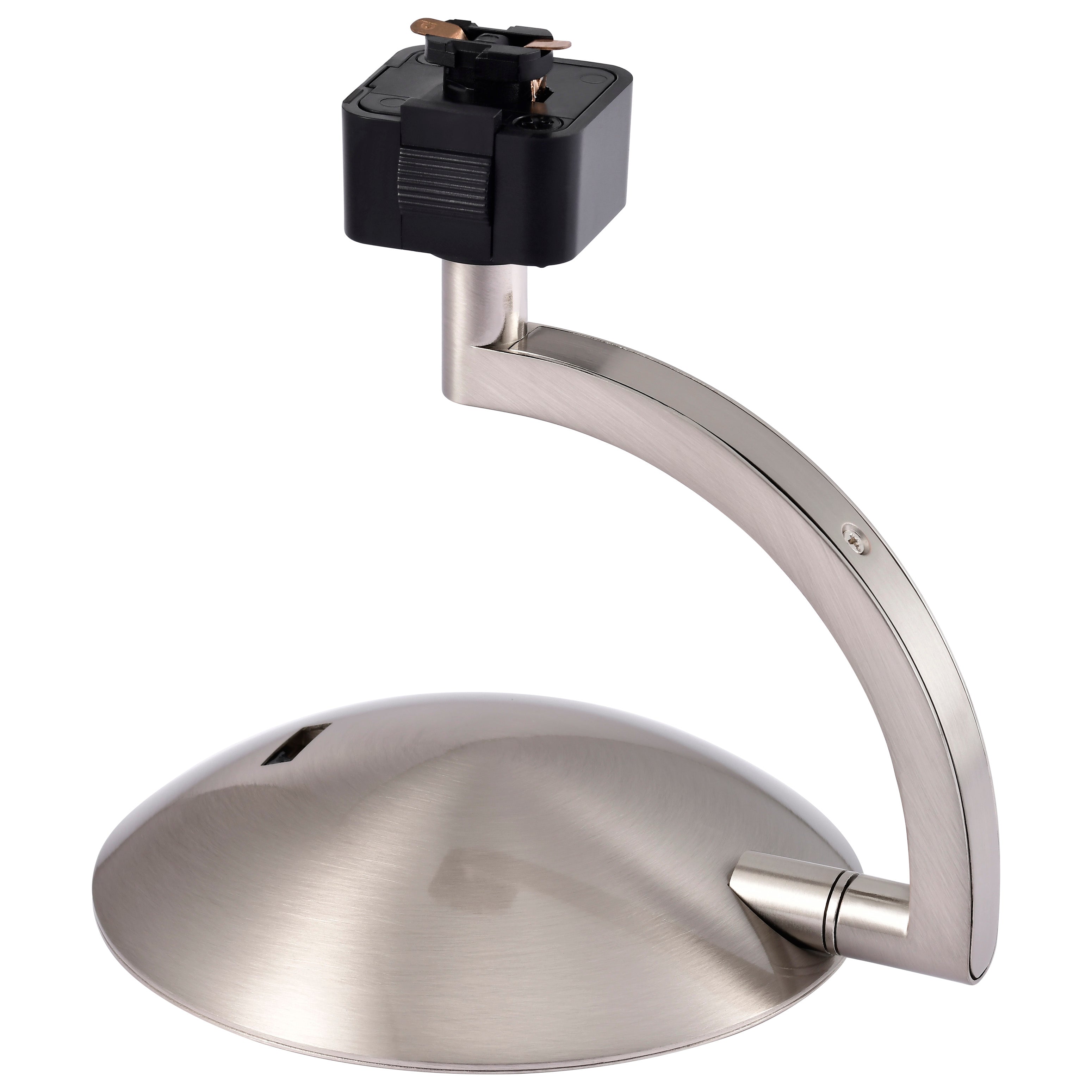

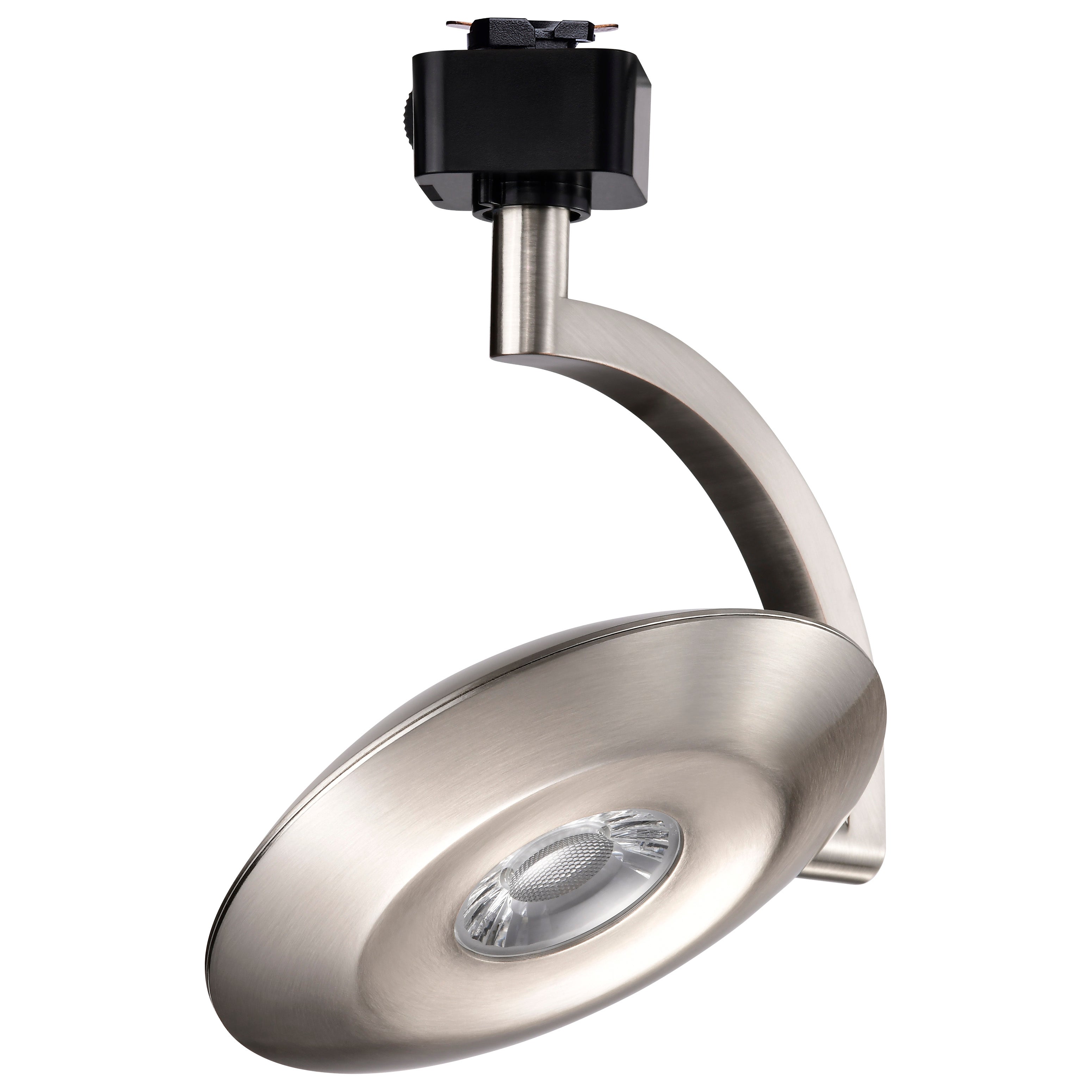

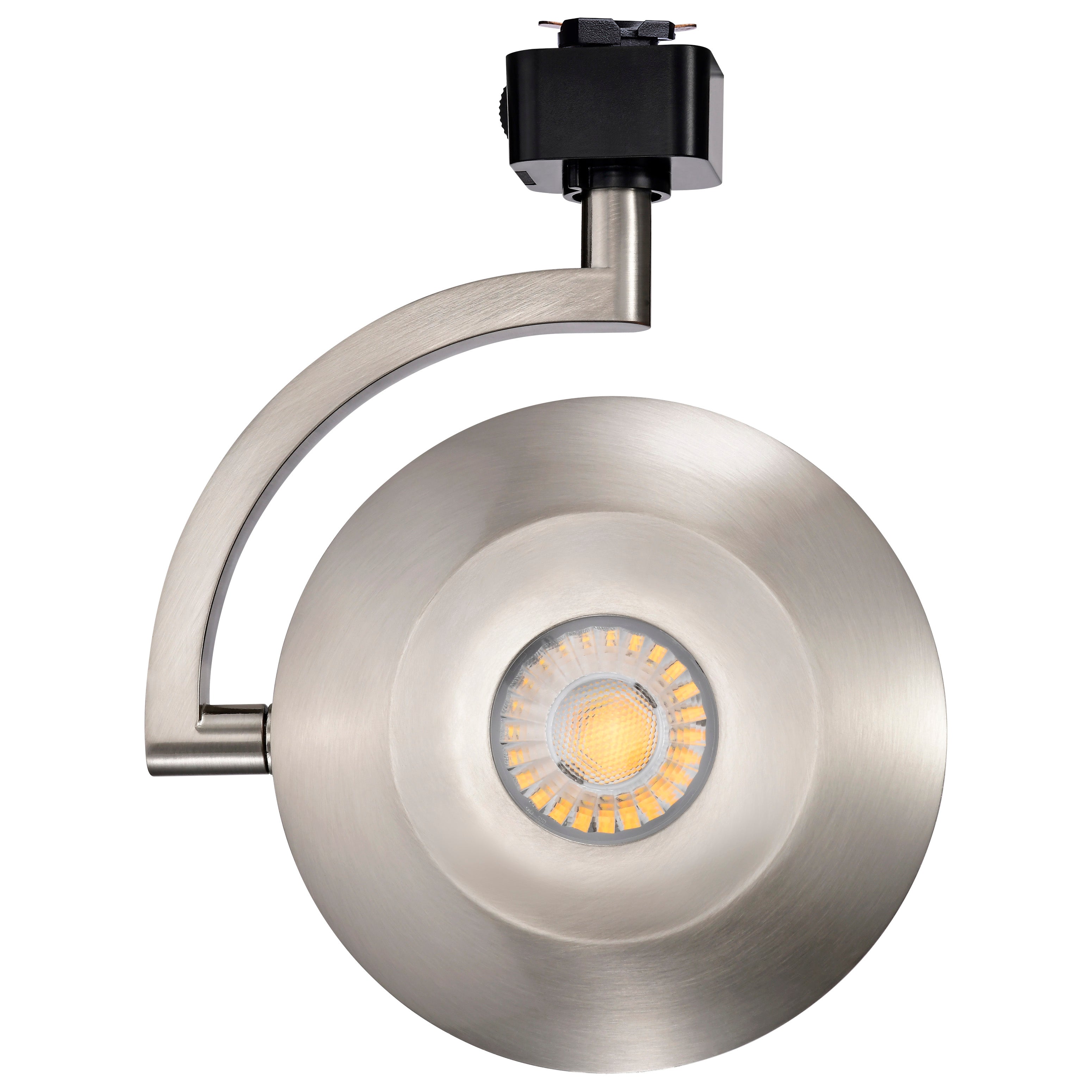

The SATCO NUVO JH5072 LED Orb track head delivers modern performance with a brushed nickel finish for J-style track systems. Designed with a swivel arm and a 355-degrees rotating head, this compact fixture allows precise positioning. A recessed CCT switch offers 3000K, 4000K, and 5000K selections, while the 24-degrees beam angle produces focused illumination.

Features :-

  • 3 CCT Selectable (3000K/4000K/5000K)
  • 90 CRI High Quality Light
  • 24 Degree Beam Angle
  • J-Style Track Compatible
  • Brushed Nickel Finish
  • Phase-Cut dimmable down to 10%
  • T24 Compliant
  • 50,000 Life Hours
  • 3 Year Warranty
