Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 75W
Wattage 12W
Lumens 1020L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 90
Dimmable Yes-Dimmable
Voltage 120V
Finish Black
Beam Angle 36
Shape Round
Color Temperature Selectable Yes
Fixture Type Track Head
Length 5.63 IN
Performance
Rated Life 50000 hrs
Light Color Description Soft White to Natural Light
Safety Listing cETLus
Electrical
Frequency 60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) <40%
Surge Protection Built-in surge protection - 2KV
Features / Controls
Triac/Elv/Mlv Forward Phase, Linear Dimming
Construction / Installation
Material Aluminum
Width 1.3 IN
Height 7.13 IN
Diameter 4.7 IN
Weight 0.9 lbs
Lens / Diffuser Poly methyl methacrylate (PMMA)
Connector / Base Connector or Adapter
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor
Location Rating Dry
Operating Temperature -4F to +104F (-20C to +40C)
IP Rating IP20
Certifications / Compliance
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 3-Years

Choose Orb LED Track Head - 12 Watt - 3000K/4000K/5000K CCT Selectable - 36 Degree Beam Angle - J-Style - Black - 120 Volt when your project calls for a track lighting suited to commercial and residential interiors where adjustable lighting helps direct attention. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for track lighting that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Makes it easier to aim light toward displays, artwork, counters or architectural features. It is well suited to wall washing, artwork lighting, task illumination and focused room lighting, where lighting needs to support the space rather than distract from it. This makes the product a practical track light fixture choice for customers also considering retail track lighting as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Supports flexible lighting layouts that can adapt as furniture, merchandise or room use changes. In retail displays, restaurants, galleries, hospitality interiors and residential accent lighting, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

If you are ready to order track lighting for residential or commercial projects, Orb LED Track Head offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

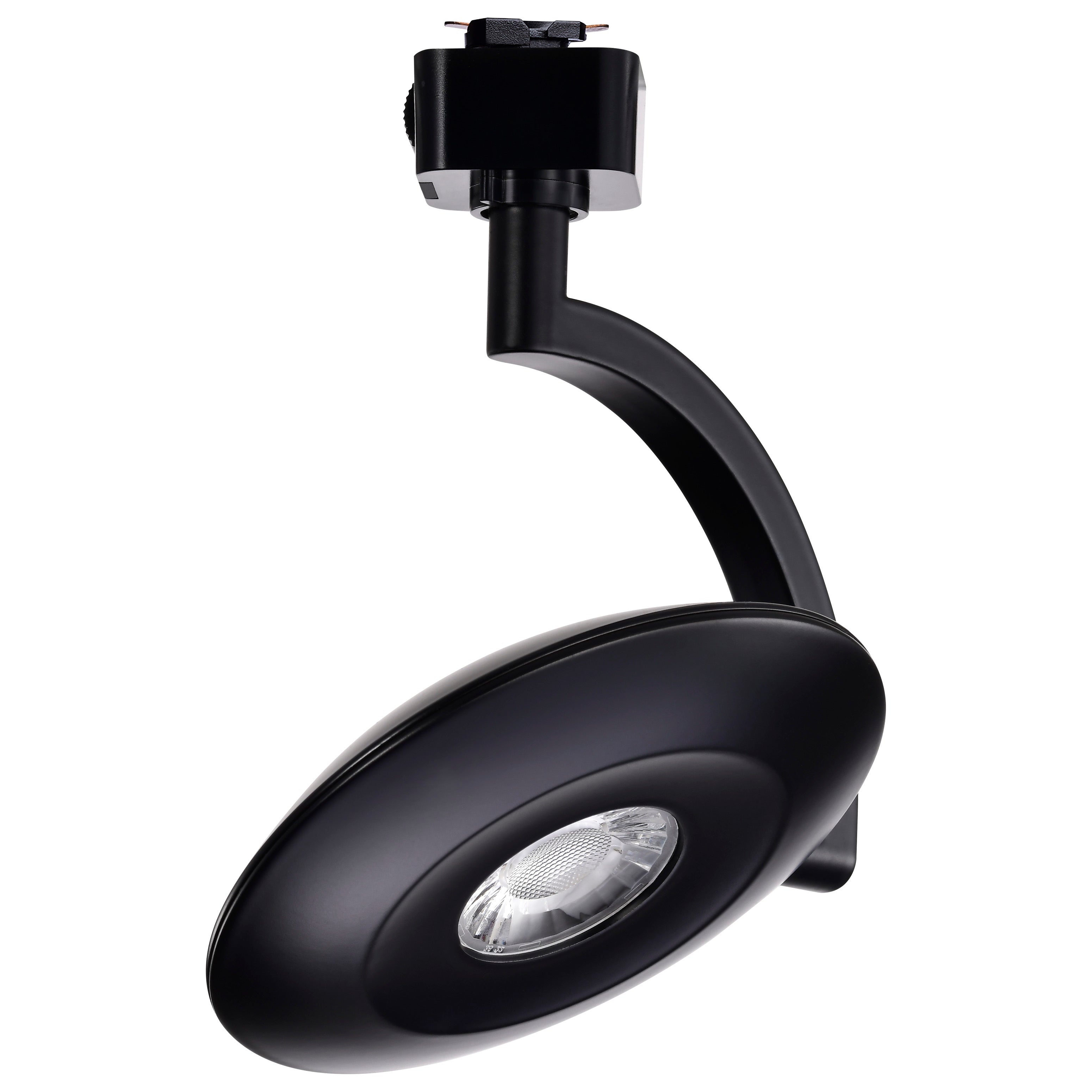

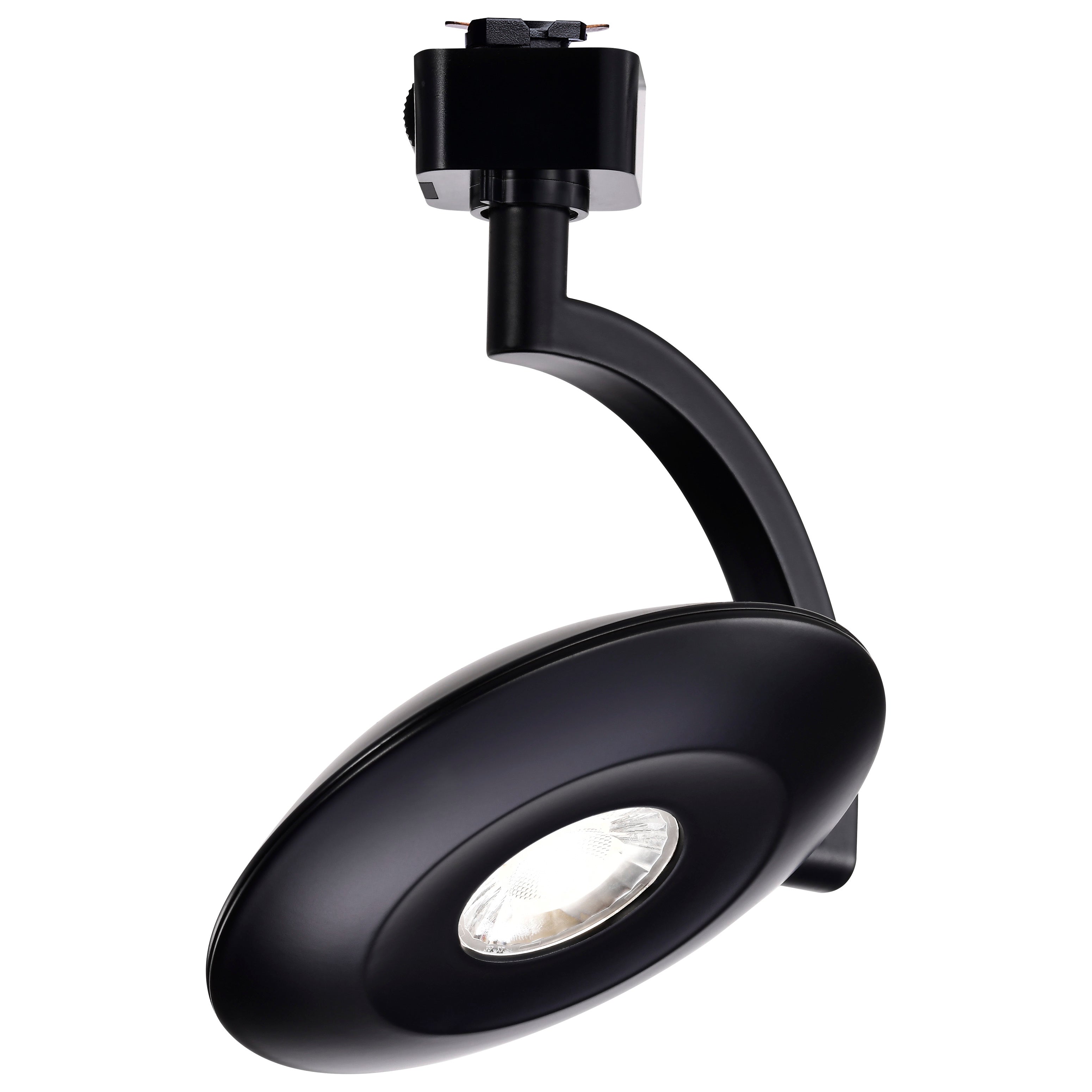

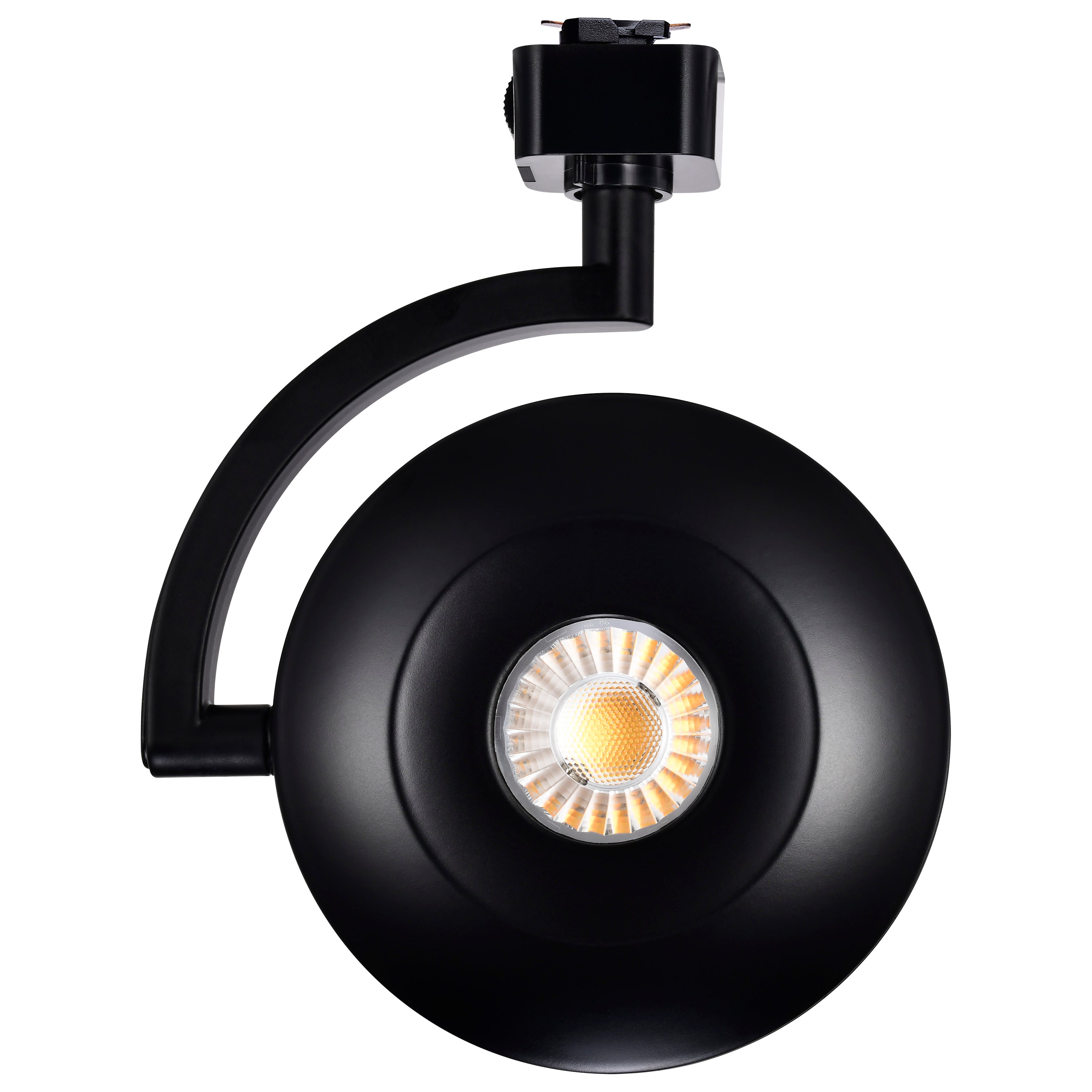

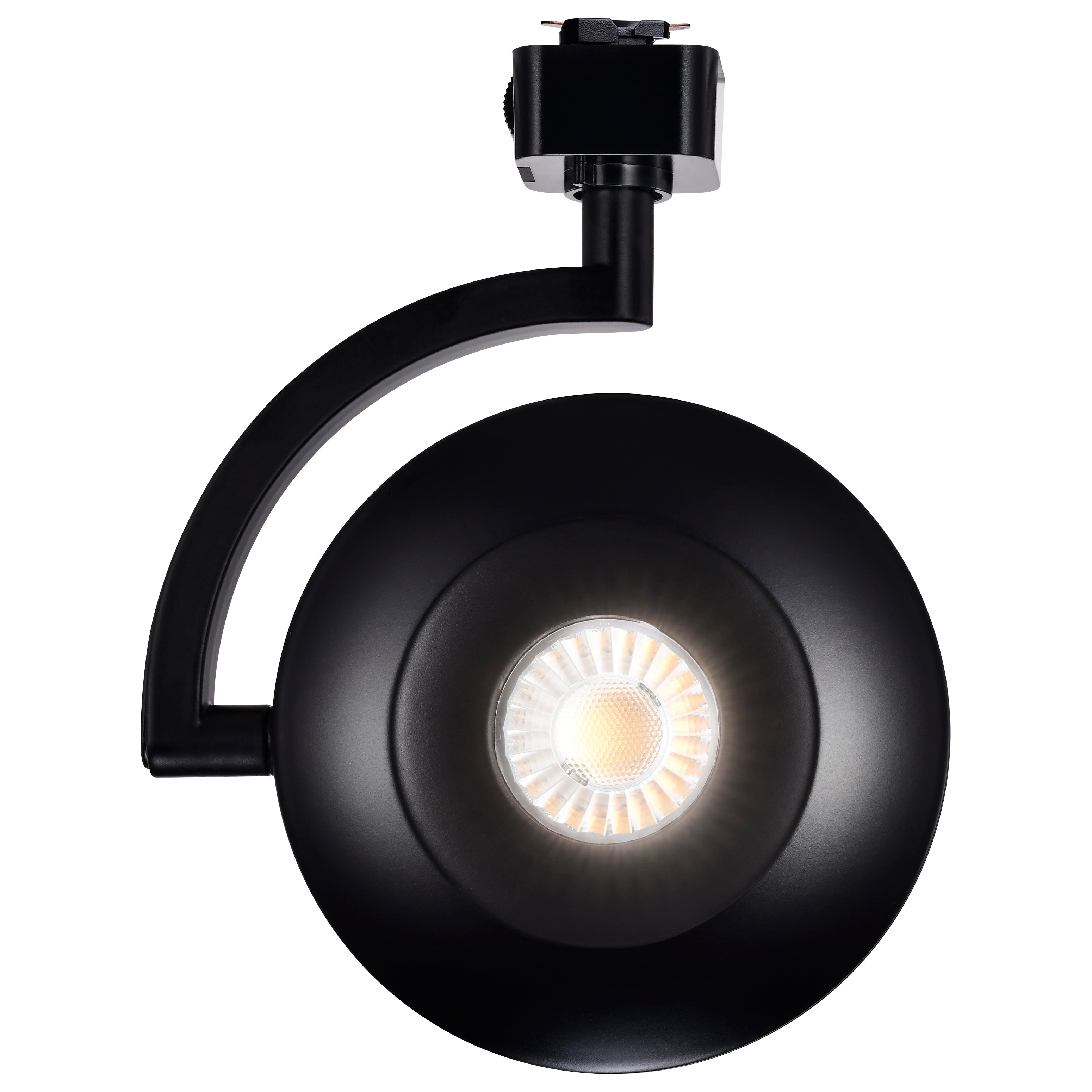

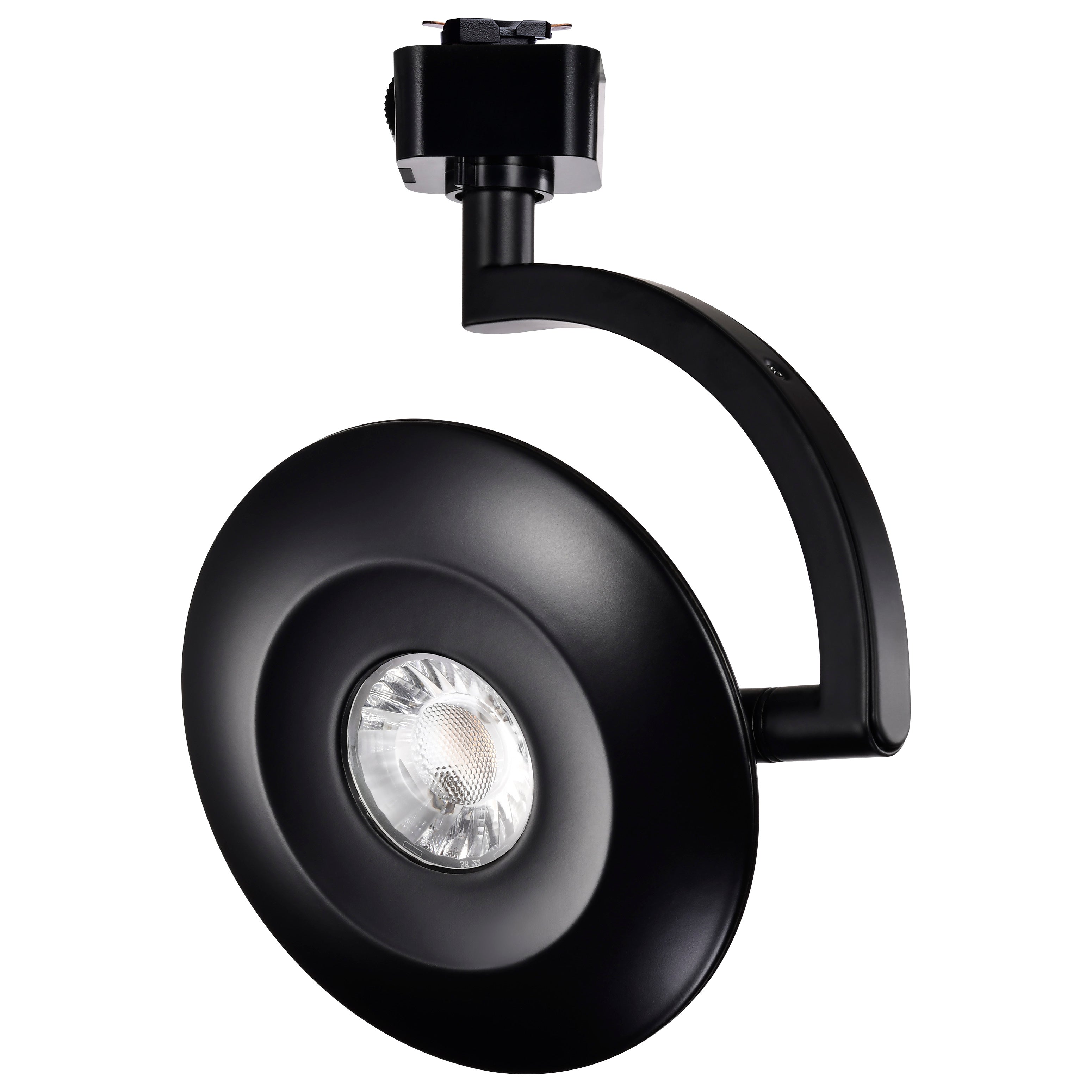

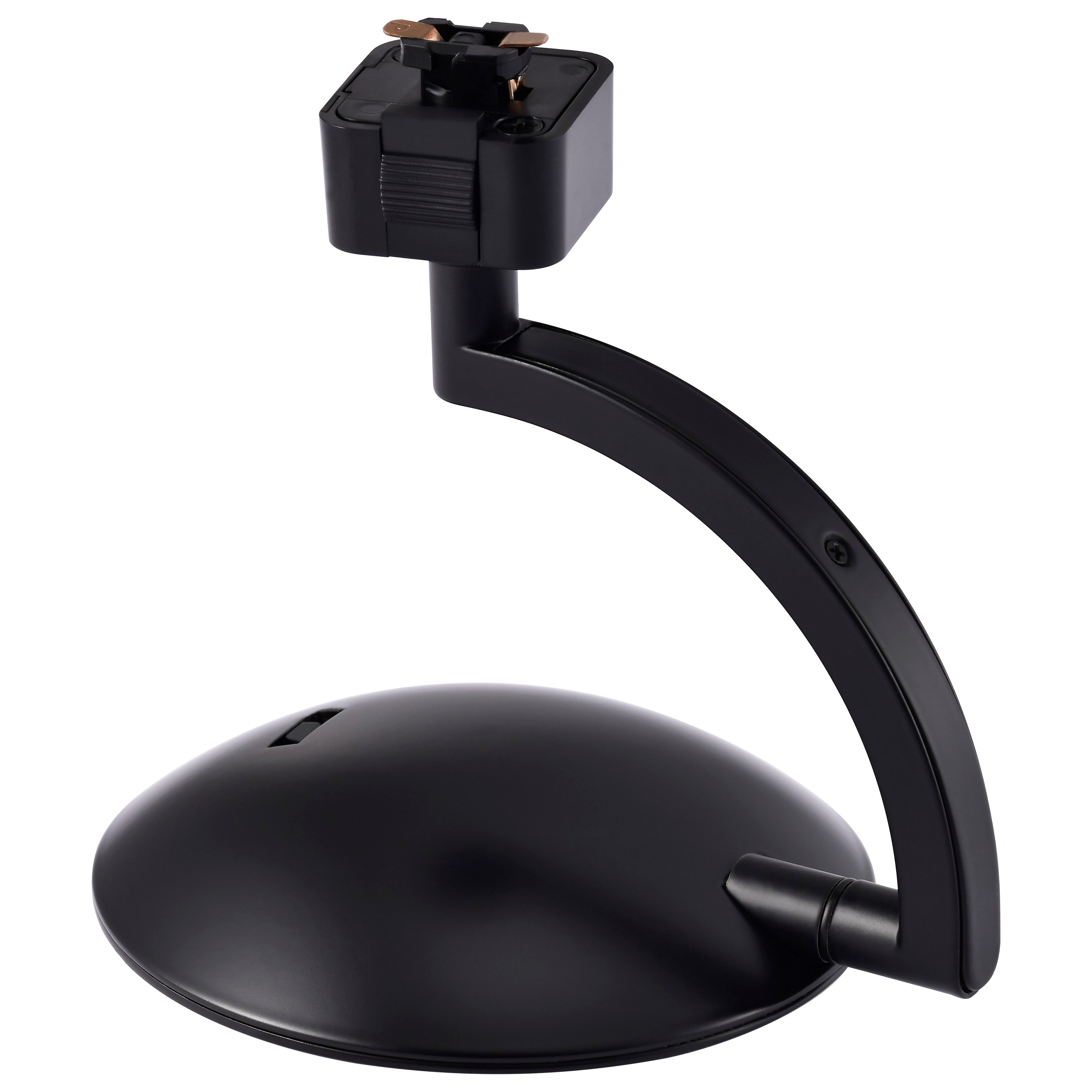

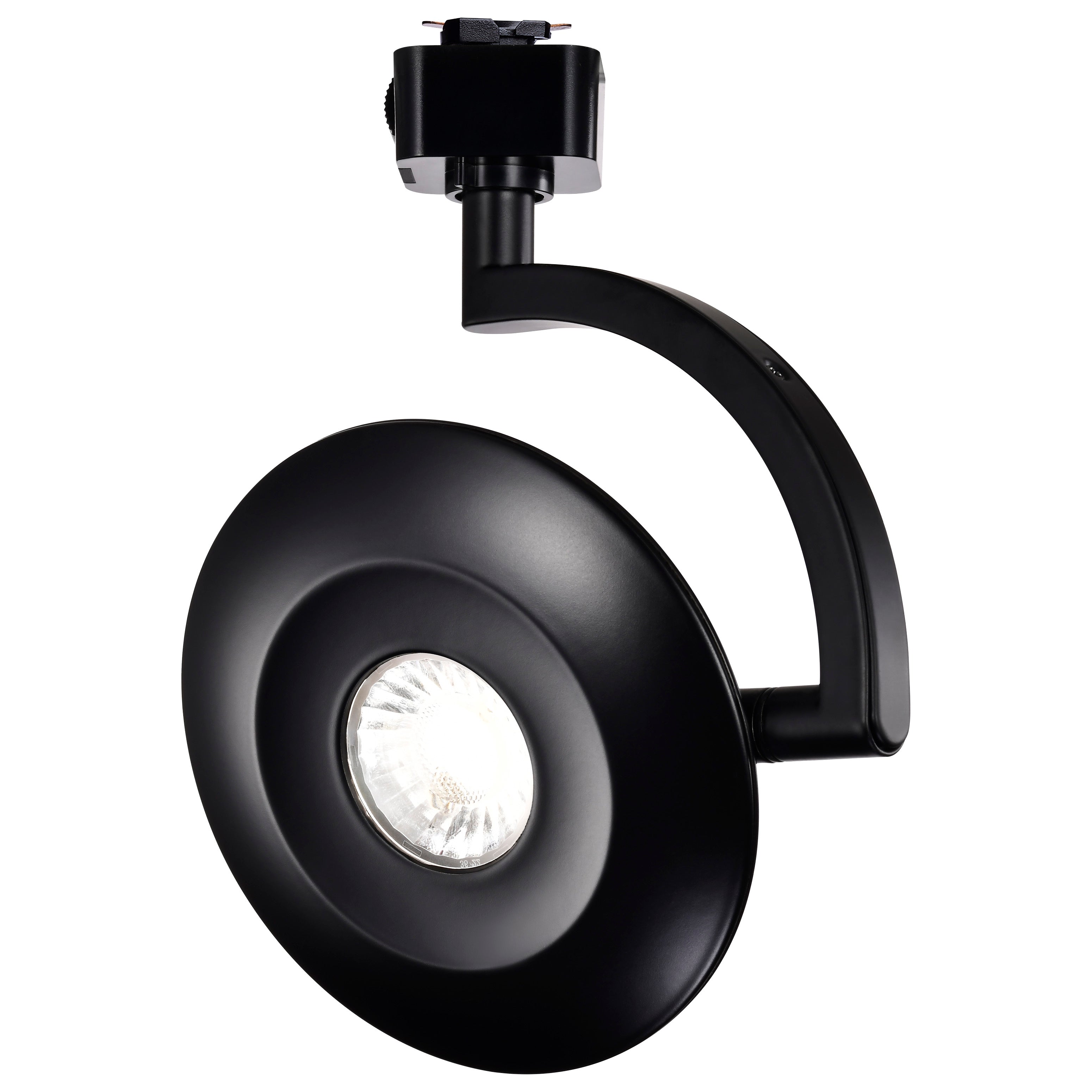

The SATCO NUVO JH5074 LED Orb track head combines sleek styling with adaptable performance for J-style track systems. Finished in black, this compact Orb fixture includes a swivel arm and 355-degrees head rotation for precise control. A recessed CCT switch offers 3000K, 4000K, and 5000K selections, while the 36-degrees beam angle delivers expanded light distribution.

Features :-

  • 3 CCT Selectable (3000K/4000K/5000K)
  • 90 CRI High Quality Light
  • 36 Degree Beam Angle
  • J-Style Track Compatible
  • Crisp Black Finish
  • Phase-Cut dimmable down to 10%
  • T24 Compliant
  • 50,000 Life Hours
  • 3 Year Warranty
