Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 75W
Wattage 15W
Lumens 1740L-1814L
Color Temperature 3500K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish Bronze
Beam Angle 100
HID Equivalent 60W
Shape Oval
Color Temperature Selectable Yes
Light Distribution B1-U3-G1
Fixture Type Wall Pack
Photocell Has Photocell
Mounting Type Wall
Performance
Rated Life 50000 hrs
Light Color Description Neutral White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor 0.9
Total Harmonic Distortion (THD) 15%
Surge Protection Built-in surge protection - 2.5KV
Battery Chemistry Lithium-ion (Li-ion)
Features / Controls
Emergency Backup Yes
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Finish/Lens Prismatic
Width 6.54 IN
Height 10.47 IN
Diameter 6.54 IN
Weight 3.61 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor, Outdoor
Location Rating Wet
Operating Temperature +32F to +113F (0C to +45C)
IP Rating IP65
Certifications / Compliance
California Title 20 Yes
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

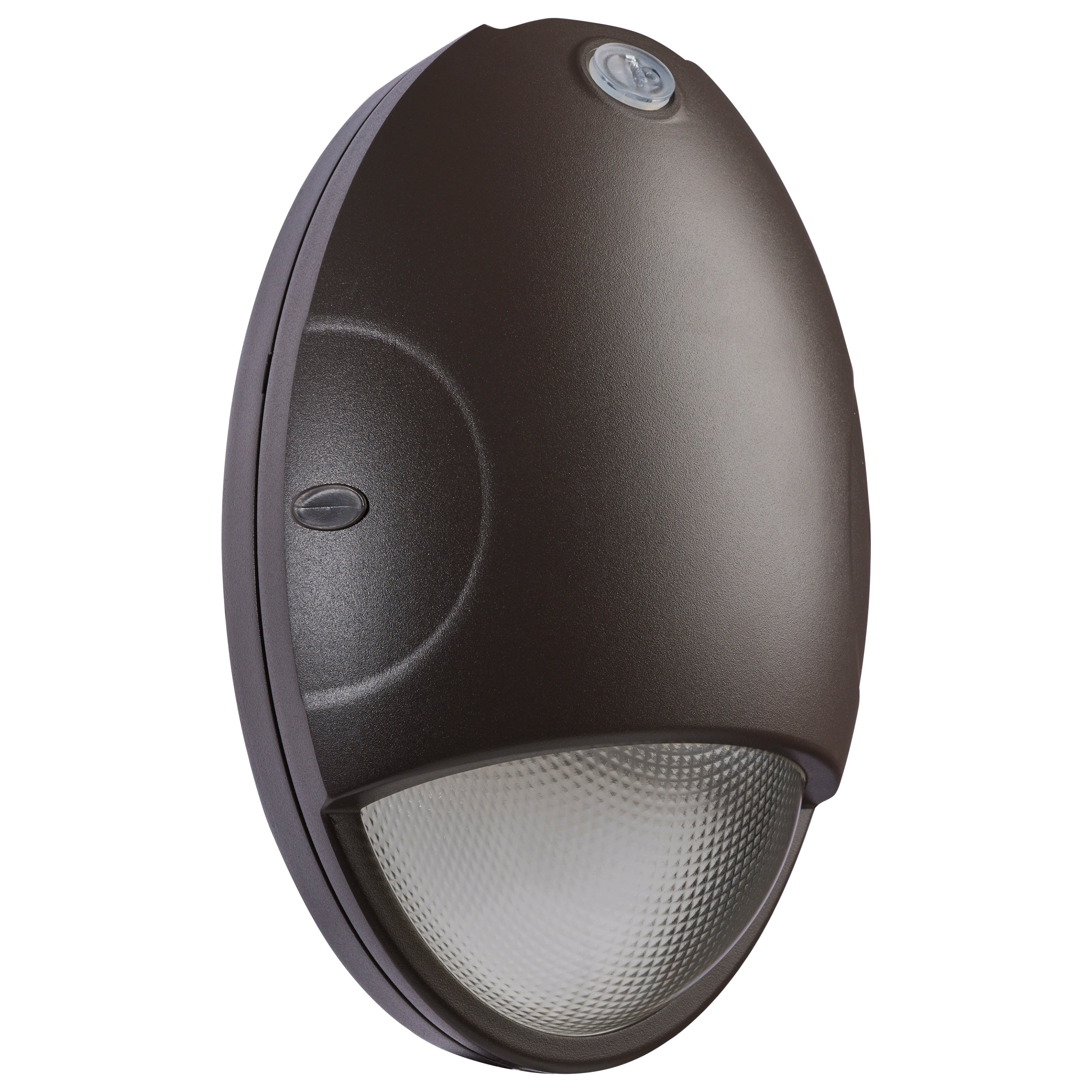

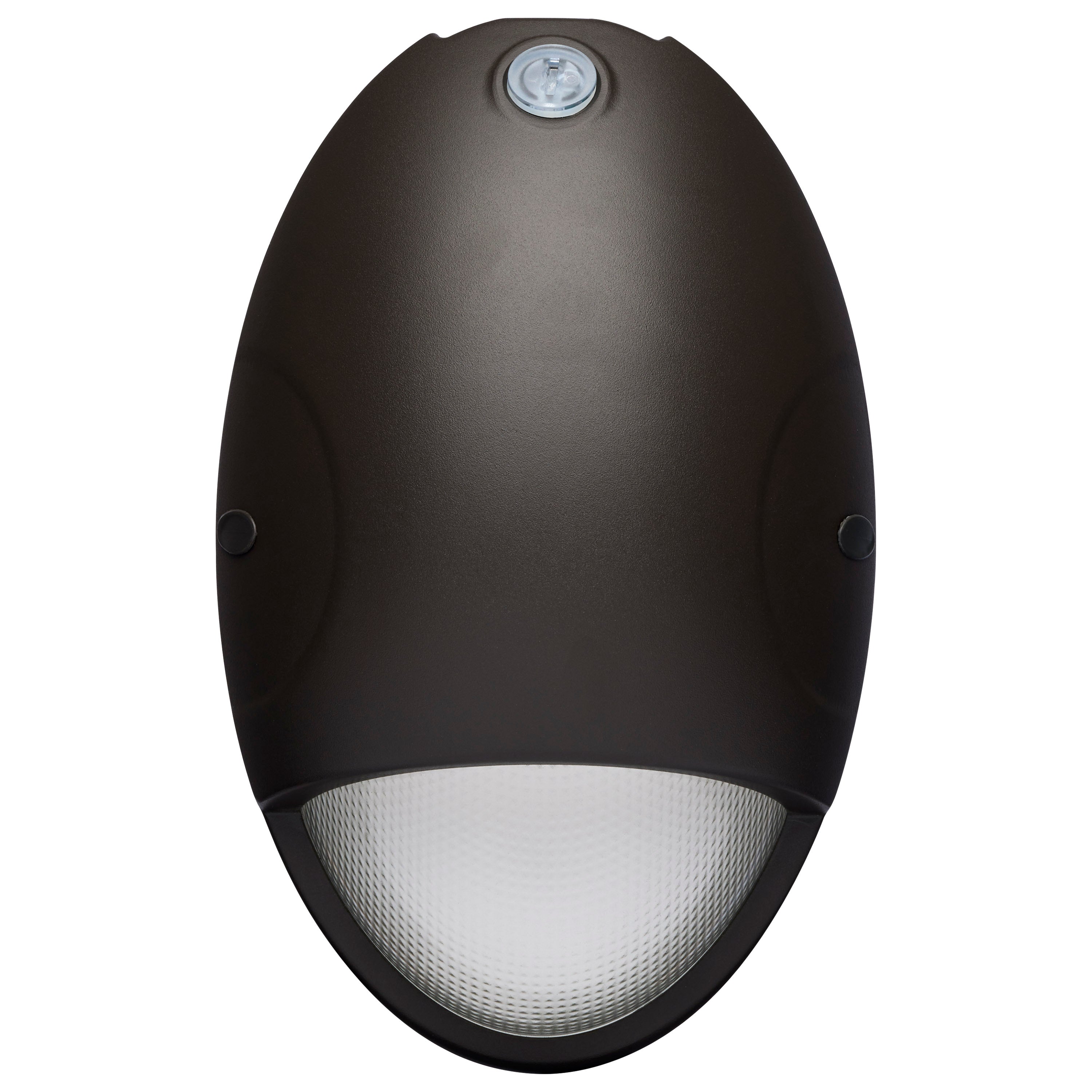

Oval Small Emergency Wall Pack - LED - CCT Selectable - Photocell - Bronze Finish is a LED wall pack intended for warehouses, retail buildings and other properties needing wall-mounted exterior lighting. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting LED wall pack for a specific room, fixture or property application.

Provides a practical wall-mounted approach to illuminating exterior circulation and perimeter areas. In practical terms, that makes this product relevant for replacement and new-installation projects where wall-mounted site lighting is preferred. It also fits naturally into projects considering building exterior light and commercial wall pack light, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

Works well for facility managers and electrical contractors upgrading commercial building lighting. This is particularly helpful for building perimeters, loading areas, walkways, parking areas and commercial entrances. Whether the goal is to replace an existing item, complete a larger fixture schedule, or source matching products across multiple rooms, the emphasis stays on application fit and practical purchasing. That makes the product relevant to both one-off replacements and larger residential or commercial lighting orders.

When it is time to order wall pack lighting for building projects, consider Oval Small Emergency Wall Pack for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

SATCO NUVO's state of the art Emergency Battery Backup Wall Pack is a compact and sleek lighting solution designed to keep your space safe and well-illuminated during emergencies. Equipped with an integrated EM backup test indicator button, this fixture allows for easy verification of the emergency backup system's functionality. The bypassable photocell enables seamless operation and control. Featuring an impact-resistant lens, it ensures durability and longevity. You can choose from three CCT options (3500K, 4000K, 5000K) to match your lighting preference. With a 90-minute emergency backup and a wide beam spread of 100 degrees, this wet-rated wall pack delivers reliable performance even under harsh conditions. Illuminate your surroundings with confidence and peace of mind.

Features :-

  • 3500K/4000K/5000K CCT Selectable

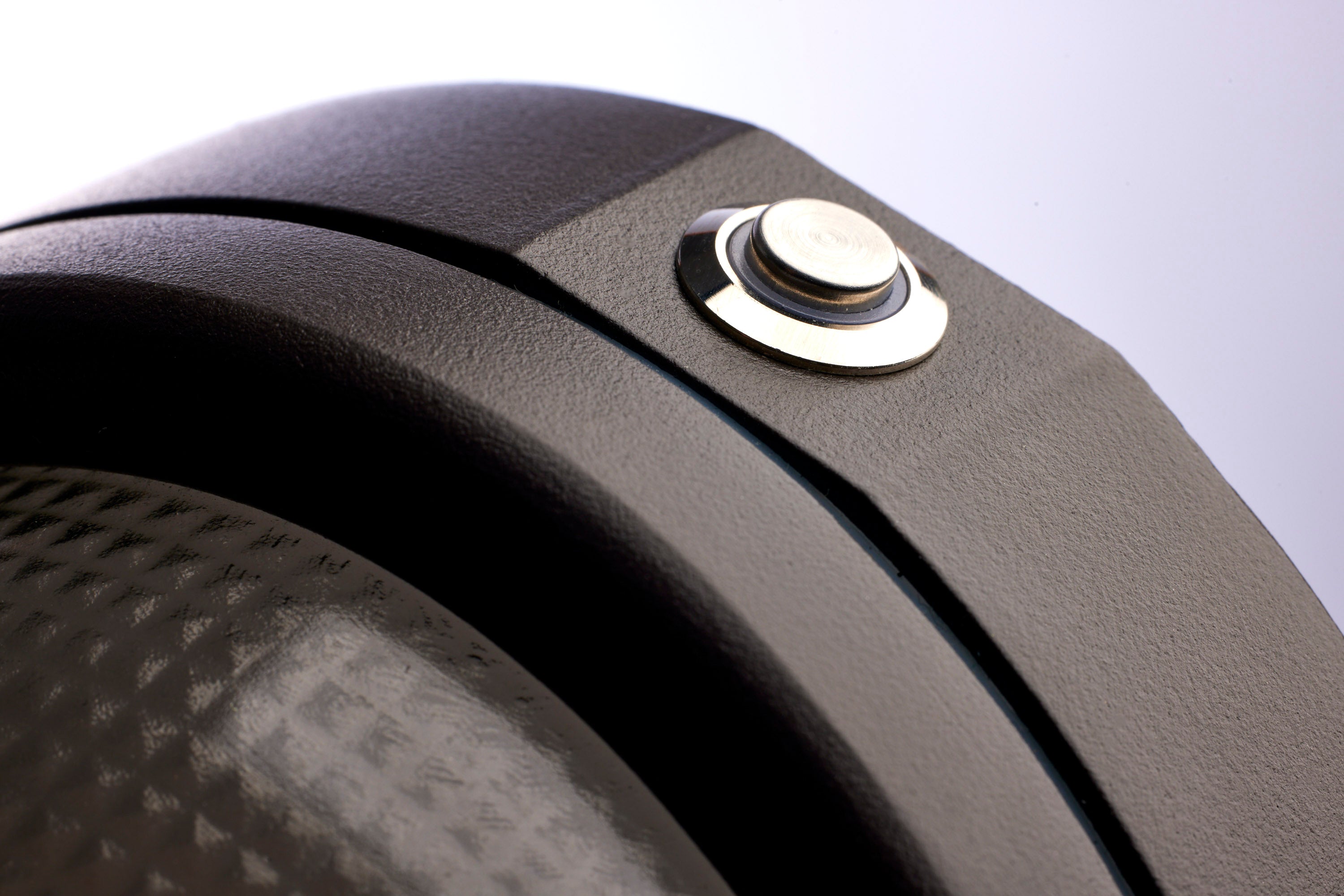

  • Integrated EM Backup Test Indicator Button

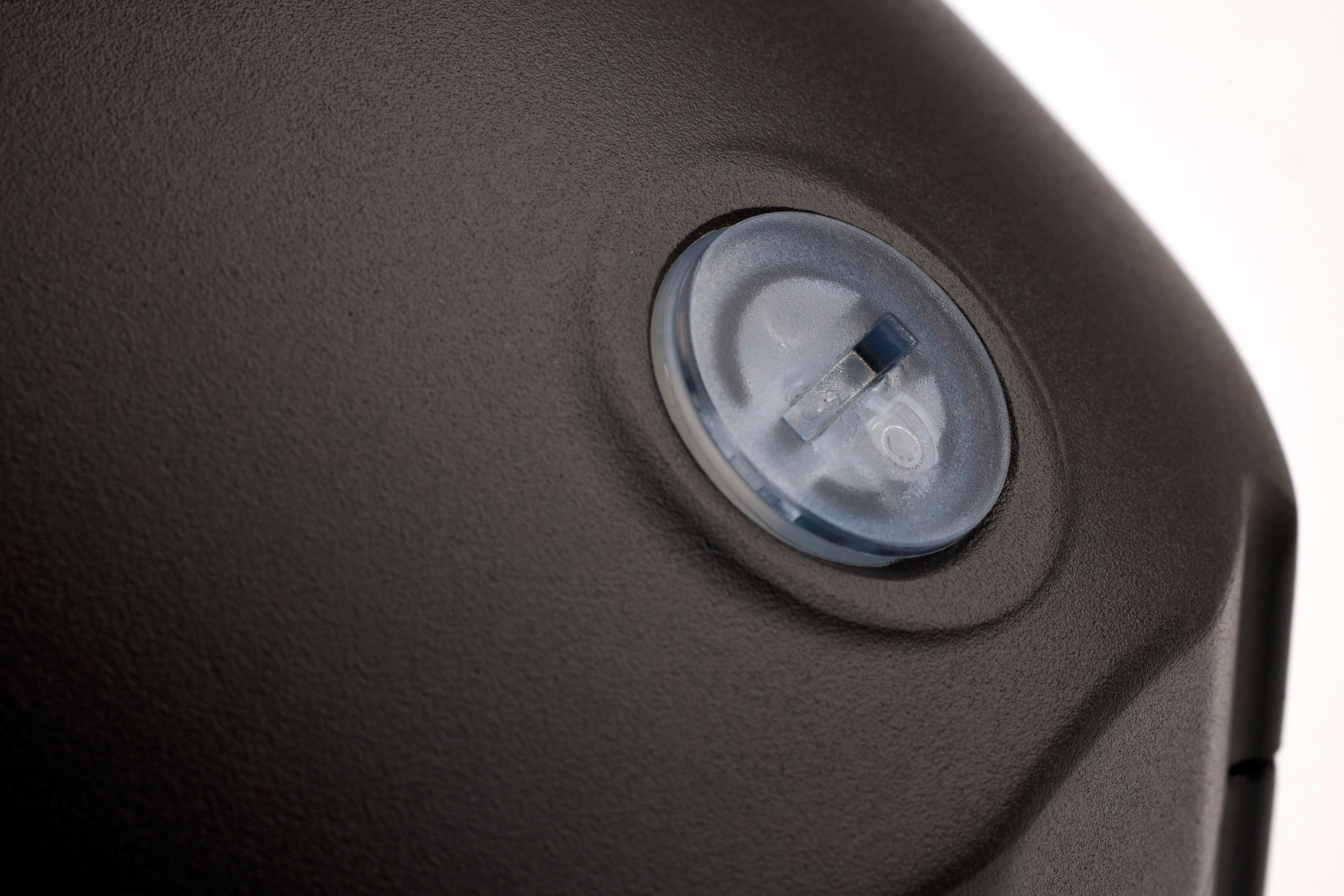

  • Integrated By-Passable Photocell
  • Wet Location
  • IK08
  • DLC Premium
  • Bronze Finish
  • H: 10.47 inches X Dia: 6.54 inches X Ext: 3.78 inches
