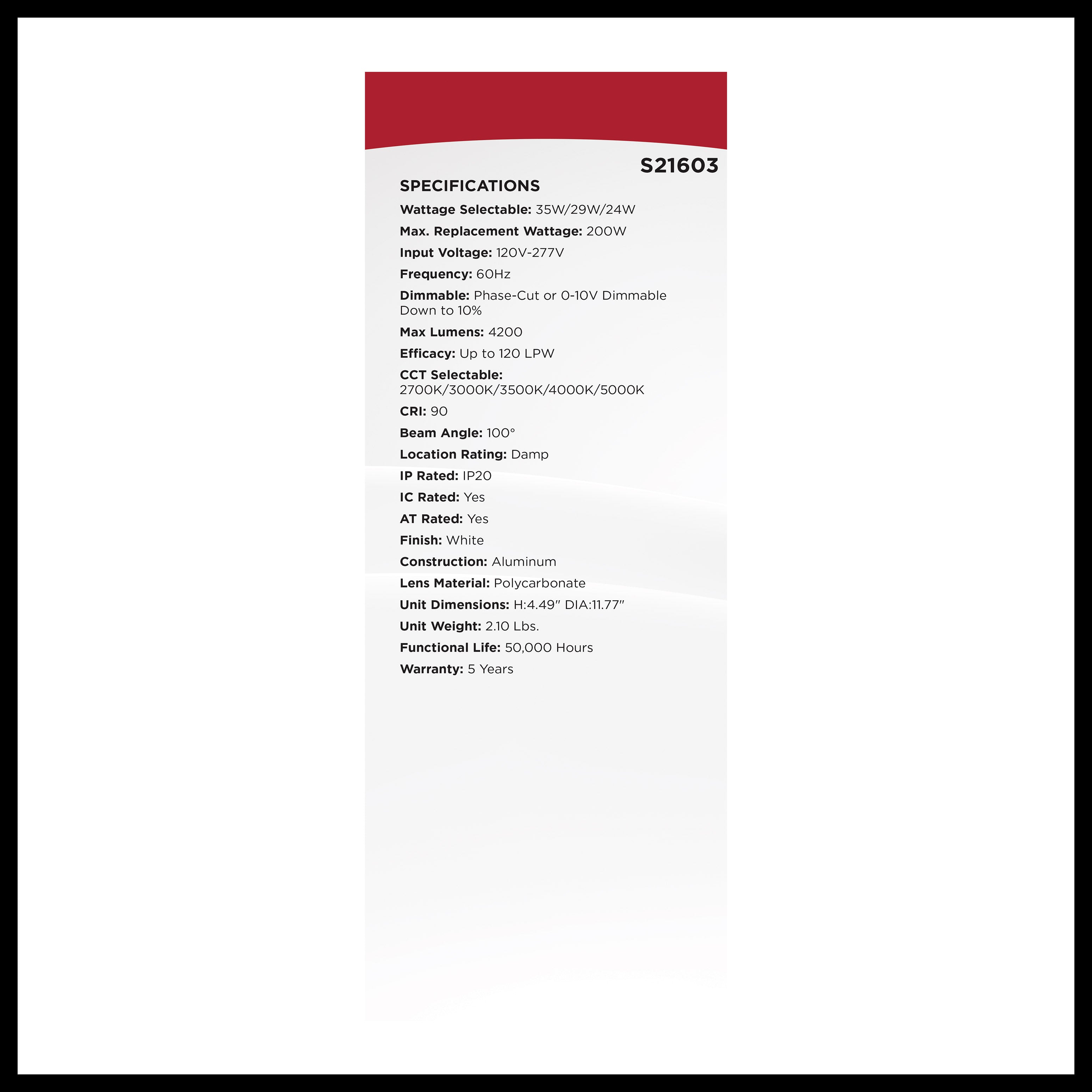

Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 200W
Wattage 35W/29W/24W
Lumens 4200L/3700L/3200L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 100
Shape Round
Color Temperature Selectable Yes
Wattage Selectable Yes
Fixture Type Commercial Downlight Retrofit
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <30%
Surge Protection Built-in surge protection - 2.5KV
Features / Controls
0-10V Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Triac/Elv/Mlv Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Construction / Installation
Material Aluminum
Width 11.77 IN
Height 4.49 IN
Diameter 11.77 IN
Weight 2.1 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor and Outdoor
Location Rating Wet
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
Air Tight Yes
IP Rating IP20
Certifications / Compliance
ENERGY STAR Yes
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

Plus Series Commercial LED Downlight - 10 Inch Round - 35W/29W/24W Wattage Selectable - 2700K/3000K/3500K/4000K/5000K CCT Selectable - 120-277 Volt - Dual Dimming - Color trim accessories available brings the familiar role of a LED recessed downlight to residential, multi-family and commercial ceiling-lighting projects. It is a practical choice for customers comparing recessed ceiling light and canless recessed light for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

Supports a clean ceiling appearance while providing practical general or task illumination. It is well suited to renovations and new construction where a clean recessed lighting layout is preferred, where lighting needs to support the space rather than distract from it. This makes the product a practical canless recessed light choice for customers also considering retrofit downlight as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

A useful choice for contractors, builders and property teams planning coordinated ceiling lighting. For kitchens, bathrooms, hallways, offices, retail spaces and hospitality interiors, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

When it is time to buy LED recessed lights online, consider Plus Series Commercial LED Downlight for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

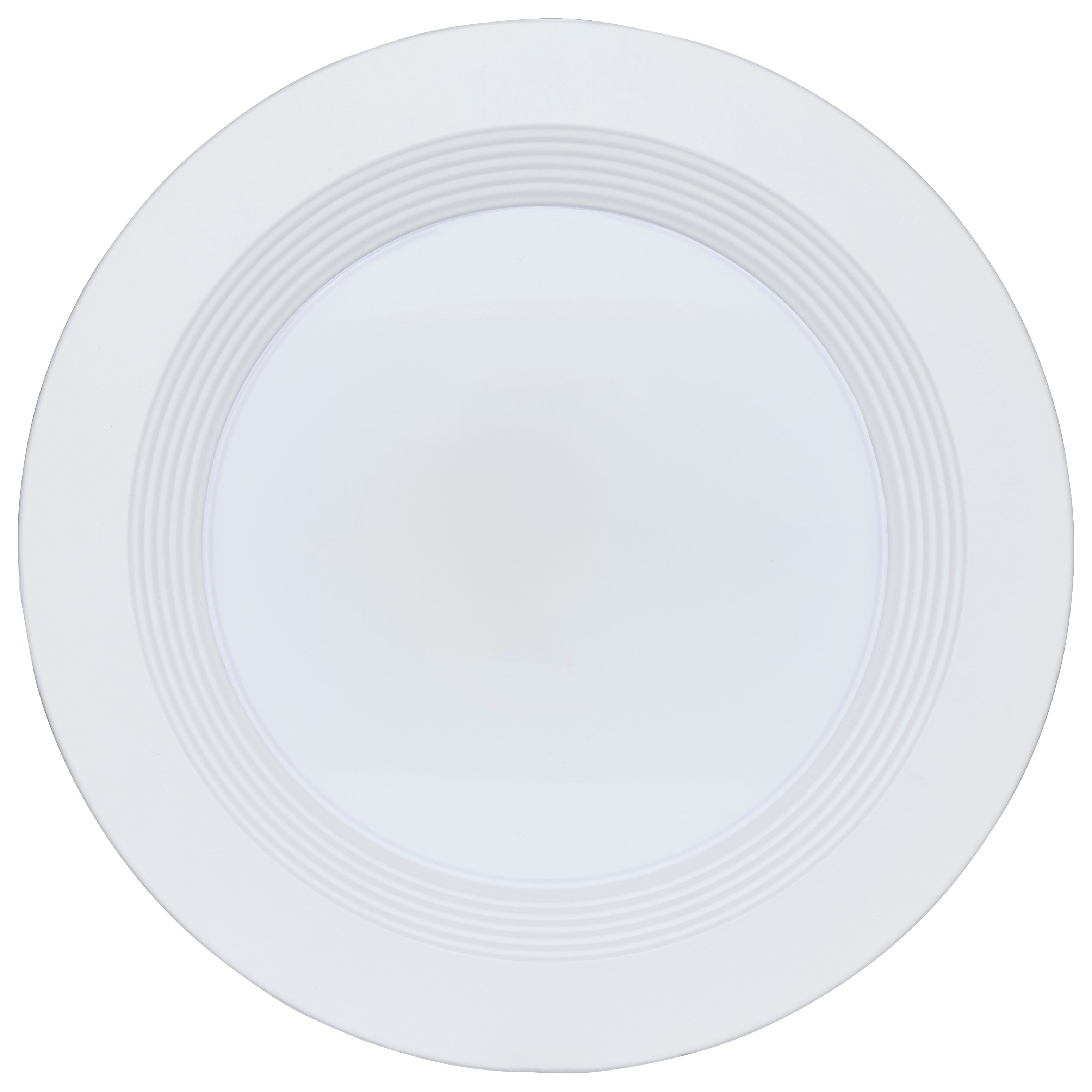

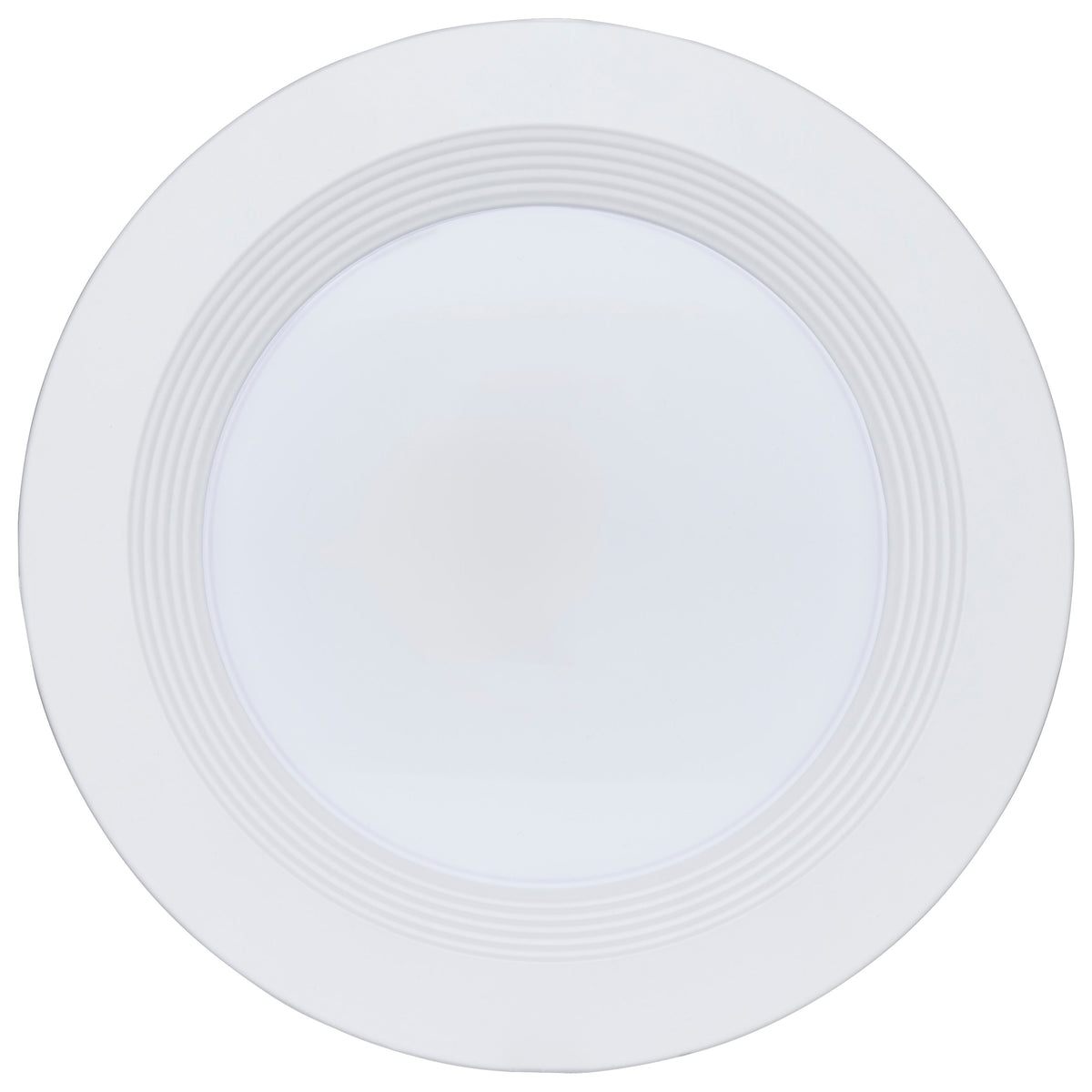

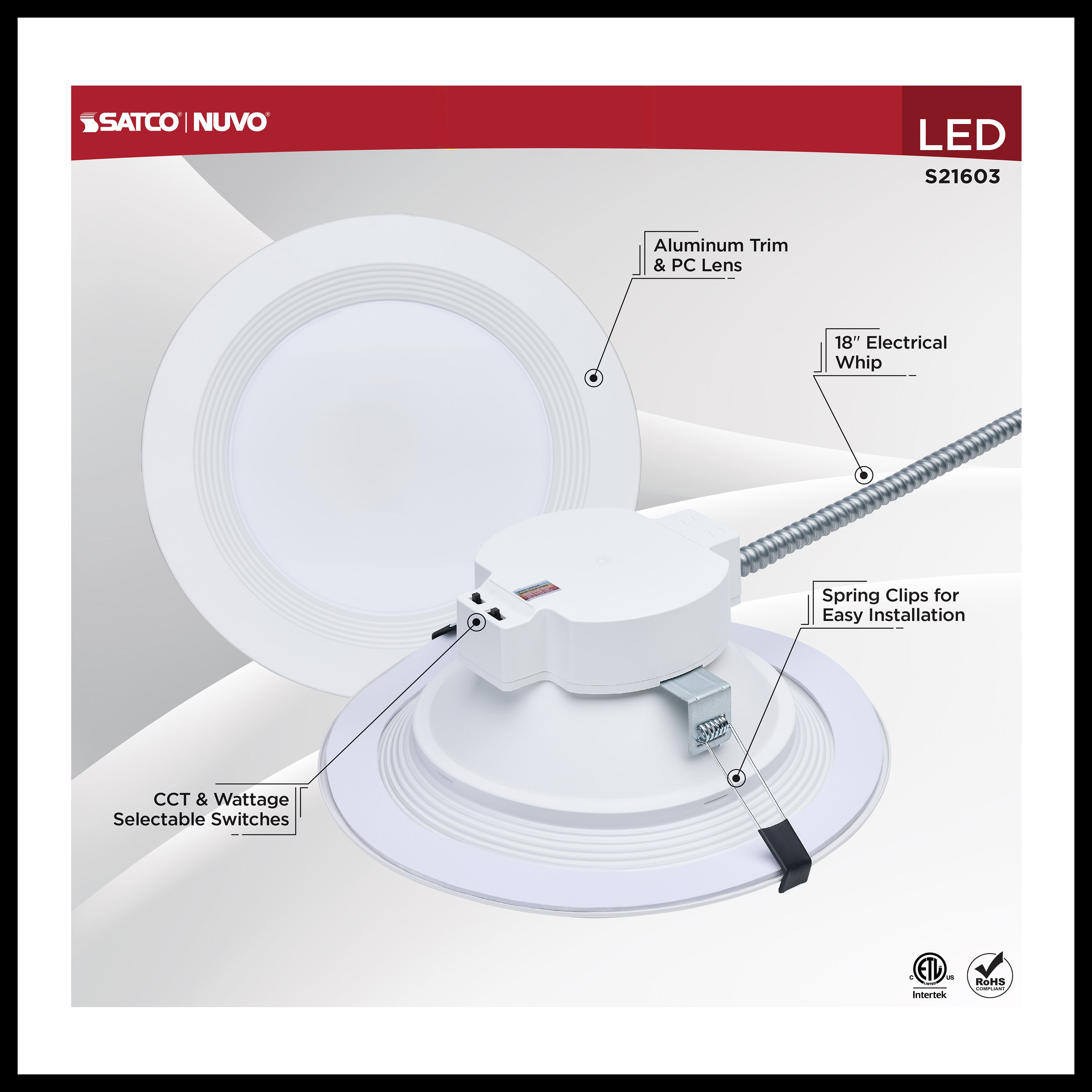

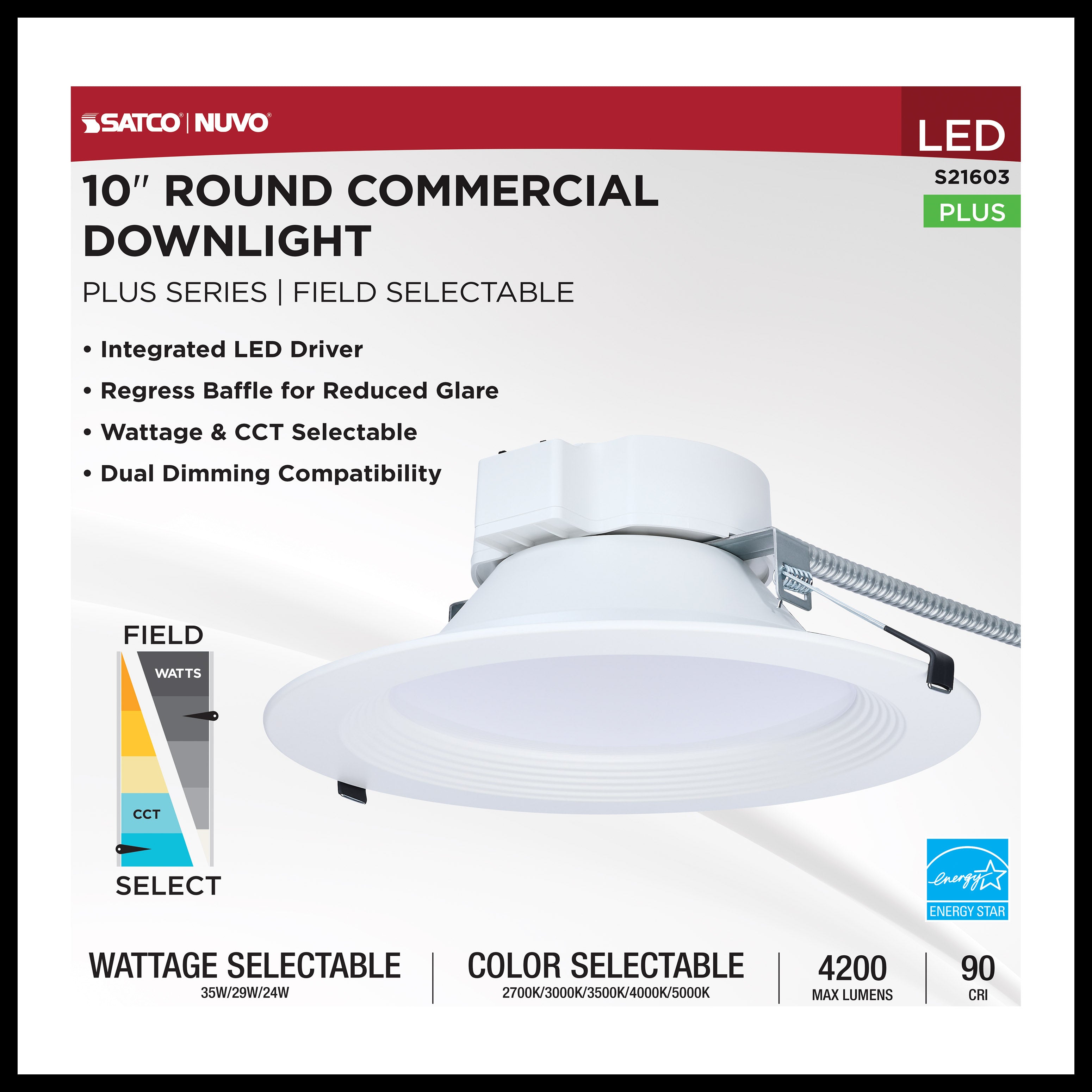

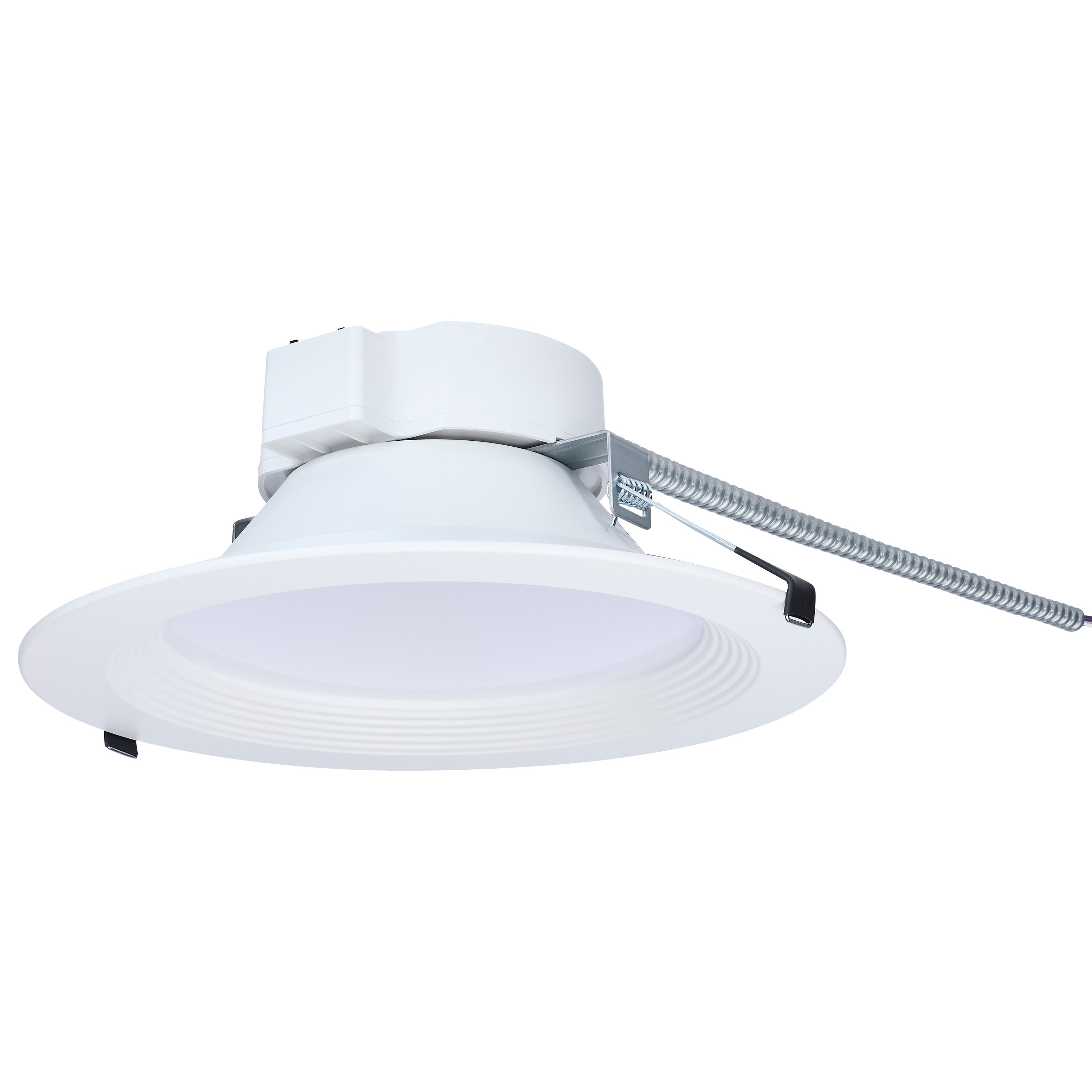

SATCO NUVO's Plus Series LED Commercial Downlight, S21603, delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 10-inch round fixture features field-selectable wattage and CCT settings, 90 CRI illumination, and dual dimming for optimal flexibility. It includes a white-painted aluminum regressed baffle and frosted lens for enhanced comfort and reduced glare. Field-installable trim accessories are available in black, bronze, or silver.

Features :-

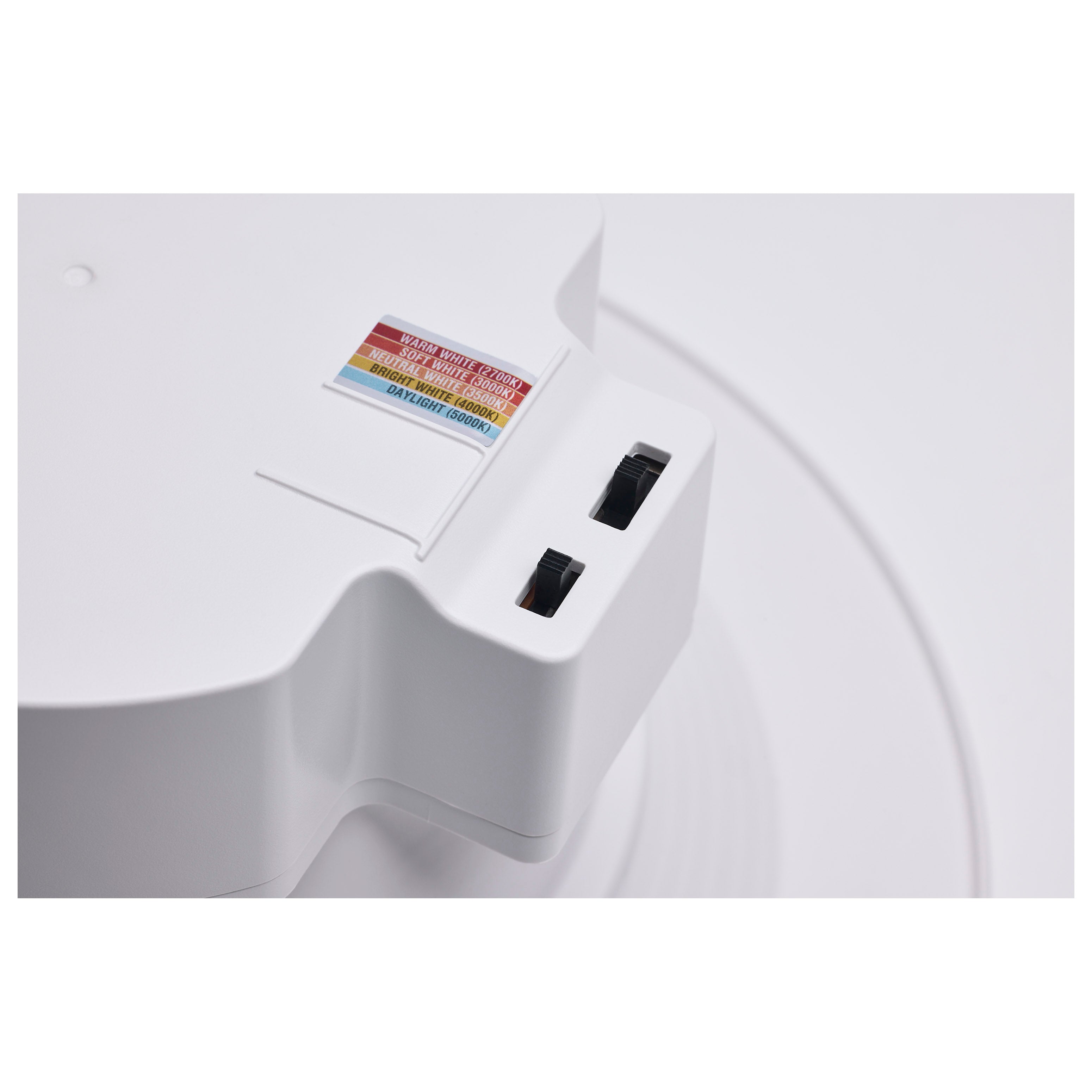

  • Field Selectable - 5 CCT and 3 Wattage
  • 10-Inch Round, Standard Model
  • Dual Dimming
  • Regress Baffle Design for Reduced Glare

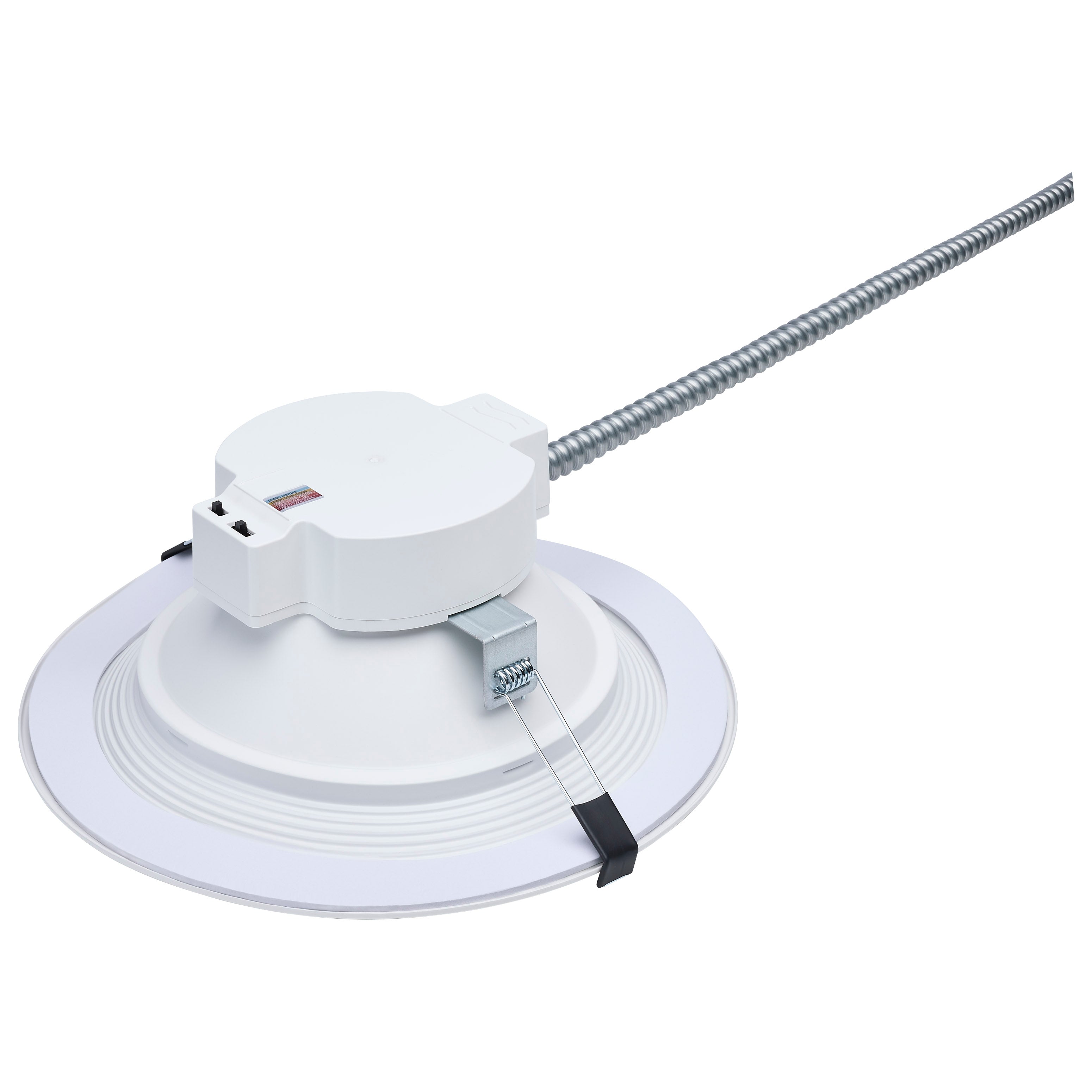

  • 18 Inch Electrical Whip
  • Integrated LED Driver
  • 90 CRI
  • Wet Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty
