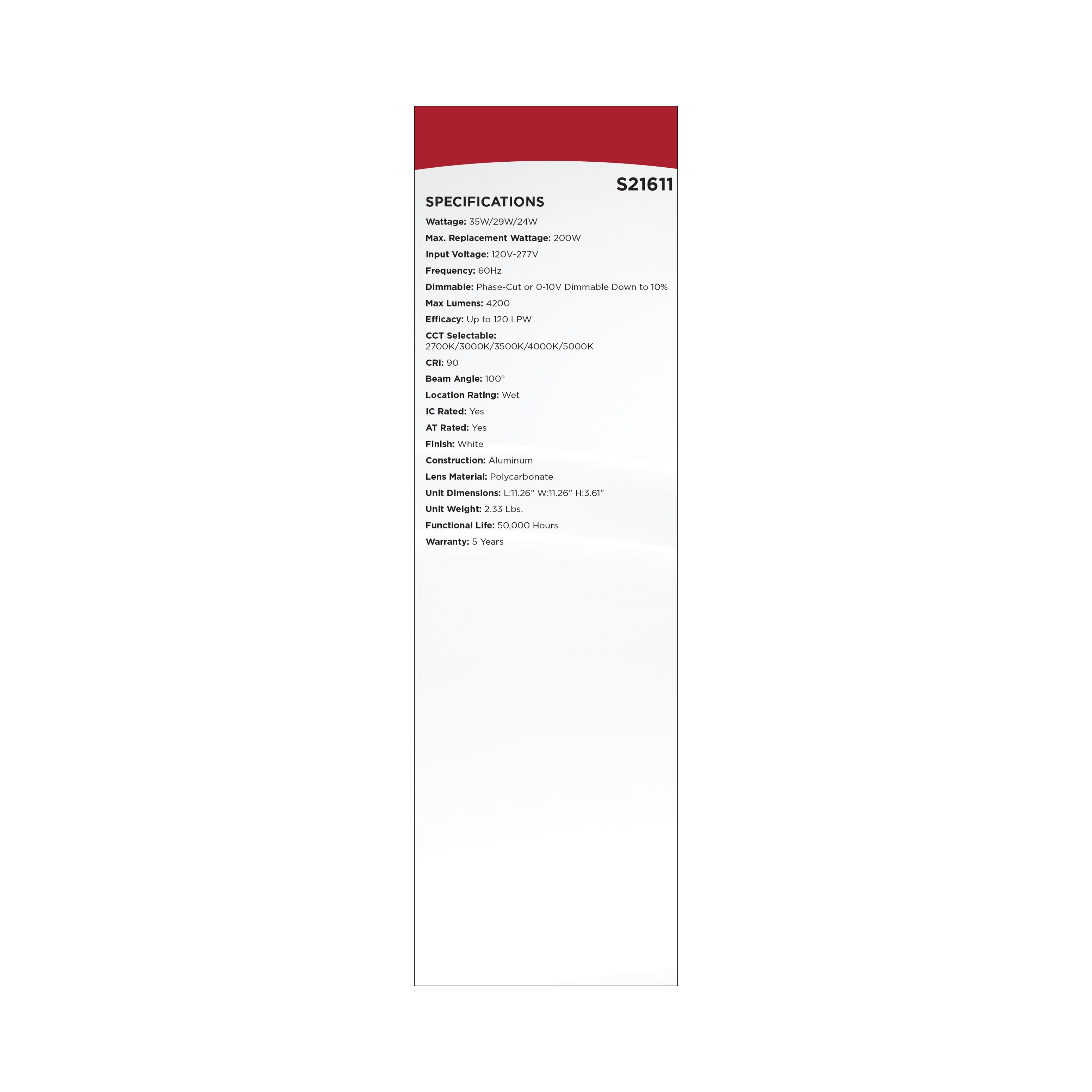

Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 200W
Wattage 35W/29W/24W
Lumens 4200L/3700L/3200L

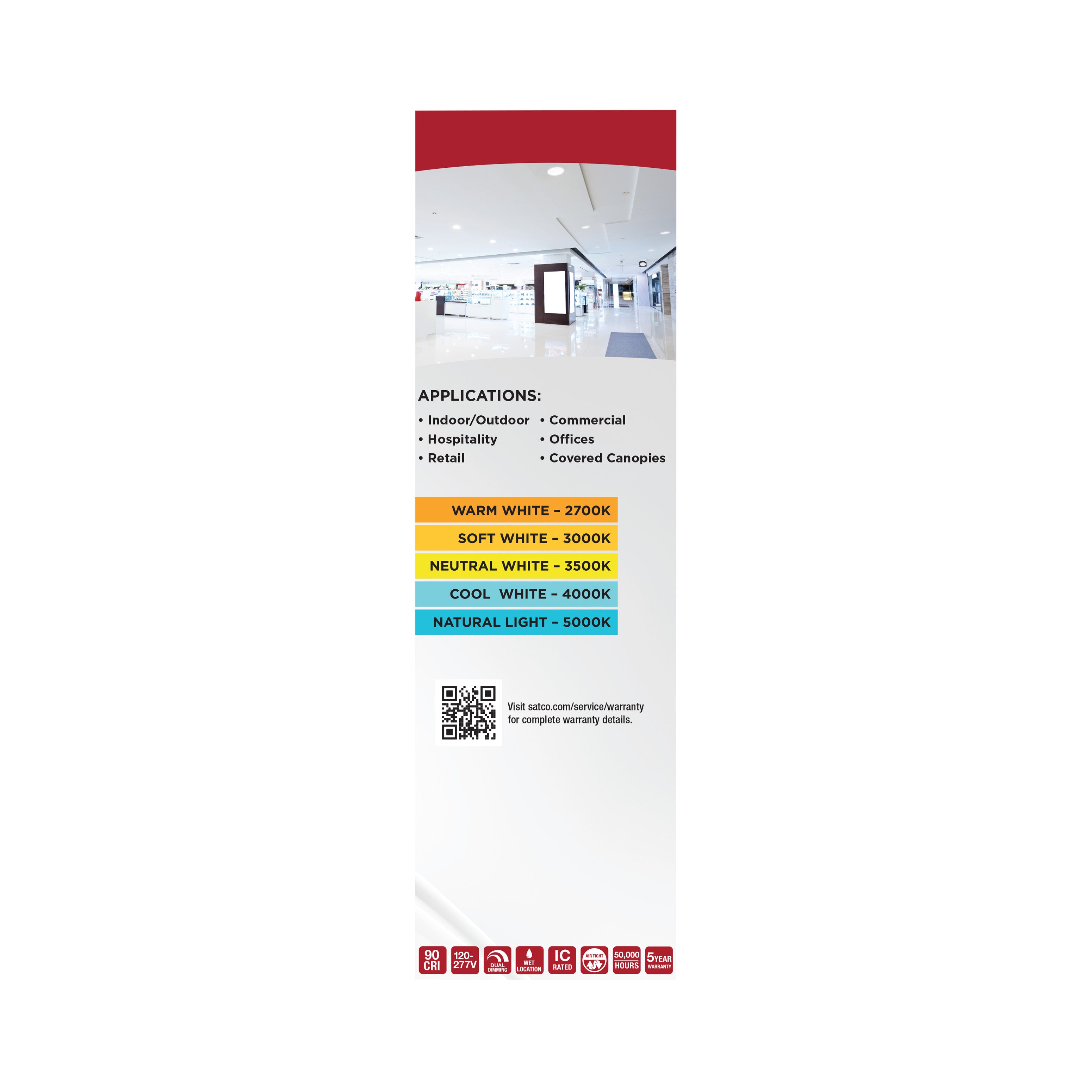

Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 100
Shape Square
Color Temperature Selectable Yes
Wattage Selectable Yes
Fixture Type Commercial Downlight Retrofit
Length 11.26 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <30%
Surge Protection Built-in surge protection - 2.5KV
Features / Controls
0-10V Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Triac/Elv/Mlv Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Construction / Installation
Material Aluminum
Width 11.26 IN
Height 3.61 IN
Weight 2.33 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor and Outdoor
Location Rating Wet
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
Air Tight Yes
IP Rating IP20
Certifications / Compliance
ENERGY STAR Yes
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

Choose Plus Series Commercial LED Downlight - 10 Inch Square - 35W/29W/24W Wattage Selectable - 2700K/3000K/3500K/4000K/5000K CCT Selectable - 120-277 Volt - Dual Dimming - Color trim accessories available when your project calls for a LED recessed downlight suited to residential, multi-family and commercial ceiling-lighting projects. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for commercial downlight that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

A useful choice for contractors, builders and property teams planning coordinated ceiling lighting. That is especially useful in kitchens, bathrooms, hallways, offices, retail spaces and hospitality interiors. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a LED recessed downlight, this option is well suited to projects involving retrofit downlight, recessed ceiling light and other coordinated lighting upgrades.

Supports a clean ceiling appearance while providing practical general or task illumination. This is particularly helpful for renovations and new construction where a clean recessed lighting layout is preferred. Whether the goal is to replace an existing item, complete a larger fixture schedule, or source matching products across multiple rooms, the emphasis stays on application fit and practical purchasing. That makes the product relevant to both one-off replacements and larger residential or commercial lighting orders.

For buyers looking to shop canless and retrofit downlights, Plus Series Commercial LED Downlight is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

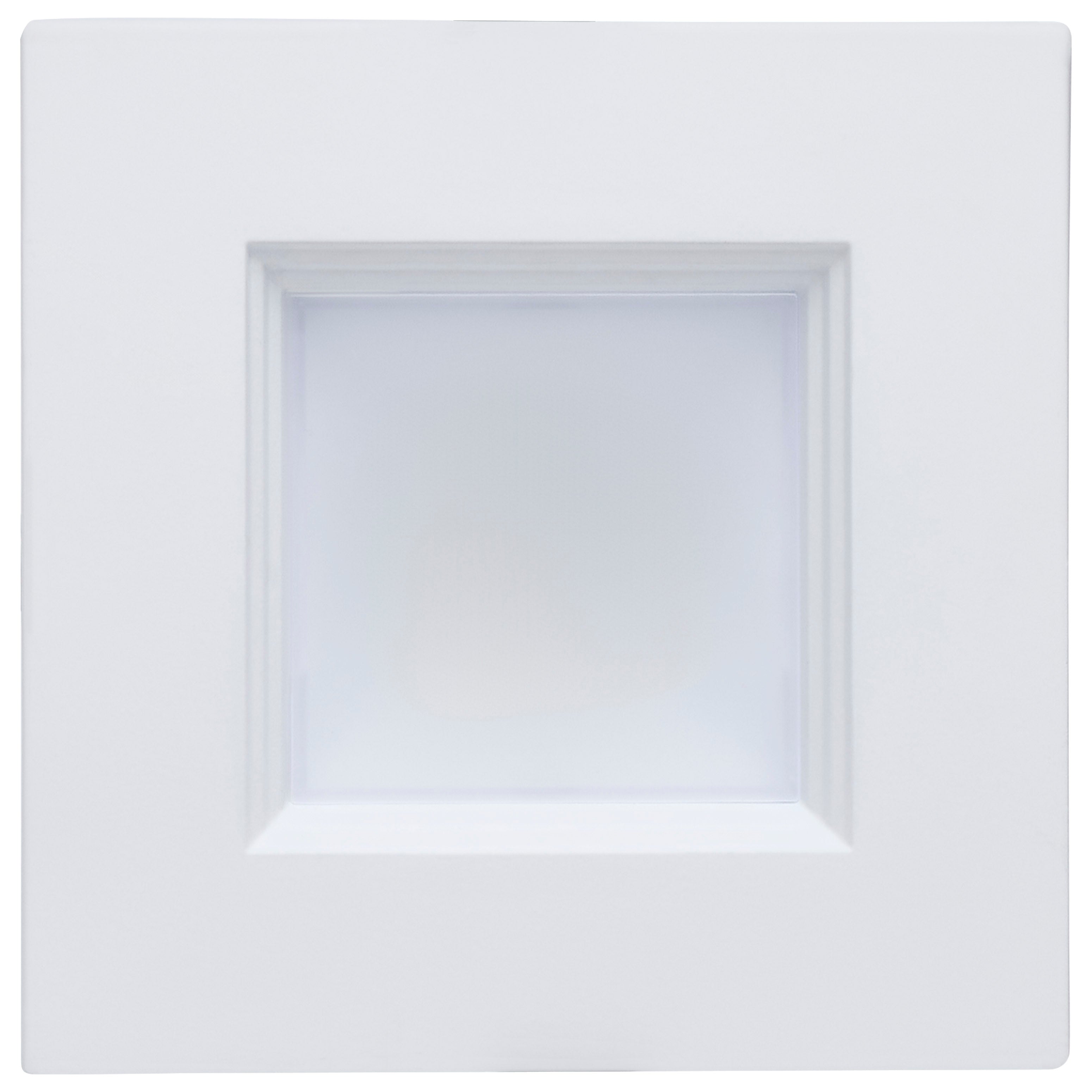

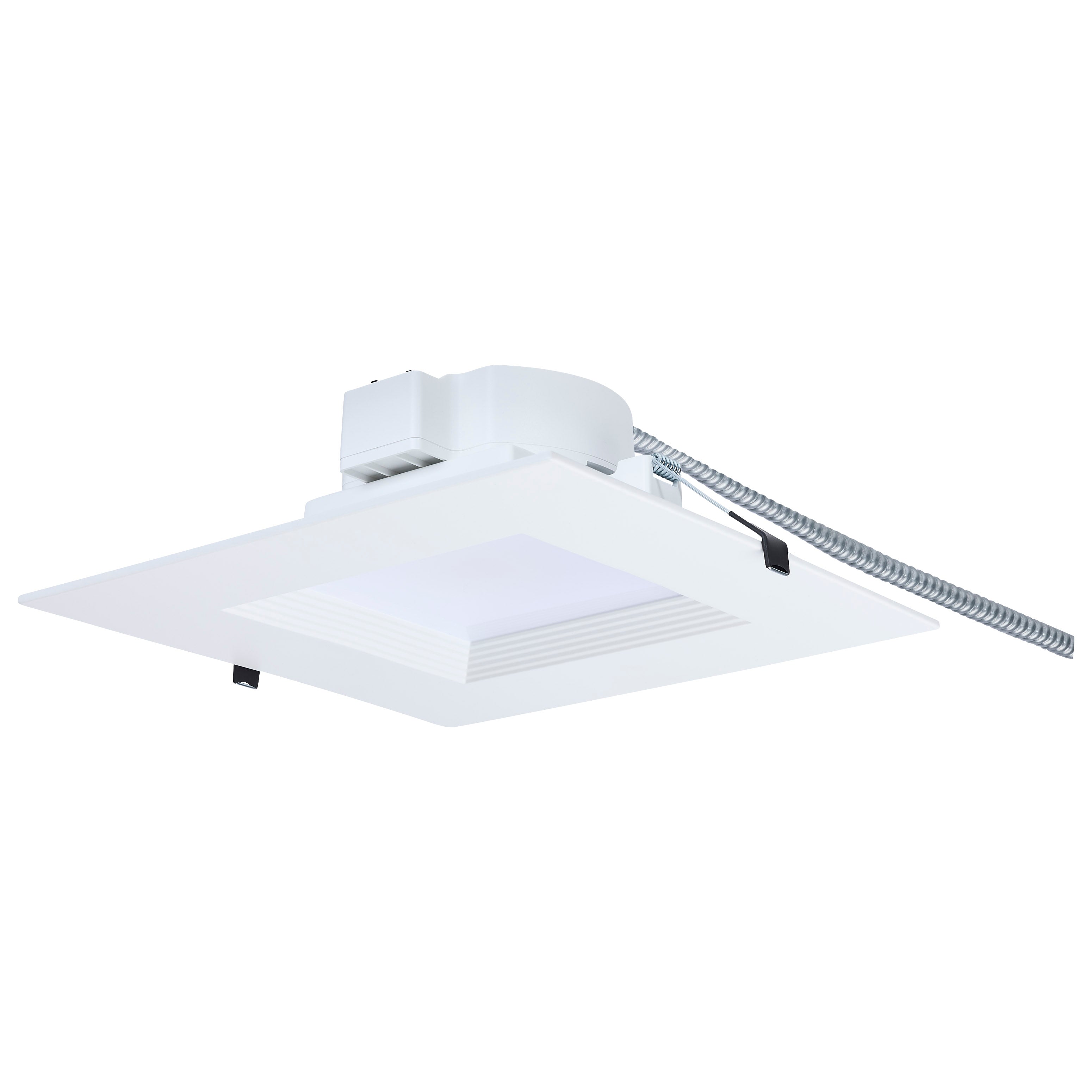

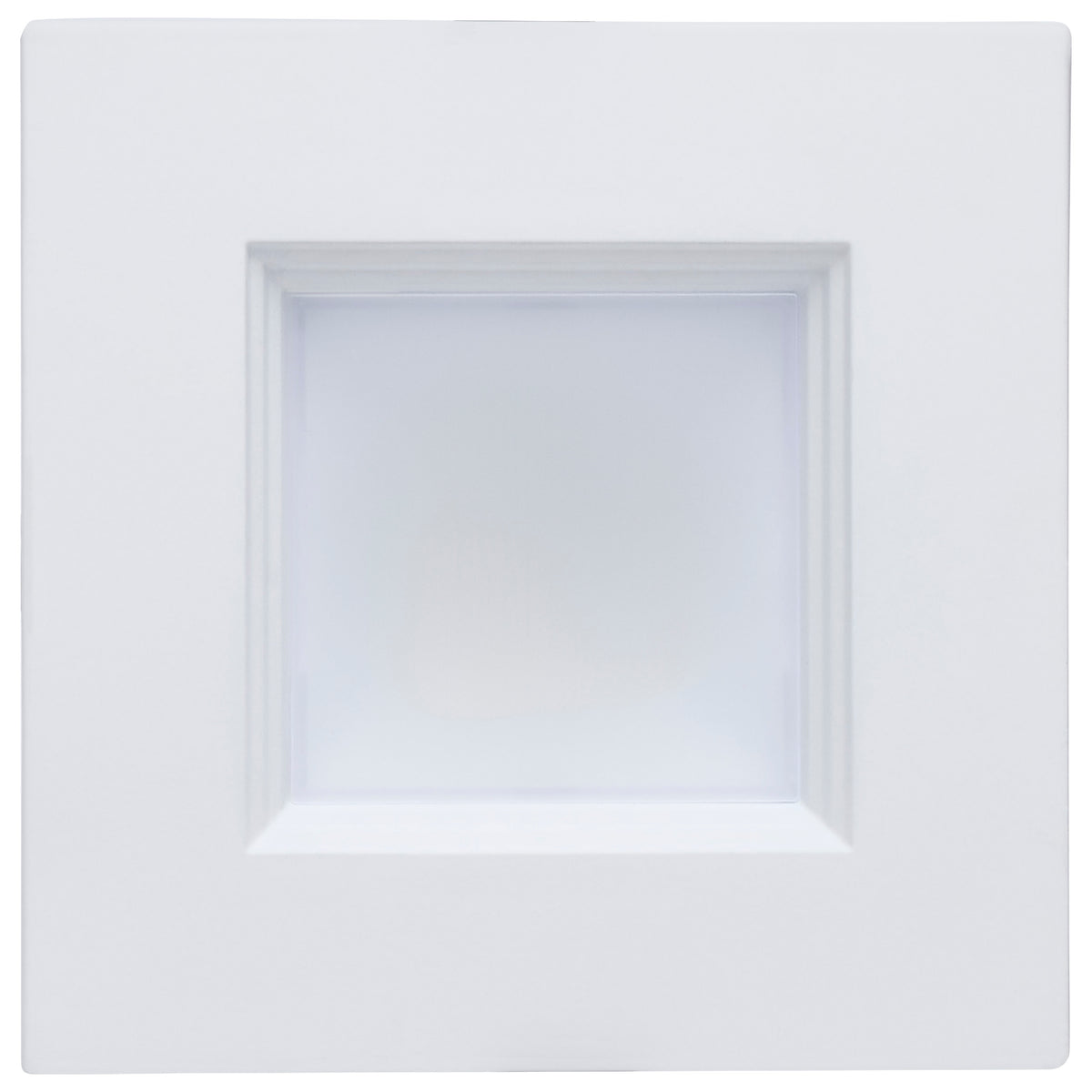

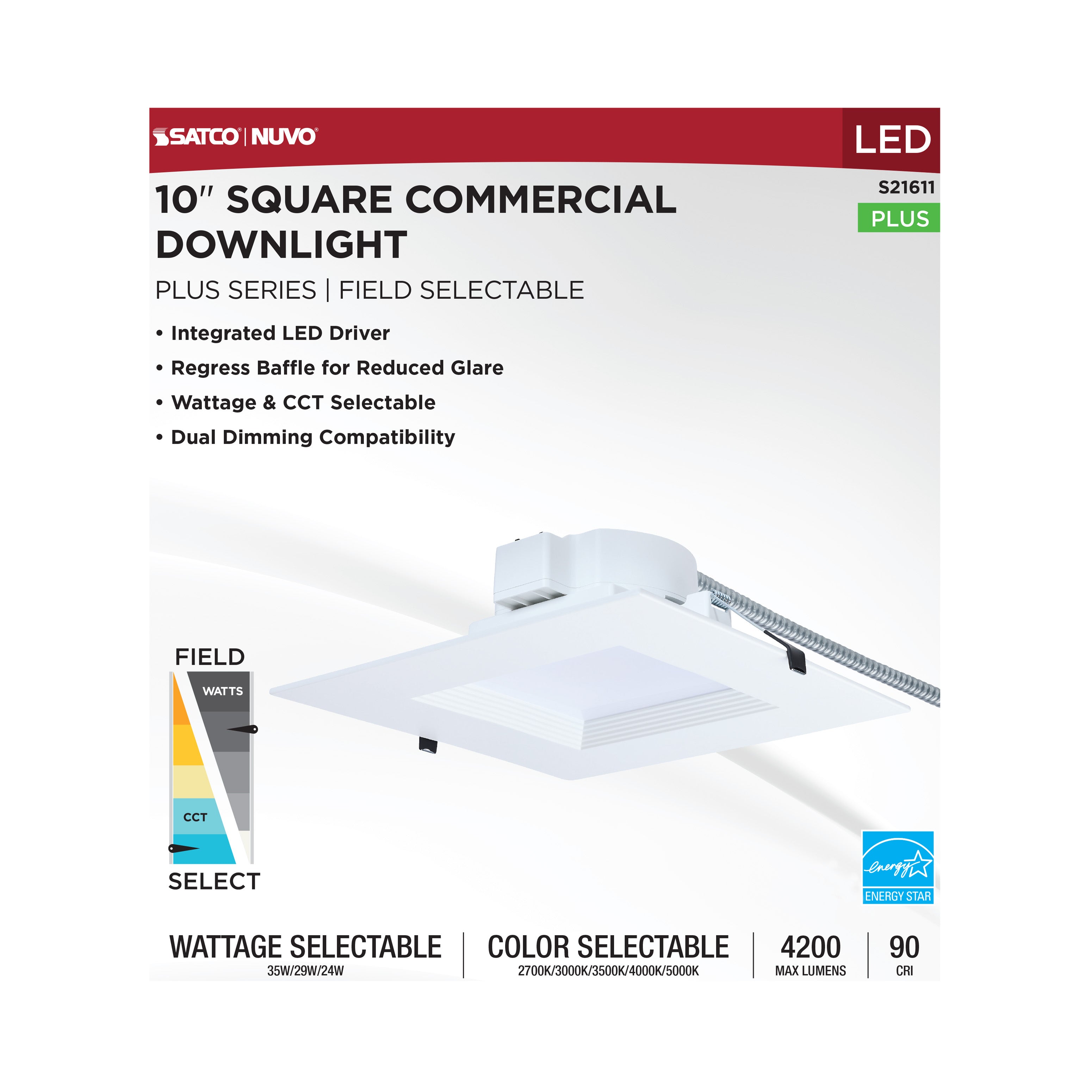

SATCO NUVO's Plus Series LED Commercial Downlight, S21611, delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 10-inch square fixture features field-selectable wattage and CCT settings, 90 CRI illumination, and dual dimming for optimal flexibility. It includes a white-painted aluminum regressed baffle and frosted lens for enhanced comfort and reduced glare. Field-installable trim accessories are available in black, bronze, or silver.

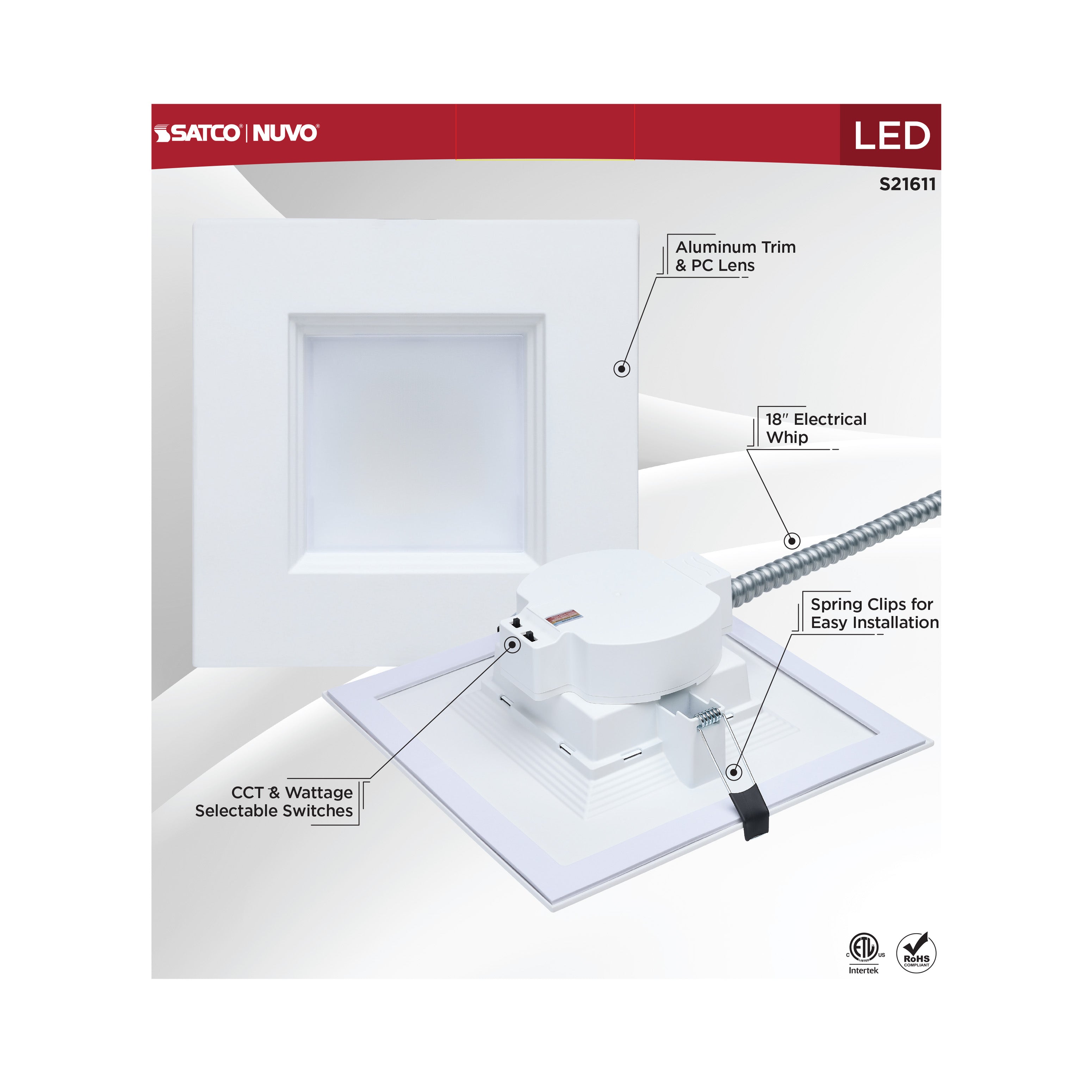

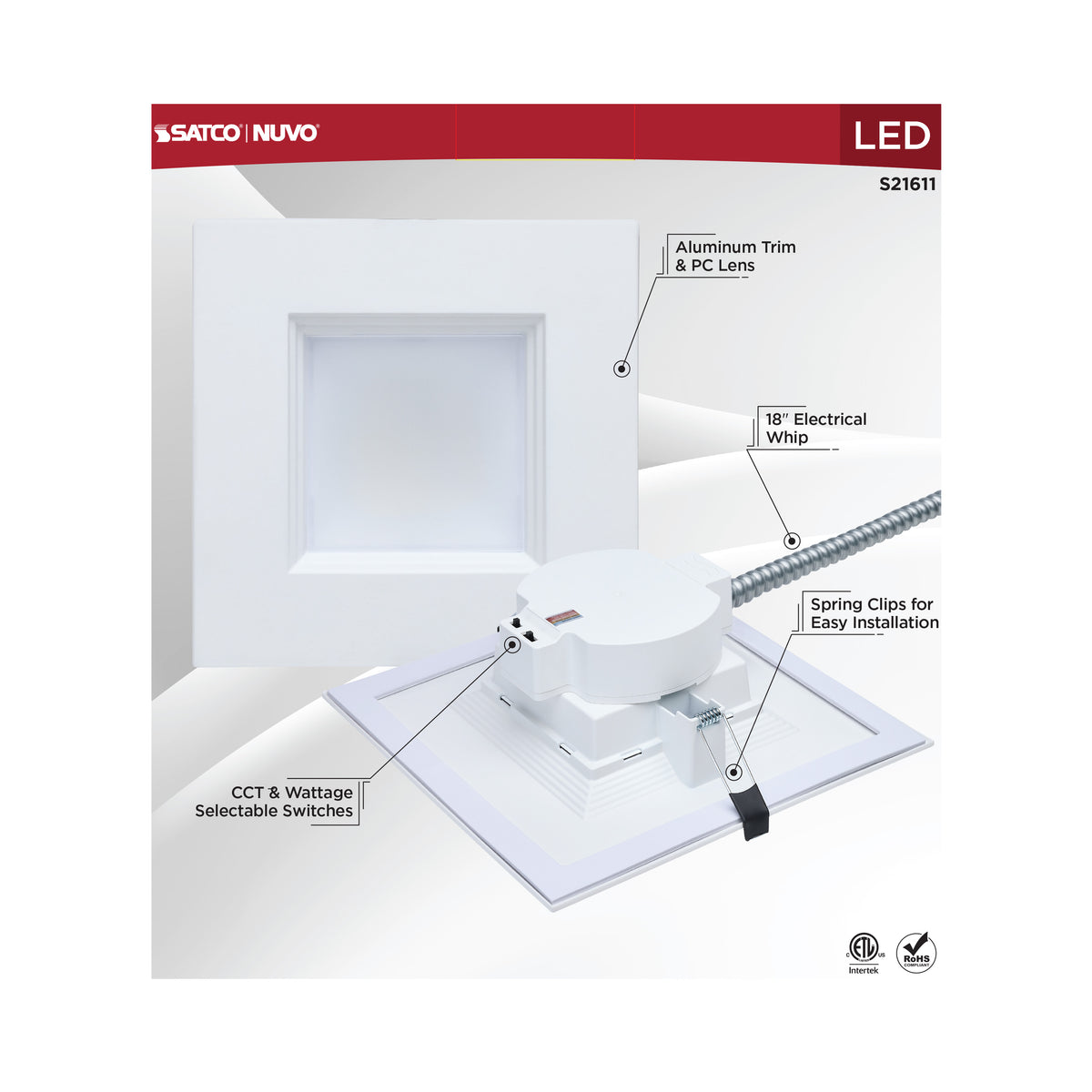

Features :-

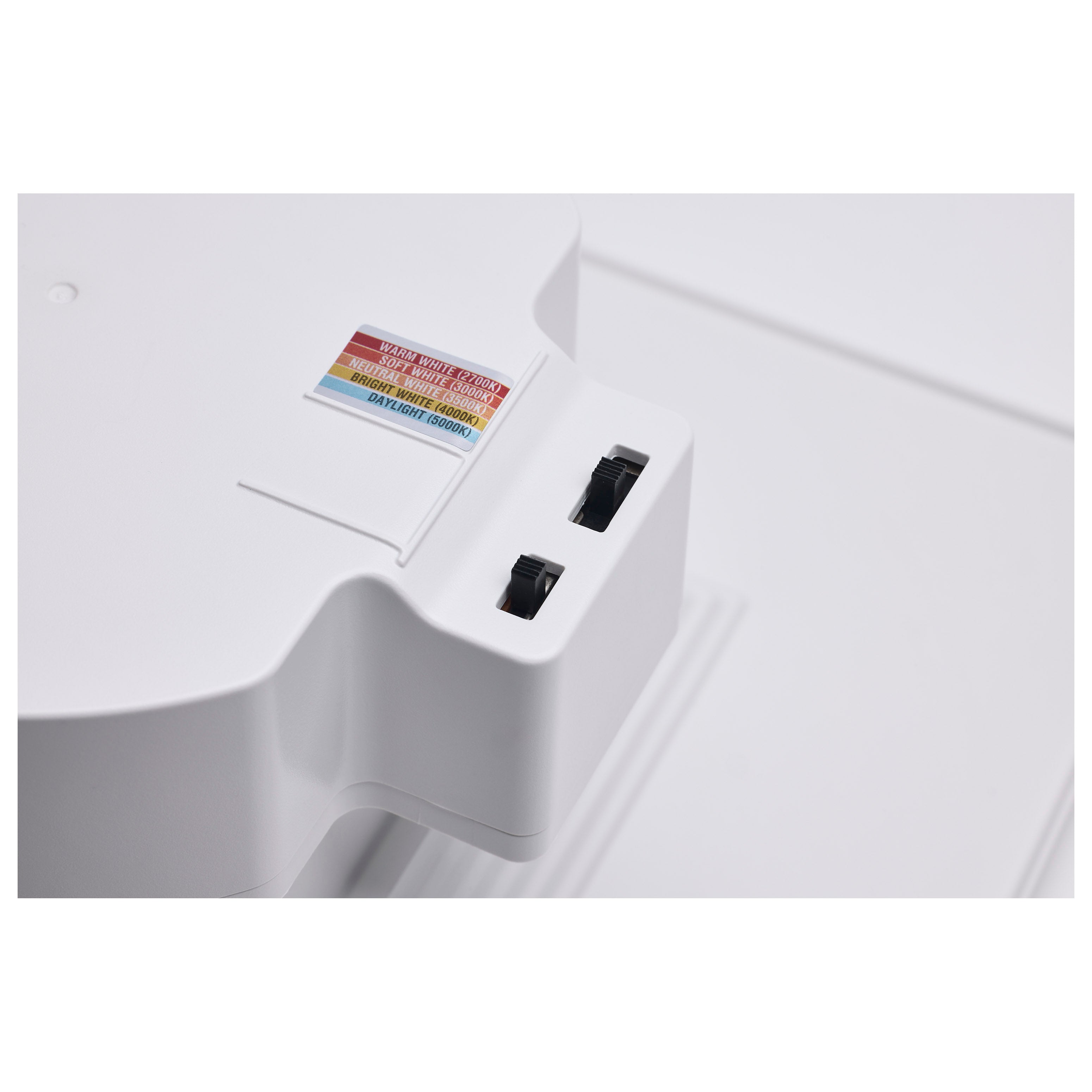

  • Field Selectable - 5 CCT and 3 Wattage
  • 10-Inch Square, Standard Model
  • Dual Dimming
  • Regress Baffle Design for Reduced Glare

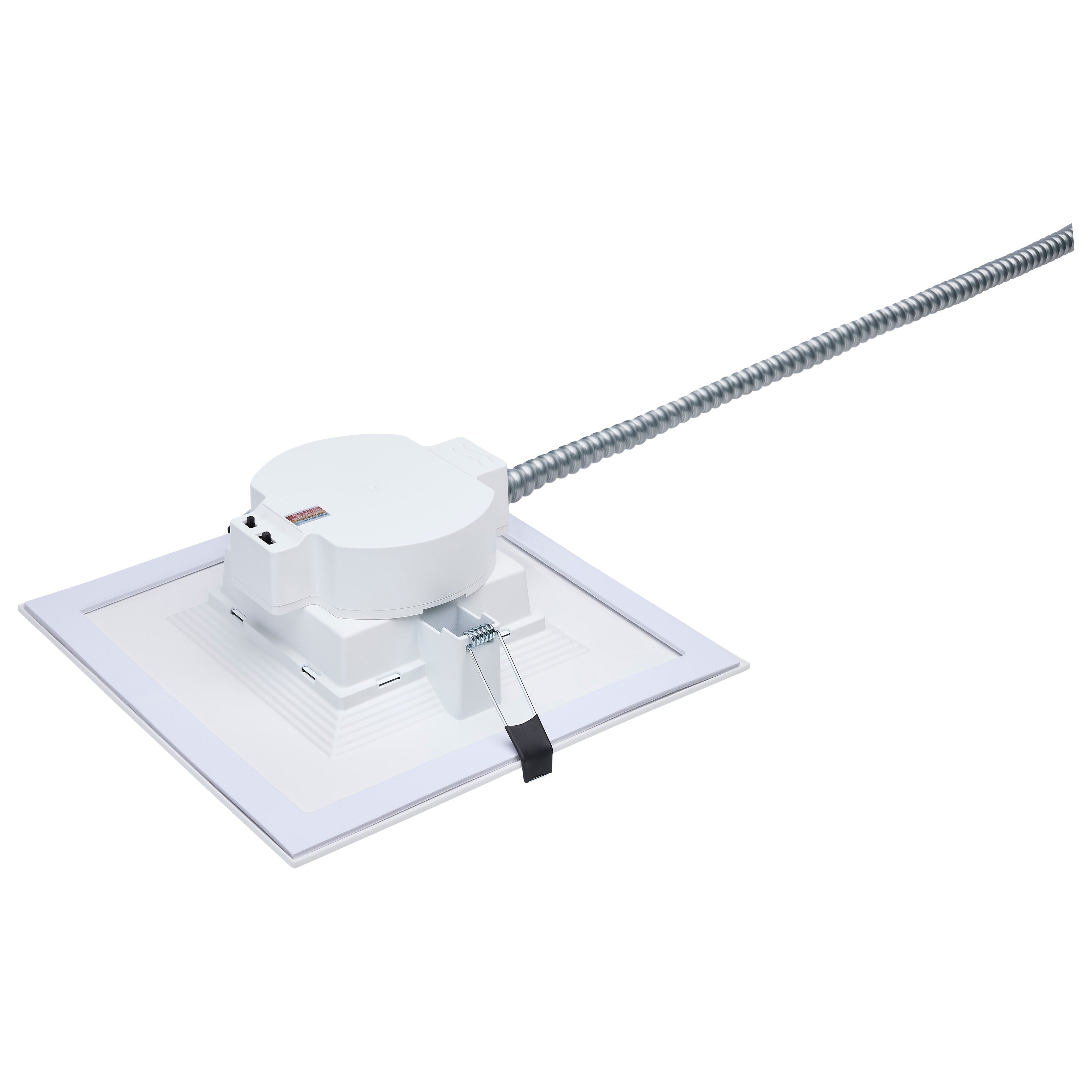

  • 18 Inch Electrical Whip
  • Integrated LED Driver
  • 90 CRI
  • Wet Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty
