Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 125W
Wattage 28W/25W/20W
Lumens 3200L/2900L/2200L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish White
Beam Angle 100
Shape Round
Color Temperature Selectable Yes
Wattage Selectable Yes
Fixture Type Commercial Downlight Retrofit
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <30%
Surge Protection Built-in surge protection - 2.5KV
Battery Chemistry Lithium-ion (Li-ion)
Features / Controls
Emergency Backup Yes
0-10V Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Triac/Elv/Mlv Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Construction / Installation
Material Aluminum
Width 9.76 IN
Height 4.02 IN
Diameter 9.76 IN
Weight 3.9 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor and Outdoor
Location Rating Wet
Operating Temperature +41F to +104F (+5C to +40C)
IC Rated Yes
Air Tight Yes
IP Rating IP20
Certifications / Compliance
ENERGY STAR Yes
California Title 20 Yes
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

Choose Plus Series Commercial LED Downlight - 8 Inch Round - 28W/25W/20W Wattage Selectable - 2700K/3000K/3500K/4000K/5000K CCT Selectable - Integrated Emergency Driver - 120-347 Volt - Dual Dimming - Color trim accessories available when your project calls for a LED recessed downlight suited to residential, multi-family and commercial ceiling-lighting projects. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for commercial downlight that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

A useful choice for contractors, builders and property teams planning coordinated ceiling lighting. It is well suited to kitchens, bathrooms, hallways, offices, retail spaces and hospitality interiors, where lighting needs to support the space rather than distract from it. This makes the product a practical retrofit downlight choice for customers also considering LED recessed downlight as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Supports a clean ceiling appearance while providing practical general or task illumination. For renovations and new construction where a clean recessed lighting layout is preferred, it can serve as a replacement item, a project component, or part of a broader lighting refresh. This keeps selection focused on the real application while supporting single-item orders and larger renovation or maintenance purchases.

When it is time to shop canless and retrofit downlights, consider Plus Series Commercial LED Downlight for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

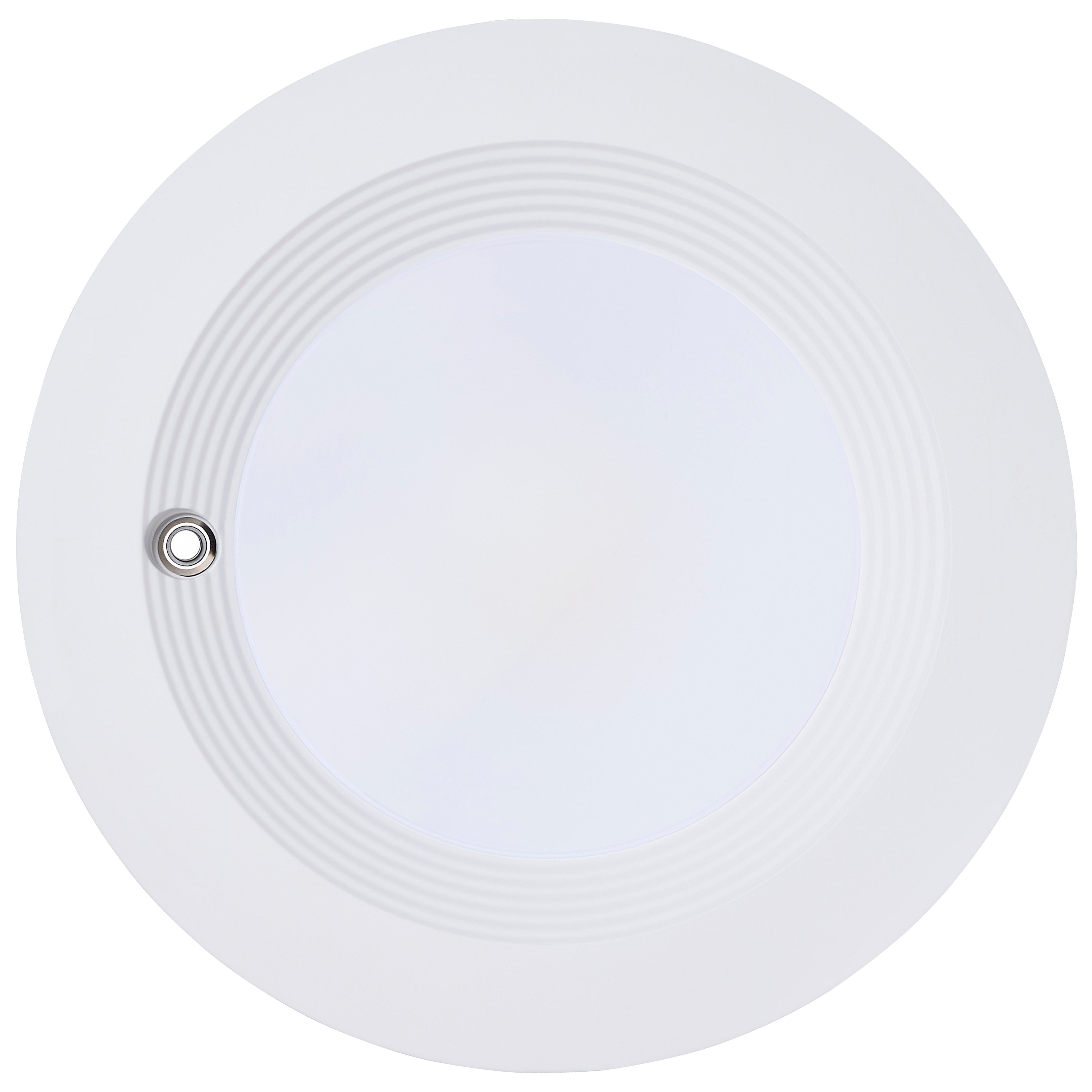

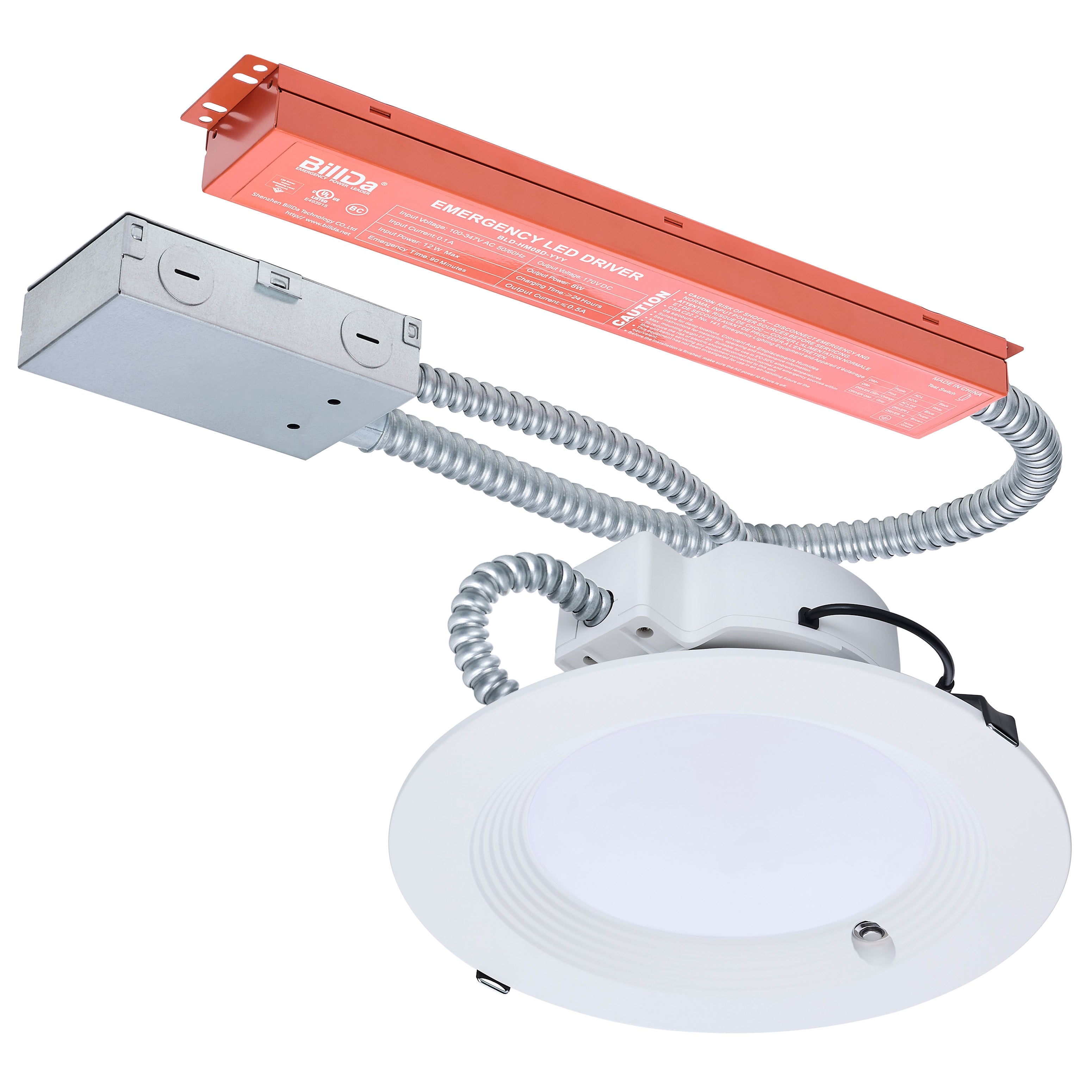

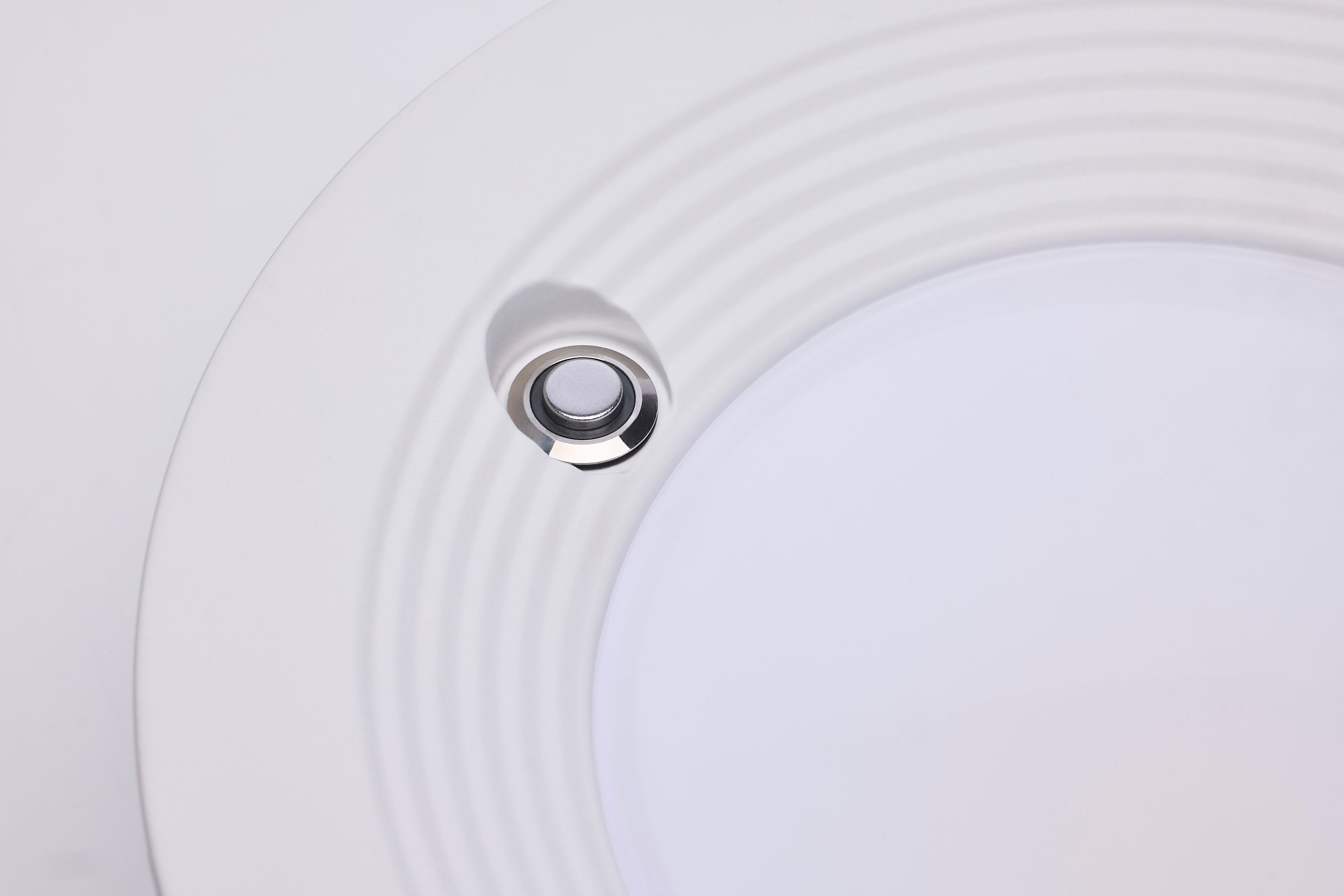

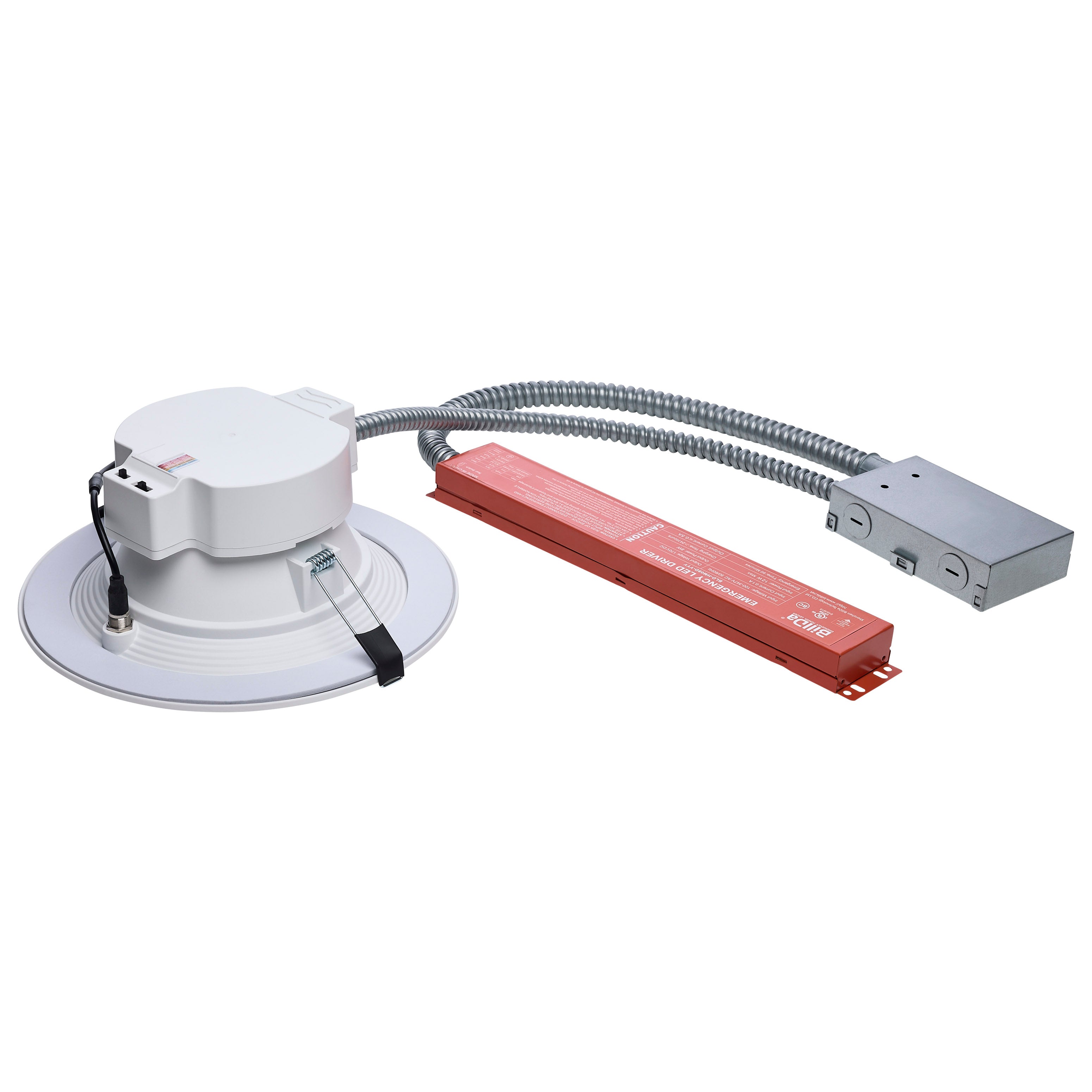

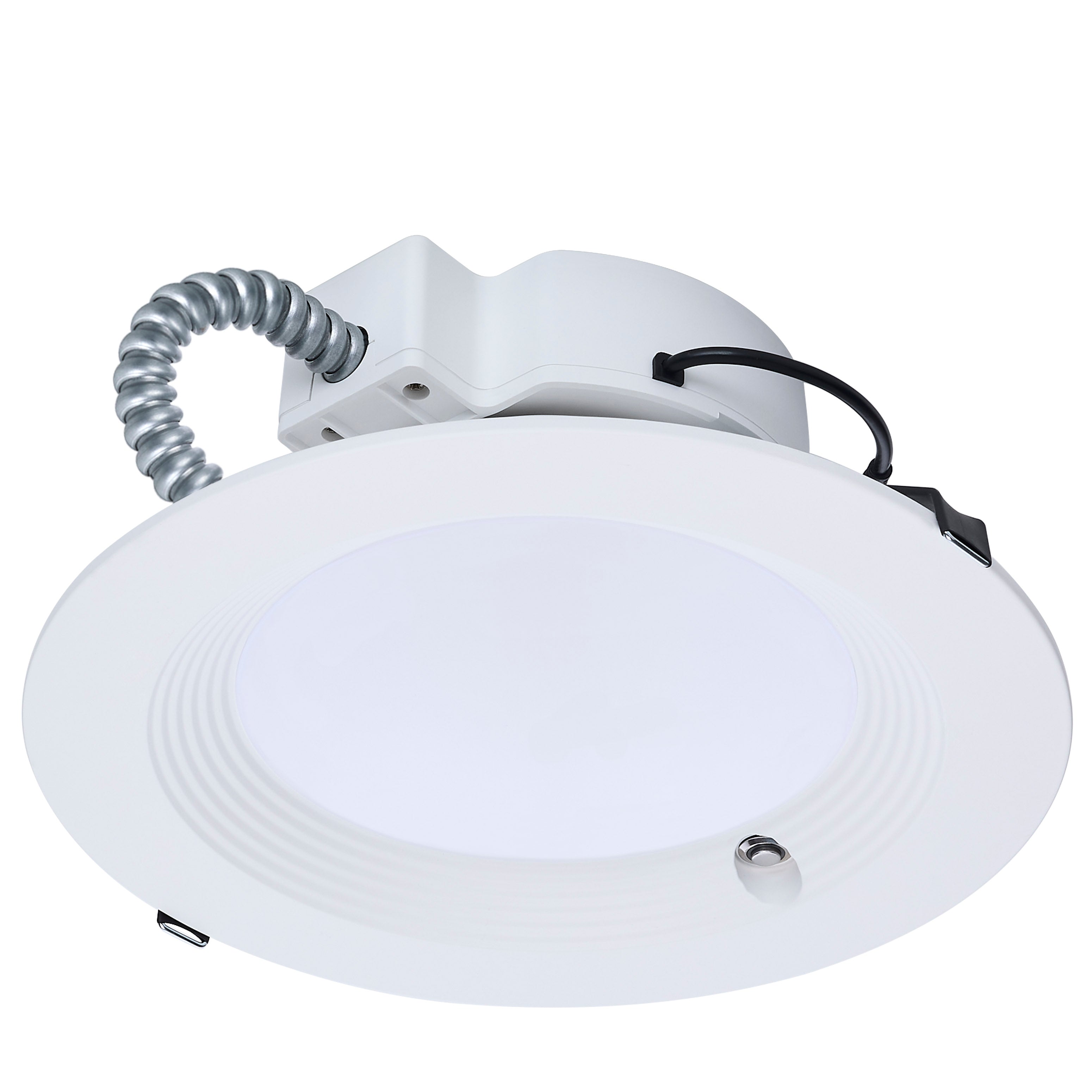

SATCO NUVO's Plus Series LED Commercial Downlight, S21606, with Emergency Battery Backup delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 8-inch round fixture features field-selectable wattage and CCT settings, 90 CRI illumination, and dual dimming for optimal flexibility. Equipped with a long-life lithium-ion battery, integrated test indicator button light, and Self-Diagnostic functionality, it provides 90 minutes of emergency runtime. A white-painted aluminum regressed baffle and frosted lens enhance comfort and reduce glare. Field-installable trim accessories are available in black, bronze, or silver.

Features :-

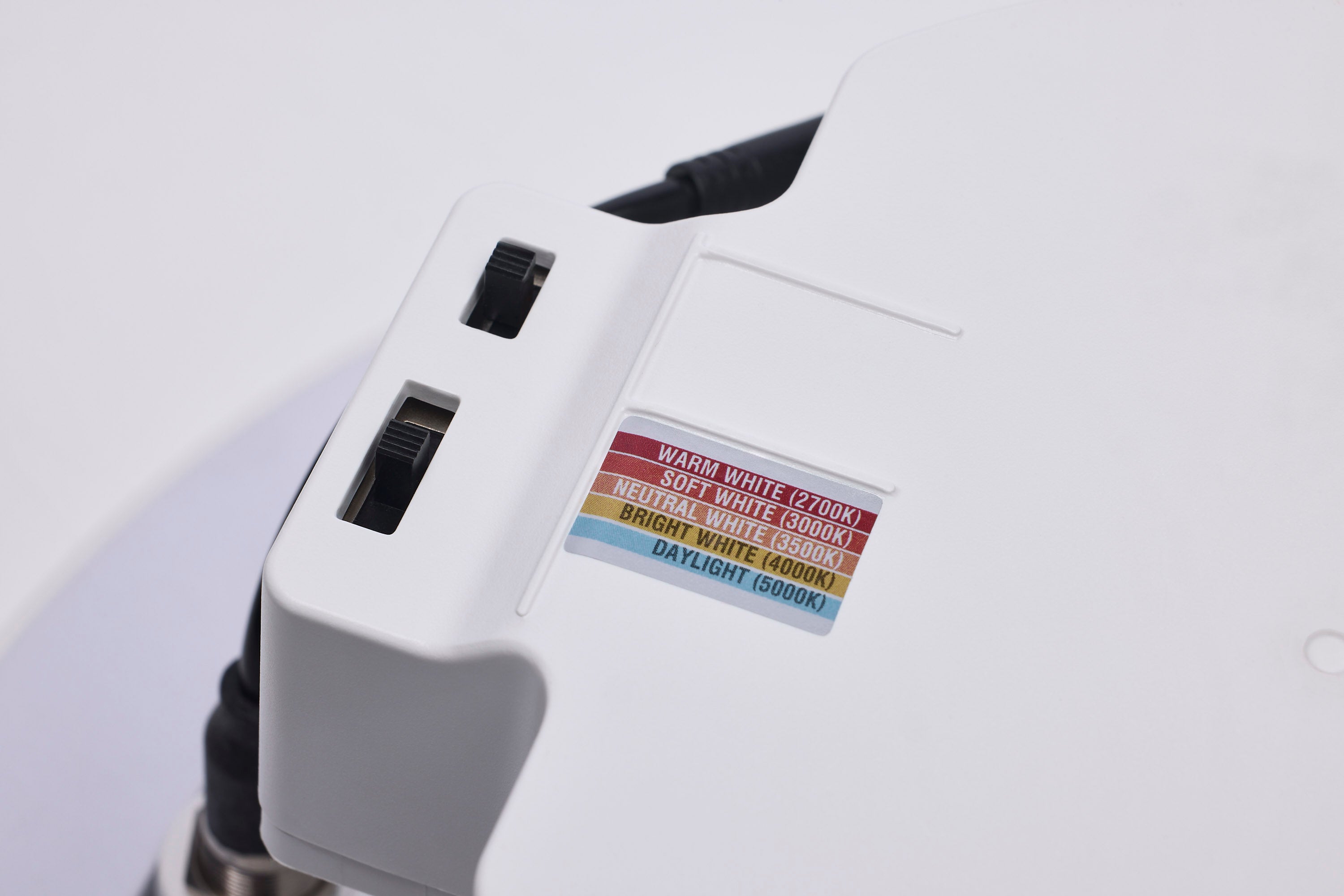

  • Field Selectable - 5 CCT and 3 Wattage
  • 8-Inch Round, Emergency Battery Backup Model
  • Dual Dimming
  • Regress Baffle Design for Reduced Glare
  • 18 Inch Electrical Whip
  • EM Model includes self-diagnostic emergency feature
  • 90 CRI
  • Wet Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty
