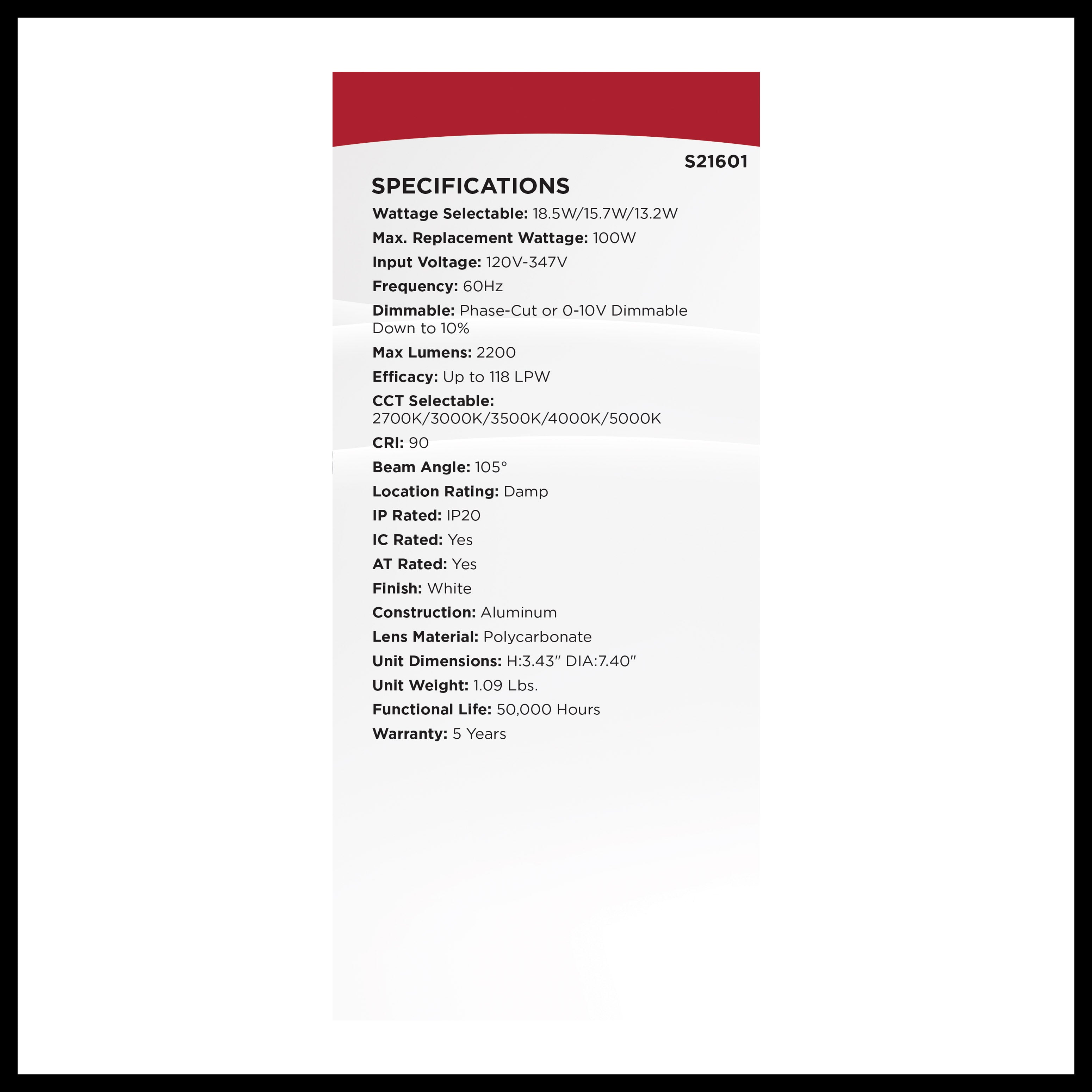

Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 100W
Wattage 18.5W/15.7W/13.2W
Lumens 2200L/1800L/1400L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish White
Beam Angle 105
Shape Round
Color Temperature Selectable Yes
Wattage Selectable Yes
Fixture Type Commercial Downlight Retrofit
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <30%
Surge Protection Built-in surge protection - 2.5KV
Features / Controls
0-10V Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Triac/Elv/Mlv Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Construction / Installation
Material Aluminum
Width 7.4 IN
Height 3.43 IN
Diameter 7.4 IN
Weight 1.09 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor, Outdoor
Location Rating Wet
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
Air Tight Yes
IP Rating IP20
Certifications / Compliance
ENERGY STAR Yes
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

Plus Series Commercial LED Downlight - 6 Inch Round - 18.5W/15.7W/13.2W Wattage Selectable - 2700K/3000K/3500K/4000K/5000K CCT Selectable - 120-347 Volt - Dual Dimming - Color trim accessories available brings the familiar role of a LED recessed downlight to residential, multi-family and commercial ceiling-lighting projects. It is a practical choice for customers comparing retrofit downlight and canless recessed light for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

Works well in projects that need repeatable recessed fixtures across multiple rooms or units. In practical terms, that makes this product relevant for kitchens, bathrooms, hallways, offices, retail spaces and hospitality interiors. It also fits naturally into projects considering canless recessed light and commercial downlight, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

Supports a clean ceiling appearance while providing practical general or task illumination. For renovations and new construction where a clean recessed lighting layout is preferred, it can serve as a replacement item, a project component, or part of a broader lighting refresh. This keeps selection focused on the real application while supporting single-item orders and larger renovation or maintenance purchases.

If you are ready to order recessed downlights for residential or commercial projects, Plus Series Commercial LED Downlight offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

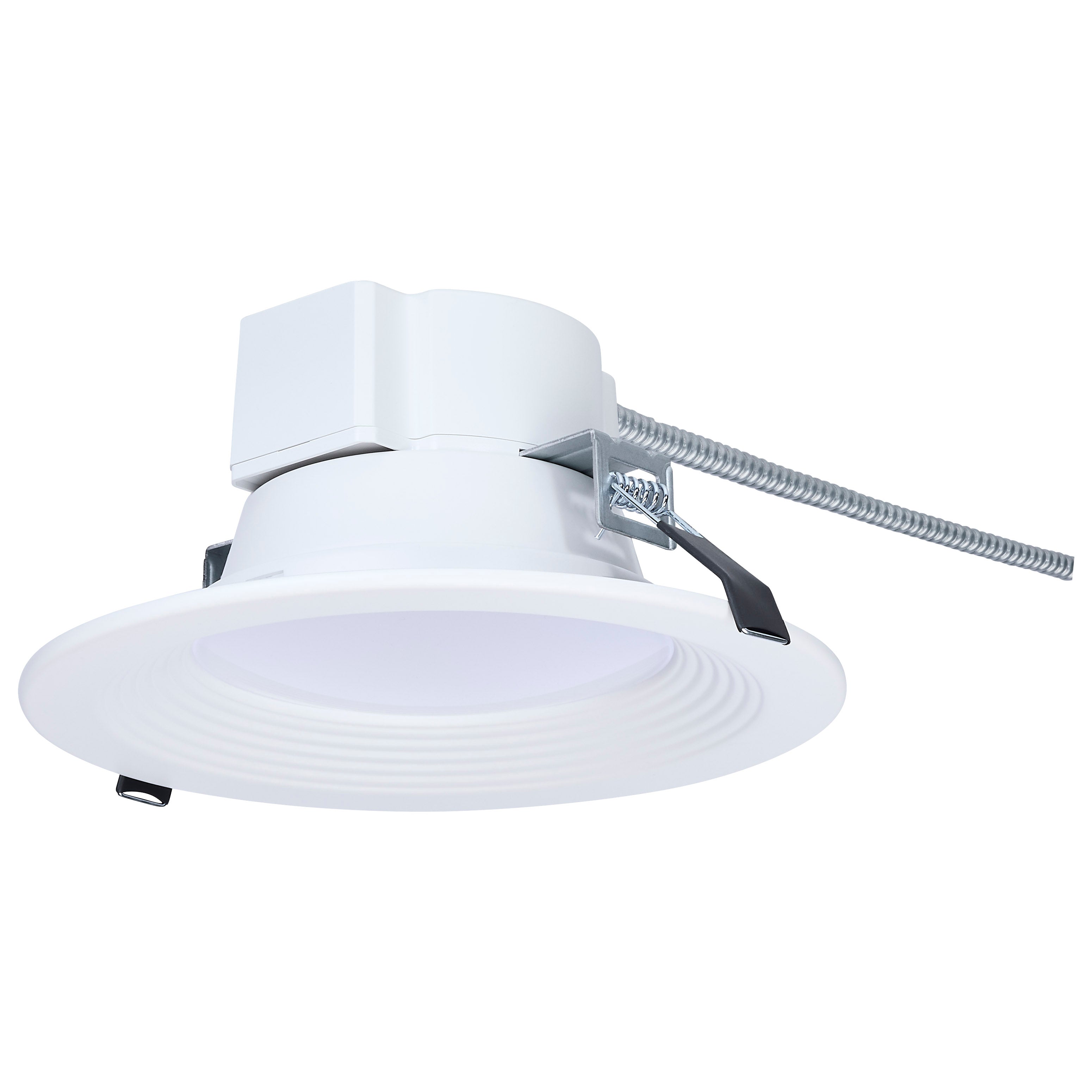

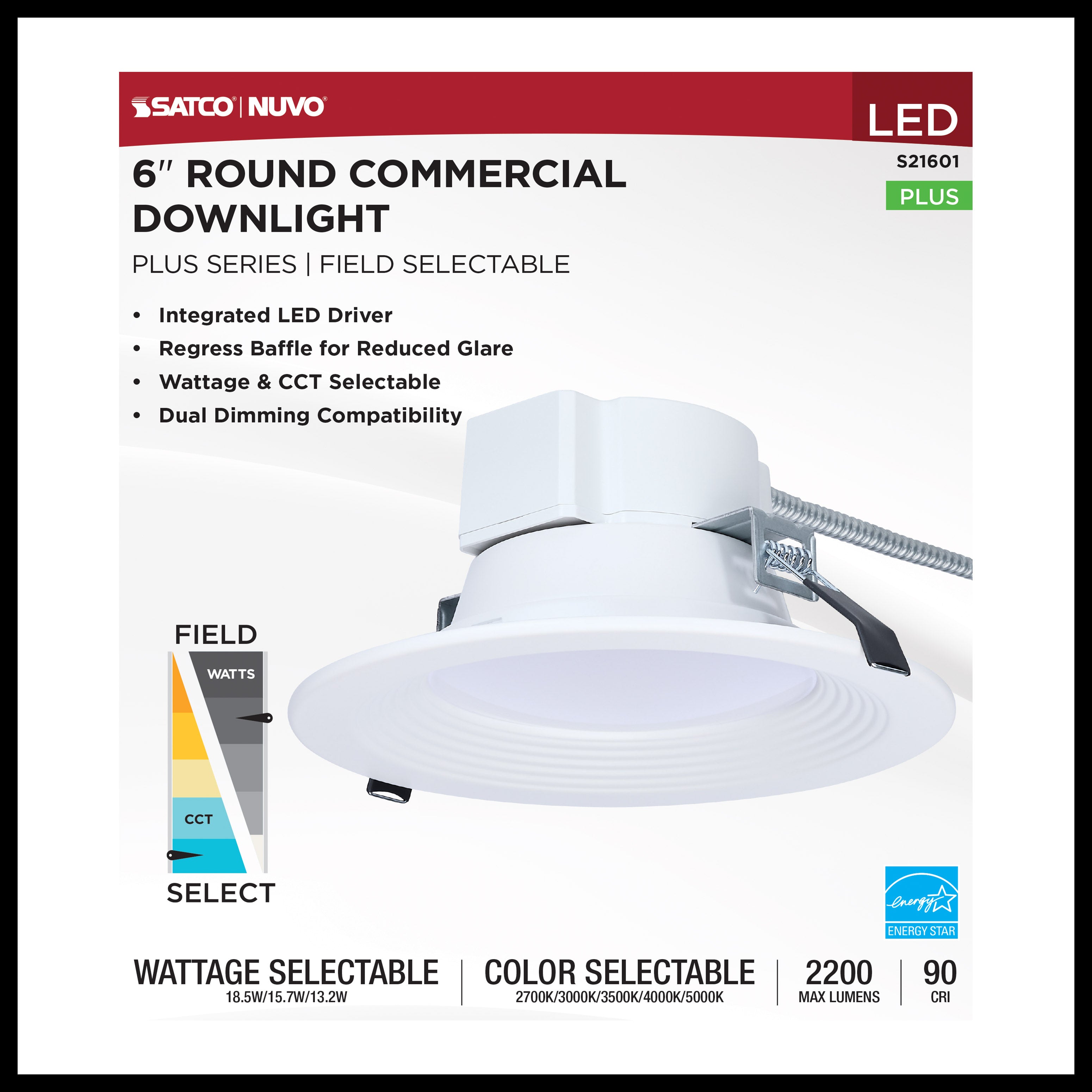

SATCO NUVO's Plus Series LED Commercial Downlight, S21601, delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 6-inch round fixture features field-selectable wattage and CCT settings, 90 CRI illumination, and dual dimming for optimal flexibility. It includes a white-painted aluminum regressed baffle and frosted lens for enhanced comfort and reduced glare. Field-installable trim accessories are available in black, bronze, or silver.

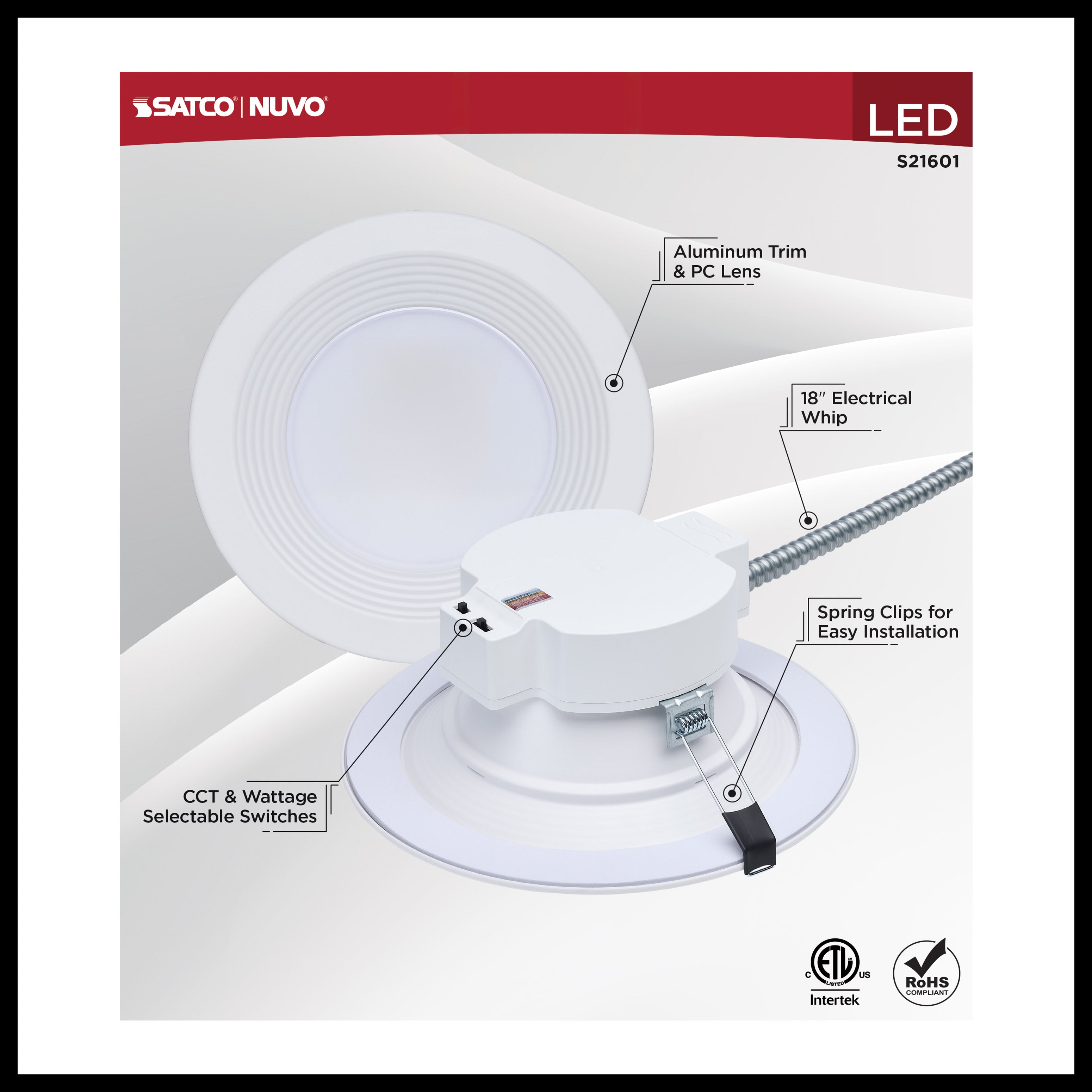

Features :-

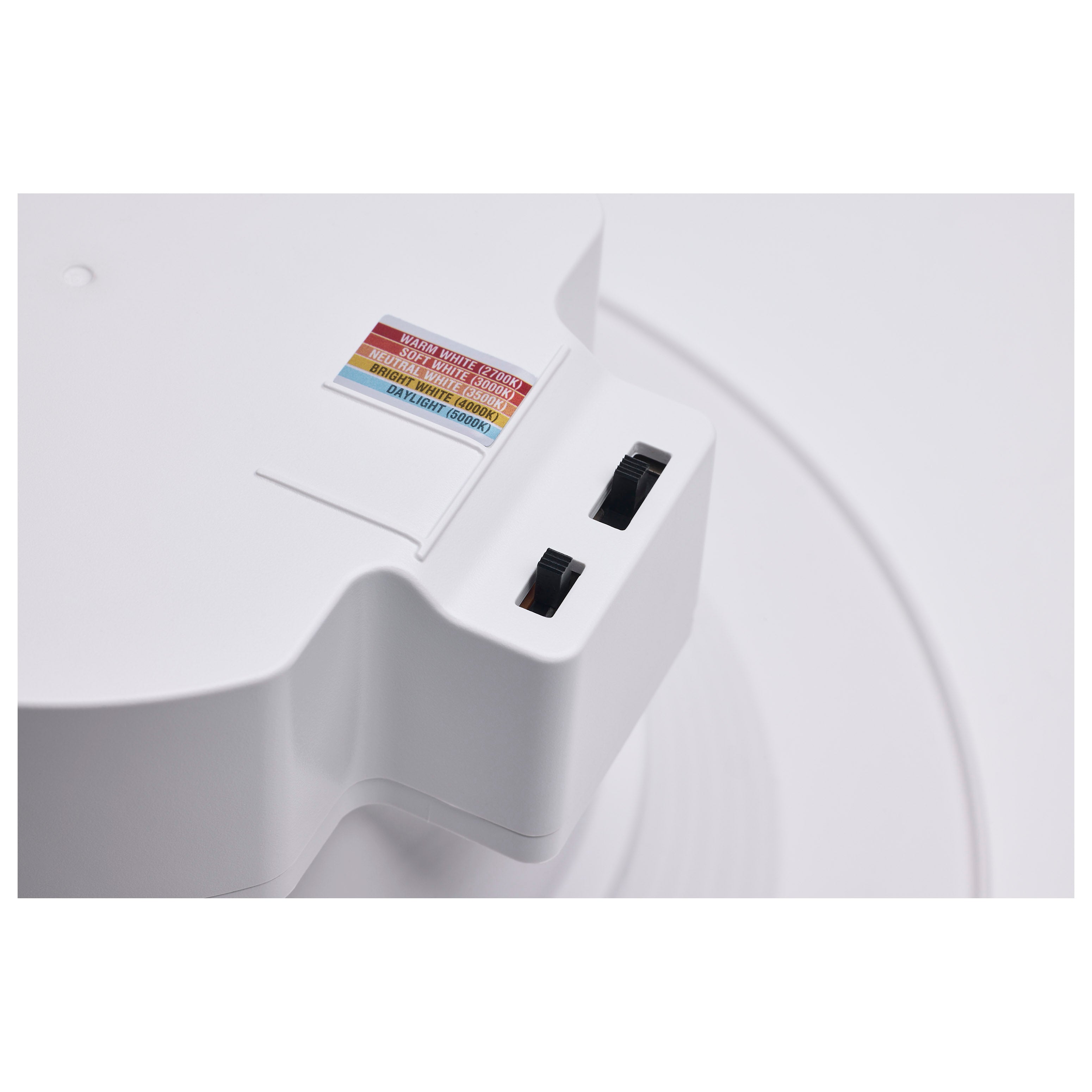

  • Field Selectable - 5 CCT and 3 Wattage
  • 6-Inch Round, Standard Model
  • Dual Dimming

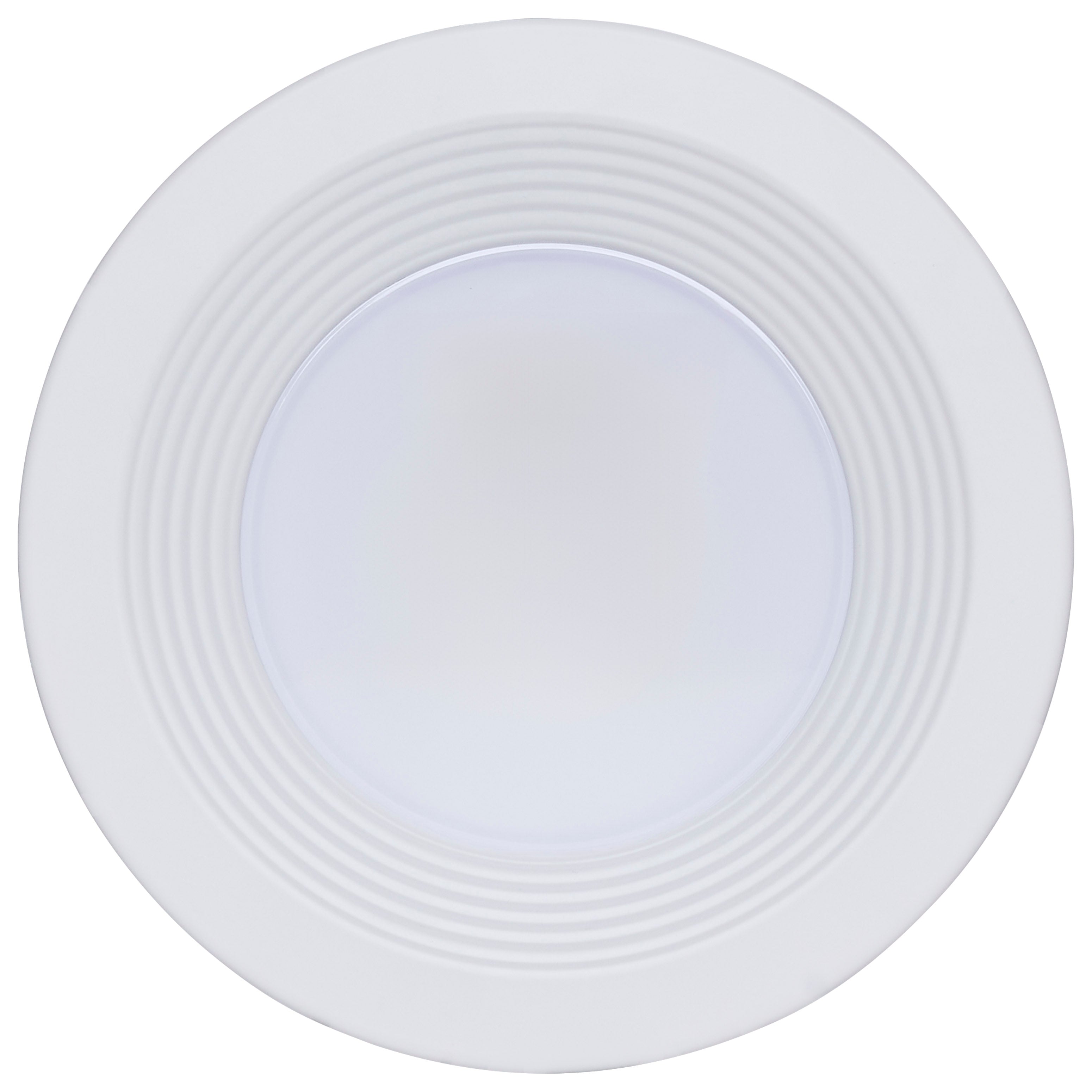

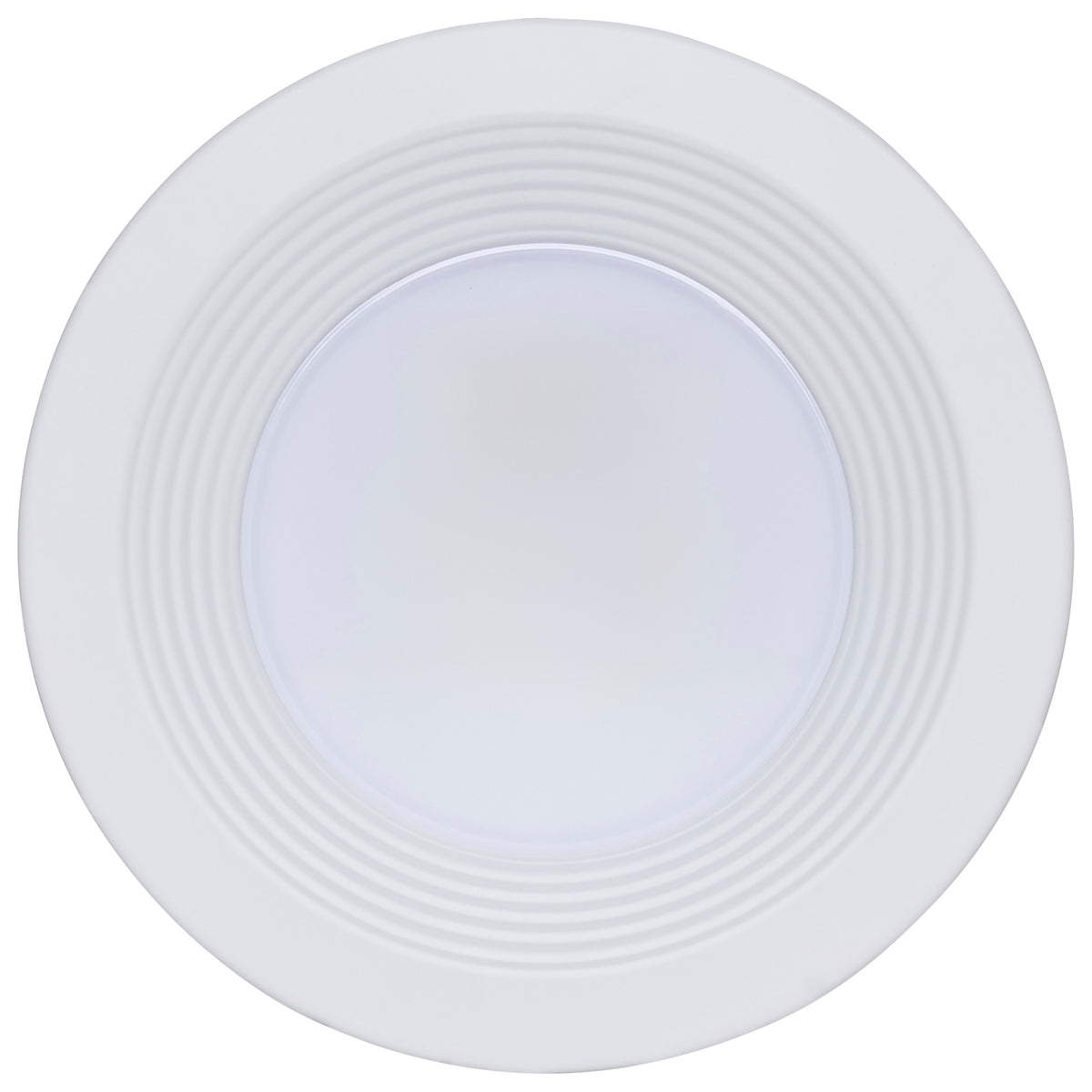

  • Regress Baffle Design for Reduced Glare

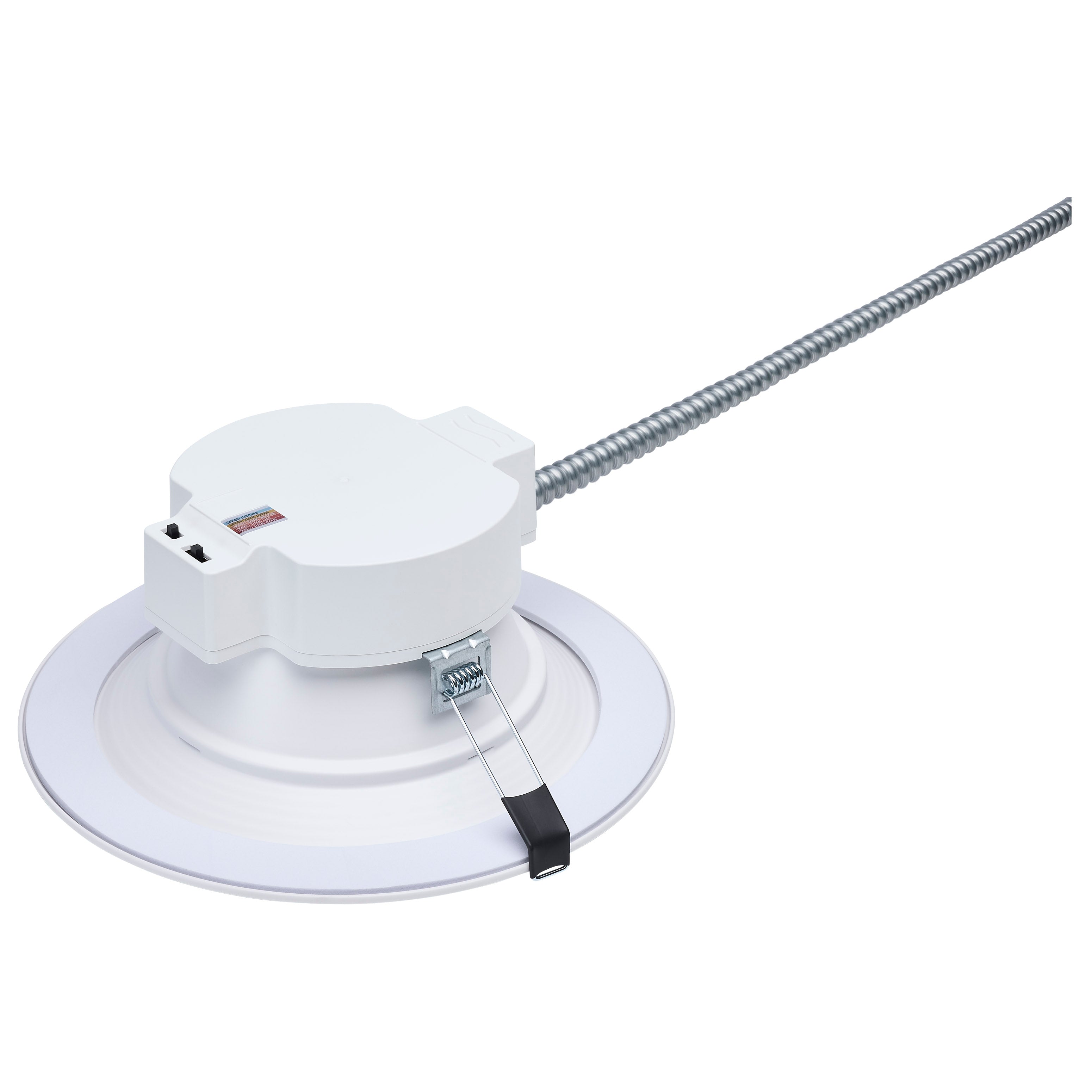

  • 18 Inch Electrical Whip
  • Integrated LED Driver
  • 90 CRI
  • Wet Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty
