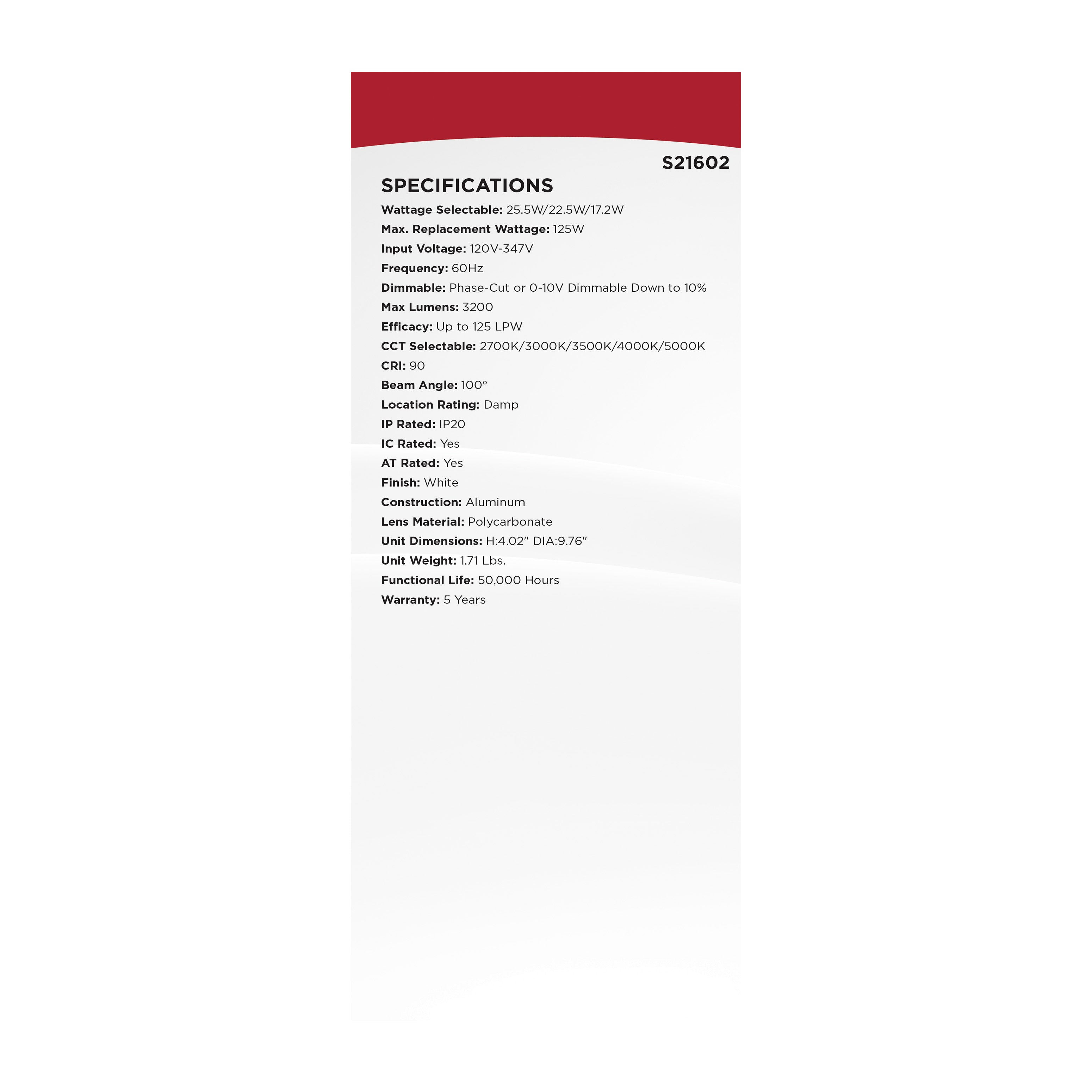

Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 125W
Wattage 25.5W/22.5W/17.2W
Lumens 3200L/2900L/2200L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish White
Beam Angle 100
Shape Round
Color Temperature Selectable Yes
Wattage Selectable Yes
Fixture Type Commercial Downlight Retrofit
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <30%
Surge Protection Built-in surge protection - 2.5KV
Features / Controls
0-10V Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Triac/Elv/Mlv Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Construction / Installation
Material Aluminum
Width 9.76 IN
Height 4.02 IN
Diameter 9.76 IN
Weight 1.71 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor and Outdoor
Location Rating Wet
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
Air Tight Yes
IP Rating IP20
Certifications / Compliance
ENERGY STAR Yes
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

Plus Series Commercial LED Downlight - 8 Inch Round - 25.5W/22.5W/17.2W Wattage Selectable - 2700K/3000K/3500K/4000K/5000K CCT Selectable - 120-347 Volt - Dual Dimming - Color trim accessories available is a LED recessed downlight intended for residential, multi-family and commercial ceiling-lighting projects. It fits naturally into projects where buyers want a dependable, well-matched lighting solution without adding unnecessary complexity to the installation plan. For homeowners, contractors, designers and maintenance teams, it provides a clear option when selecting commercial downlight for a specific room, fixture or property application.

Supports a clean ceiling appearance while providing practical general or task illumination. It is well suited to kitchens, bathrooms, hallways, offices, retail spaces and hospitality interiors, where lighting needs to support the space rather than distract from it. This makes the product a practical retrofit downlight choice for customers also considering recessed ceiling light as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

A useful choice for contractors, builders and property teams planning coordinated ceiling lighting. In renovations and new construction where a clean recessed lighting layout is preferred, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

When it is time to order recessed downlights for residential or commercial projects, consider Plus Series Commercial LED Downlight for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

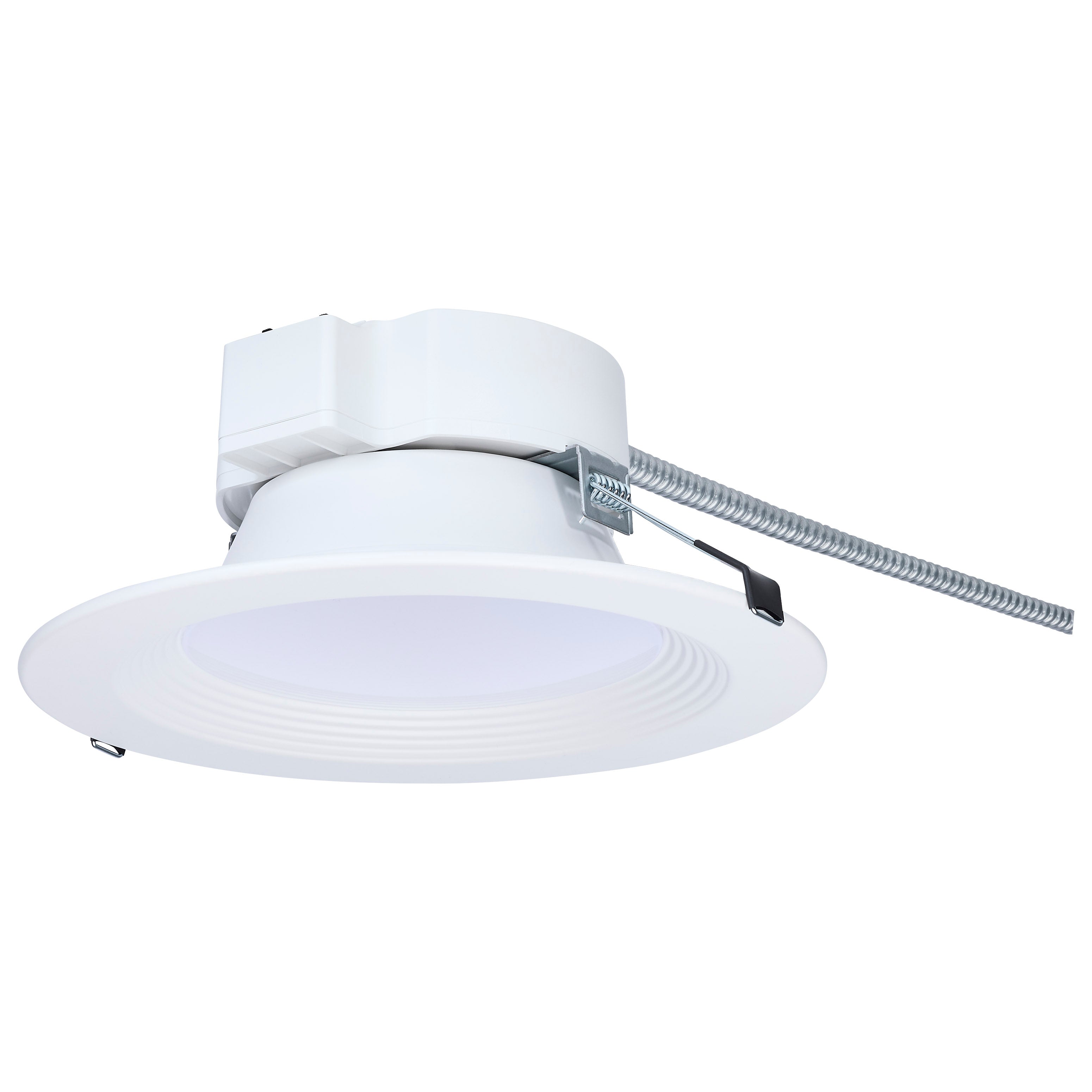

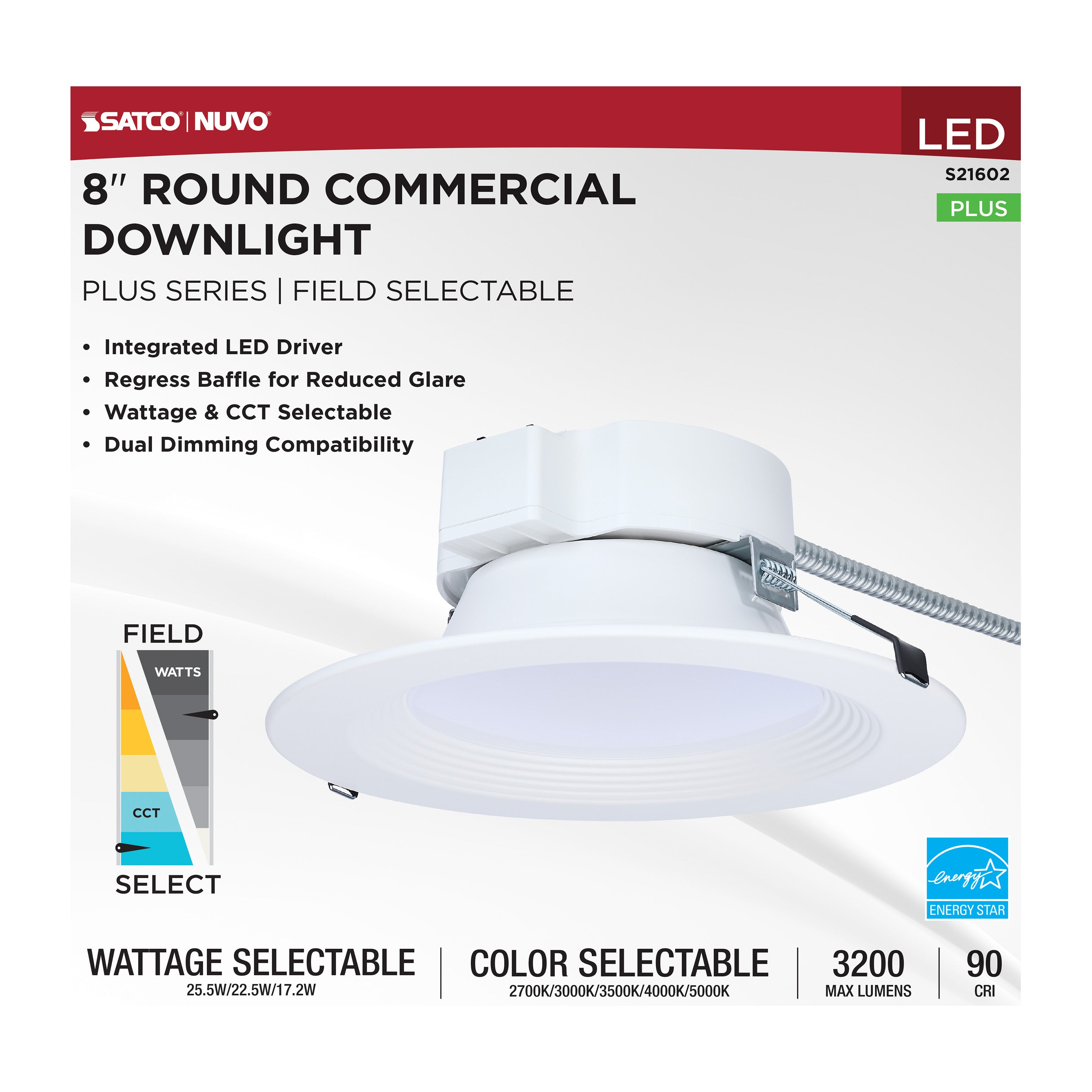

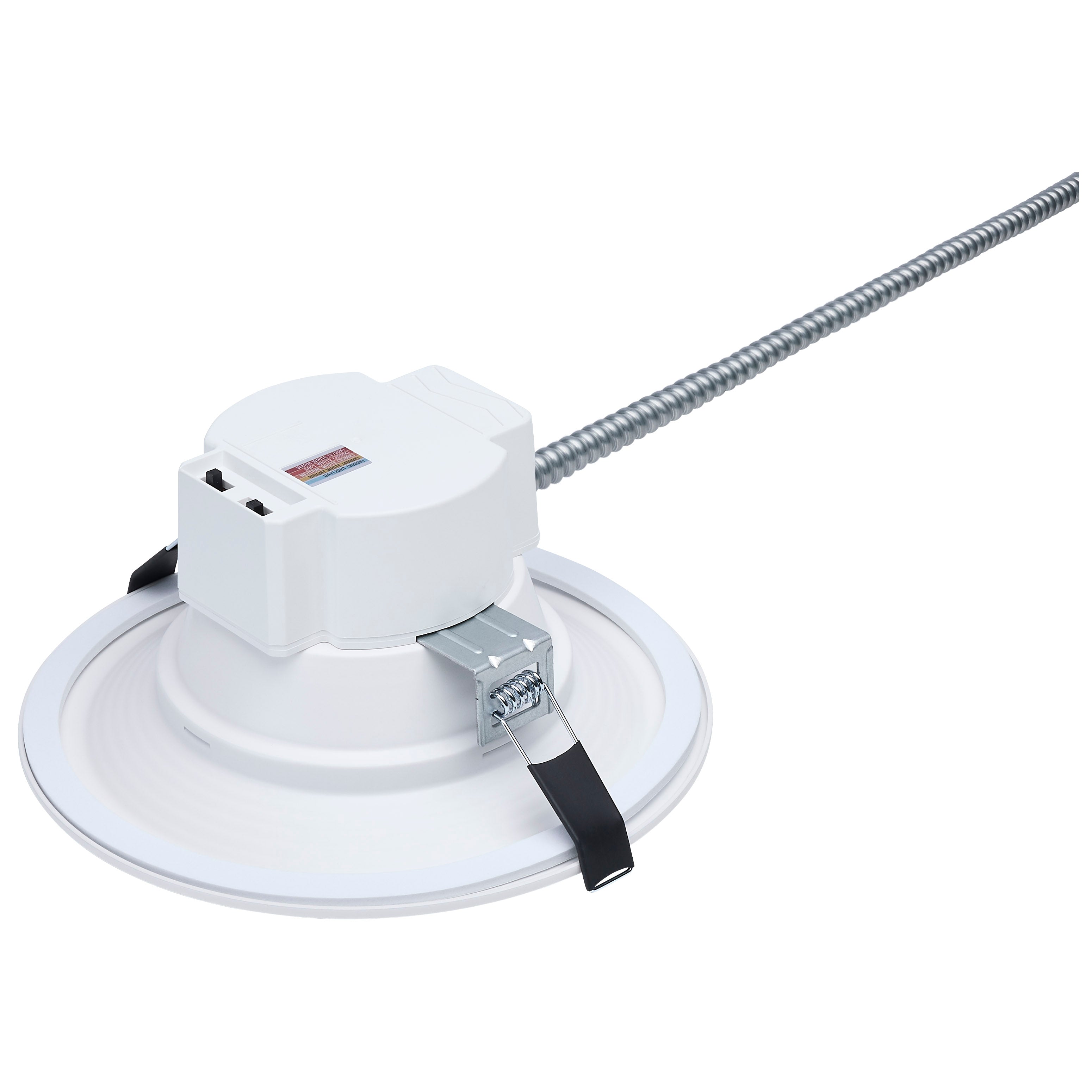

SATCO NUVO's Plus Series LED Commercial Downlight, S21602, delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 8-inch round fixture features field-selectable wattage and CCT settings, 90 CRI illumination, and dual dimming for optimal flexibility. It includes a white-painted aluminum regressed baffle and frosted lens for enhanced comfort and reduced glare. Field-installable trim accessories are available in black, bronze, or silver.

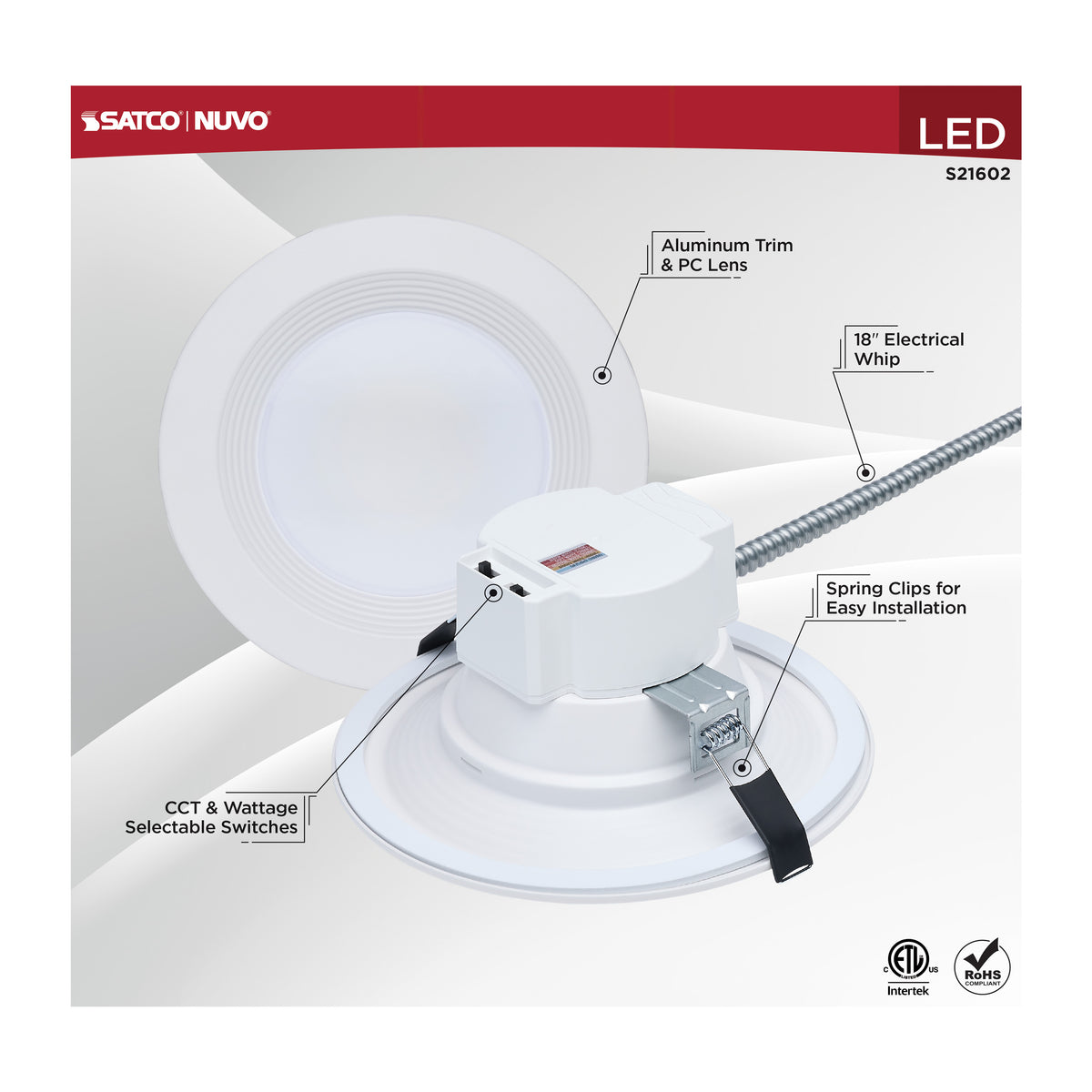

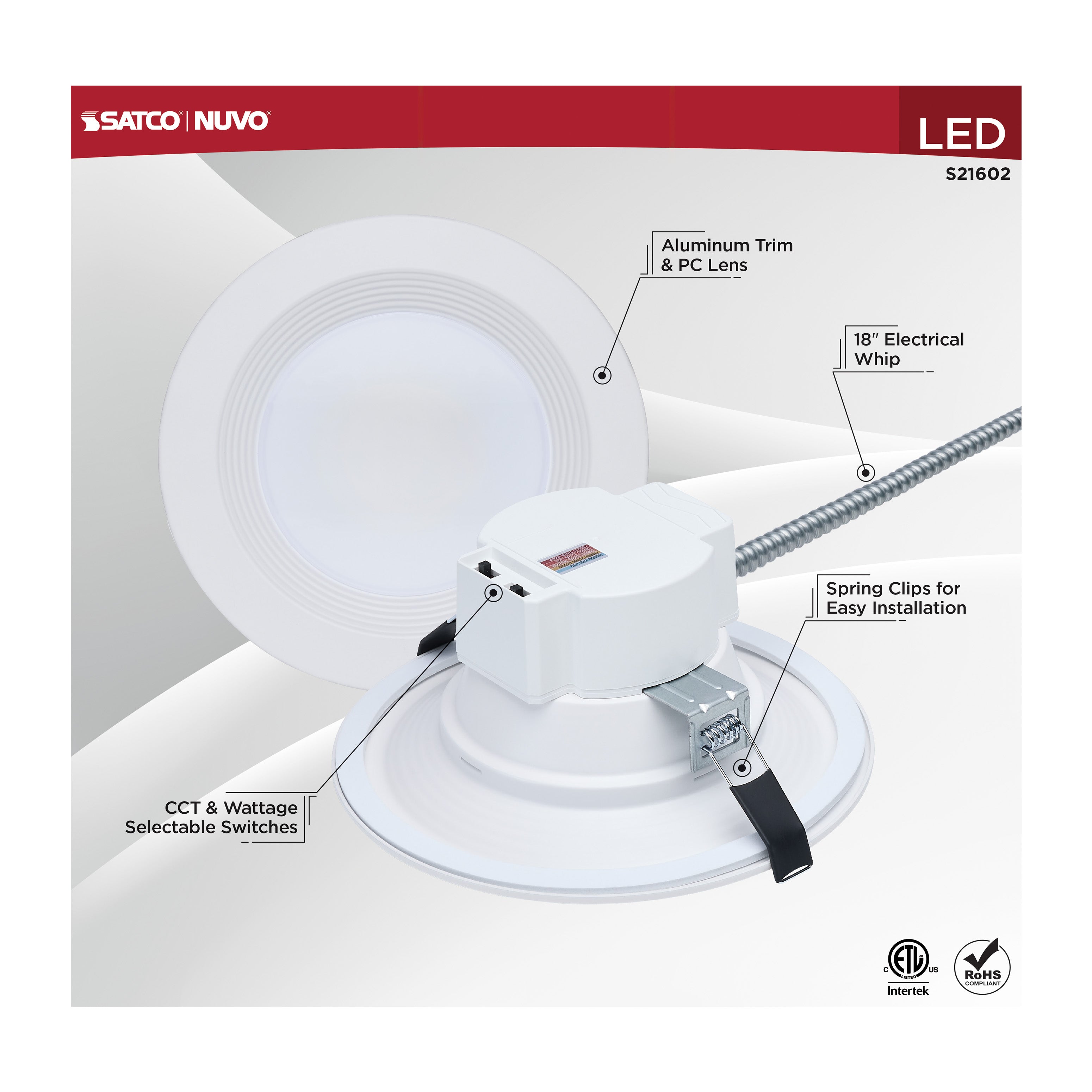

Features :-

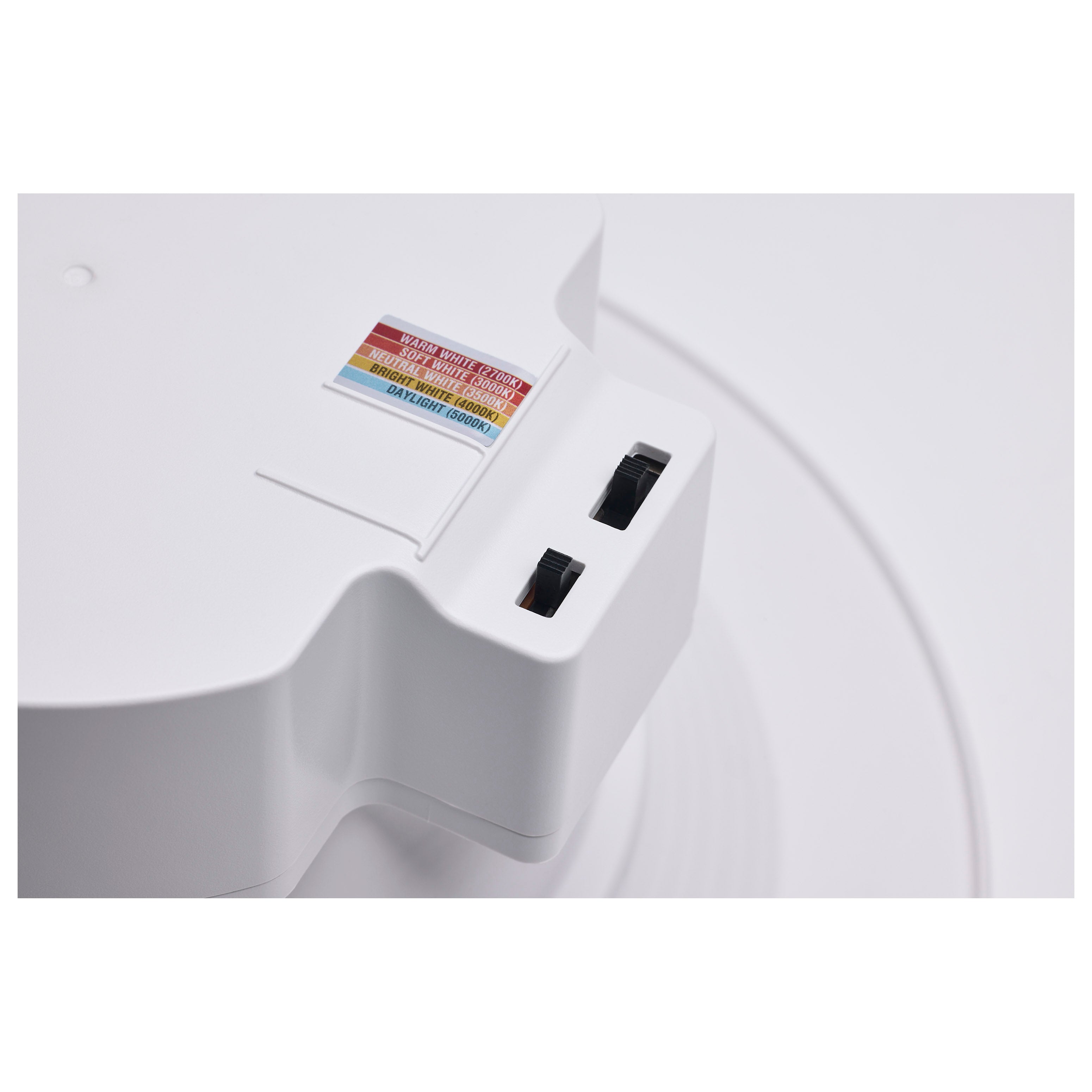

  • Field Selectable - 5 CCT and 3 Wattage
  • 8-Inch Round, Standard Model
  • Dual Dimming

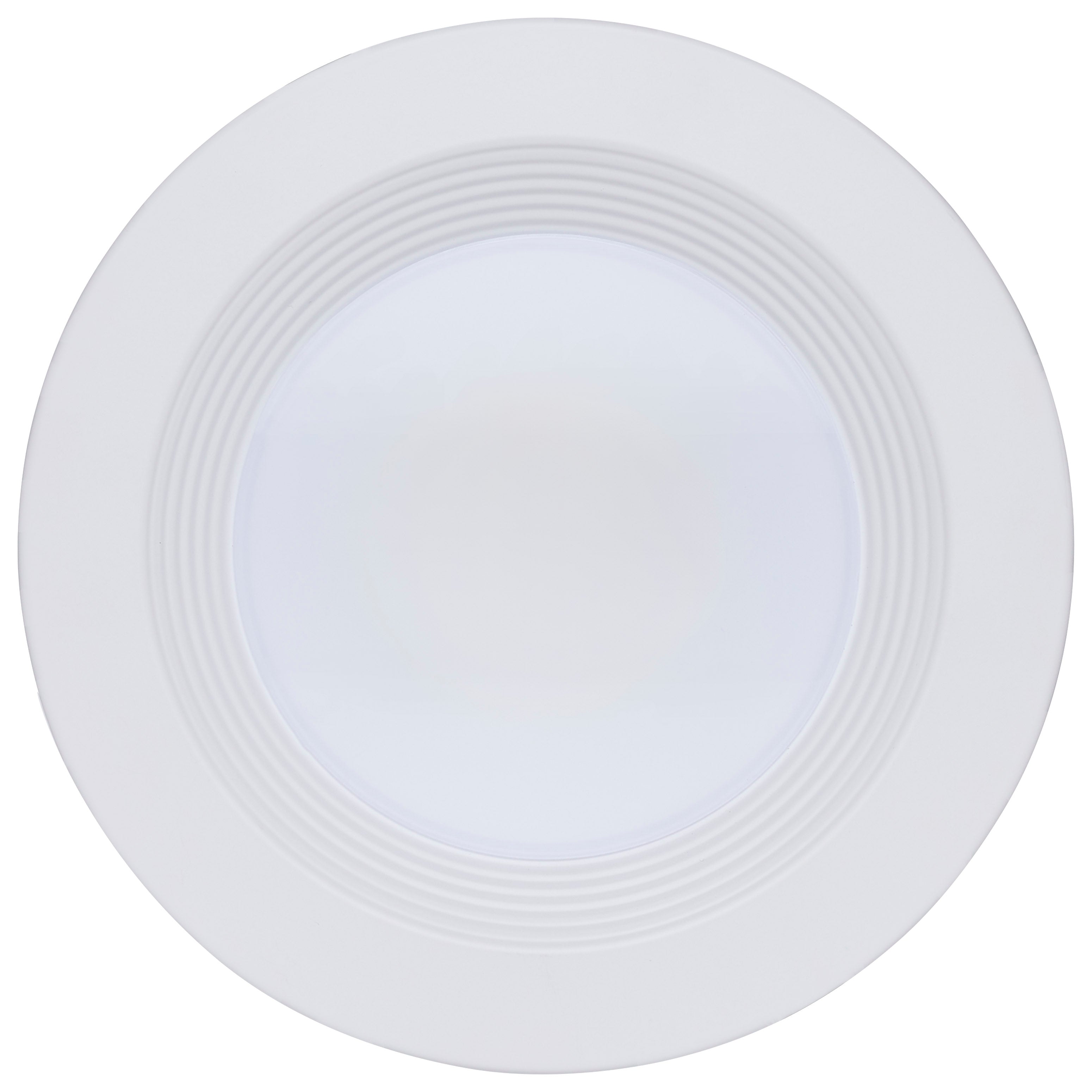

  • Regress Baffle Design for Reduced Glare
  • 18 Inch Electrical Whip
  • Integrated LED Driver
  • 90 CRI
  • Wet Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty
