Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 75W
Wattage 14.6W/13.6W/12.4W
Lumens 1200L/1000L/800L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish White
Beam Angle 85
Shape Round
Color Temperature Selectable Yes
Wattage Selectable Yes
Fixture Type Commercial Downlight Retrofit
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <30%
Surge Protection Built-in surge protection - 2.5KV
Battery Chemistry Lithium-ion (Li-ion)
Features / Controls
Emergency Backup Yes
0-10V Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Triac/Elv/Mlv Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Construction / Installation
Material Aluminum
Width 4.96 IN
Height 3.23 IN
Diameter 4.96 IN
Weight 3 lbs
Lens / Diffuser Polycarbonate (PC)

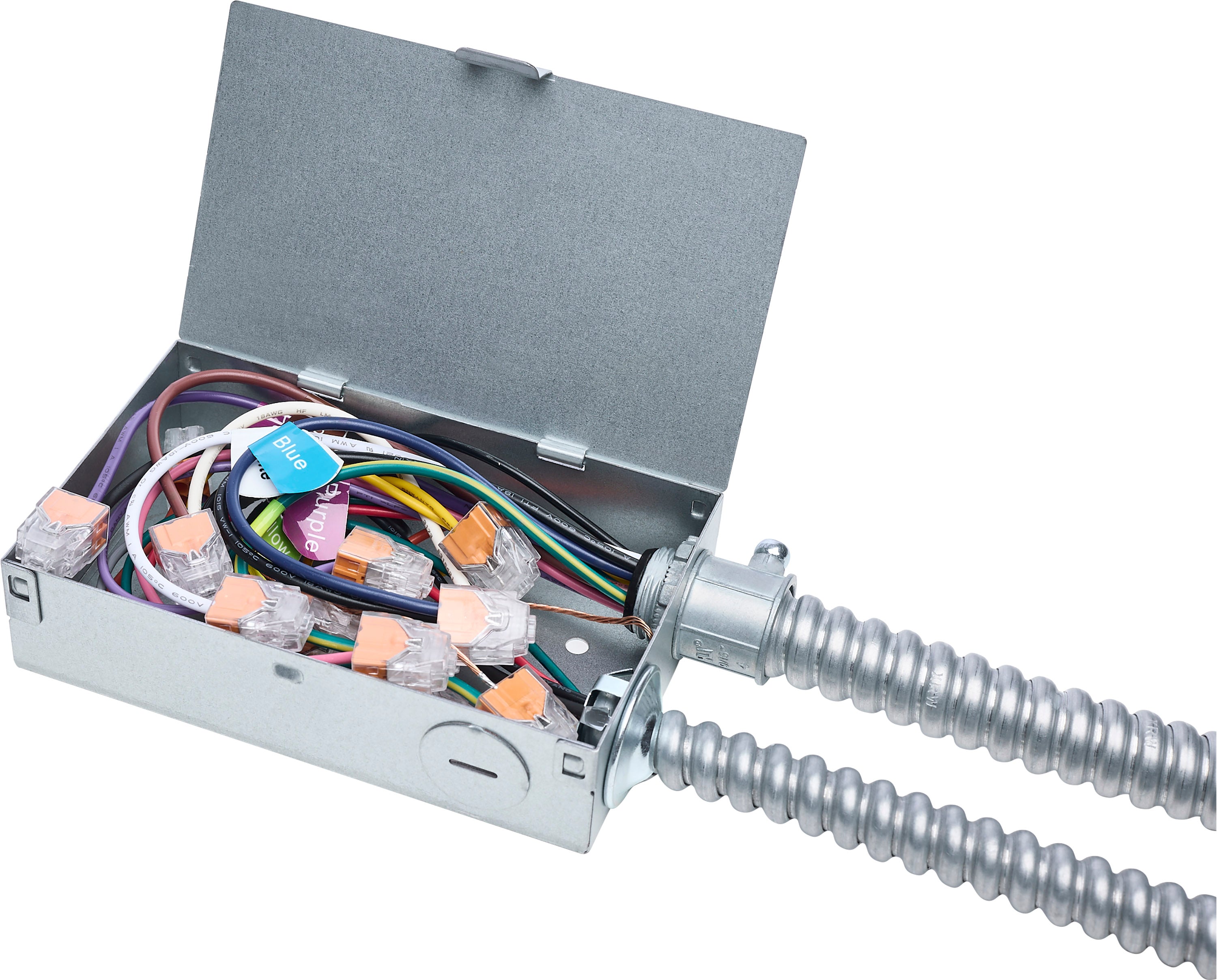

Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor and Outdoor
Location Rating Wet
Operating Temperature +41F to +104F (+5C to +40C)
IC Rated Yes
Air Tight Yes
IP Rating IP20
Certifications / Compliance
ENERGY STAR Yes
California Title 20 Yes
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

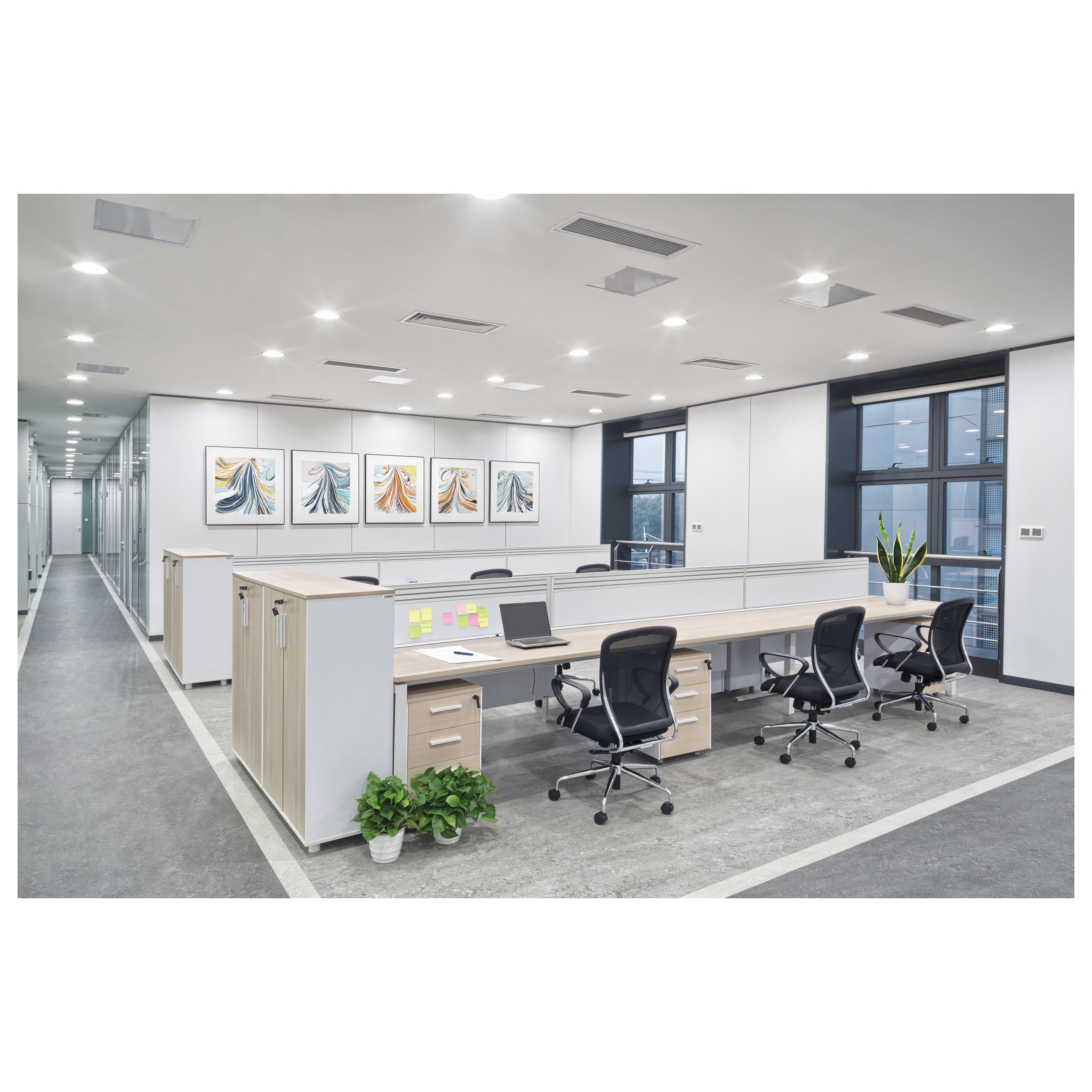

Choose Plus Series Commercial LED Downlight - 4 Inch Round - 14.6W/13.6W/12.4W Wattage Selectable - 2700K/3000K/3500K/4000K/5000K CCT Selectable - Integrated Emergency Driver - 120-347 Volt - Dual Dimming - Color trim accessories available when your project calls for a LED recessed downlight suited to kitchens, bathrooms, hallways, offices, retail spaces and hospitality interiors. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for canless recessed light that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

Supports a clean ceiling appearance while providing practical general or task illumination. In practical terms, that makes this product relevant for renovations and new construction where a clean recessed lighting layout is preferred. It also fits naturally into projects considering retrofit downlight and commercial downlight, helping keep the lighting choice aligned with the room, property or fixture application. The emphasis stays on choosing the right lighting family for the job and creating a result that feels intentional once instalLED.

A useful choice for contractors, builders and property teams planning coordinated ceiling lighting. For residential, multi-family and commercial ceiling-lighting projects, it can serve as a replacement item, a project component, or part of a broader lighting refresh. This keeps selection focused on the real application while supporting single-item orders and larger renovation or maintenance purchases.

When it is time to order recessed downlights for residential or commercial projects, consider Plus Series Commercial LED Downlight for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

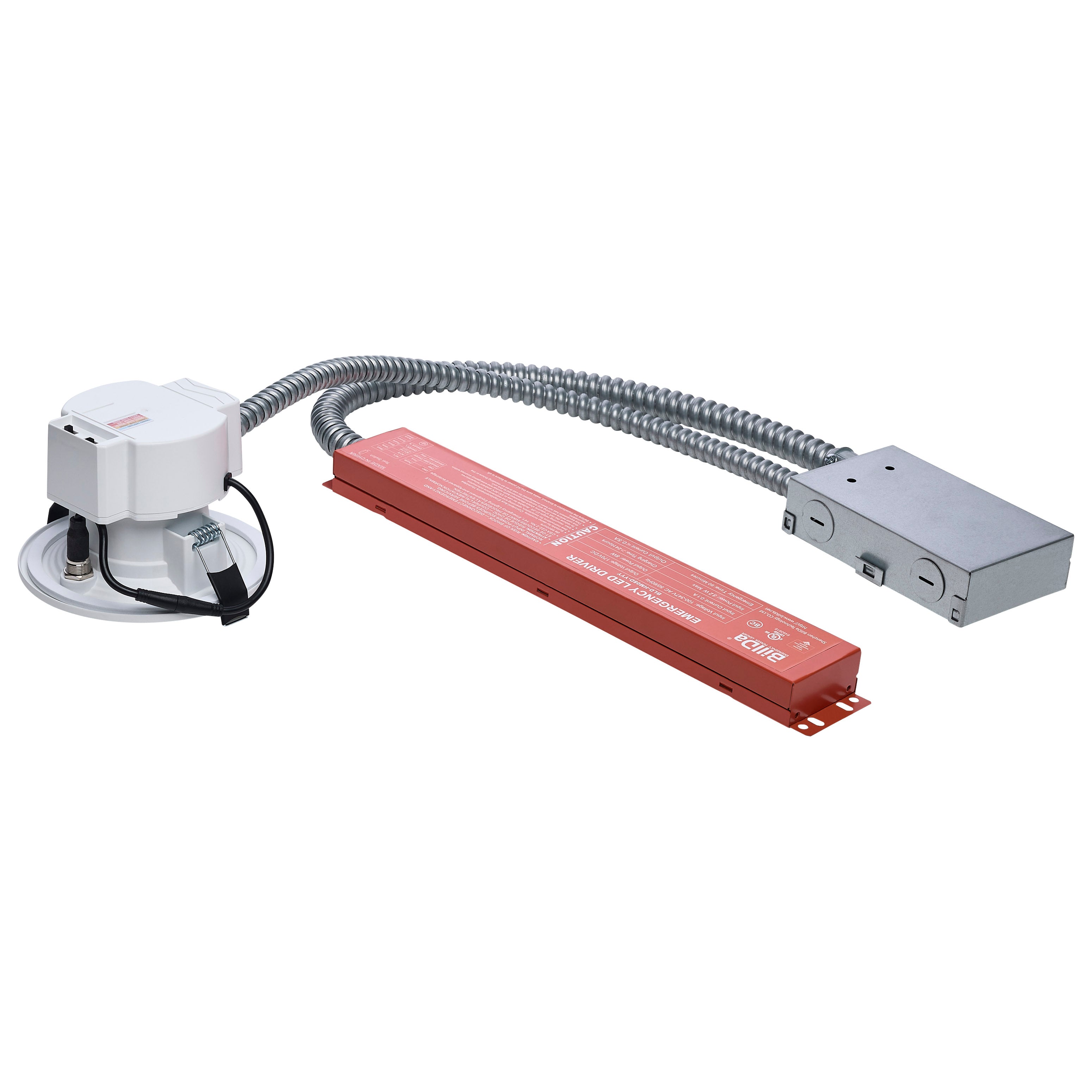

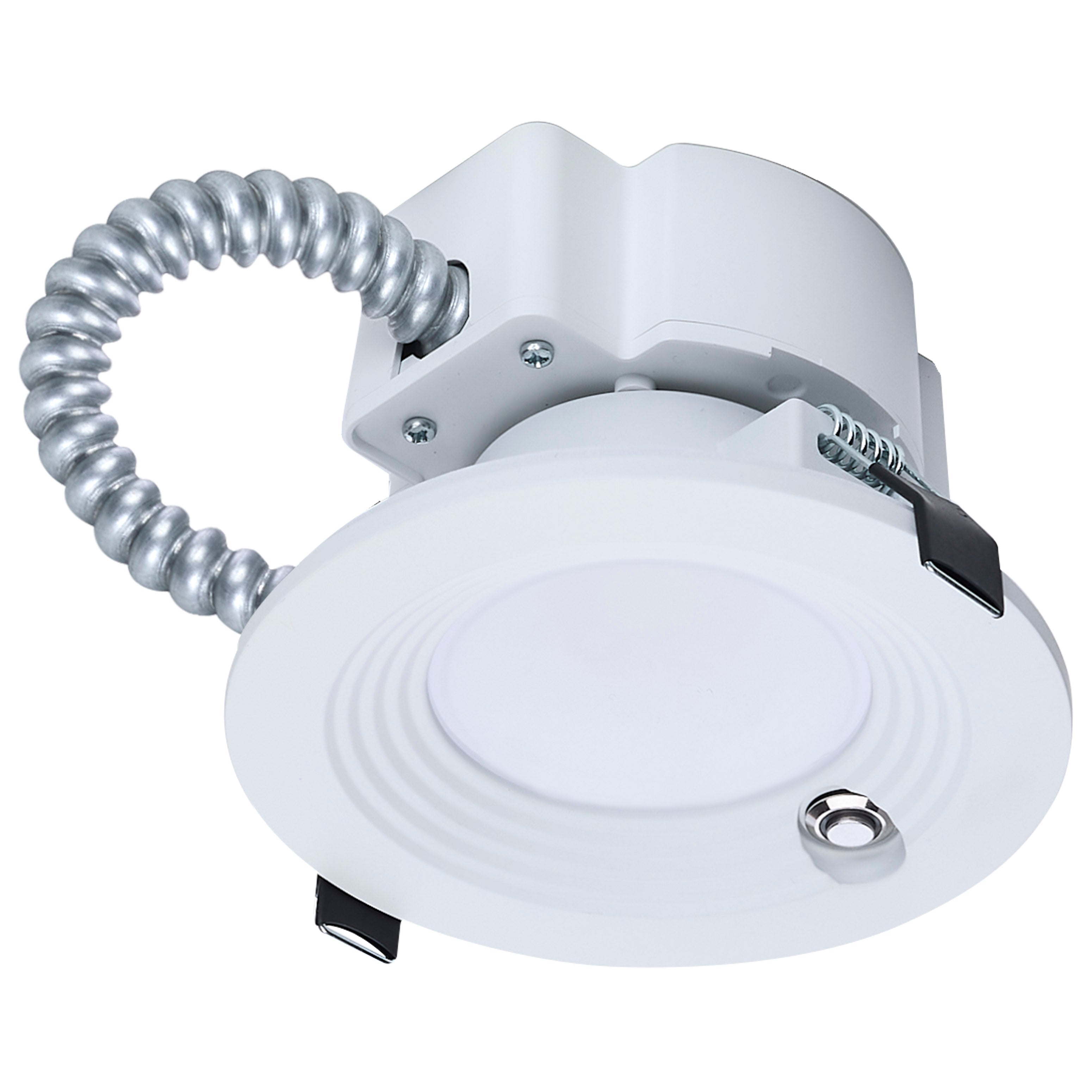

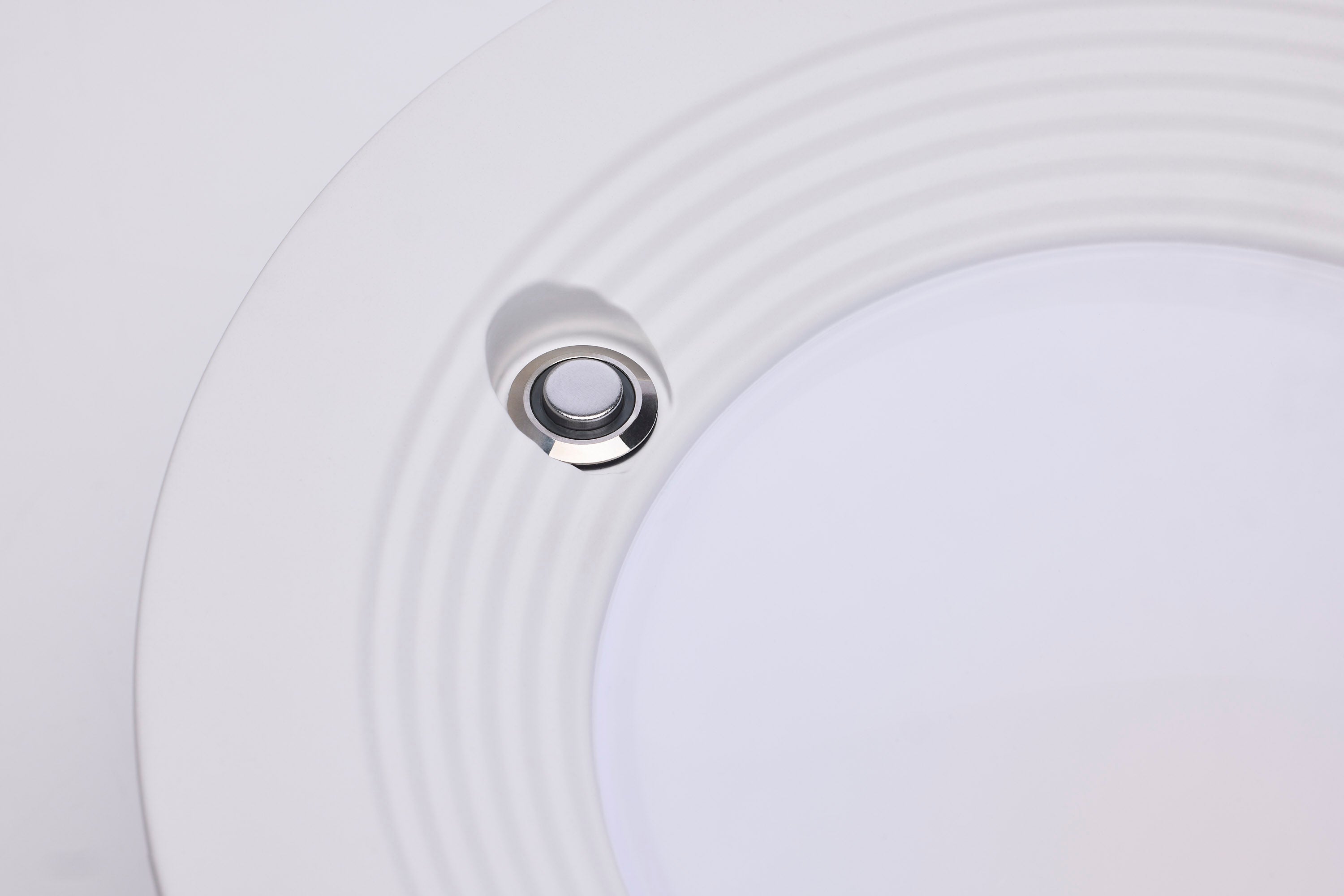

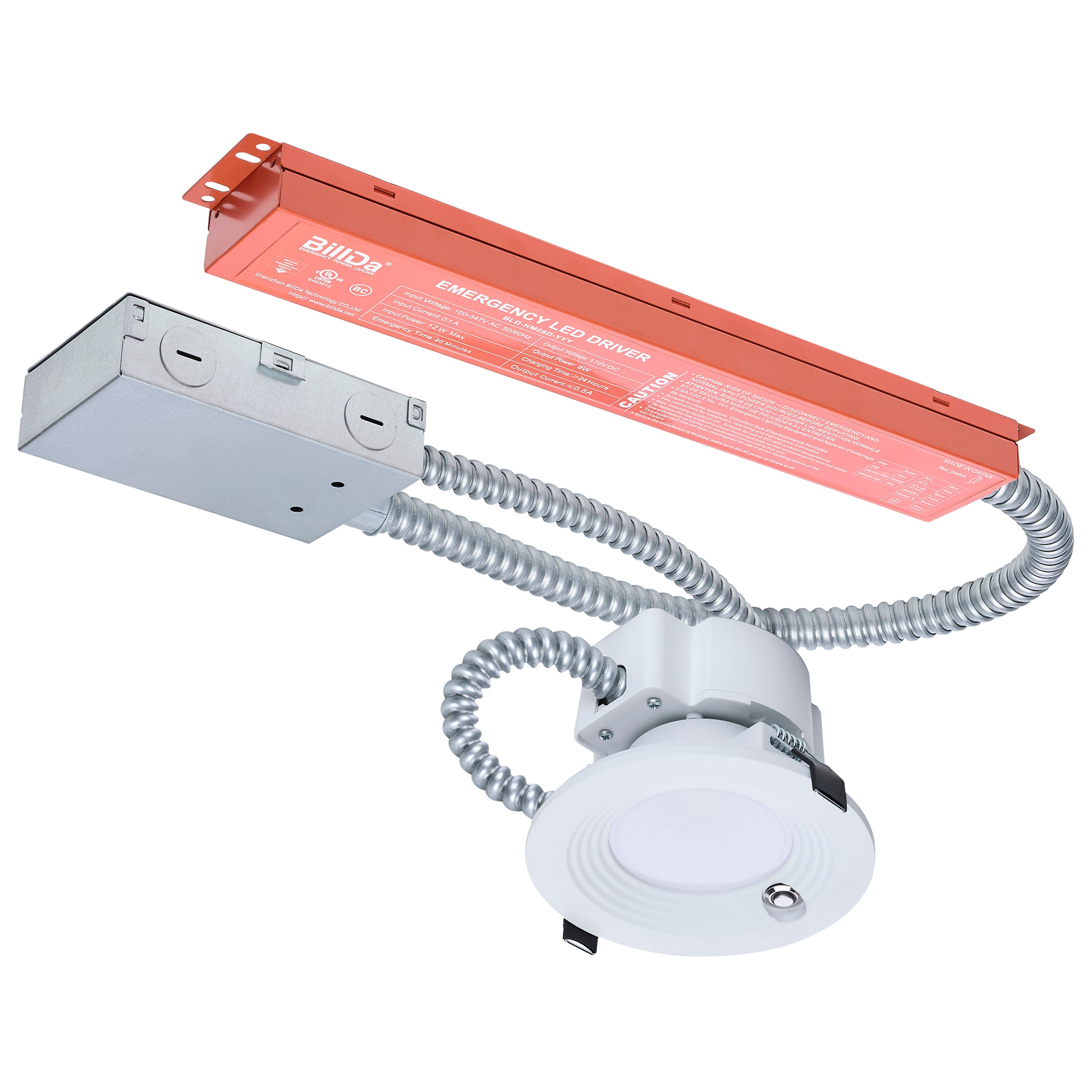

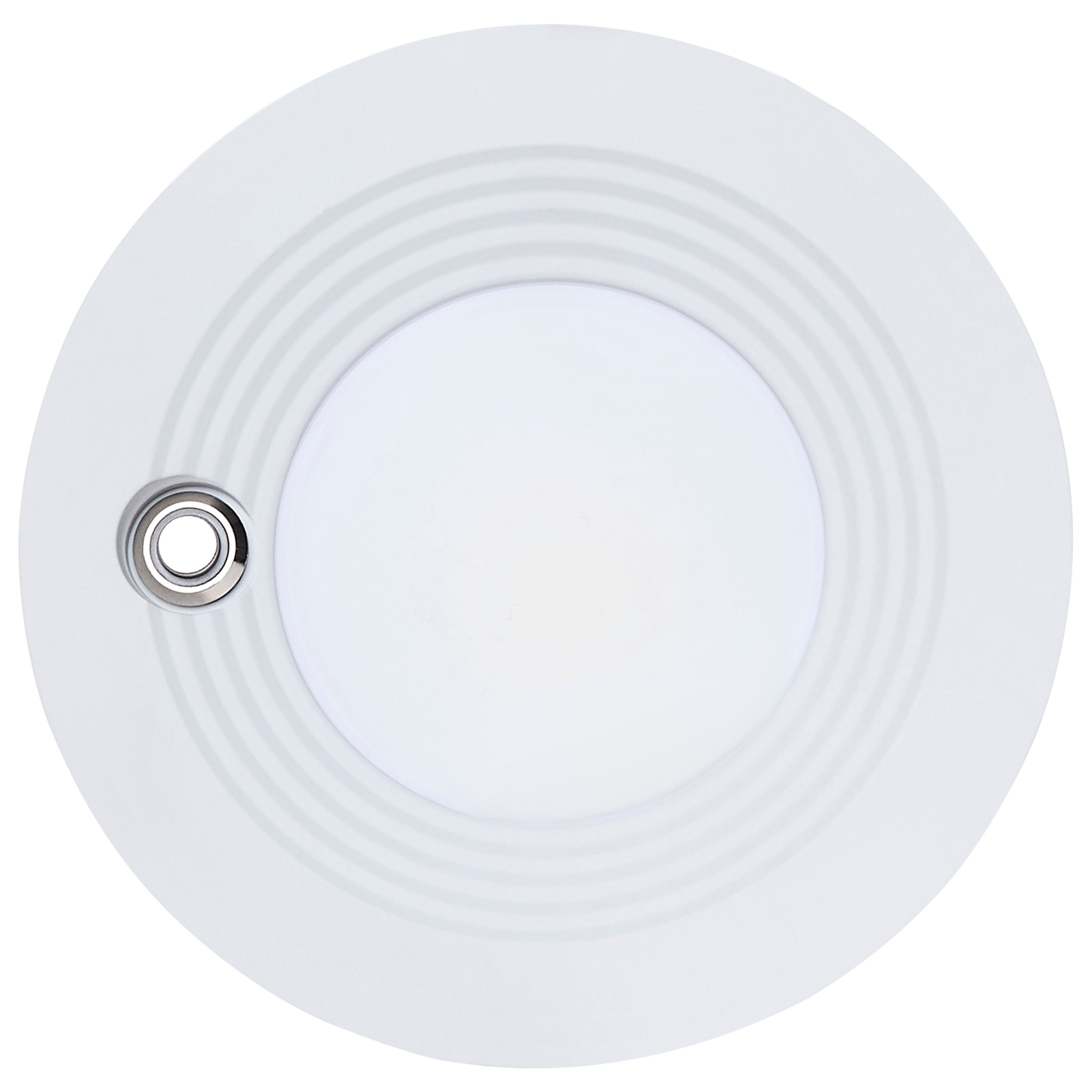

SATCO NUVO's Plus Series LED Commercial Downlight, S21604, with Emergency Battery Backup delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 4-inch round fixture features field-selectable wattage and CCT settings, 90 CRI illumination, and dual dimming for optimal flexibility. Equipped with a long-life lithium-ion battery, integrated test indicator button light, and Self-Diagnostic functionality, it provides 90 minutes of emergency runtime. A white-painted aluminum regressed baffle and frosted lens enhance comfort and reduce glare. Field-installable trim accessories are available in black, bronze, or silver.

Features :-

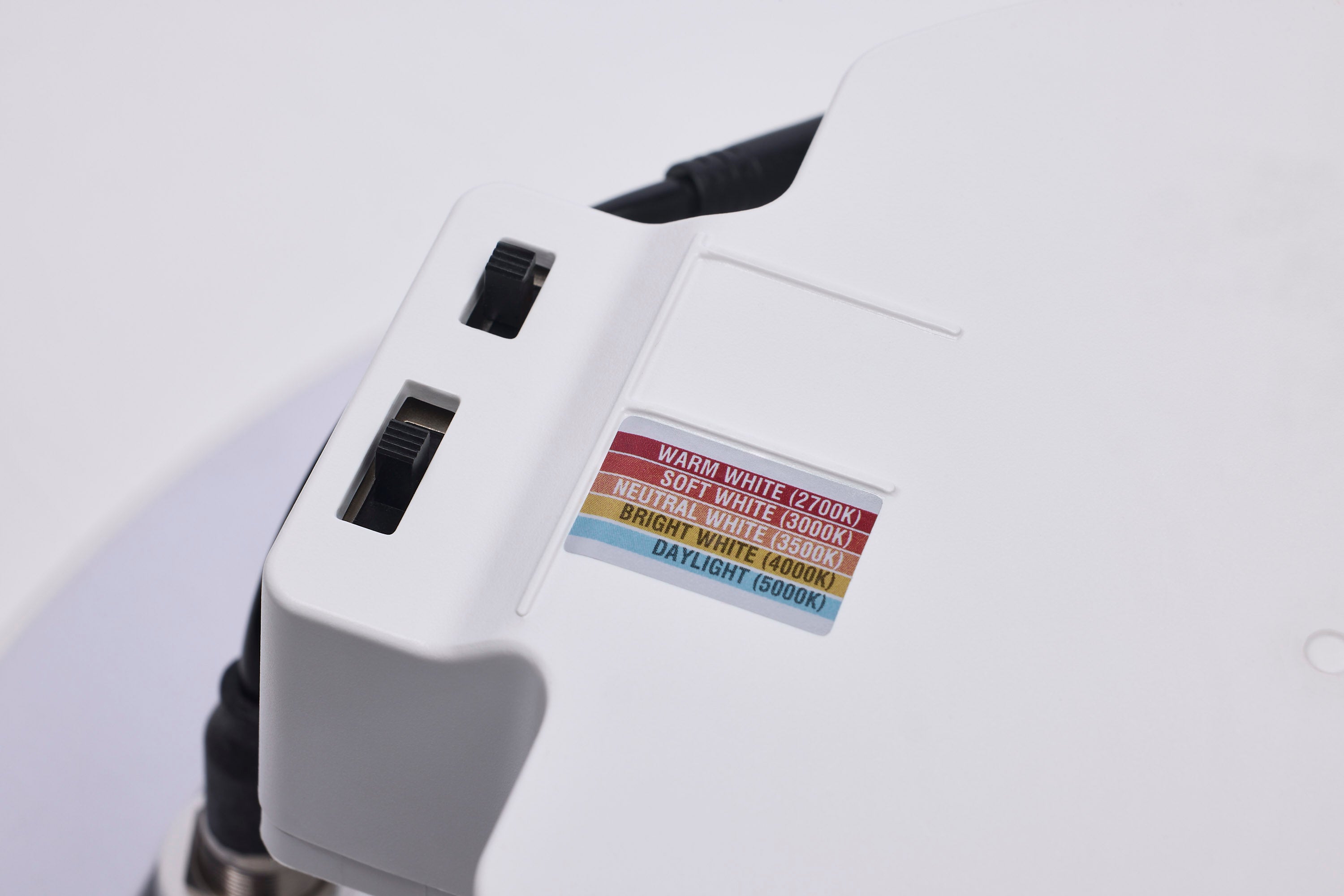

  • Field Selectable - 5 CCT and 3 Wattage
  • 4-Inch Round, Emergency Battery Backup Model
  • Dual Dimming

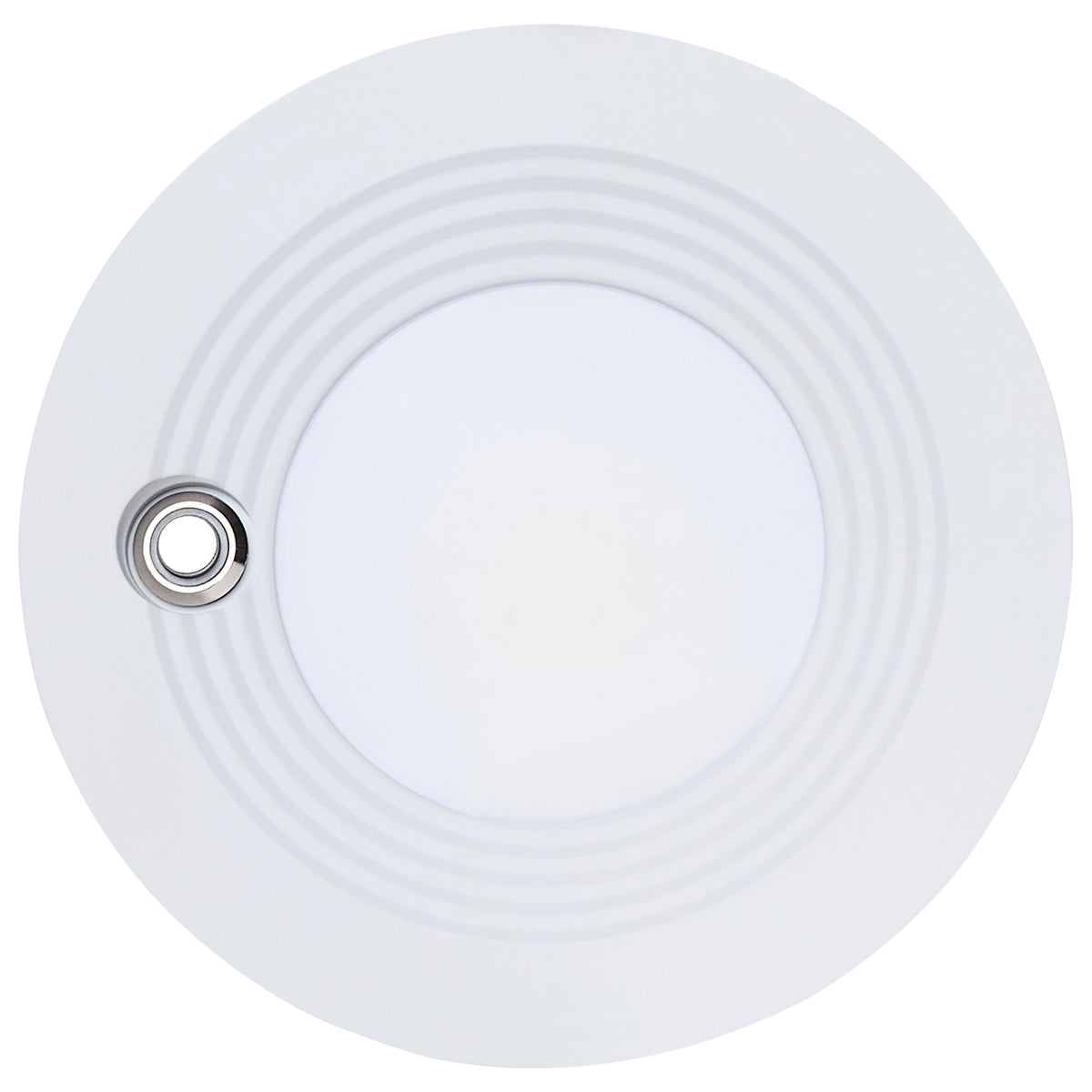

  • Regress Baffle Design for Reduced Glare
  • 18 Inch Electrical Whip
  • EM Model includes self-diagnostic emergency feature
  • 90 CRI
  • Wet Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty
