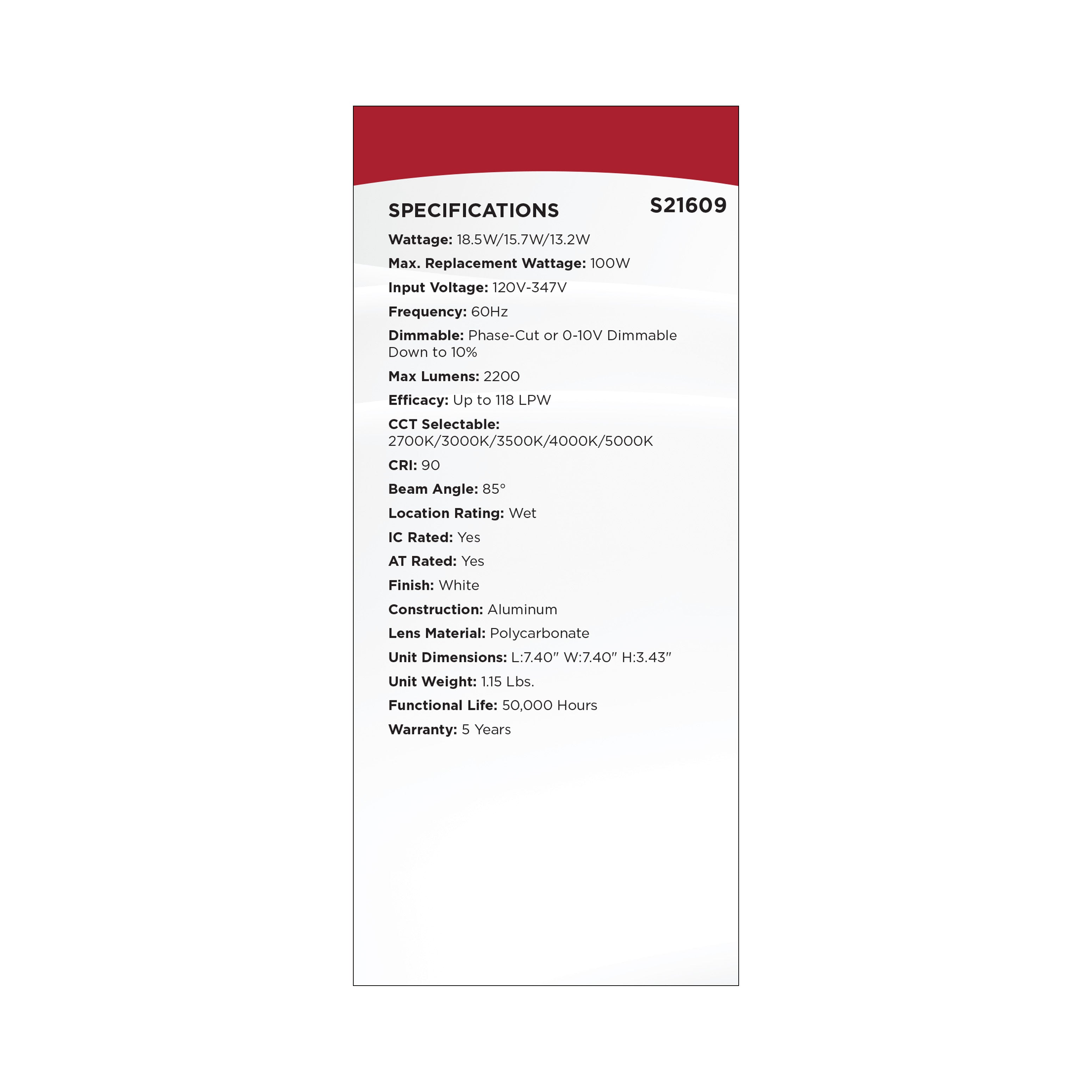

Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 100W
Wattage 18.5W/15.7W/13.2W
Lumens 2200L/1800L/1400L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish White
Beam Angle 85
Shape Square
Color Temperature Selectable Yes
Wattage Selectable Yes
Fixture Type Commercial Downlight Retrofit
Length 7.4 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <30%
Surge Protection Built-in surge protection - 2.5KV
Features / Controls
0-10V Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Triac/Elv/Mlv Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Construction / Installation
Material Aluminum
Width 7.4 IN
Height 3.43 IN
Weight 1.15 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor and Outdoor
Location Rating Wet
Operating Temperature -4F to +104F (-20C to +40C)
IC Rated Yes
Air Tight Yes
IP Rating IP20
Certifications / Compliance
ENERGY STAR Yes
California Title 20 Exempt
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

Plus Series Commercial LED Downlight - 6 Inch Square - 18.5W/15.7W/13.2W Wattage Selectable - 2700K/3000K/3500K/4000K/5000K CCT Selectable - 120-347 Volt - Dual Dimming - Color trim accessories available brings the familiar role of a LED recessed downlight to residential, multi-family and commercial ceiling-lighting projects. It is a practical choice for customers comparing LED recessed downlight and canless recessed light for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

A useful choice for contractors, builders and property teams planning coordinated ceiling lighting. That is especially useful in renovations and new construction where a clean recessed lighting layout is preferred. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a LED recessed downlight, this option is well suited to projects involving canless recessed light, commercial downlight and other coordinated lighting upgrades.

Supports a clean ceiling appearance while providing practical general or task illumination. In kitchens, bathrooms, hallways, offices, retail spaces and hospitality interiors, this kind of product helps keep the lighting plan consistent from selection through installation. It can be purchased for a single replacement, grouped into a renovation order, or incorporated into a larger contractor or property-maintenance project as needed.

When it is time to order recessed downlights for residential or commercial projects, consider Plus Series Commercial LED Downlight for projects that need the right product category for the intended room, fixture or property application. It is suitable for replacement, renovation and new-installation purchasing, and it gives residential and commercial buyers a straightforward product to add to a lighting order.

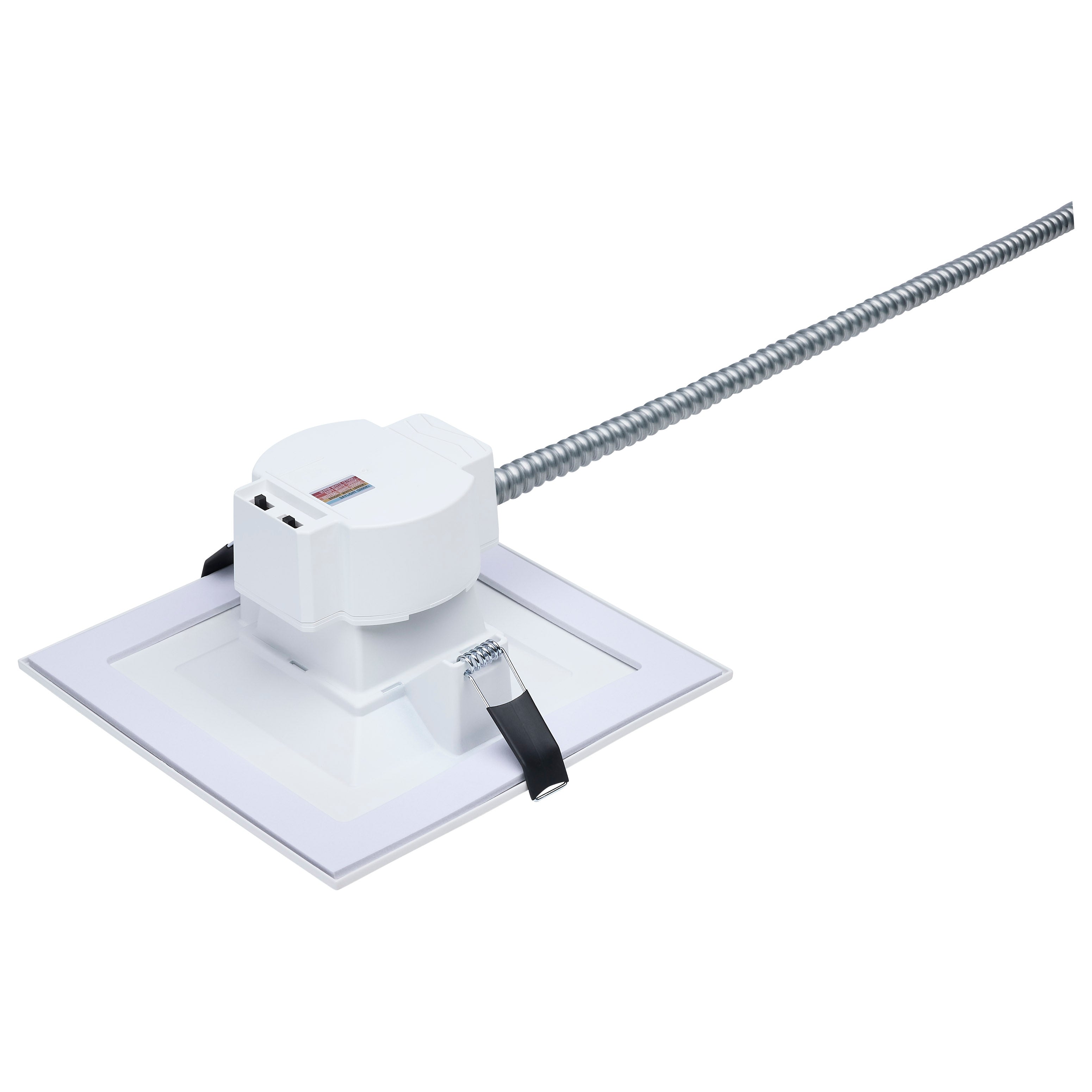

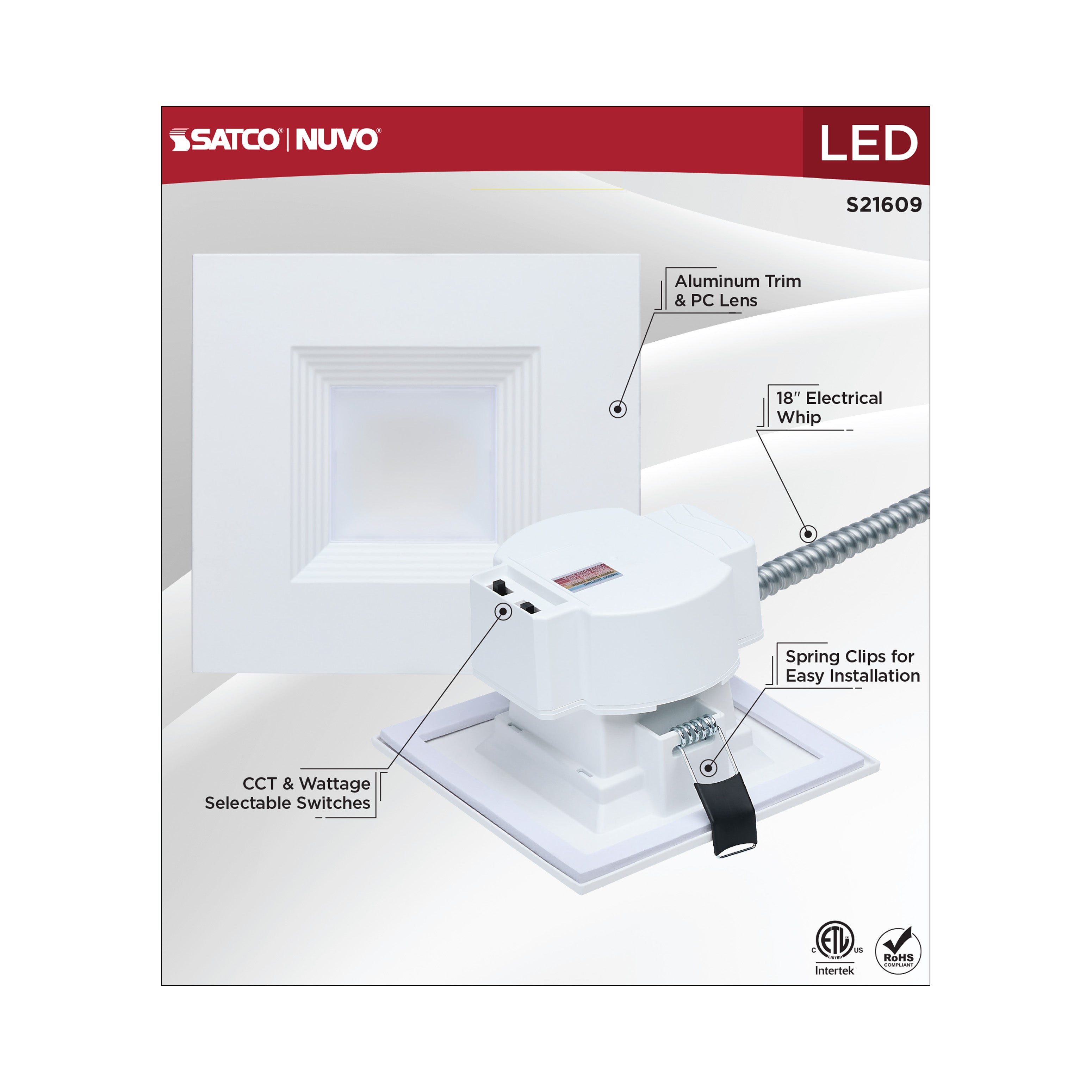

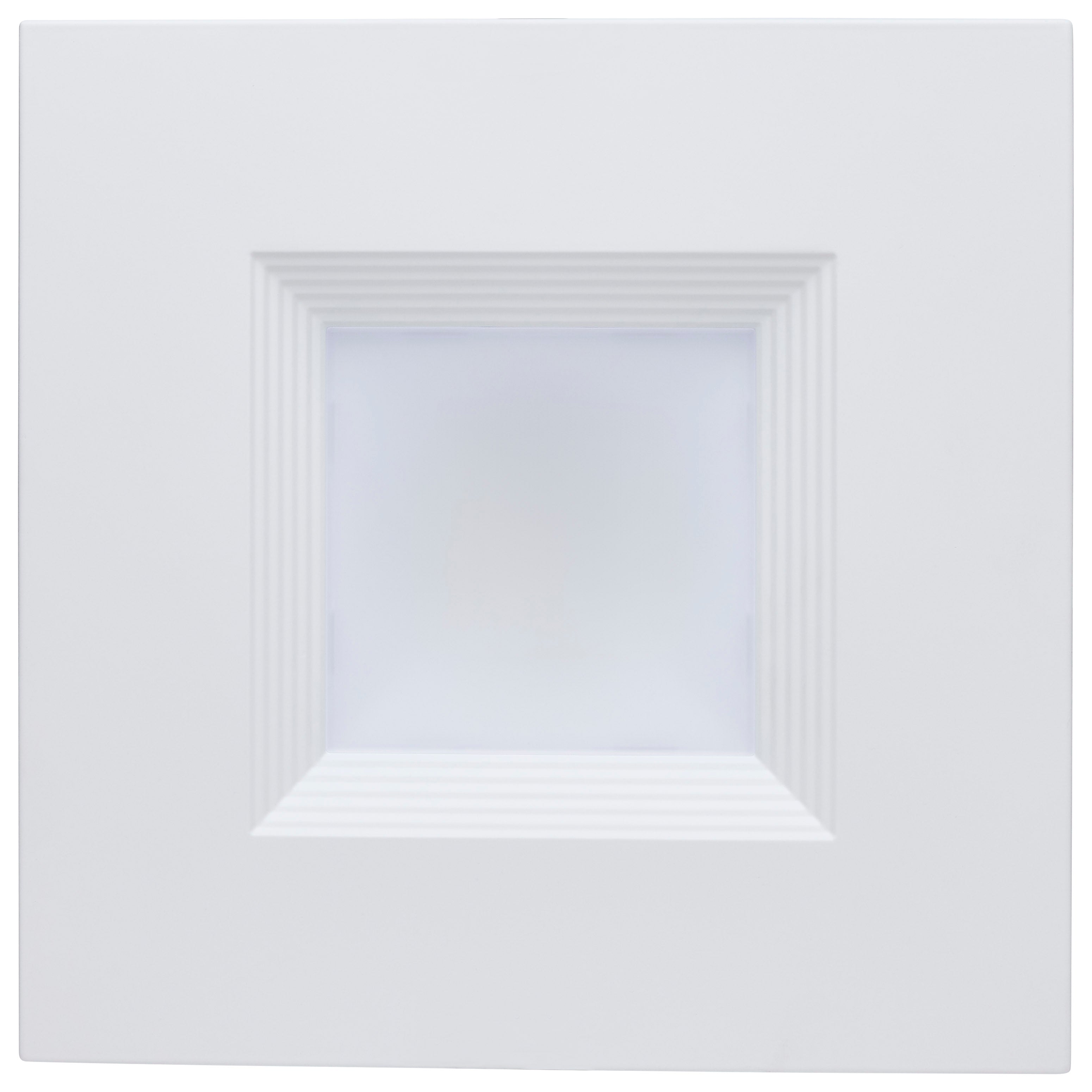

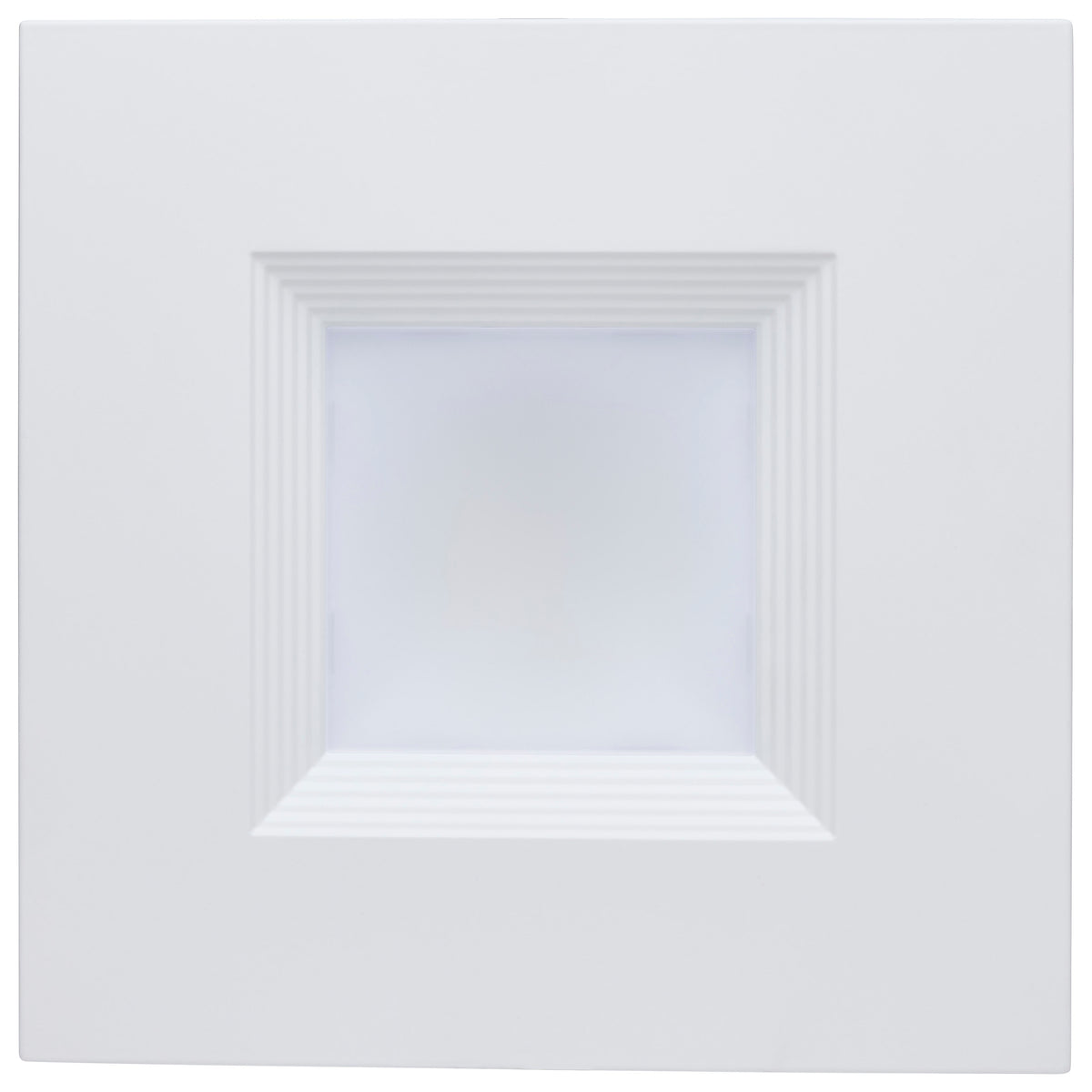

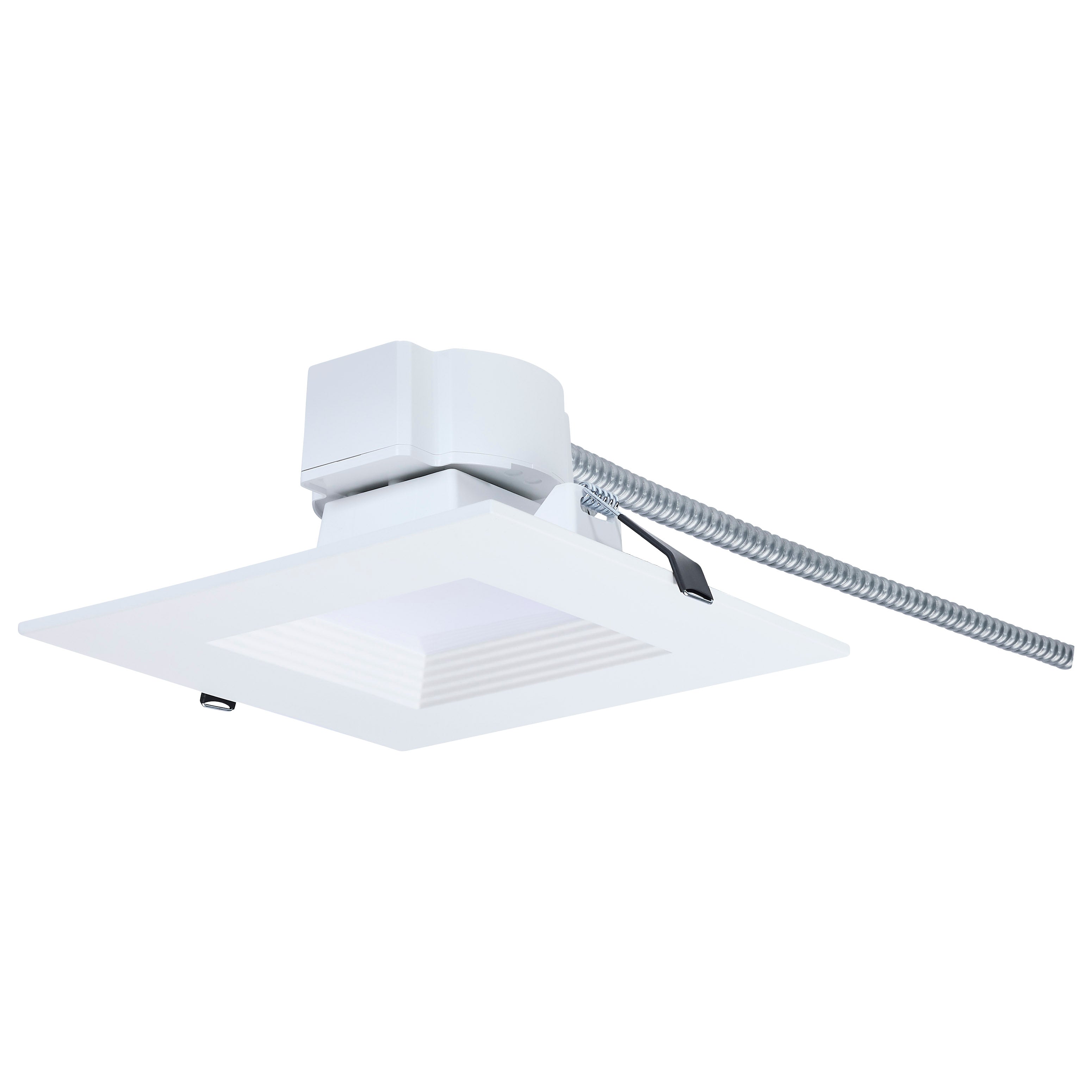

SATCO NUVO's Plus Series LED Commercial Downlight, S21609, delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 6-inch square fixture features field-selectable wattage and CCT settings, 90 CRI illumination, and dual dimming for optimal flexibility. It includes a white-painted aluminum regressed baffle and frosted lens for enhanced comfort and reduced glare. Field-installable trim accessories are available in black, bronze, or silver.

Features :-

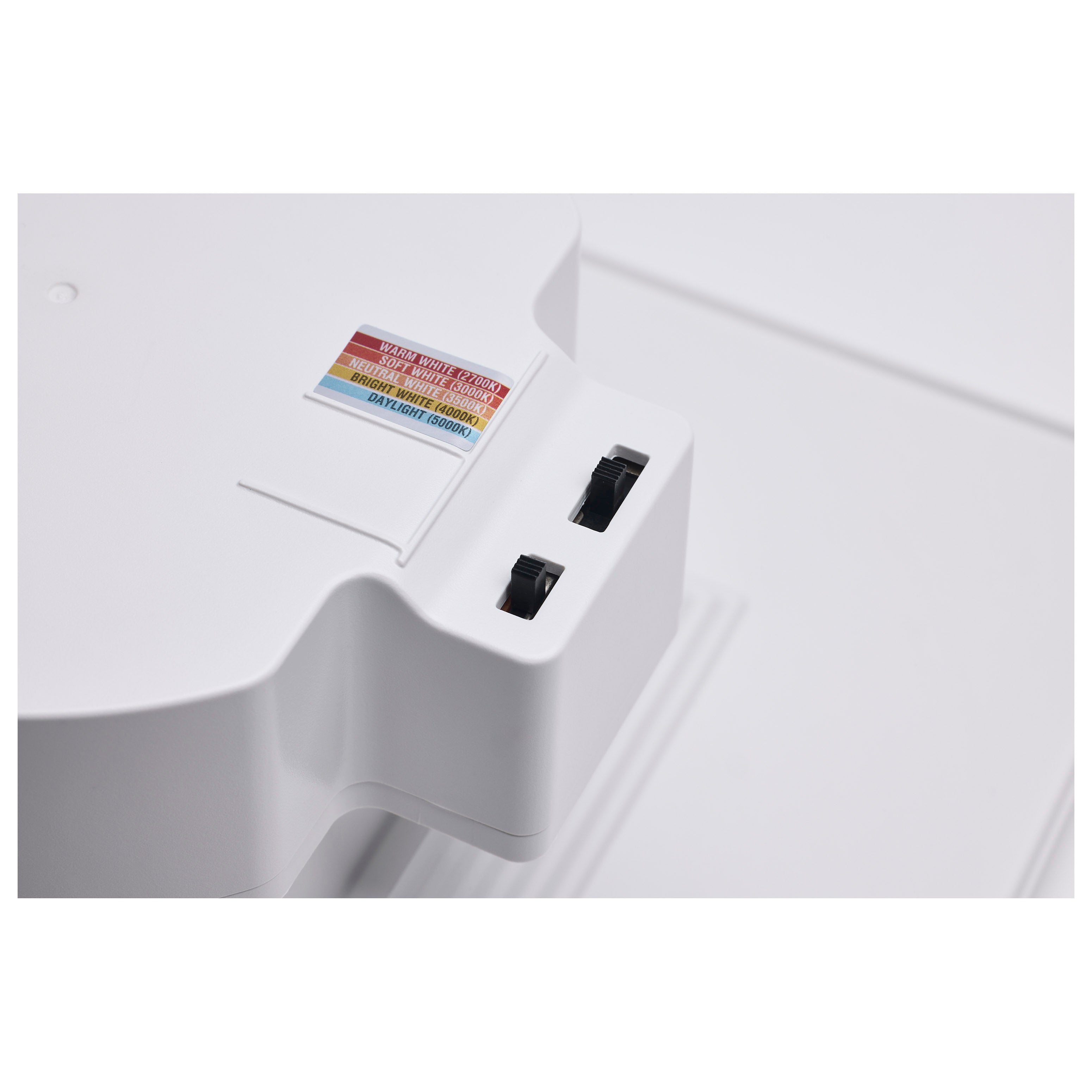

  • Field Selectable - 5 CCT and 3 Wattage
  • 6-Inch Square, Standard Model
  • Dual Dimming
  • Regress Baffle Design for Reduced Glare
  • 18 Inch Electrical Whip
  • Integrated LED Driver
  • 90 CRI
  • Wet Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty

Shipping Policy

We offer fast, reliable shipping with free shipping on eligible orders. Most in-stock orders are processed within 1–2 business days and include tracking information.Delivery times vary by shipping method and destination, with standard shipping typically arriving within 3–10 business days. Some specialty items may require additional processing time.For any shipping questions or order assistance, please contact our support team we're happy to help.

Returns & Refunds

Returns are accepted within 10 days of delivery for unused items in their original packaging. An RMA (Return Authorization) is required before returning any item. Restocking fees may apply.

 Lighting SolutionsYou Can Buy With Confidence

Wide Product Selection

Shop lighting solutions across trusted brands, applications, and project types.

Competitive Pricing

Find value for everyday purchases, replacements, renovations, and larger lighting projects.

Bulk Order Support

Planning a larger order? Request project pricing and help finding suitable products.

Lighting Experts

Need help choosing the right product? Our team can assist with your lighting requirements.

Frequently Asked Questions

Everything you need to know about the Plus Series Commercial LED Downlight - 6 Inch Square - 18.5W/15.7W/13.2W Wattage Selectable - 2700K/3000K/3500K/4000K/5000K CCT Selectable - 120-347 Volt - Dual Dimming - Color trim accessories available

Where does this LED downlight with 18.5/15.7/13.2W/2700K/3000K/3500K/4000K/5000K details fit best during renovation, replacement, or new lighting installations?

What performance should buyers expect from this LED downlight using 18.5/15.7/13.2W power and 2200/1800/1400 lumens in practice?

How should buyers interpret 2200/1800/1400 lumens with the 85-degree beam on this LED downlight before installation?

Can businesses purchase this LED downlight online with 18.5/15.7/13.2W/IP20 details for scheduLED renovation or lighting improvement work?
