Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 75W
Wattage 14.6W/13.6W/12.4W
Lumens 1200L/1000L/800L
Color Temperature 2700K/3000K/3500K/4000K/5000K
Color Rendering Index (CRI) 90+
Dimmable Yes-Dimmable
Voltage 120V-347V
Finish White
Beam Angle 85
Shape Square
Color Temperature Selectable Yes
Wattage Selectable Yes
Fixture Type Commercial Downlight Retrofit
Length 4.92 IN
Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cETLus - Listed
Electrical
Frequency 60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <30%
Surge Protection Built-in surge protection - 2.5KV
Battery Chemistry Lithium-ion (Li-ion)
Features / Controls
Emergency Backup Yes
0-10V Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Triac/Elv/Mlv Dual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Construction / Installation
Material Aluminum
Width 4.92 IN
Height 3.23 IN
Weight 3.1 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Indoor and Outdoor
Location Rating Wet
Operating Temperature +41F to +104F (+5C to +40C)
IC Rated Yes
Air Tight Yes
IP Rating IP20
Certifications / Compliance
ENERGY STAR Yes
California Title 20 Yes
Title 24 / JA8 Yes
FCC Compliant Yes
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5-Years

Choose Plus Series Commercial LED Downlight - 4 Inch Square - 14.6W/13.6W/12.4W Wattage Selectable - 2700K/3000K/3500K/4000K/5000K CCT Selectable - Integrated Emergency Driver - 120-347 Volt - Dual Dimming - Color trim accessories available when your project calls for a LED recessed downlight suited to residential, multi-family and commercial ceiling-lighting projects. This product category is commonly selected by homeowners, electricians, builders, designers and facility teams looking for commercial downlight that aligns with the way the space will actually be used. It also works well when an existing lighting layout needs a straightforward replacement or a coordinated upgrade.

A useful choice for contractors, builders and property teams planning coordinated ceiling lighting. That is especially useful in kitchens, bathrooms, hallways, offices, retail spaces and hospitality interiors. When planning a replacement or new installation, the right product category matters because each lighting type serves a different role within the space. As a LED recessed downlight, this option is well suited to projects involving retrofit downlight, LED recessed downlight and other coordinated lighting upgrades.

Supports a clean ceiling appearance while providing practical general or task illumination. For renovations and new construction where a clean recessed lighting layout is preferred, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

For buyers looking to shop canless and retrofit downlights, Plus Series Commercial LED Downlight is positioned as a practical, application-driven option. It can support a single-room update or a larger contractor purchase, making it useful for homeowners, electricians, builders, designers and facility teams sourcing lighting online for an active project.

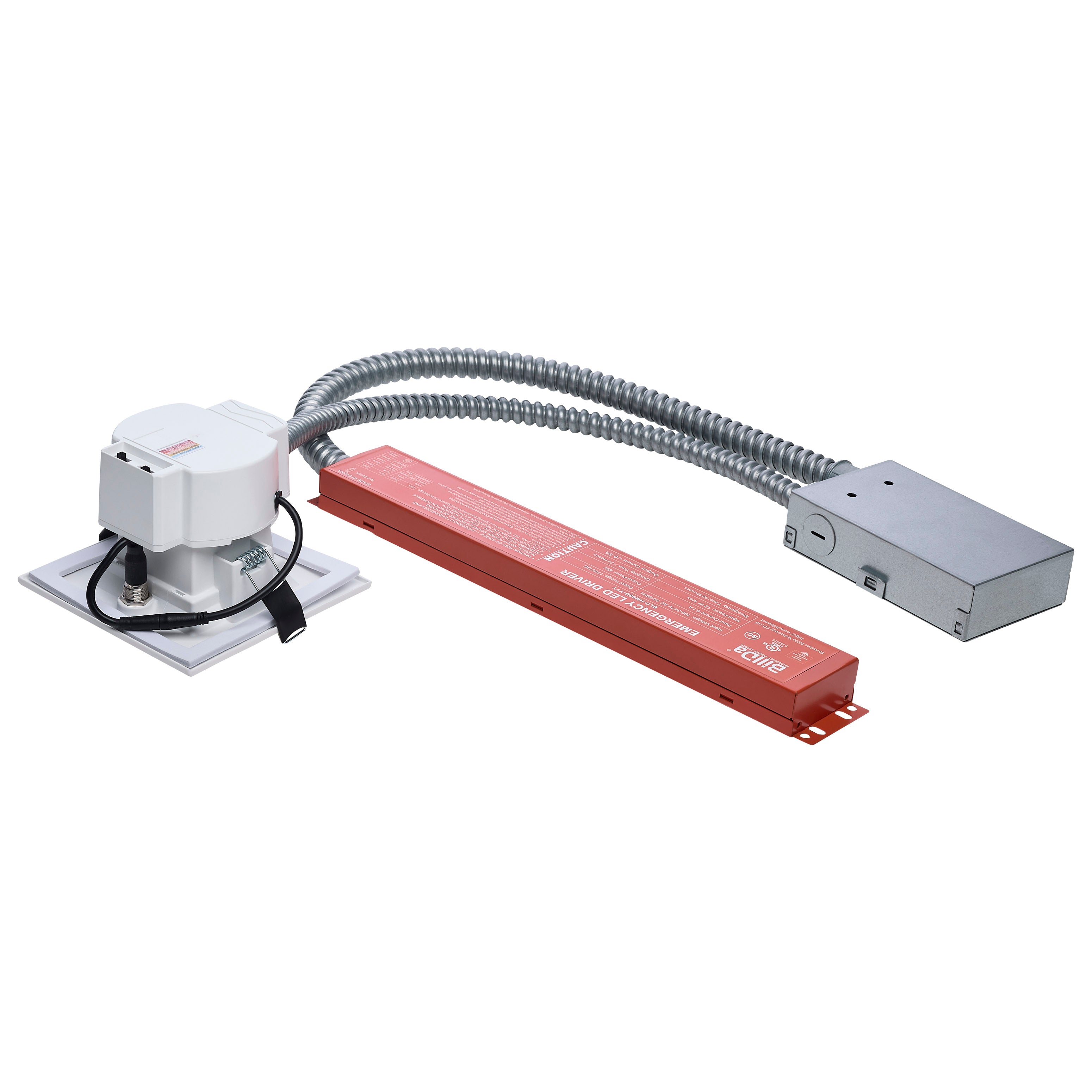

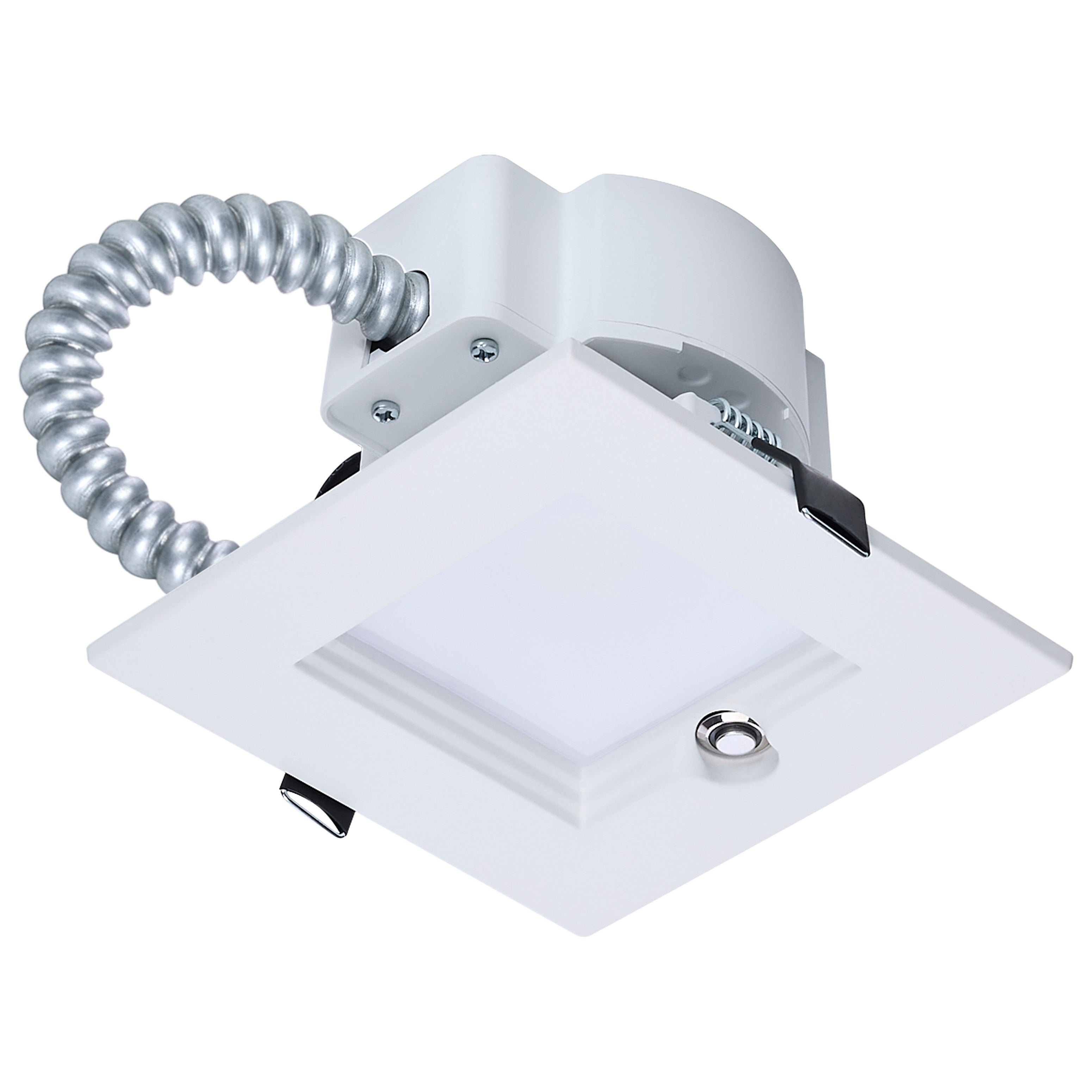

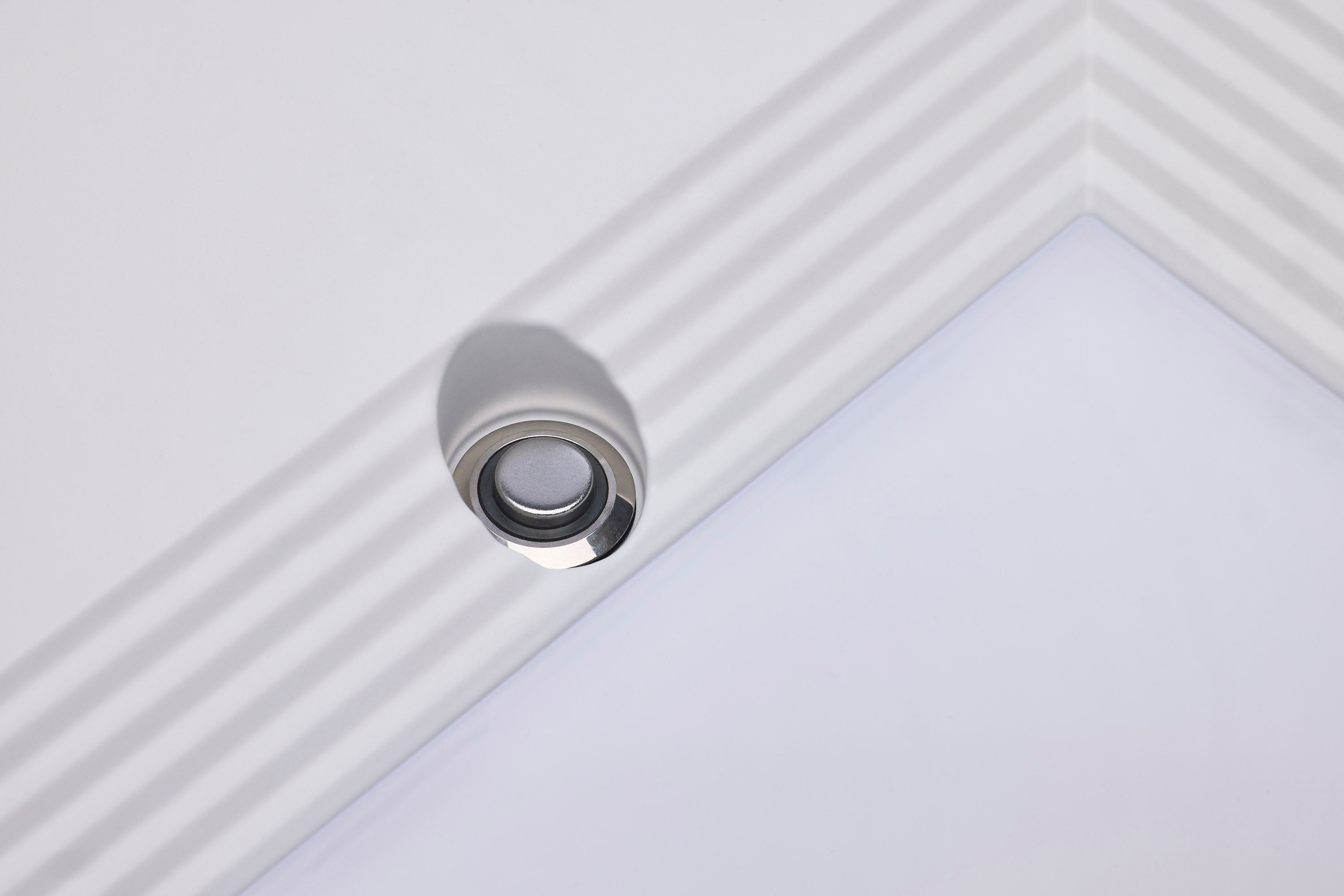

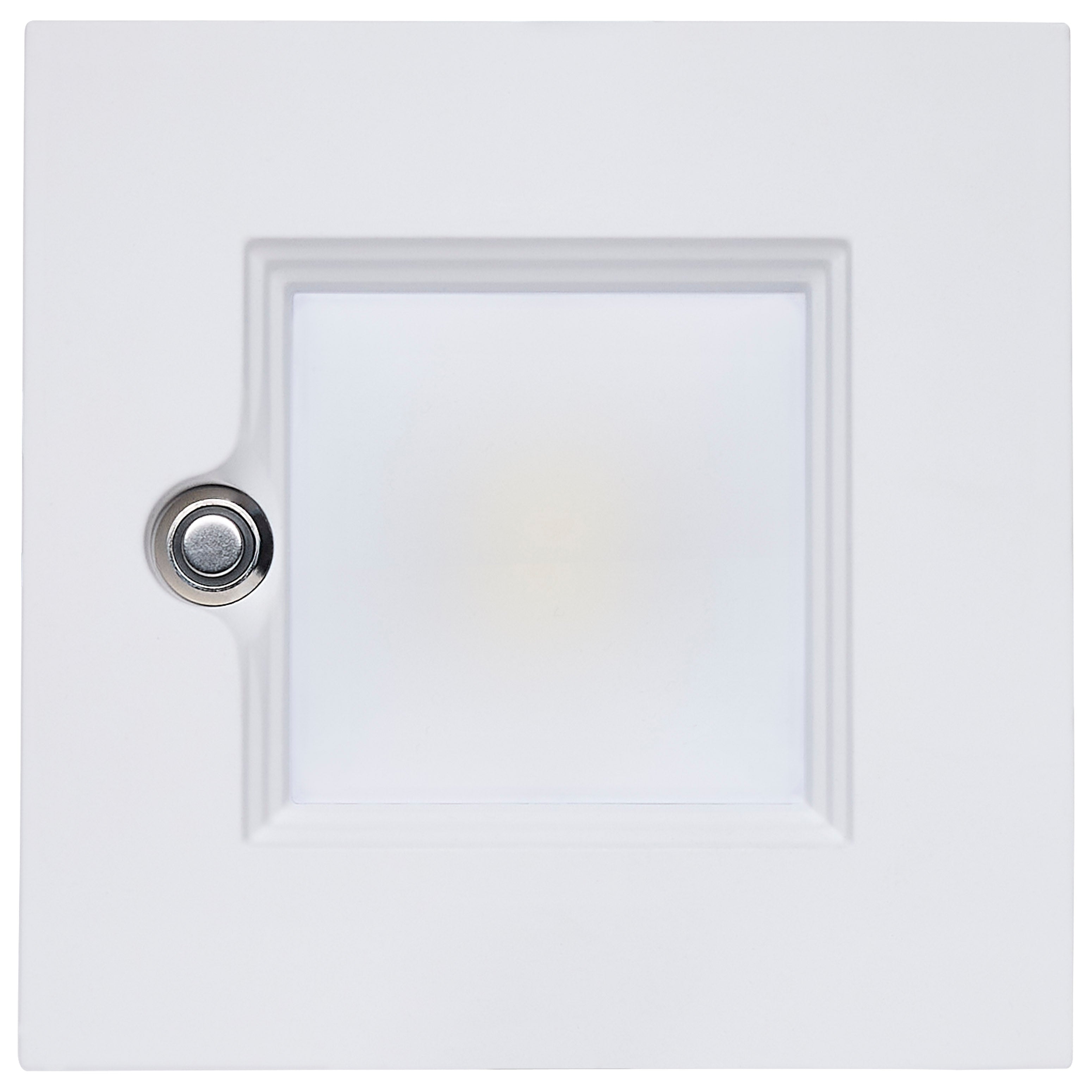

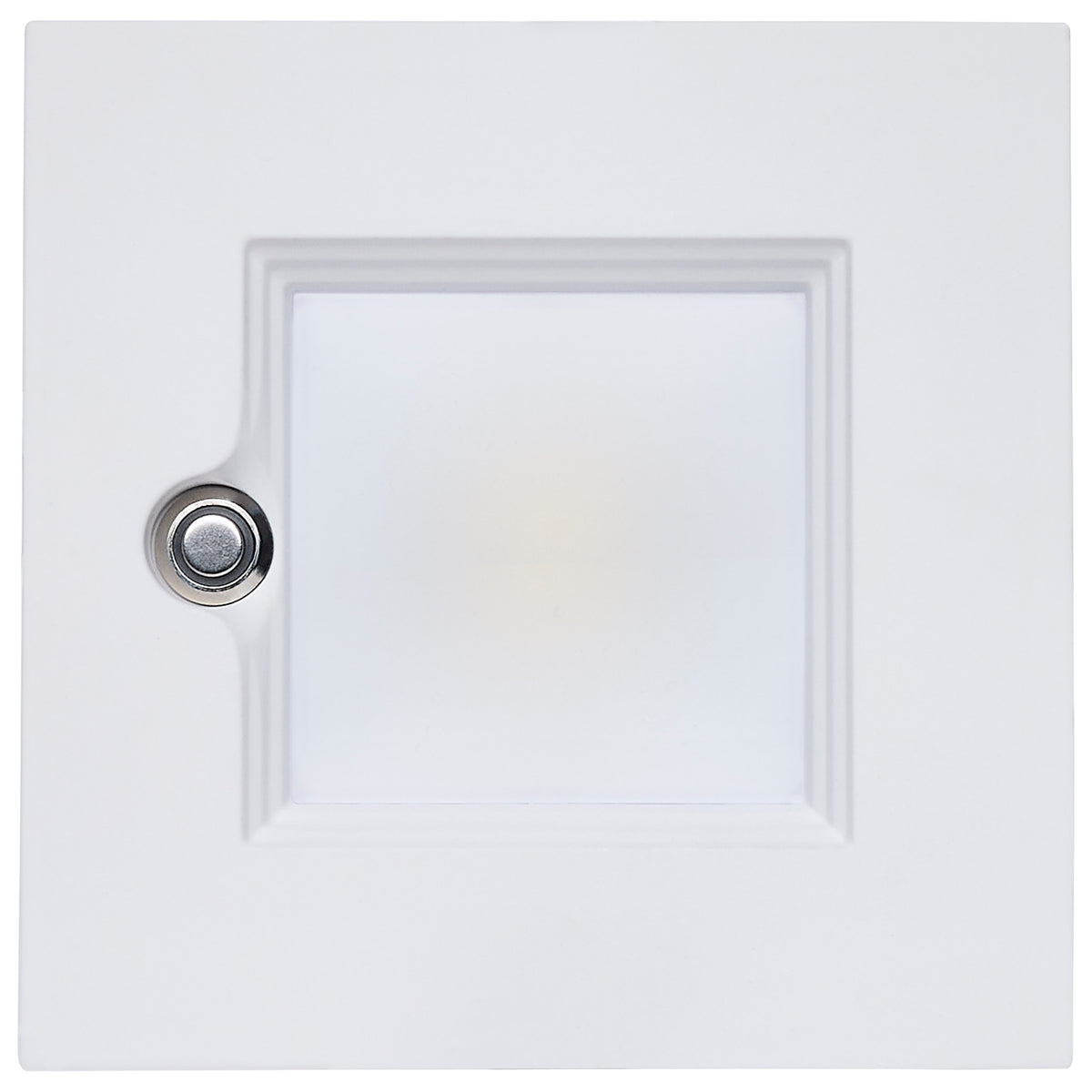

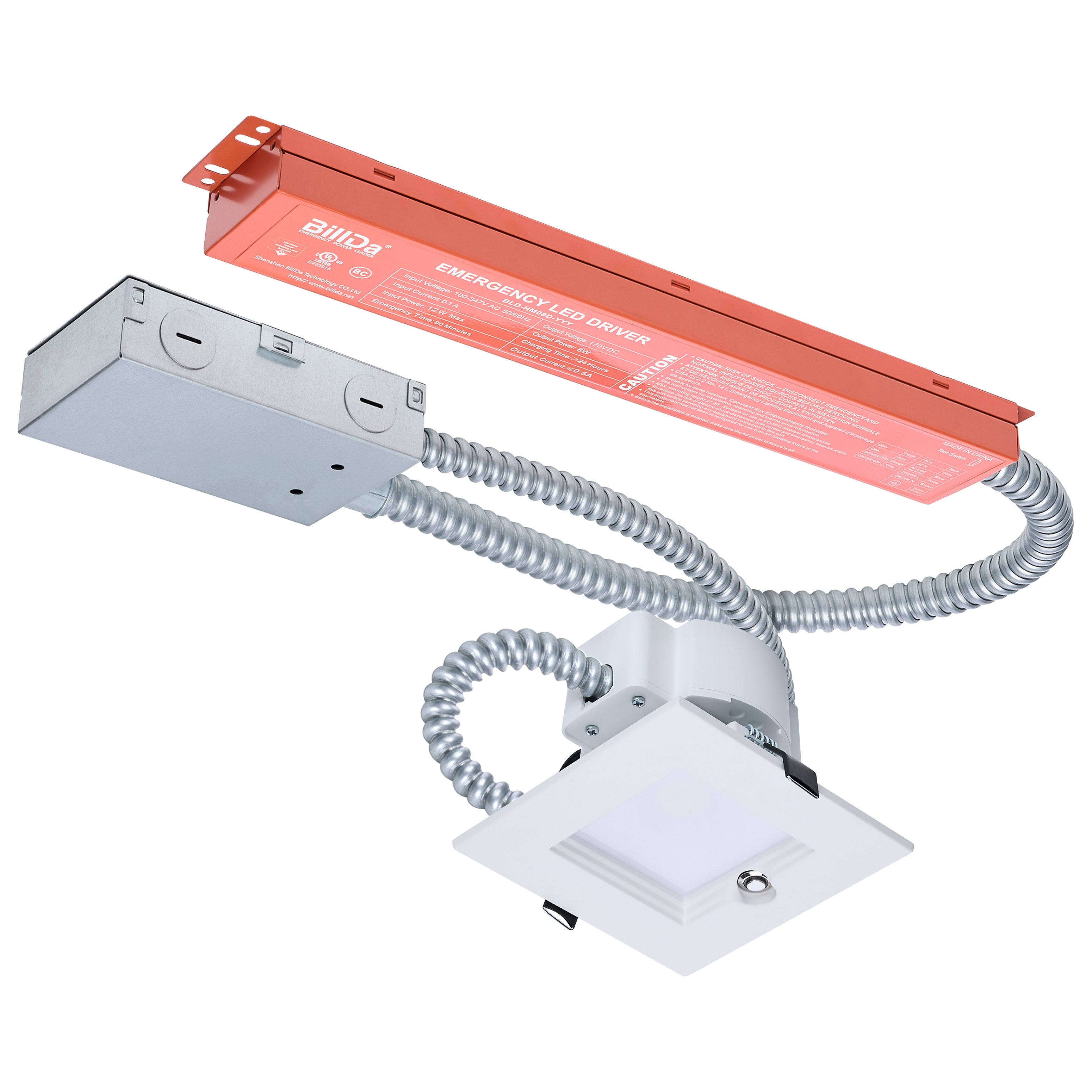

SATCO NUVO's Plus Series LED Commercial Downlight, S21612, with Emergency Battery Backup delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 4-inch square fixture features field-selectable wattage and CCT settings, 90 CRI illumination, and dual dimming for optimal flexibility. Equipped with a long-life lithium-ion battery, integrated test indicator button light, and Self-Diagnostic functionality, it provides 90 minutes of emergency runtime. A white-painted aluminum regressed baffle and frosted lens enhance comfort and reduce glare. Field-installable trim accessories are available in black, bronze, or silver.

Features :-

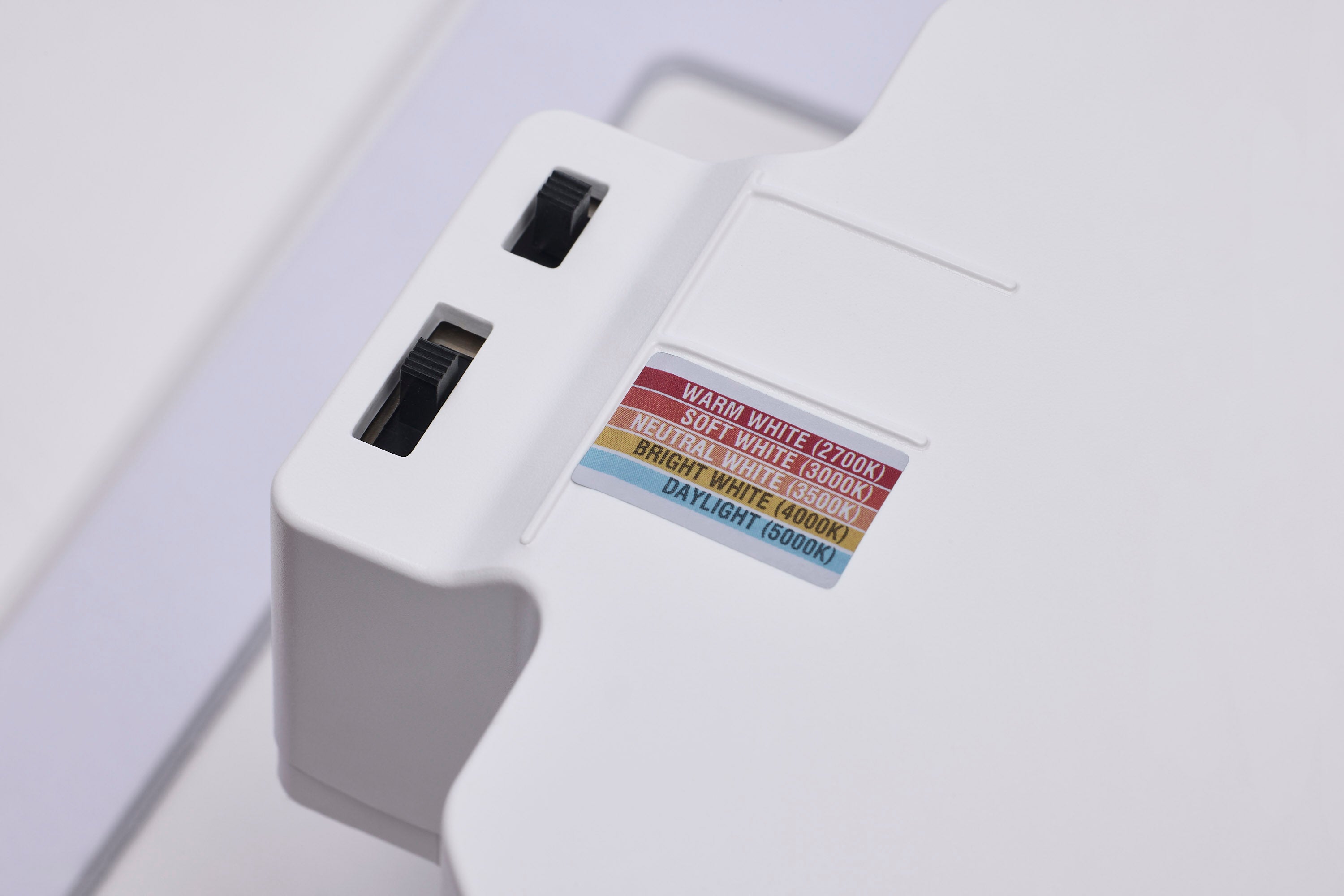

  • Field Selectable - 5 CCT and 3 Wattage
  • 4-Inch Square, Emergency Battery Backup Model
  • Dual Dimming
  • Regress Baffle Design for Reduced Glare

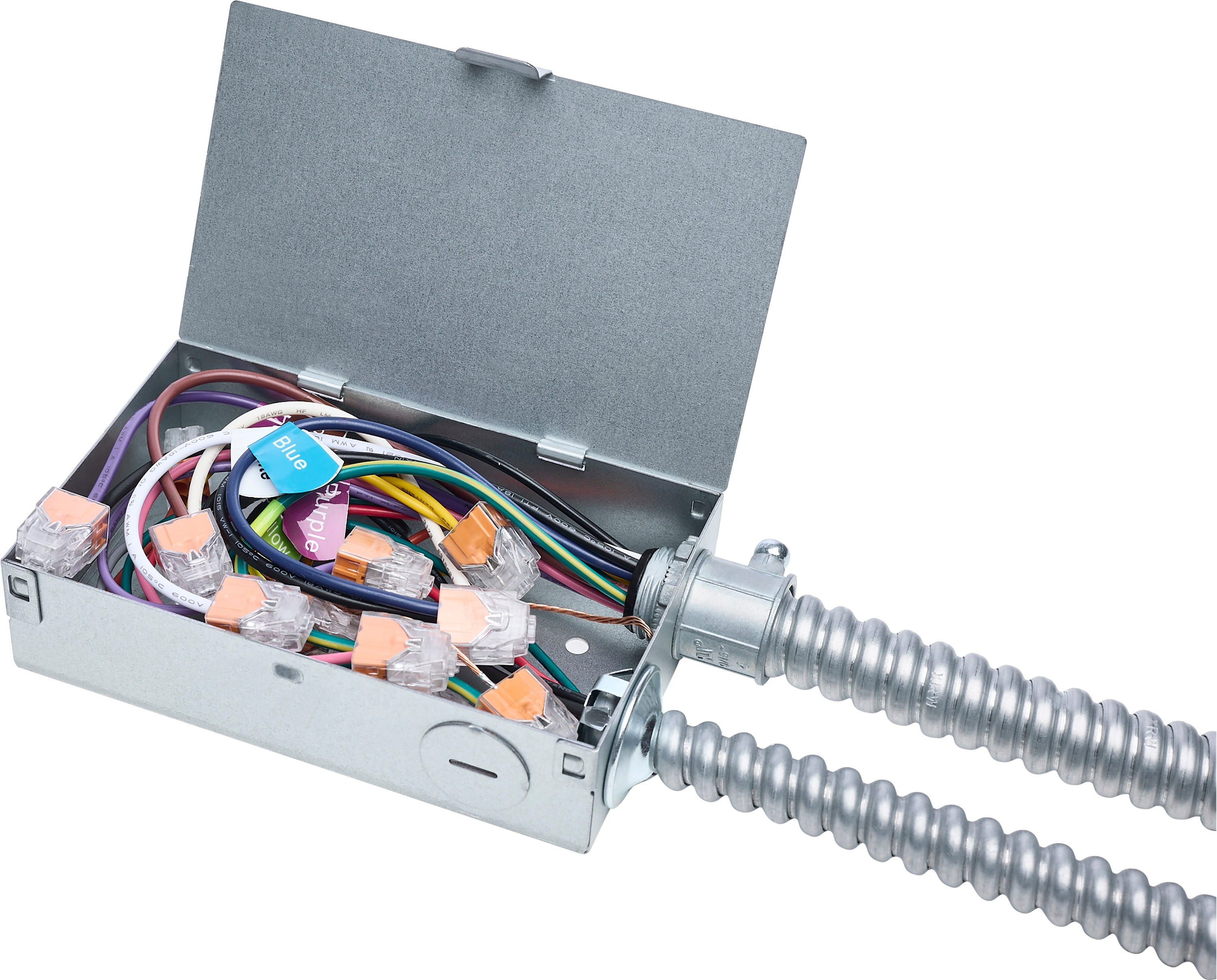

  • 18 Inch Electrical Whip
  • EM Model includes self-diagnostic emergency feature
  • 90 CRI
  • Wet Location Rated
  • 50,000 Hour Functional Life
  • 5 Year Warranty
