Specifications :-

Key Specifications
Fixture Type Linear Highbay Selectable EM
Wattage 120/160/200W
Lumens 18600/24000/30000 Lms
Color Temperature 3000/4000/5000K
Color Rendering Index (CRI) 80
Dimmable Yes
Voltage 120-277V
Performance
Rated Life 50000 hrs
Electrical
Power Factor 0.9
Dimming 0-10V
Features / Controls
Wattage Selectable Yes
Color Temperature Selectable Yes
Controls Yes
Networked Controls Yes
Emergency Backup Yes
Construction / Installation
Finish White
Material Aluminum
Length 18.9 In
Width 12.6 In
Height 4.9 In
Weight 10.8 Lbs
Mounting Type Suspension mount ready, V-hook & chain included Surface & Pendant Mt sold Separately
Environment / Ratings
Application Commercial and Industrial Applications, such as high ceiling warehouses, big box stores, gyms, and manufacturing faciliteis
Location Rating Damp
Operating Temperature -40C (-40F) to 55C (131F)
Certifications / Compliance
Safety Listing UL Listed
DLC DLC 5.1 Premium
RoHS Compliant Yes
Downloads / Pro Data
Warranty 5 Years

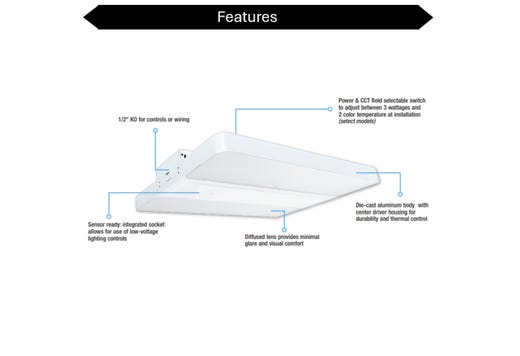

Key Features

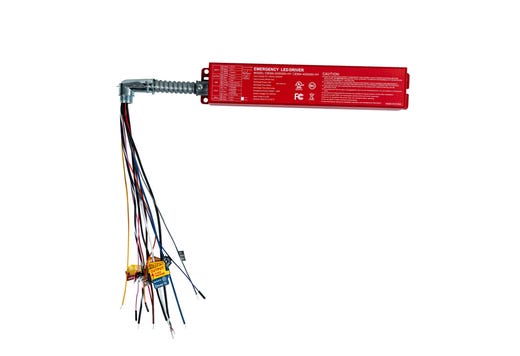

  • 90-min EM Driver Backup Battery installed

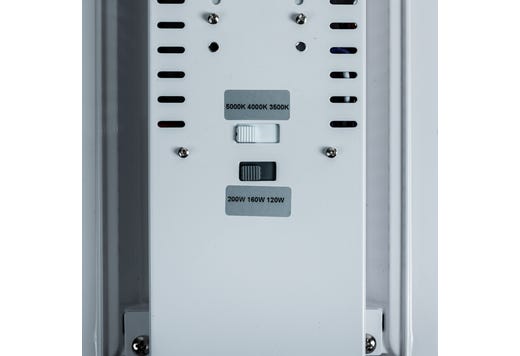

  • Power & CCT field selectable switch to adjust between 3 wattages and 2 color temperature at installation
  • Die-cast aluminum body with center driver housing for durability and thermal control
  • Diffused lens provides minimal glare and visual comfort 90 Degree Wide Beam
  • Sensor ready integrated socket allows for use of low-voltage lighting controls
  • Standalone Sensor and Remote or Bluetooth Sensor (Sharkward App) sold separately
  • For dimming with sensor - hardwired sensor OS-PIR-UNV 120-227V only is required contact Halco
  • Suspension mount ready, V-hook & chain included Surface & Pendant Mt sold Separately

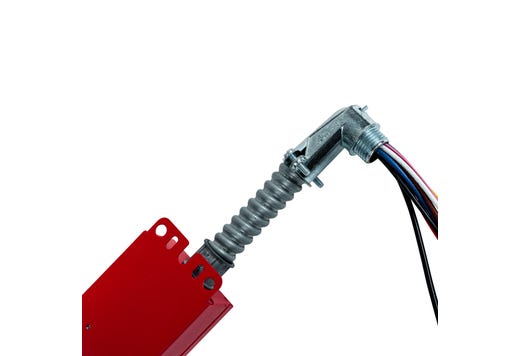

  • 6kv Surge Protection and 1/2in KO for controls or wiring
