Specifications :-

Key Specifications
Bulb Shape / Type Integrated LED
Base Integrated
Incandescent Equivalent 300W
Wattage 60W/75W/90W
Lumens 7920L-12557L
Color Temperature 3000K/4000K/5000K
Color Rendering Index (CRI) 80+
Dimmable Yes-Dimmable
Voltage 120V-277V
Finish White
Beam Angle 190
Shape Square
Color Temperature Selectable Yes
Wattage Selectable Yes
Light Distribution B3-U4-G5
Fixture Type Canopy
Length 9.57 IN
Photocell Optional Add-On

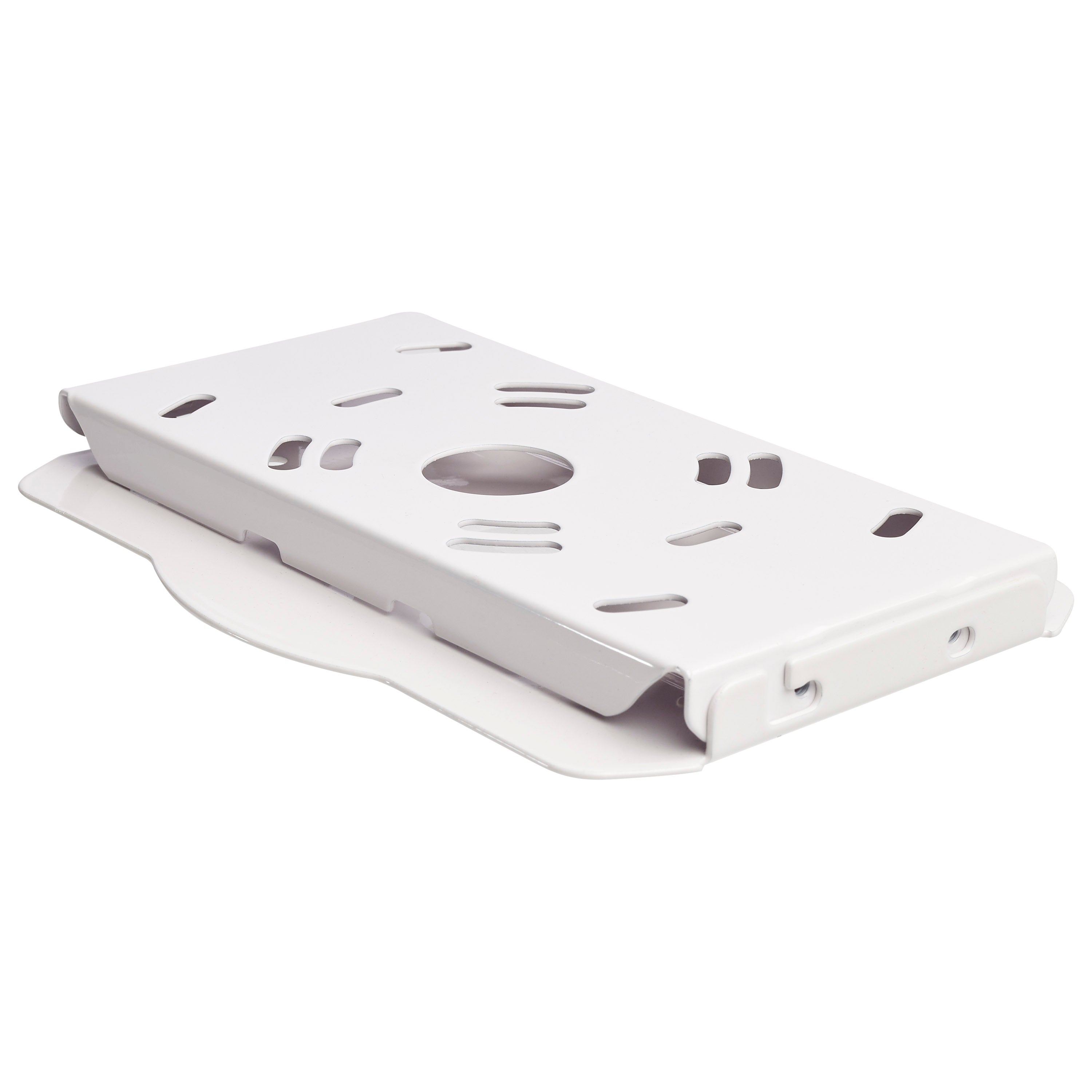

Mounting Type Ceiling
Performance
Rated Life 50000 hrs
Light Color Description Warm White to Natural Light
Safety Listing cULus - Certified
Electrical
Frequency 50/60Hz
Power Factor >0.9
Total Harmonic Distortion (THD) <20%
Surge Protection Built-in surge protection - 6KV
Features / Controls
0-10V 0-10V Dimming
Construction / Installation
Material Die-Cast Aluminum
Width 9.57 IN
Height 3.62 IN
Weight 4.47 lbs
Lens / Diffuser Polycarbonate (PC)
Connector / Base Hardwire
Lamp Included/Base If Lamp-Ready Integrated
Environment / Ratings
Application Outdoor
Location Rating Wet
Operating Temperature -40F to +122F (-40C to +50C)
IP Rating IP65
Certifications / Compliance
California Title 20 Exempt
FCC Compliant Yes
RoHS Compliant Yes
DLC Yes
Downloads / Pro Data
Warranty 5-Years

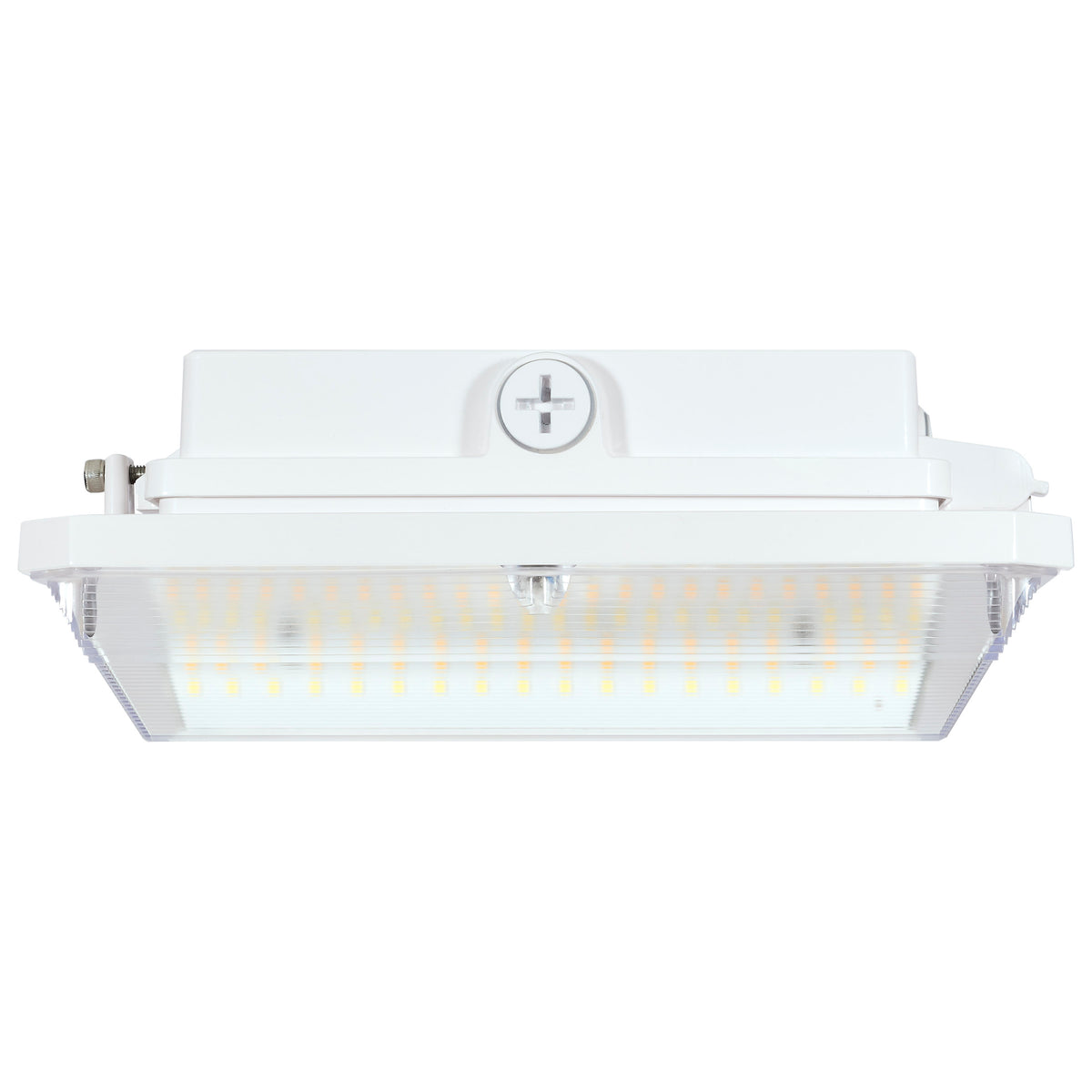

Square LED - Wide Beam Angle Canopy Light - 3K/4K/5K CCT Selectable - 60W/75W/90W Wattage Selectable - White Finish brings the familiar role of a commercial utility light to parking structures, covered entries, utility spaces, service areas and demanding commercial environments. It is a practical choice for customers comparing LED canopy light and commercial utility lighting for renovation, replacement or new-project needs. Rather than relying on a one-size-fits-all lighting approach, this product belongs in applications where the fixture or lamp type itself is an important part of the overall lighting plan.

A strong fit for back-of-house and utility-focused projects requiring repeatable overhead or surface lighting. It is well suited to maintenance areas, back-of-house spaces and locations that call for practical fixture construction, where lighting needs to support the space rather than distract from it. This makes the product a practical commercial utility lighting choice for customers also considering industrial light fixture as part of maintenance, renovation or new construction. Its value comes from matching the product family to the intended lighting application.

Supports functional lighting plans for spaces that experience regular traffic, maintenance or exposure. For commercial projects where dependable general lighting is more important than decorative styling, that can make selection and purchasing decisions easier because the product is being chosen for a defined lighting role. It can serve as a replacement item, a project component, or part of a broader lighting refresh without forcing unrelated features into the decision.

If you are ready to order utility lighting for facility projects, Square LED offers a focused choice for customers who already know the lighting application they need to solve. Shop it for replacement work, remodeling, new construction or ongoing property maintenance, and compare it with other compatible products in the same lighting family before placing your order.

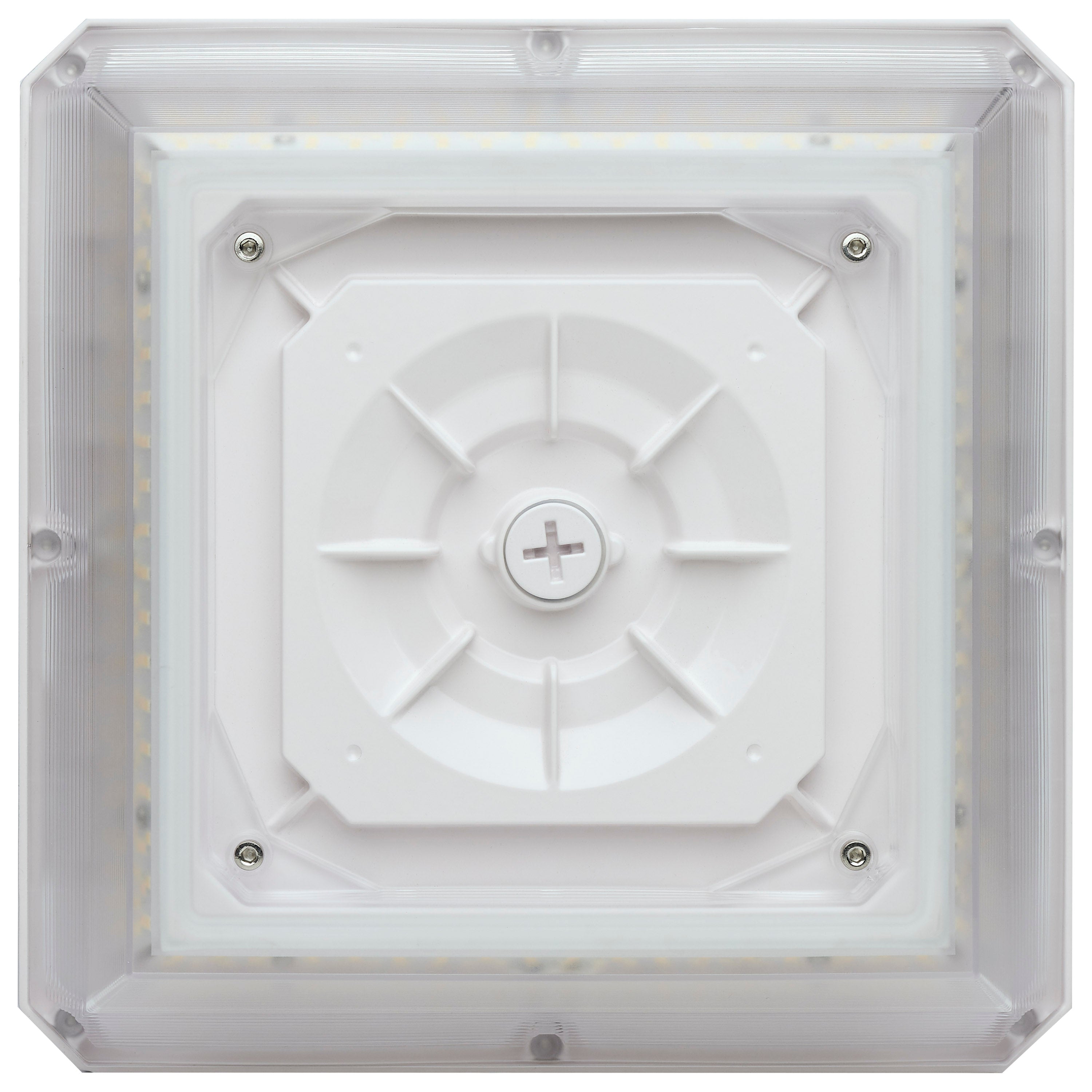

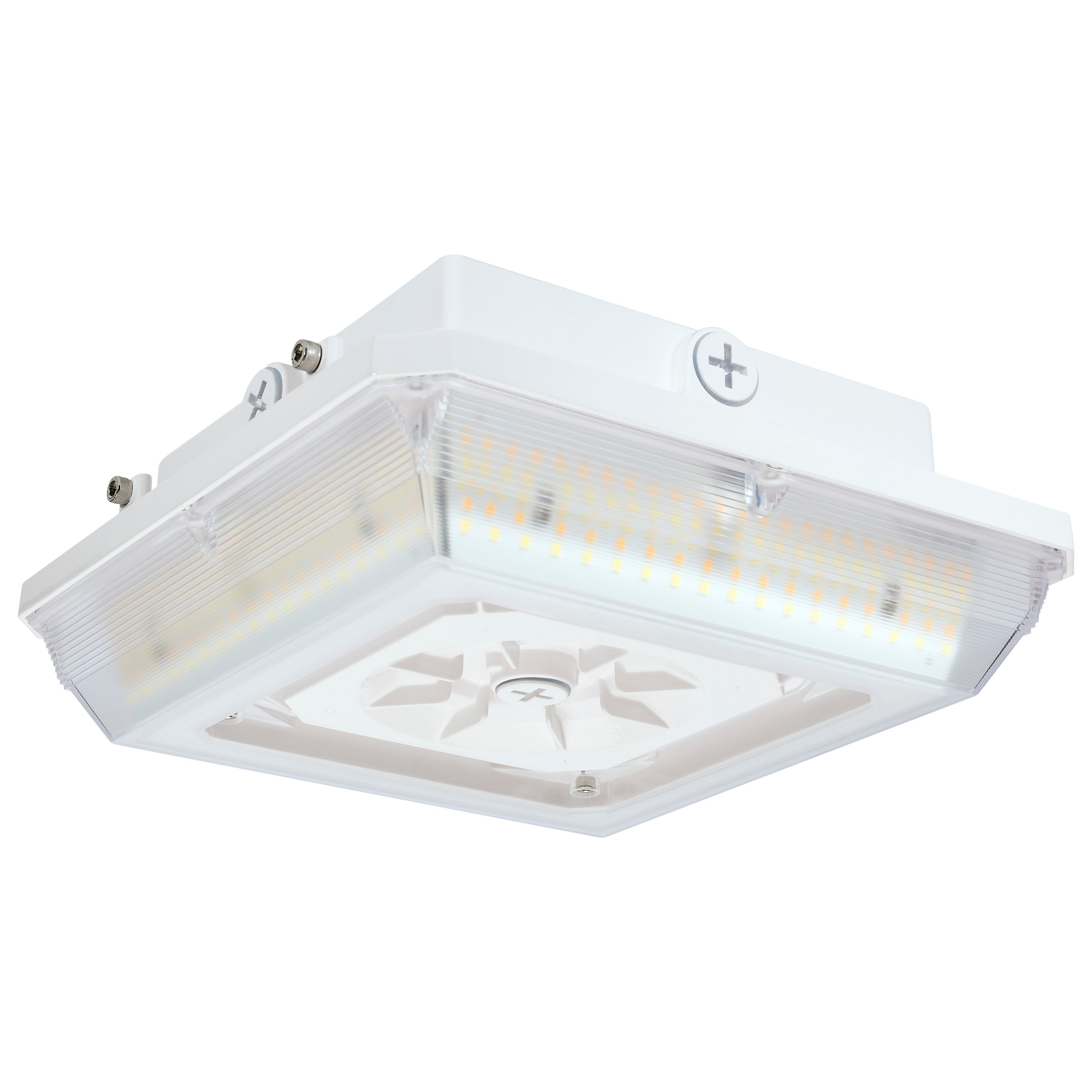

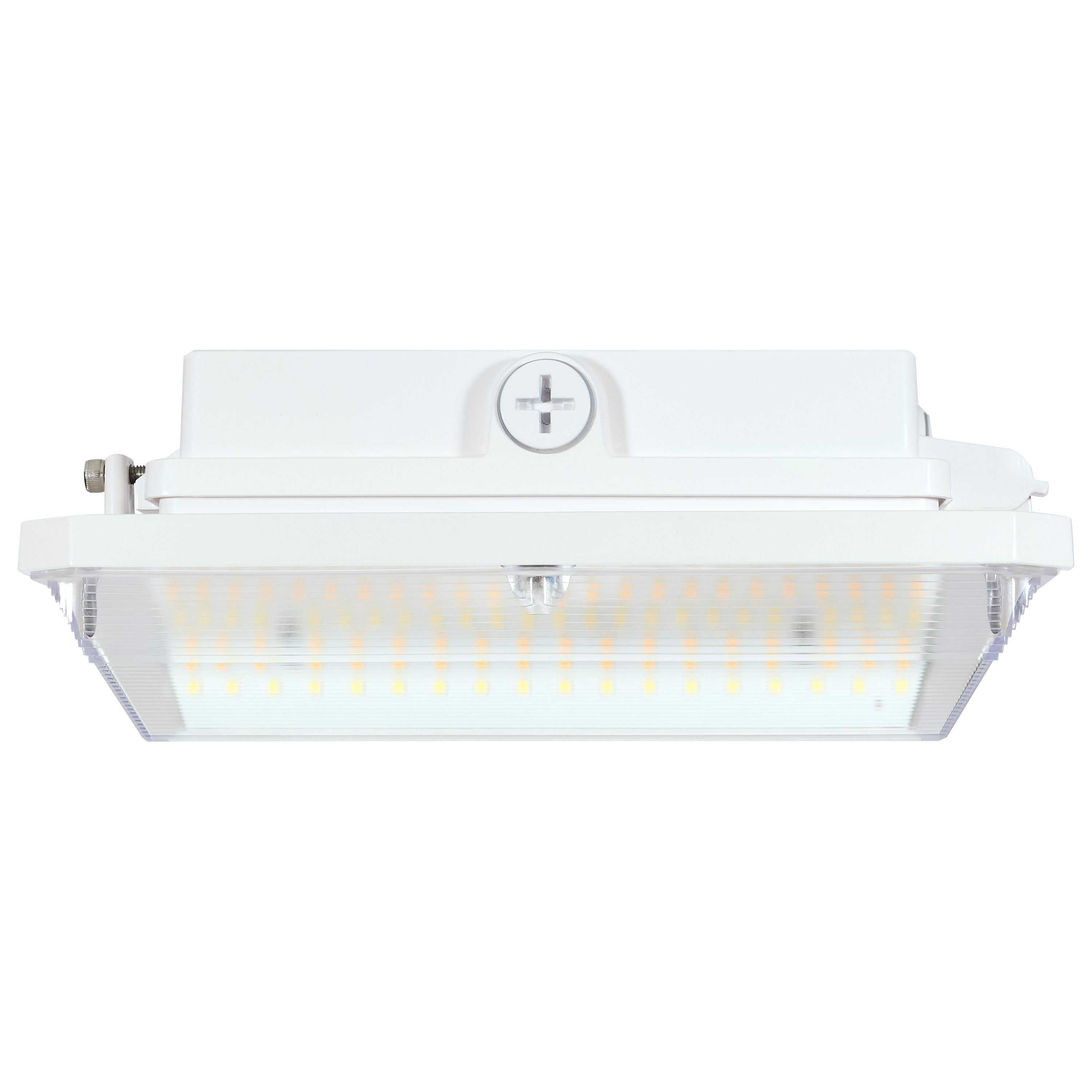

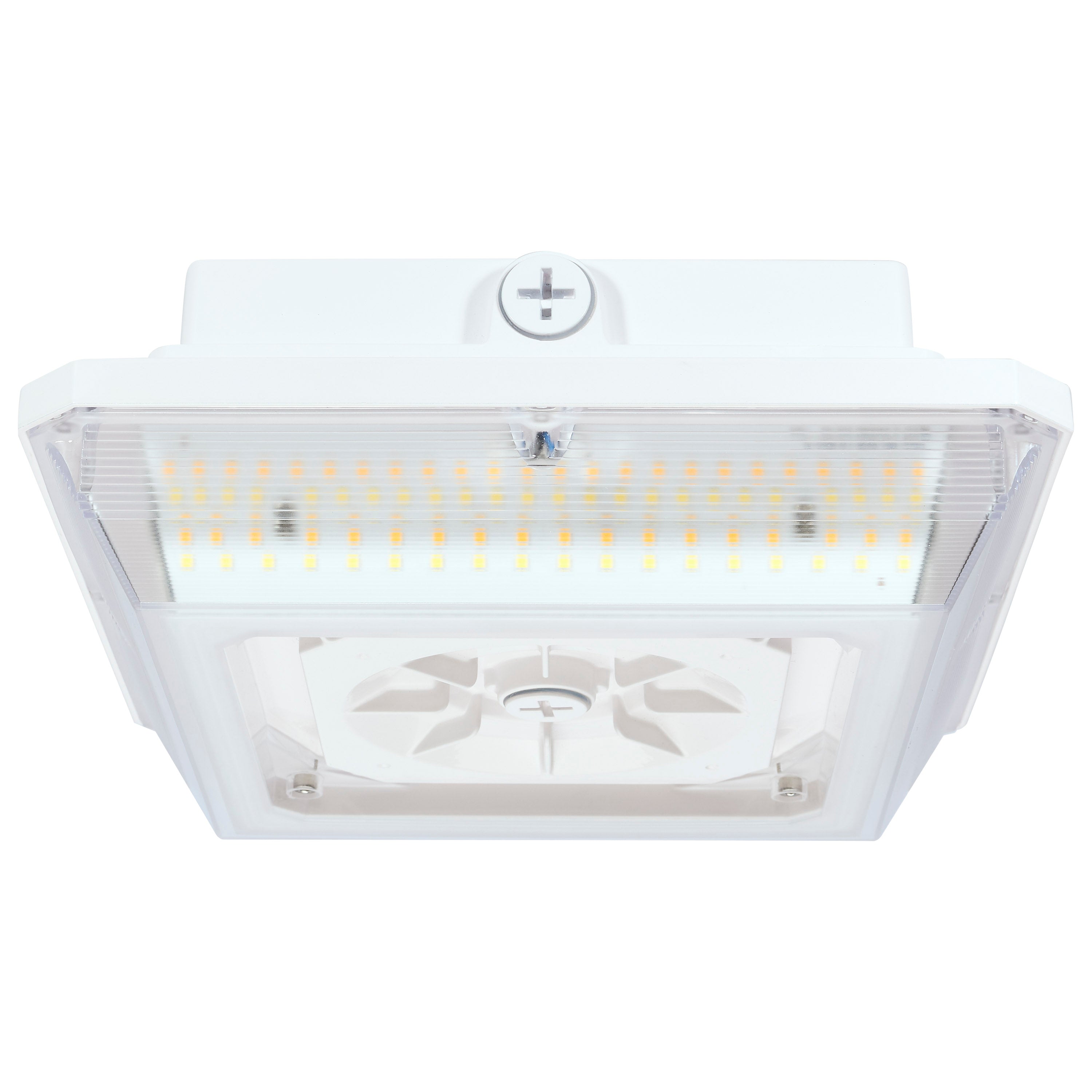

SATCO NUVO's 65-635 LED Wide Beam Angle Canopy, offers cutting-edge field-selectable capabilities. Tailor your lighting experience by selecting from three color temperatures (3K, 4K, 5K) and three wattage options (60W, 75W, 90W.) The canopy comes in a sleek white finish and boasts a surge protection of 2.5kV, ensuring enhanced durability. The integrated sensor port makes the installation of optional motion sensors, sold separately, a breeze. Additionally, the canopy is designed with an IK10 rated vandal-resistant lens to withstand damage, and it proudly carries an IP65 rating, safeguarding against harsh elements in even the most demanding environments.

Features :-

  • Wide Beam Angle for Broad Light Coverage
  • 3 CCT Selectable
  • 3 Wattage Selectable

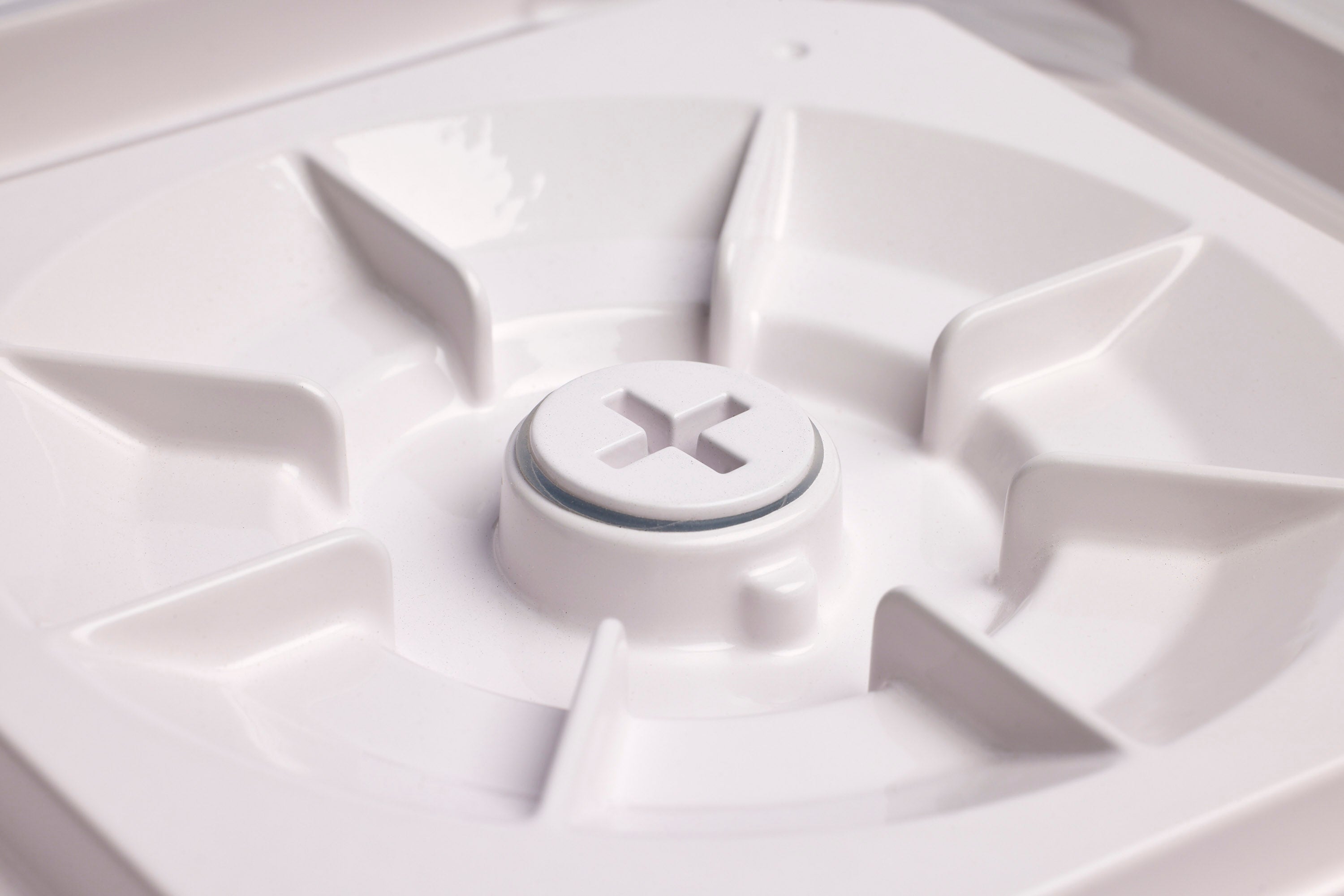

  • Integrated Sensor Port

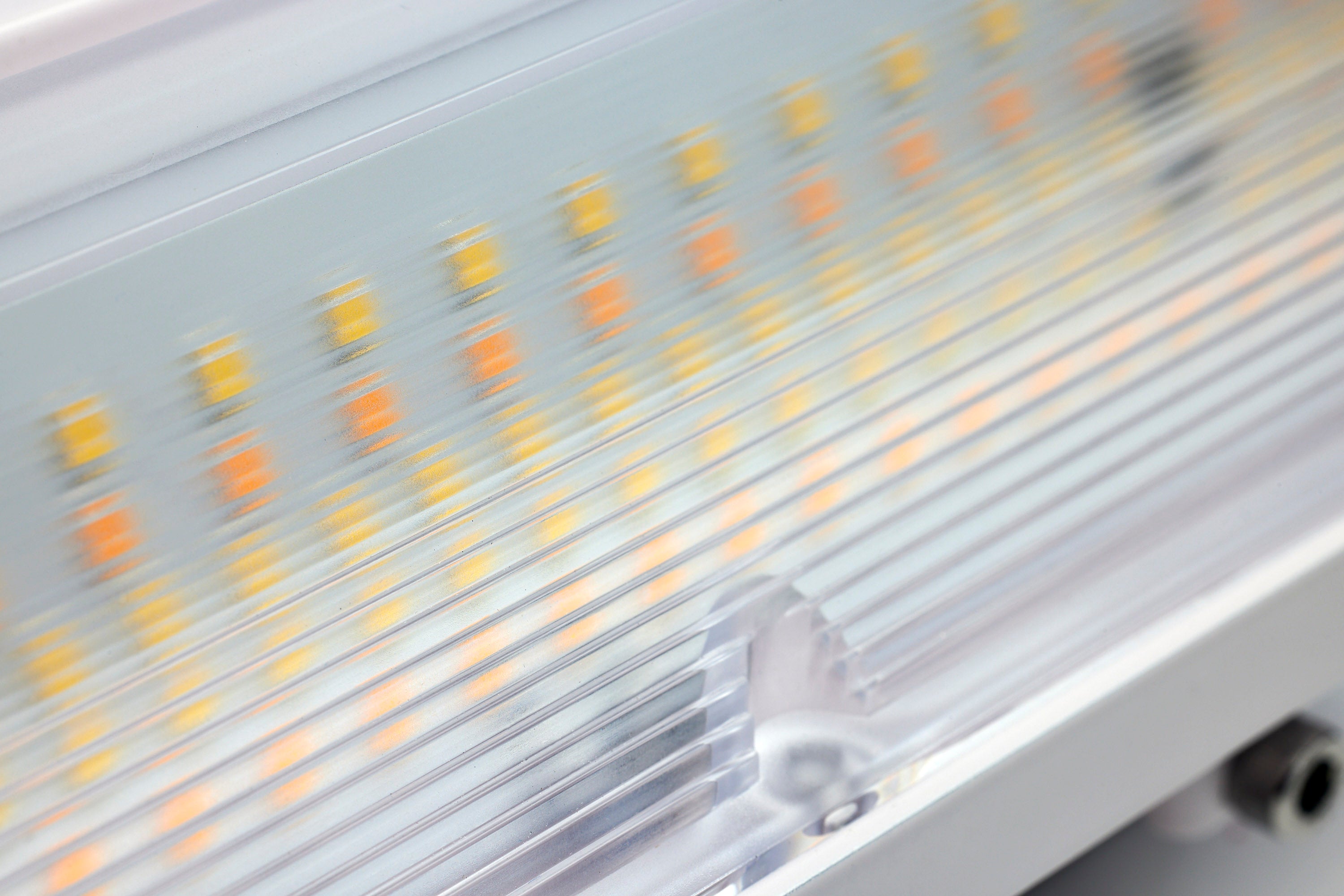

  • IK10 Vandal Resistant Lens
  • EM Battery Backup Capable
  • 0-10V Dimmable
  • 6kV Built-in Surge Protection
  • White Finish
  • L:9.57 inches W:9.57 inches H:3.62 inches
